SMALLRIG VIDEO HEAD CH3 4936
- Compact, high load-bearing capacity.
- Enables switch between horizontal and vertical shooting.
- Built-in threaded hole for attaching other accessories.

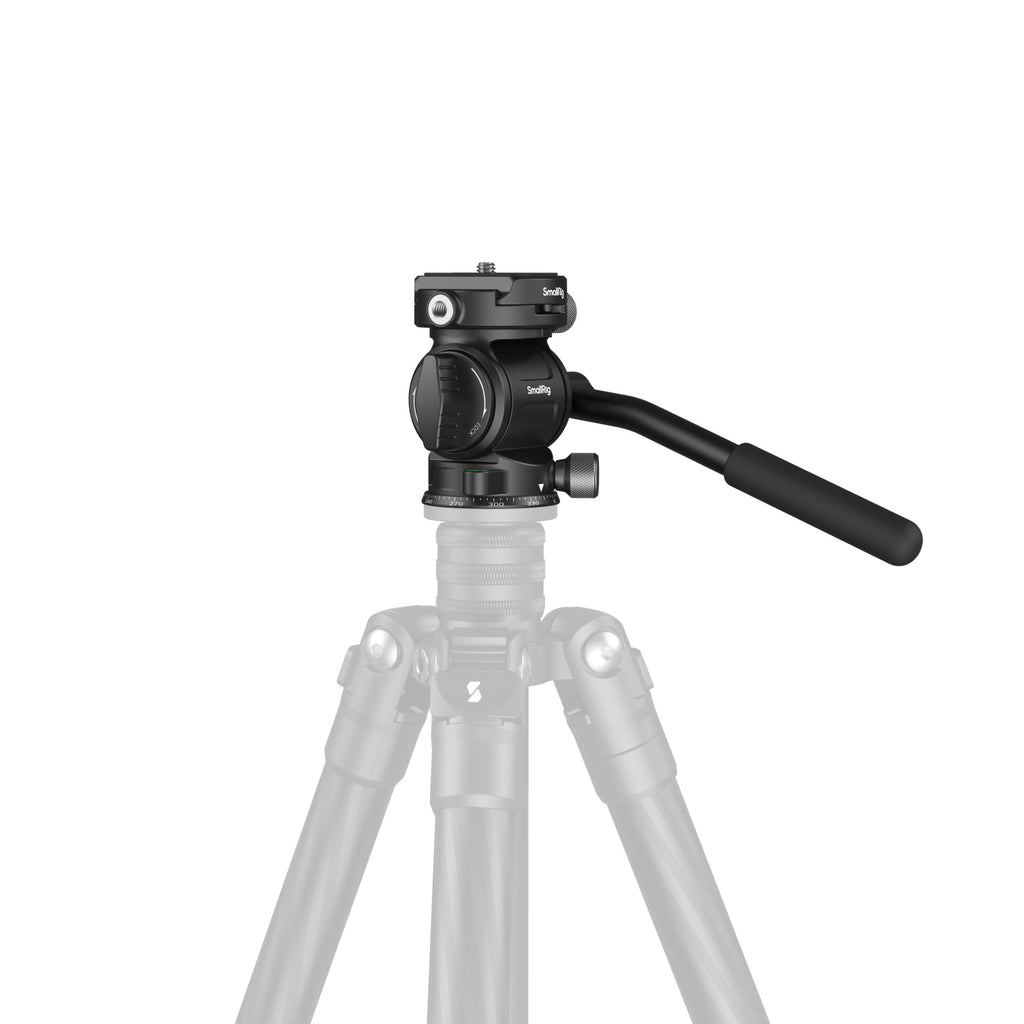

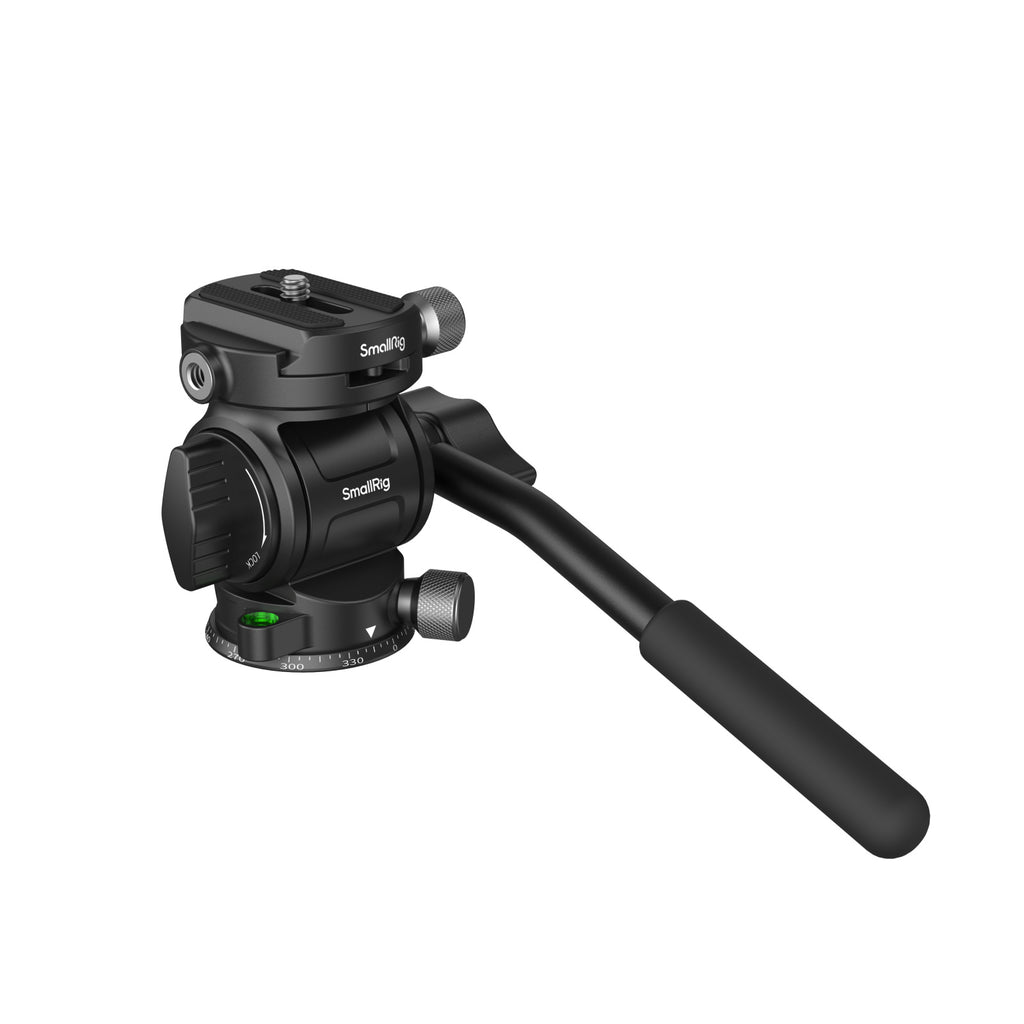

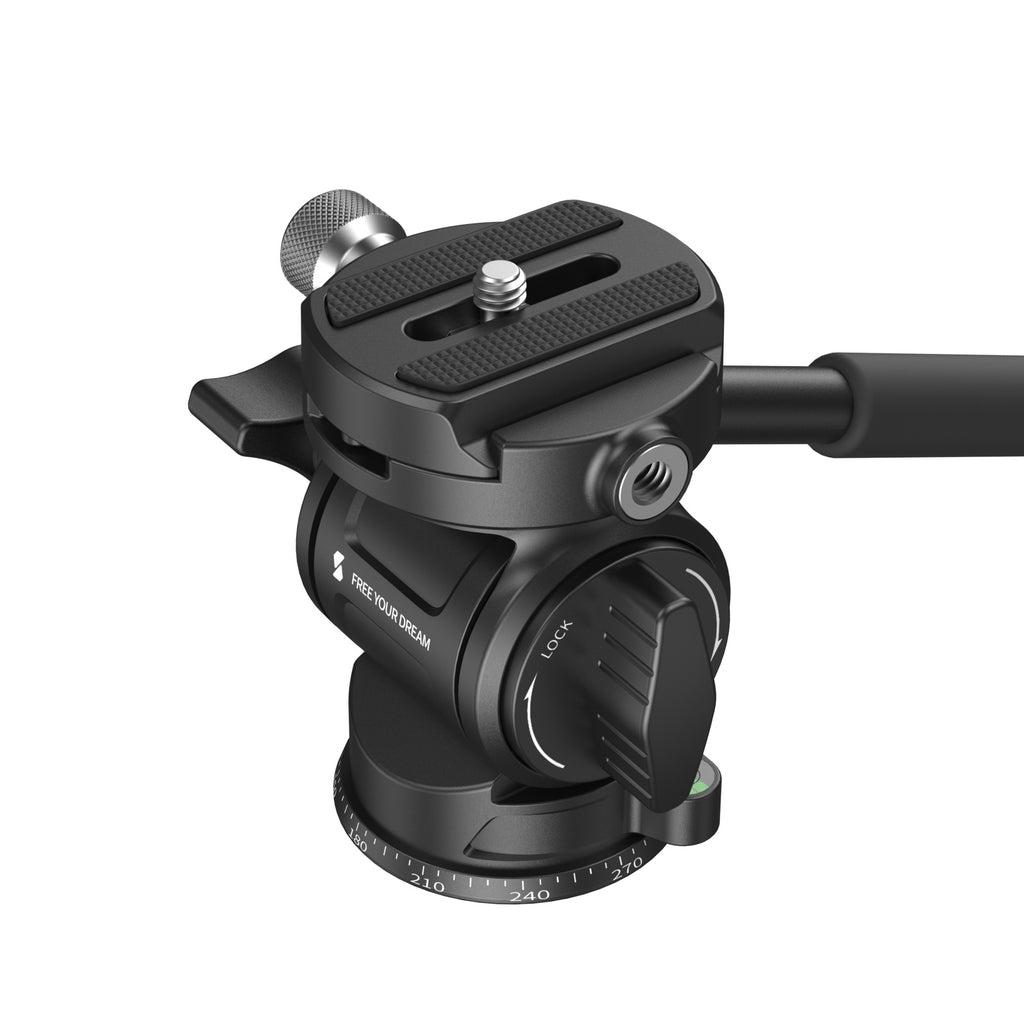

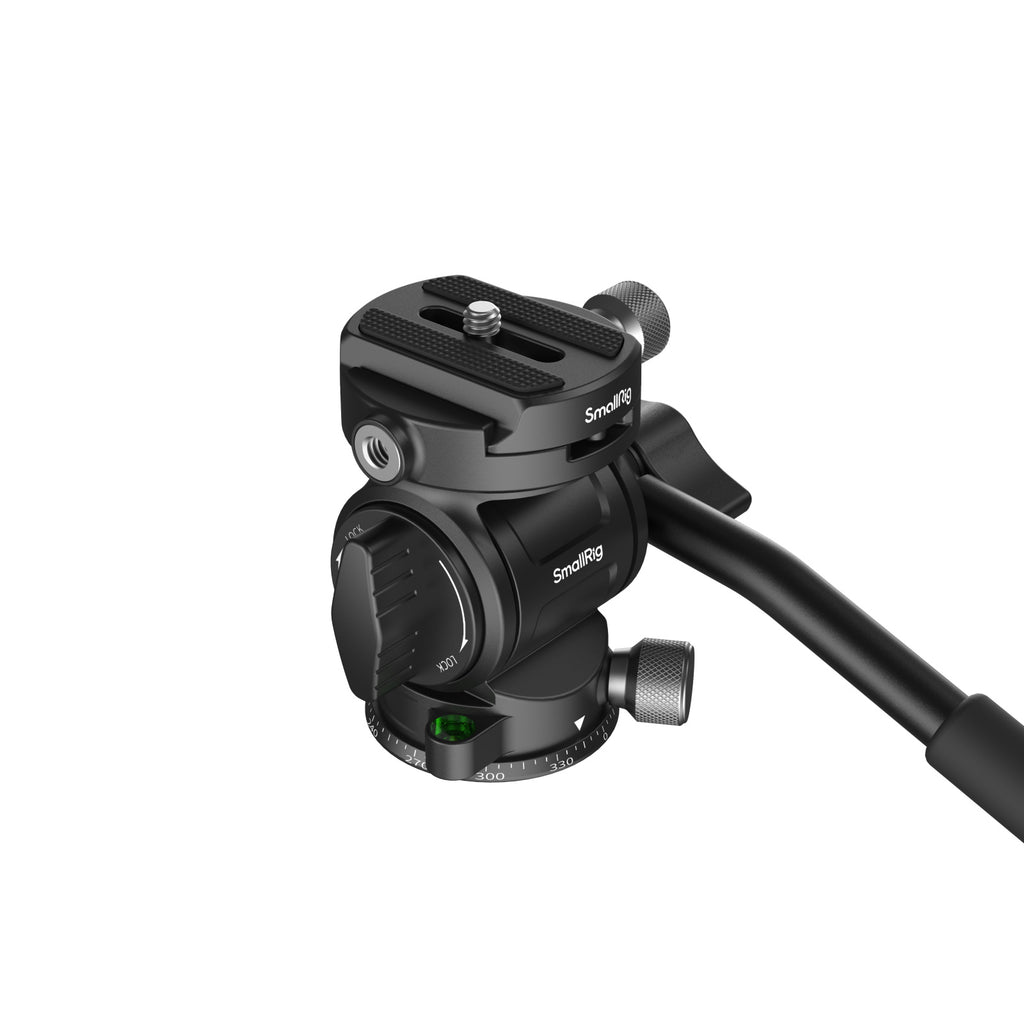

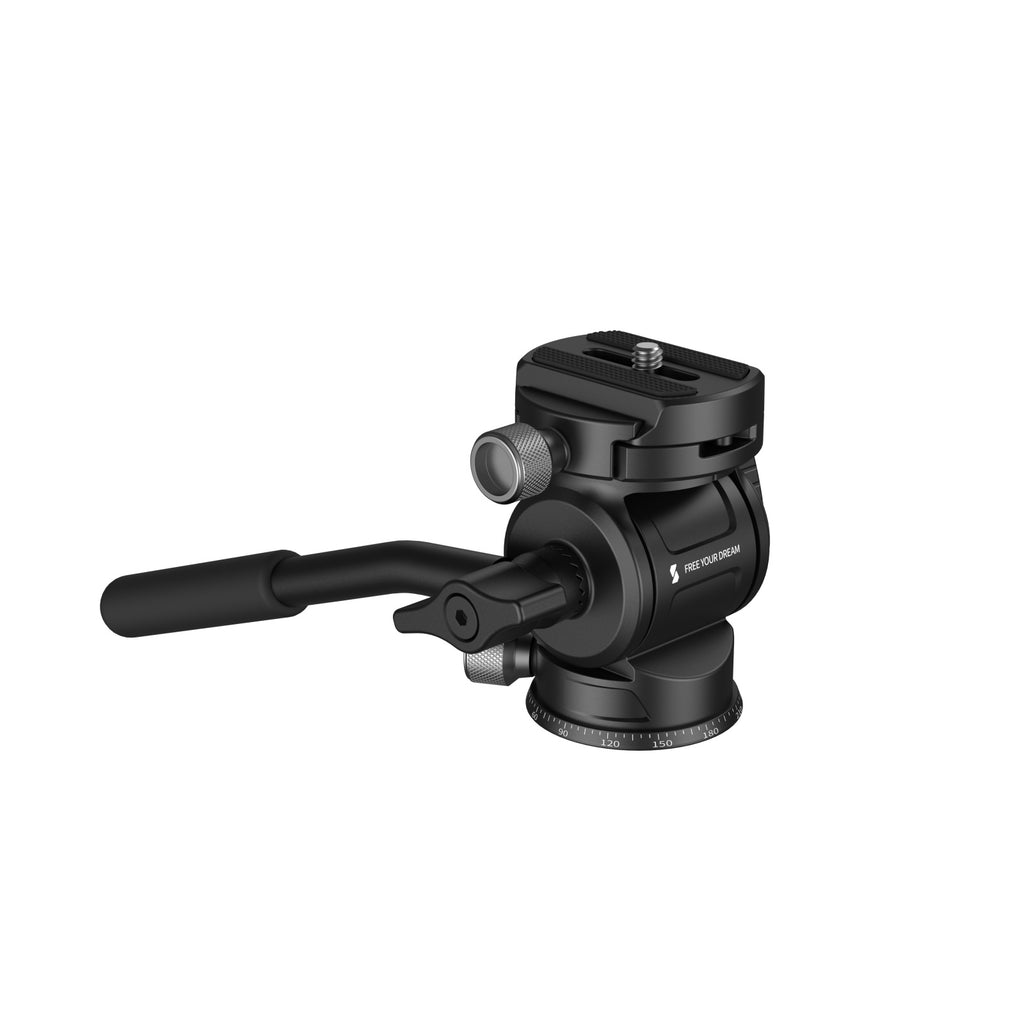

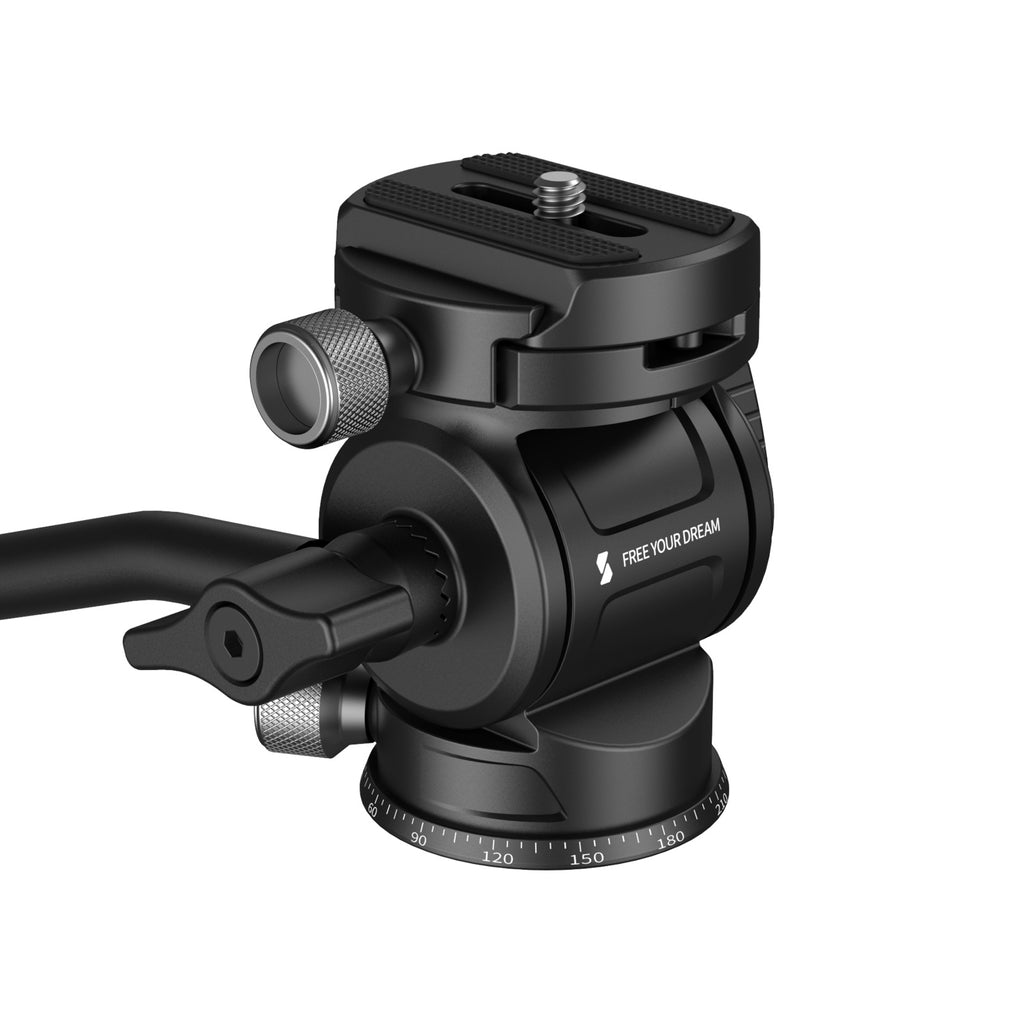

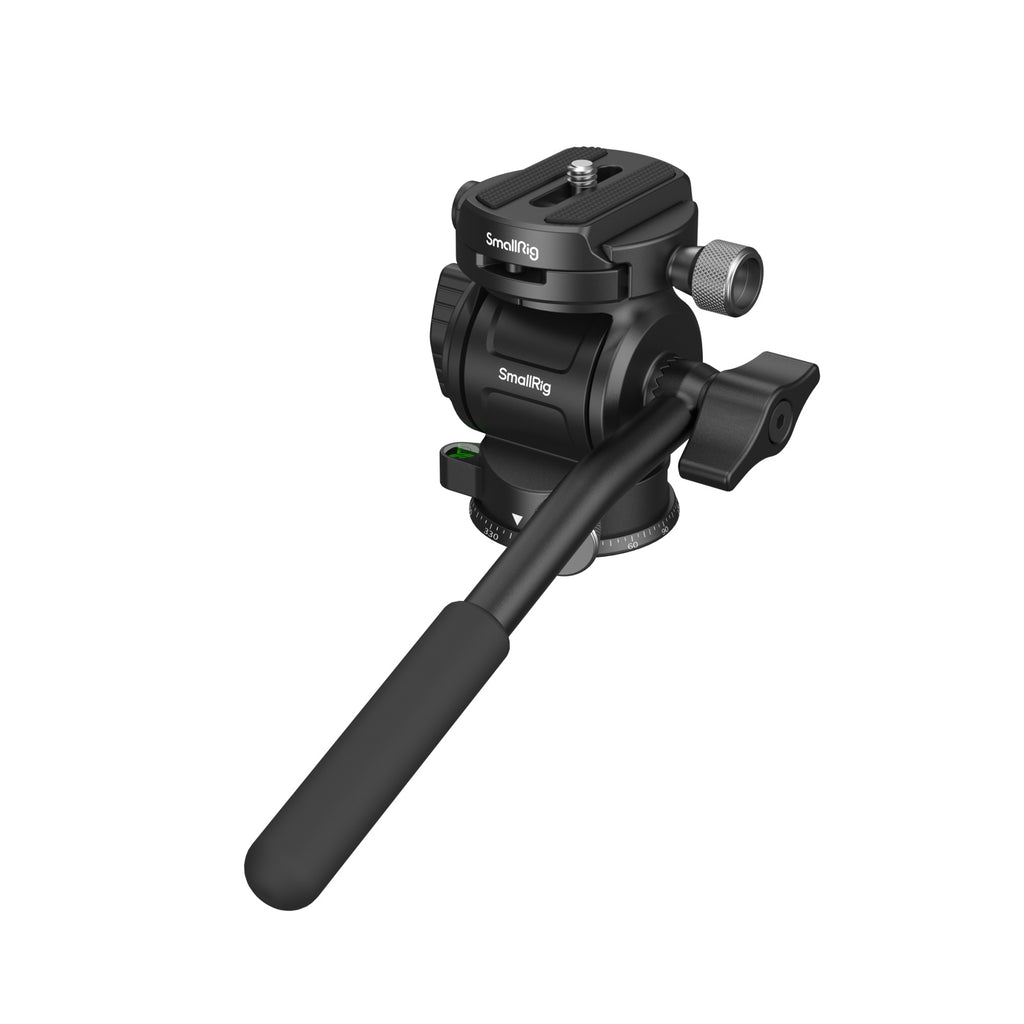

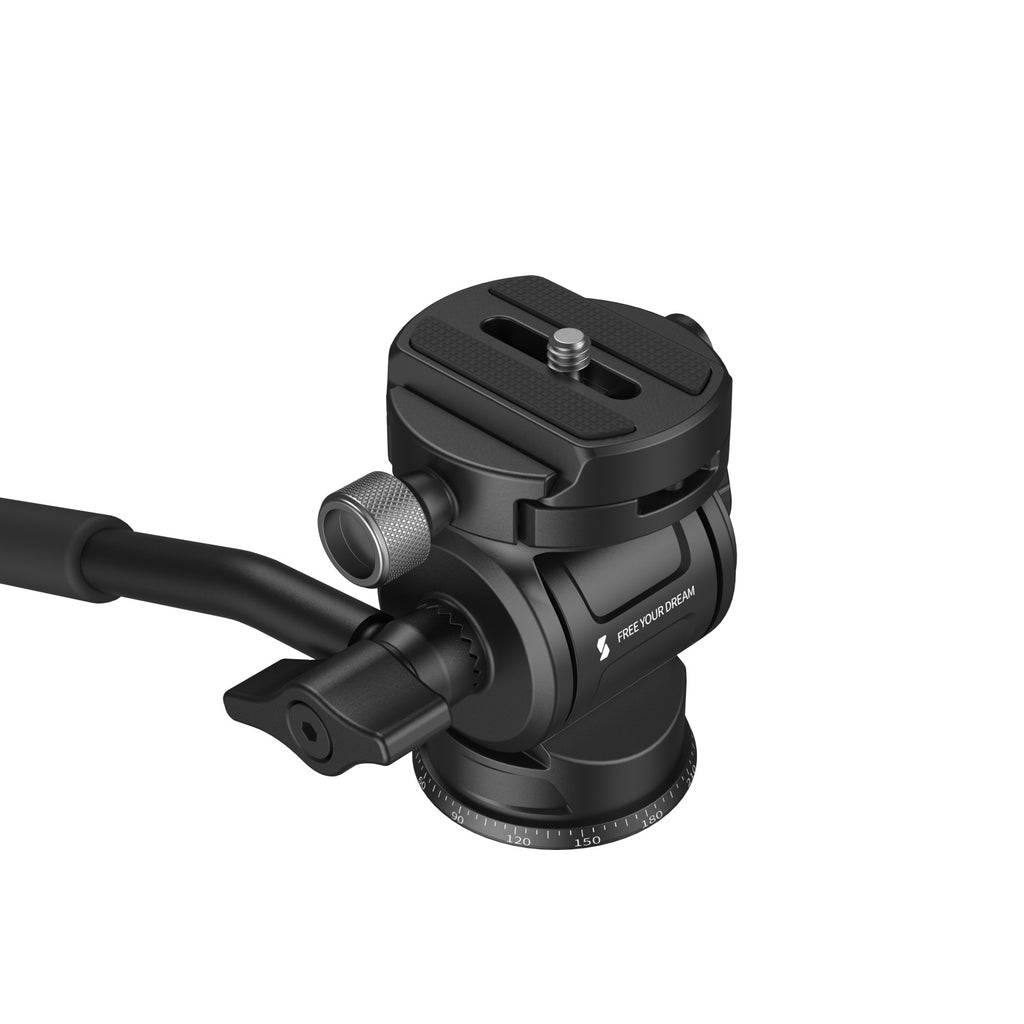

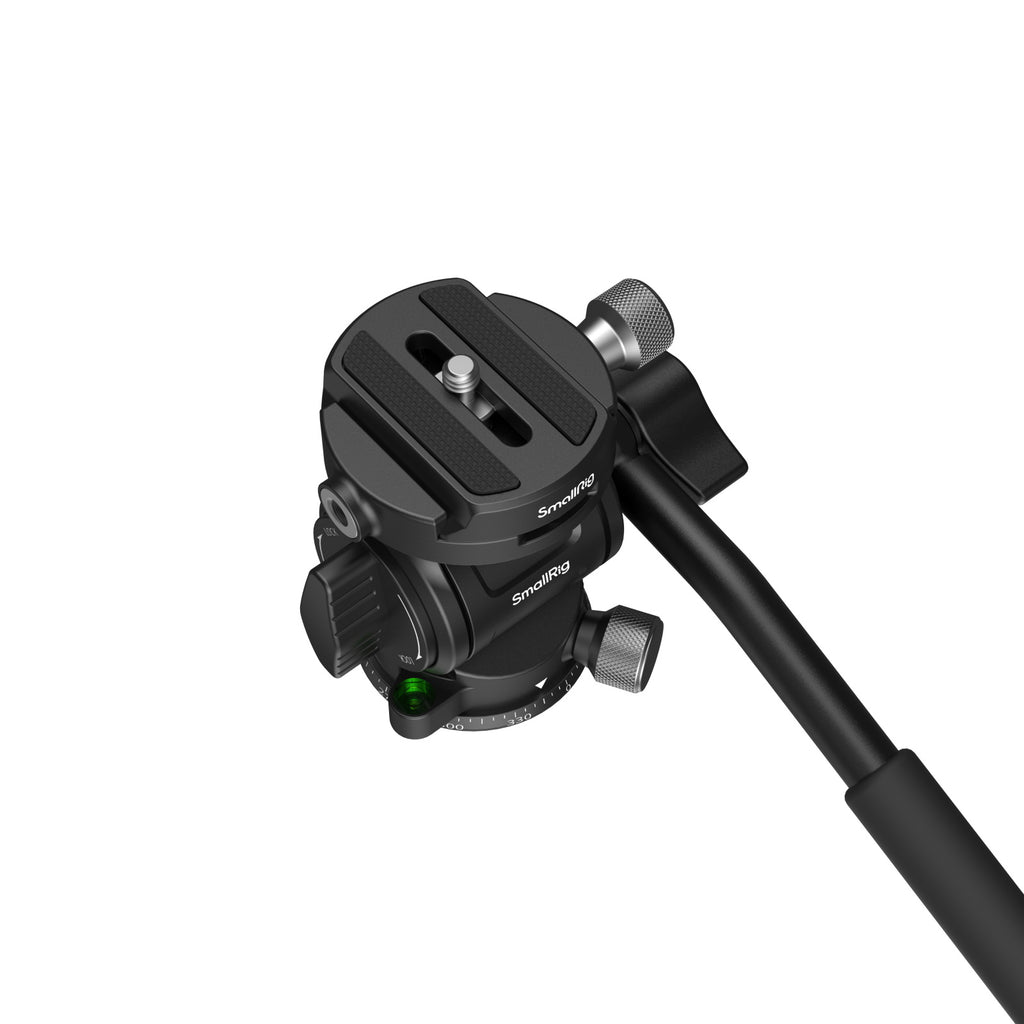

SmallRig Video Head CH3 4936 is a compact and portable fluid head designed for shooting video. It comes with a detachable handle, compatible either on the front side or back side, for easier storage and more portability; and a wrench that enables switch between horizontal and vertical shooting and the mounting direction of the quick release plate, supporting cage, and L-bracket. It also swivels 360° and tilts 90° / -70° to take steady shots from different angles. Besides, this tripod can support accessories like a magic arm via the anti-deflection 1/4"-20 threaded hole. It weighs only 271g and bears as much as 3kg, making it a good companion for shooting outdoors.
IMPORTANT
1. Before shooting, make sure the head and tripod locking status are in normal condition.
2. Avoid use in sandy or dusty environments to prevent the risk of damage.
3. Max payload of head: 3kg / 6.6lb.
4. The weight capacity of the video head is not the absolute limit; it varies depending on the type of equipment, lenses used, accessories attached, and changes in the center of gravity.
SPECIFICATIONS
Product Dimensions: 240.0 × 55.0 × 85.0 mm / 9.4 × 2.2 × 3.4in
Package Dimensions: 250.0 × 72.0 × 100.0 mm / 9.8 × 2.8 × 3.7in
Product Weight: 271g
Package Weight: 400g
Work Height: 7cm
Base Diameter: 44mm
Tilt Range: +90°/-70°
Head Payload: 3kg / 6.6lb
Counterbalance Payload: 1.0kg / 2.2lb
Counterbalance Step: Fixed
Tilt Control: Fixed
Pan Control: Fixed
Material(s): Aluminum Alloy, POM, Stainless Steel, Silicone
COMPATIBILITY
Arca-Swiss Quick Release Plate
WHAT IS INCLUDED
1x Video Head
2x Allen Wrench
1x Guarantee Card
