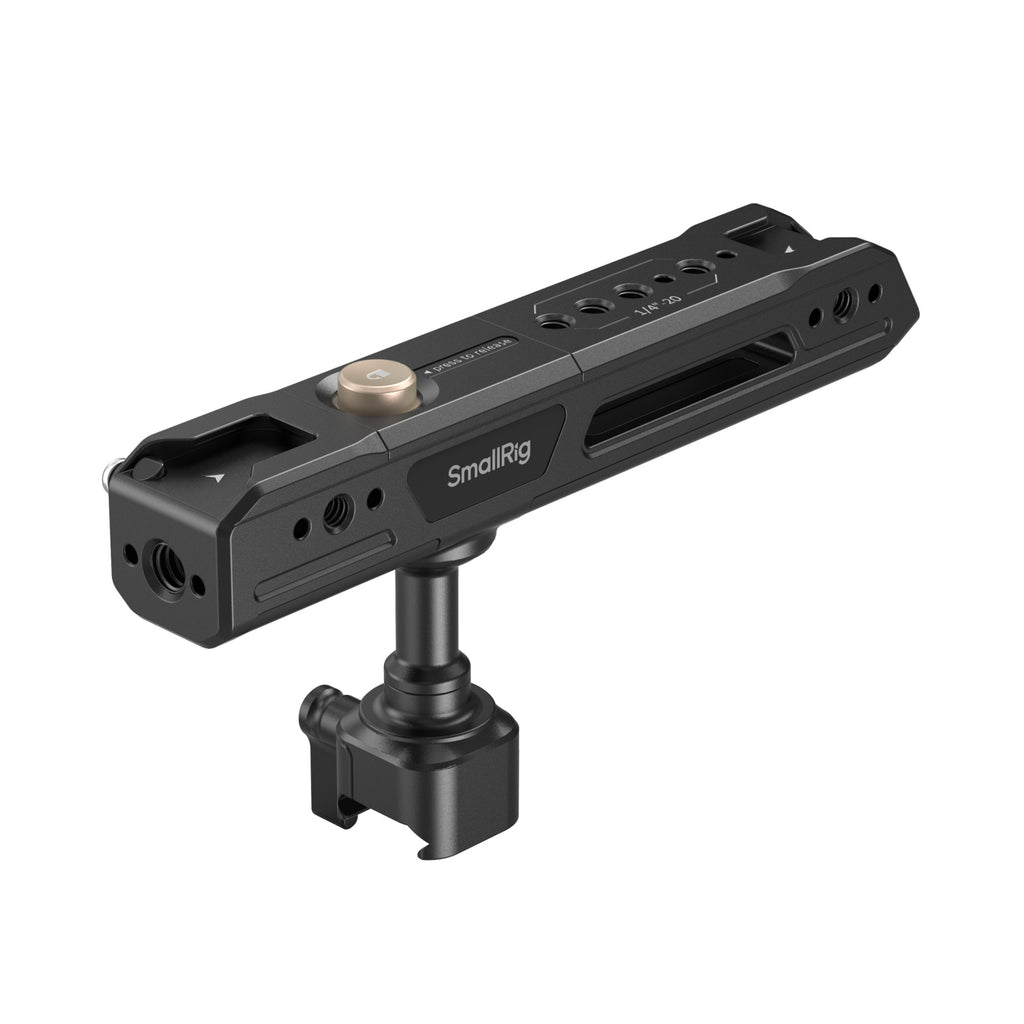

SMALLRIG ROTATING TOP HANDLE WITH NATO CLAMP 4152
- One-touch quick rotation for seamless switching between top grip and side grip modes.
- Elongated design (162mm / 6.3in) provides a secure and comfortable fit for larger hands.

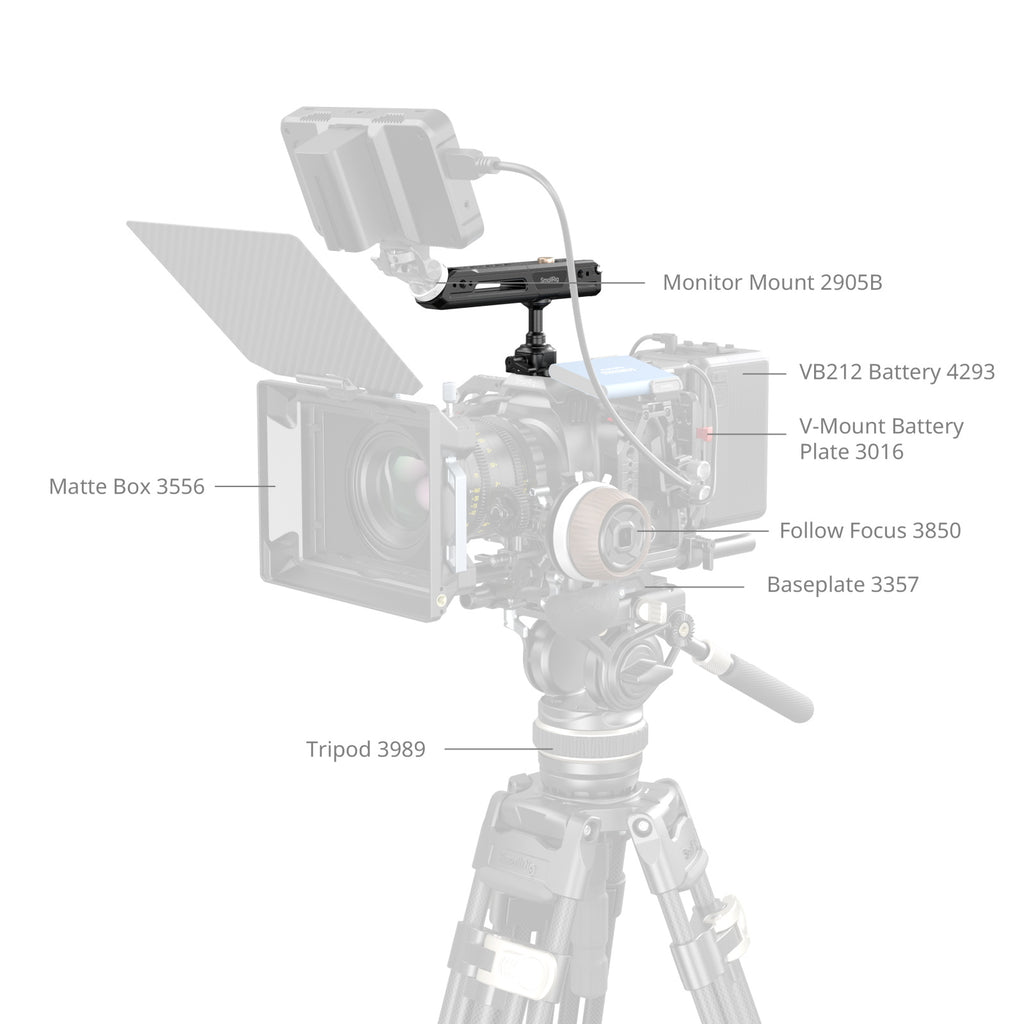

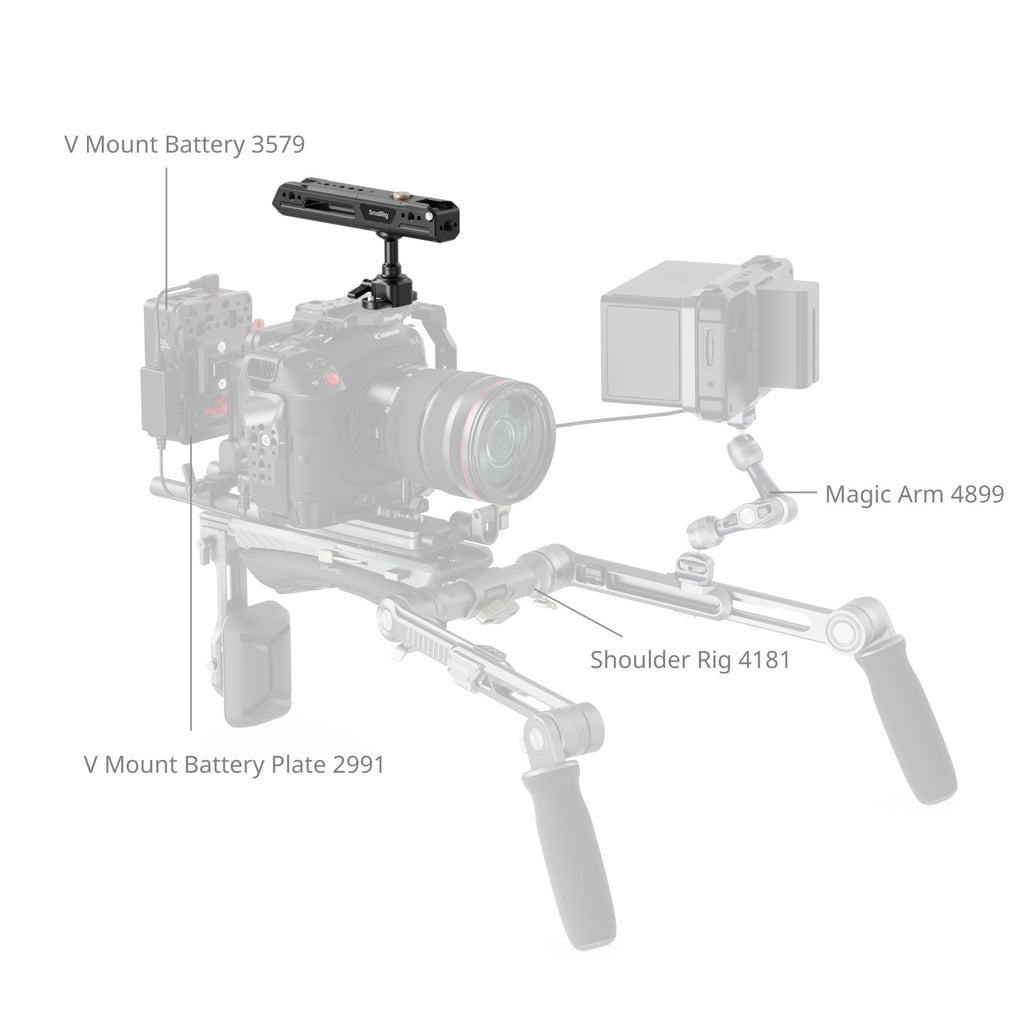

- Versatile mounting interfaces for attaching monitor mounts, magic arms, microphones, video lights, and other accessories.
- Sturdy and durable construction, supporting a maximum load capacity of 15kg / 33.1lb.
- Includes a NATO rail for compatibility with various cages.
SmallRig Rotating Top Handle with NATO Clamp 4152 is designed to enhance camera movement, including a top handle, NATO rail, and Allen wrench.
The top handle features a one-touch 360° rotation for seamless transitions between top and side handle modes. In top mode, the handle can be quickly adjusted for reverse installation to balance the camera’s center of gravity or positioned horizontally for easy access to the viewfinder. As a side handle, it allows for swift angle adjustments, enhancing overall camera maneuverability.

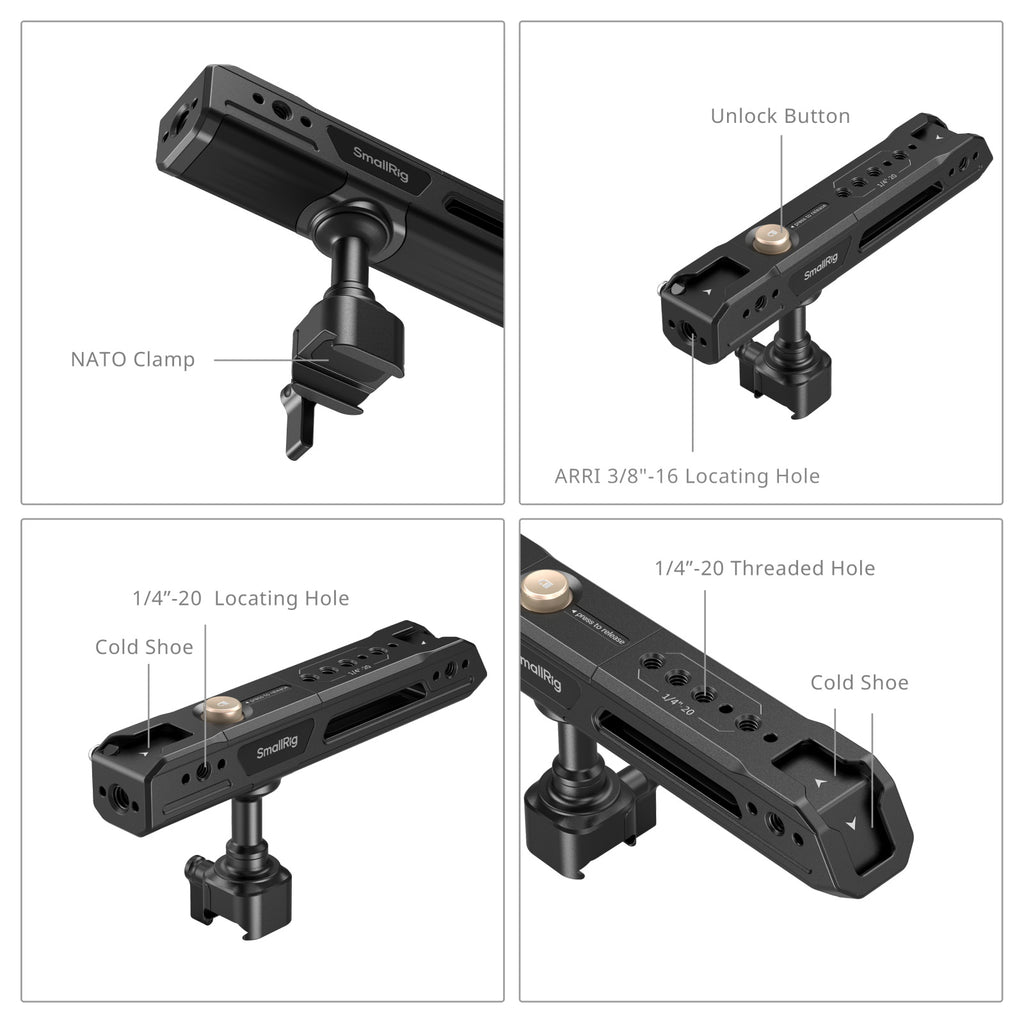

The elongated handle (162mm / 6.3in) features built-in silicone pads, providing a comfortable and secure grip that accommodates users with larger hands. Multiple mounting interfaces enhance versatility, including 3/8"-16 ARRI locating holes for monitor mounts (ID 2093B), 1/4"-20 threaded holes and locating holes for attaching accessories such as remote controllers (ID 3902) and magic arms (ID 3873), as well as cold shoe mounts for monitor mounts (ID 2905B), microphones (ID 3487), and video lights (ID 3286B).
Constructed for durability, the handle supports a maximum load capacity of 15kg / 33.1lb. It also comes with a NATO rail for mounting on different cages.
IMPORTANT
1. Ensure always holding the camera during one-touch angle adjustments.
2. The two cold shoe mounts at the tail of the handle cannot be used simultaneously.
SPECIFICATIONS
Product Dimensions: 161.6 x 81.2 x 39.7mm / 6.4 x 3.2 x 1.6in
Package Dimensions: 221.0 x 122.5 x 40.0mm / 8.7 x 4.8 x 1.6in
Product Weight: 236.0 ± 5.0g / 8.3 ± 0.2oz
Package Weight: 301.0 ± 5.0g / 10.6 ± 0.2oz
Material(s): Aluminium Alloy, Silicone

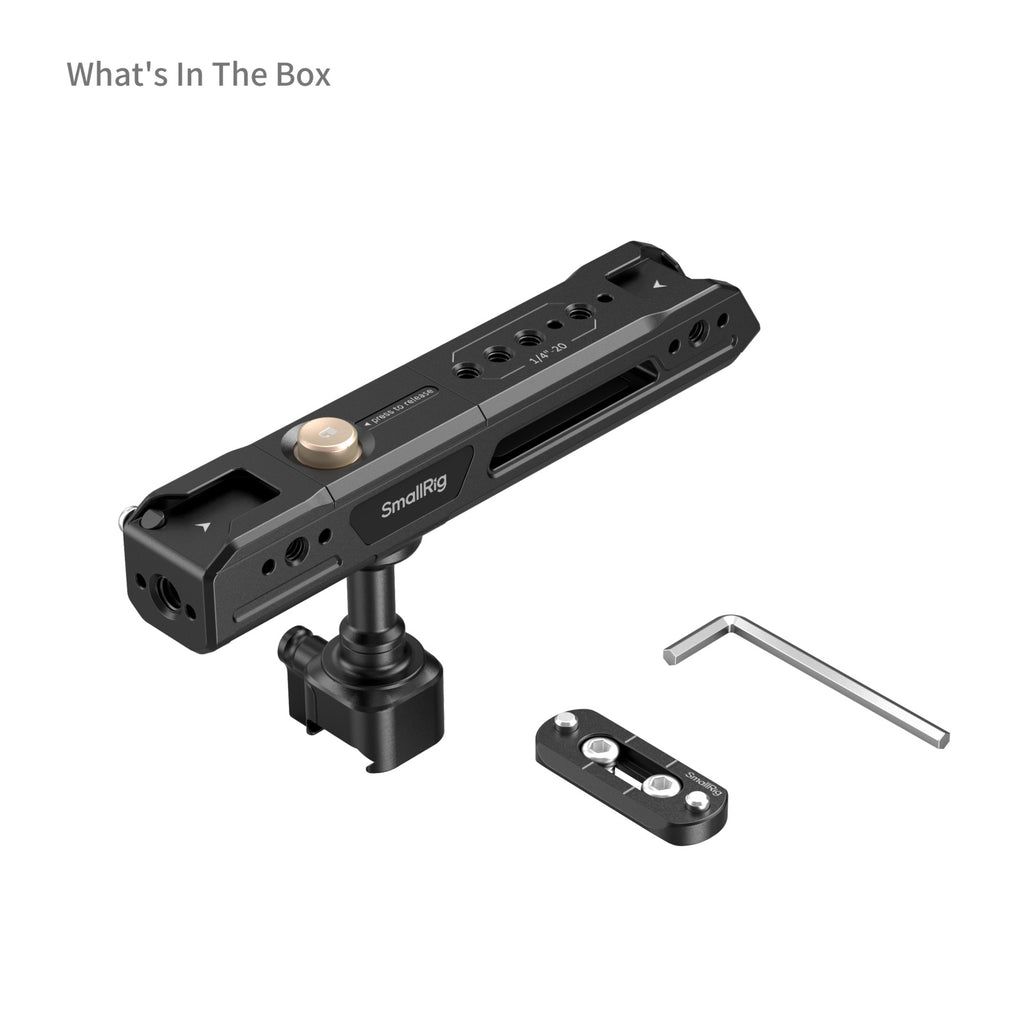

WHAT IS INCLUDED
1x Top Handle
1x NATO Rail
1x Allen Wrench
1x Operating Instruction
