Description
SMALLRIG FOLLOW FOCUS F50 4745
- Stepless damping lever adjustment: 0.3kgf-1.0kgf.
- Zero-backlash sync drive for precise focus control.
- Compact silicone handwheel for non-slip control.
- Friction and gear-driven dual-drive focus system.

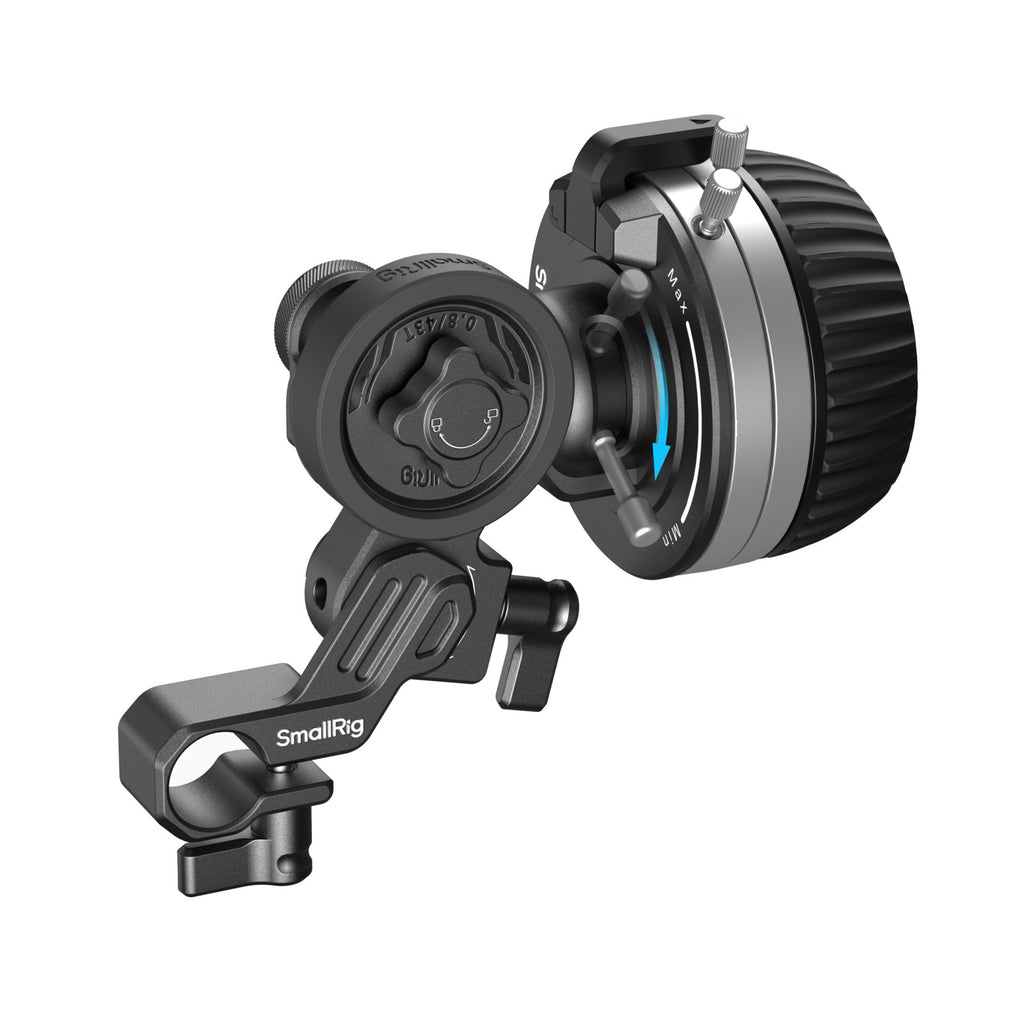

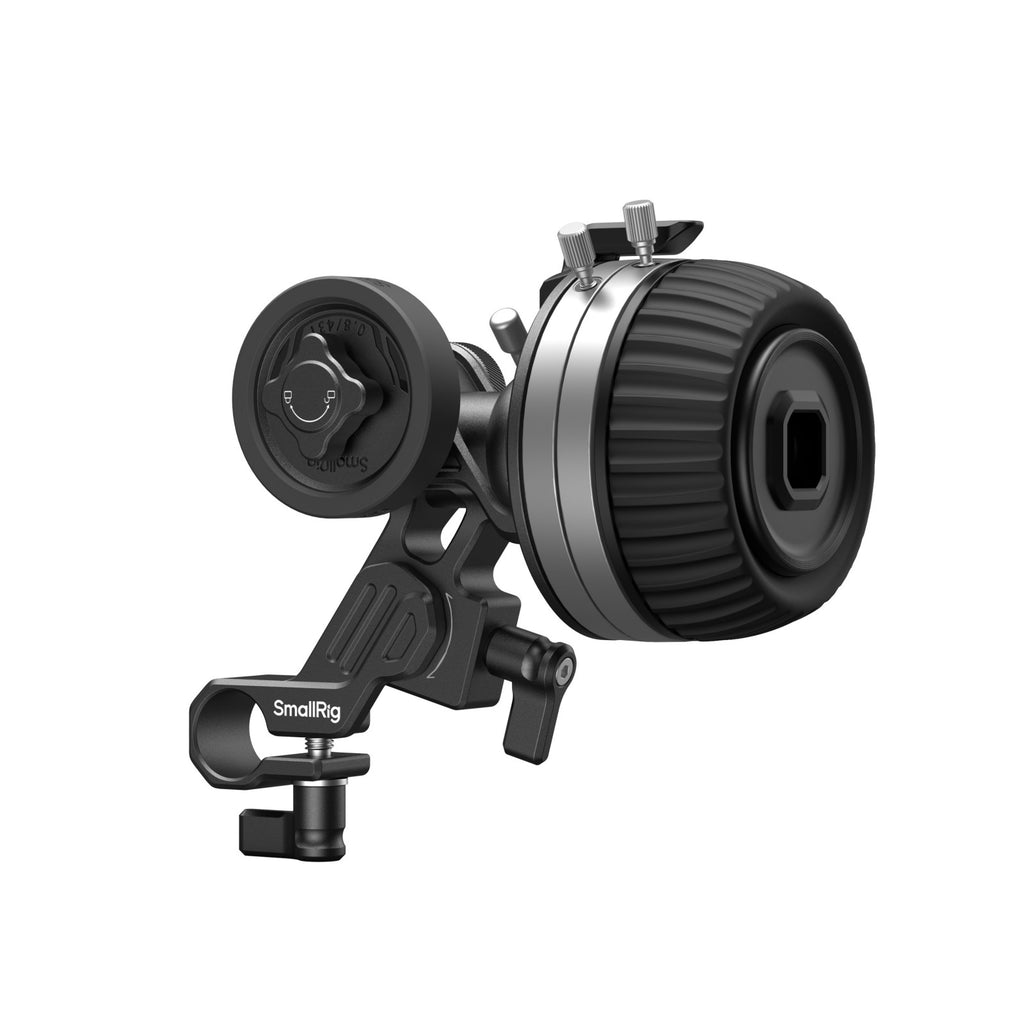

SmallRig Follow Focus F50 4745 delivers precise focus control for video production. Its ingenious adjustable driving gap design eliminates backlash, ensuring a seamless focus experience. The one-touch stepless damping lever allows dynamic damping control within a range of 0.3kgf–1.0kgf, catering to diverse lens damping preferences, while 2-step A/B stop switching and 360° swift push-pull zoom enhance versatility.

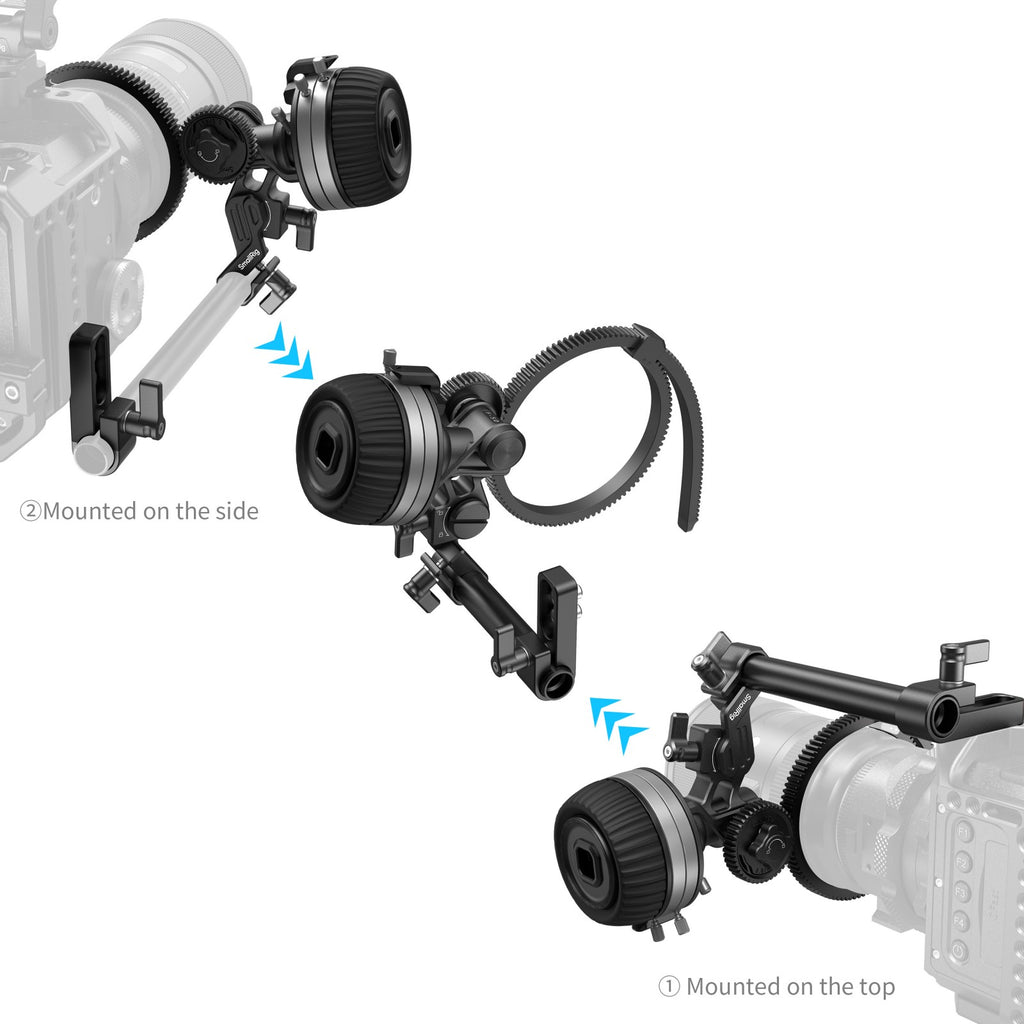

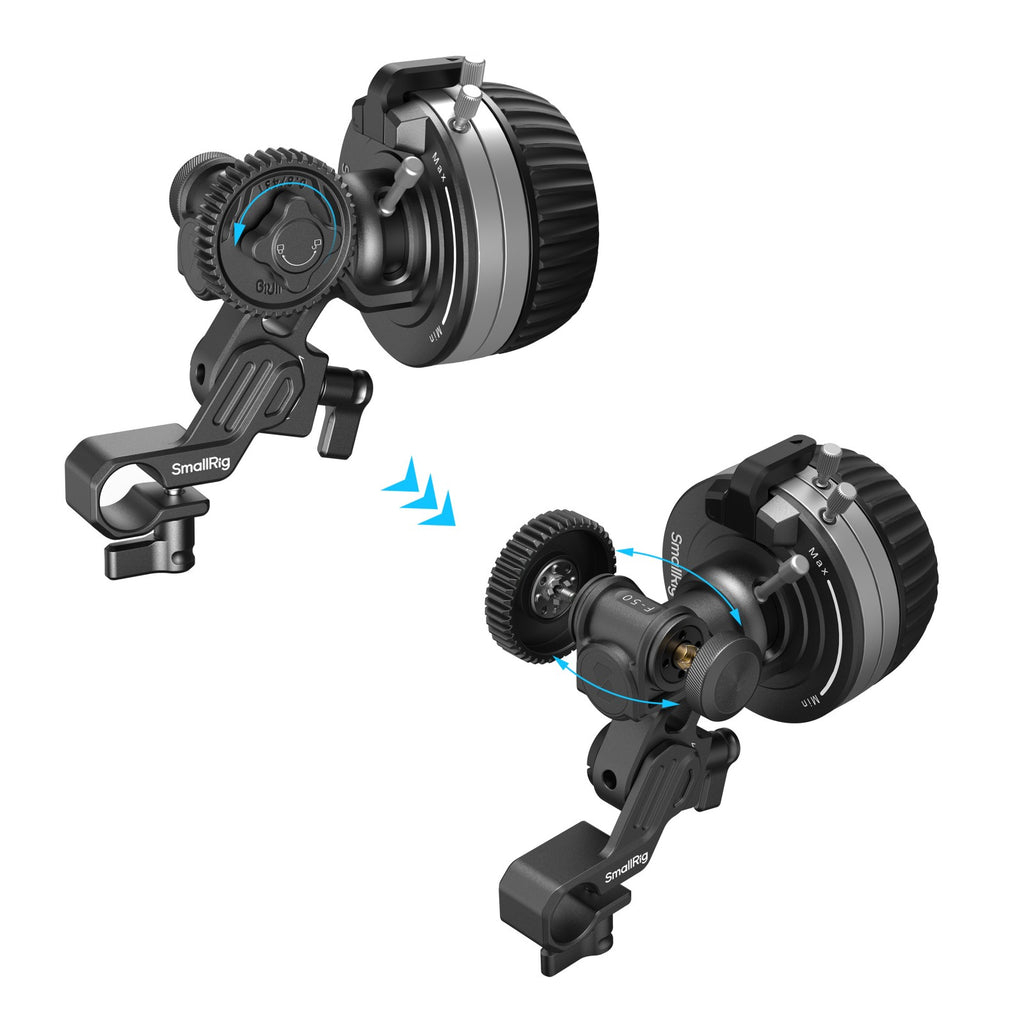

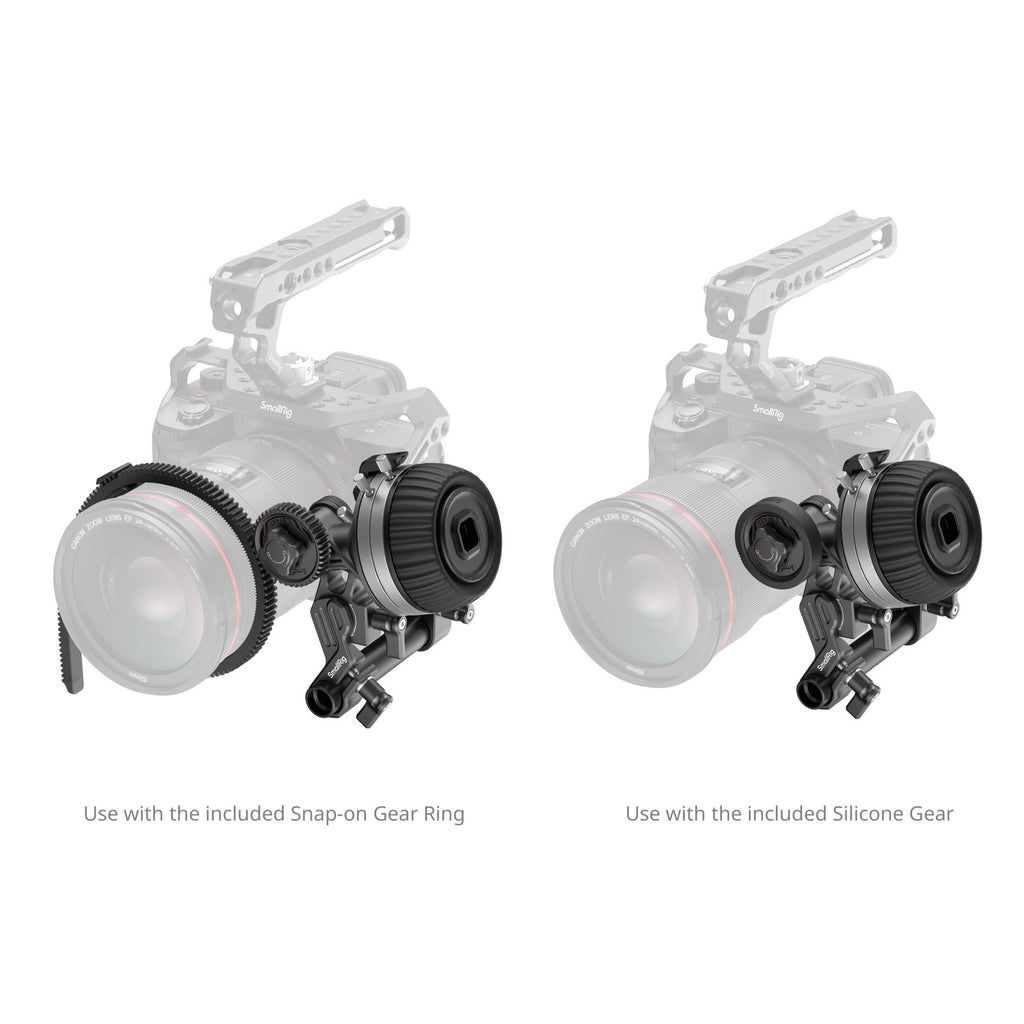

Included is a silicone gear (ID 3852) that enables friction-driven focus for mirrorless lenses, along with a compact silicone handwheel for a non-slip grip and fine-tuned control. This follow focus mounts using a Φ15mm rod and a single rod clamp (ID 1549) on the left or top of the lens, with adjustable angles for flexible configurations. Its modular design ensures a quick and precise setup for handheld, tripod, and various shooting scenarios.
IMPORTANT
1. Ensure the silicone gear fits tightly with the lens ring. If slippage occurs with high-damping zoom lenses, check for looseness between the silicone gear and the lens.
2. The silicone gear is compatible only with DSLR and mirrorless lenses. Please remove it before using cinema lenses.
SPECIFICATIONS
Product Dimensions: 117.0 x 80.5 x 62.5mm / 4.6 x 3.2 x 2.5in
Package Dimensions: 180.0 x 129.5 x 75.0mm / 7.1 x 5.1 x 2.9in
Product Weight: 290.0 ± 5.0g / 10.2 ± 0.2oz
Package Weight: 420.0 ± 5.0g / 14.8 ± 0.2oz
Material(s): AL6061, ABS, PC, POM9044, Silicone, Stainless Steel 304

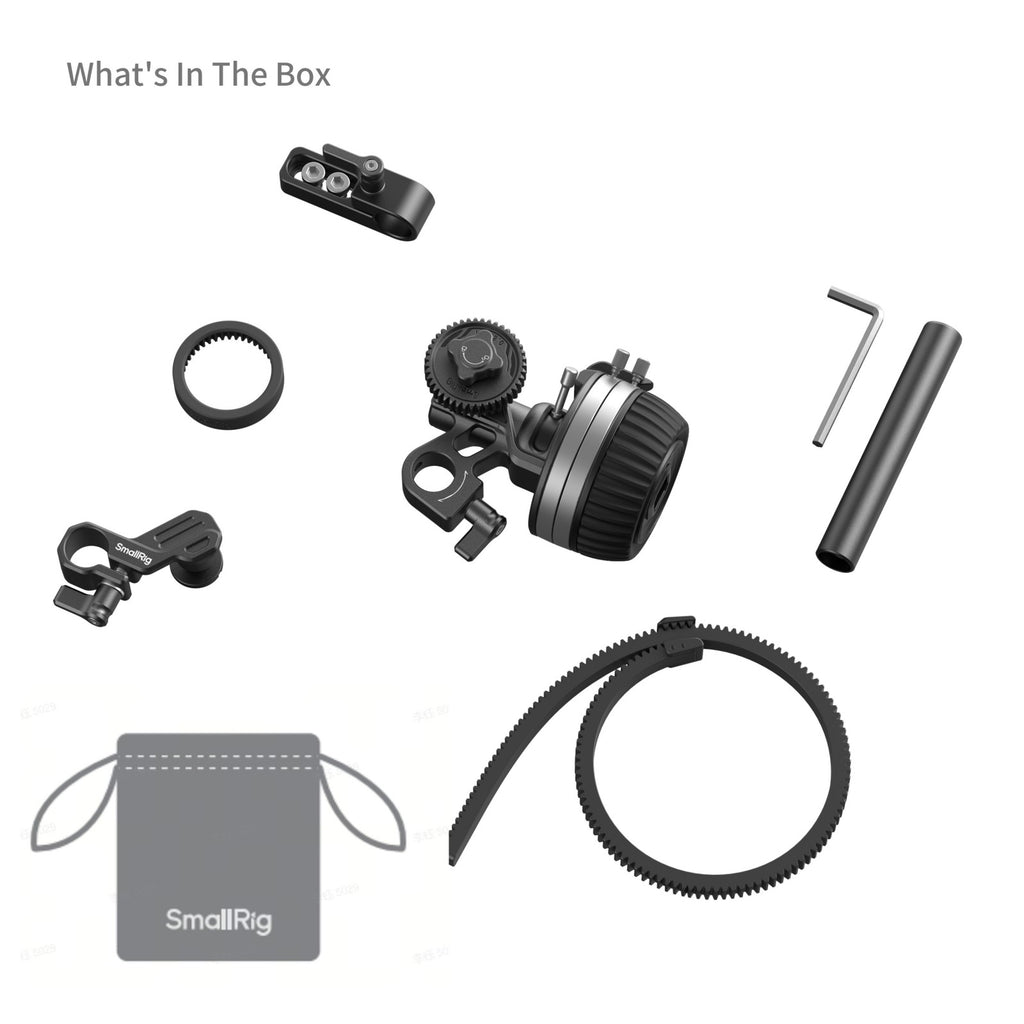

WHAT IS INCLUDED
1x Follow Focus F50
1x Φ15mm Rod

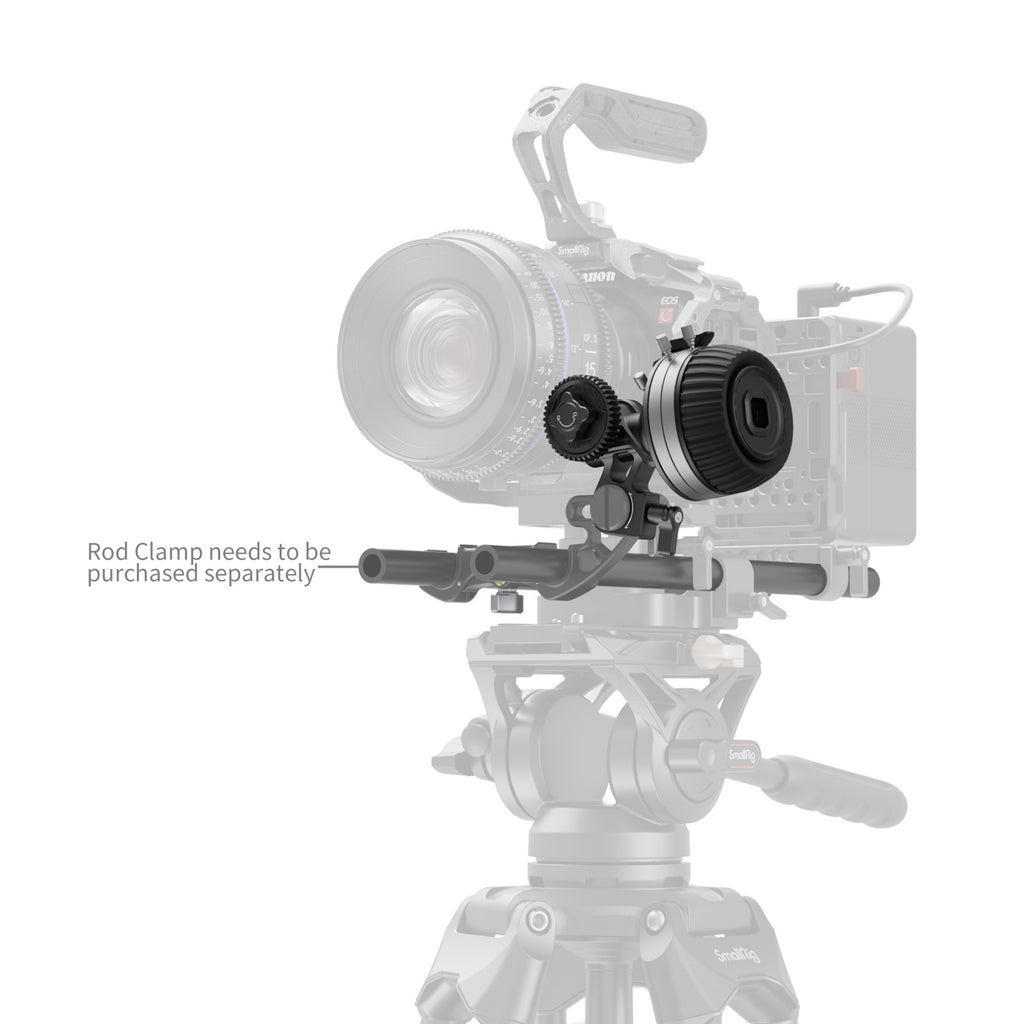

1x 15mm Single Rod Clamp

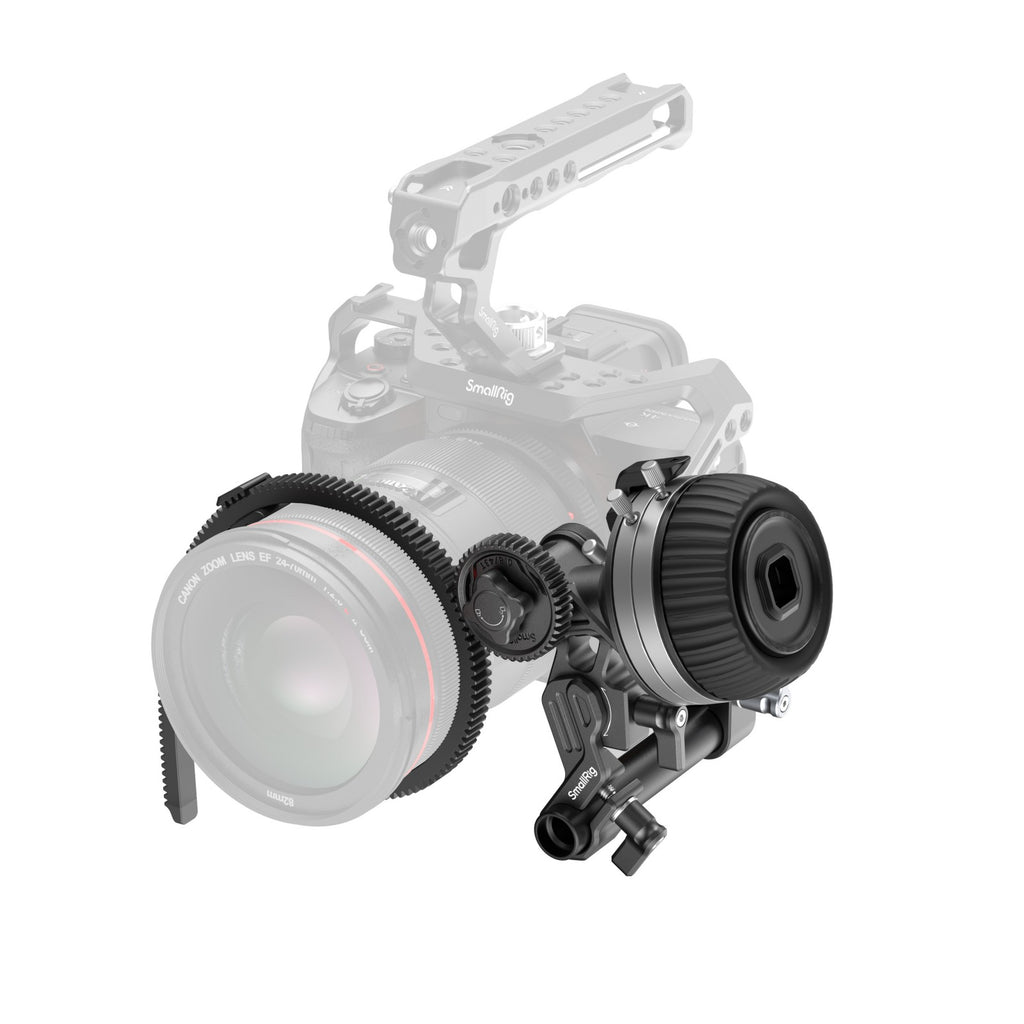

1x Snap-on Gear Ring
1x Allen Wrench
1x Carrying Bag
1x Operating Instruction
1x Use Manual
1x Guarantee Card
