Description
SMALLRIG GIMBAL CONTROL WHEELS FOR DJI RS SERIES 4525
- Lightweight Design: Compact and portable, specifically tailored for DJI RS2, RS 3 Pro, RS 4, and RS 4 Pro stabilizers.
- Intuitive Control: Clear button layout for seamless operation.

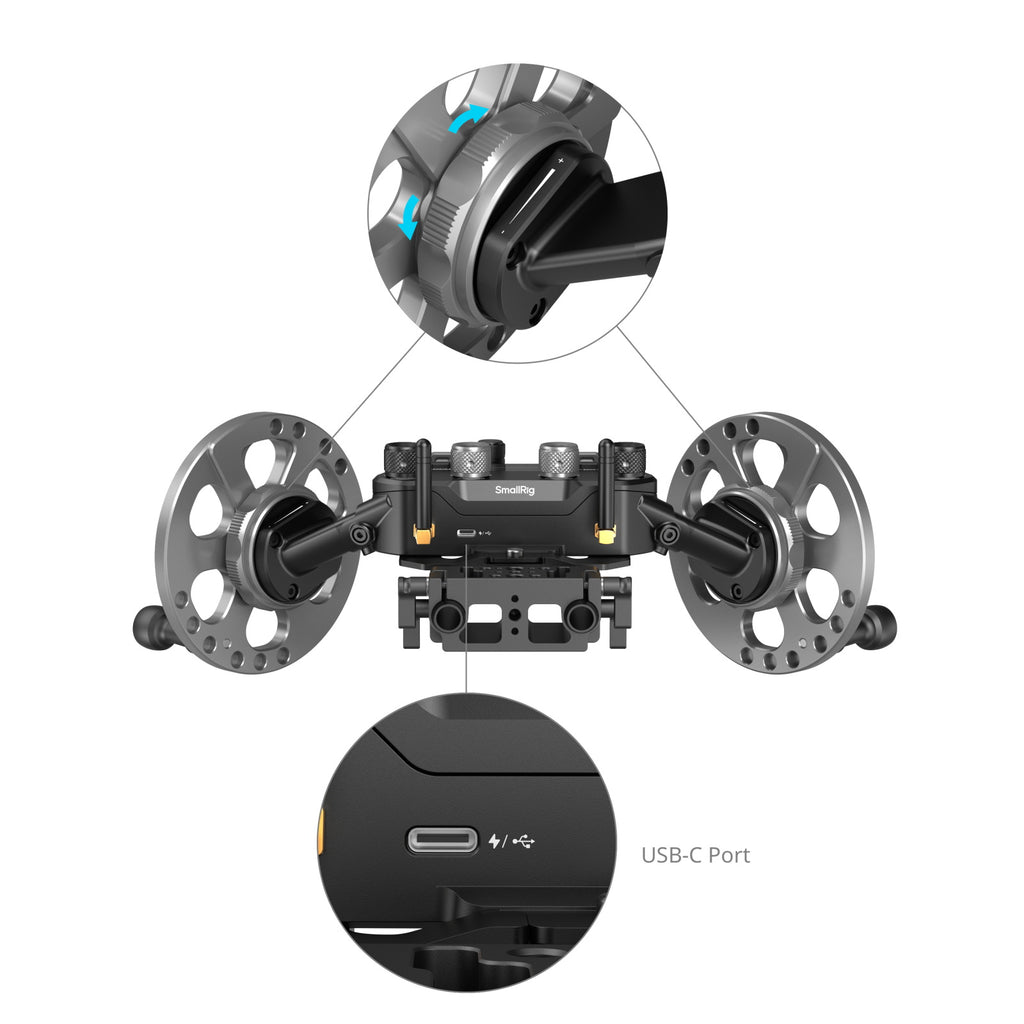

- Versatile Expansion: Multiple interfaces for various connection and power supply options.

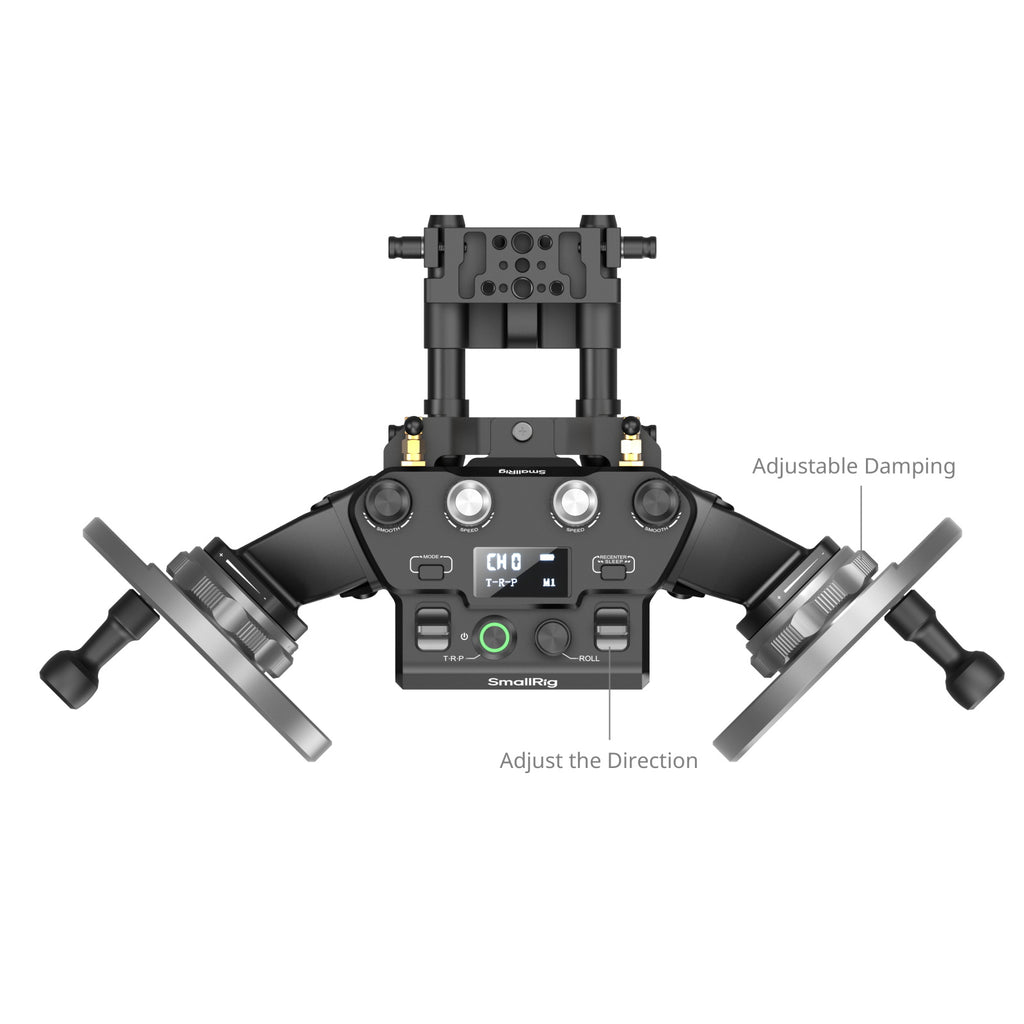

- High-Precision Control: Adjustable damping on the control wheel for refined image adjustments.

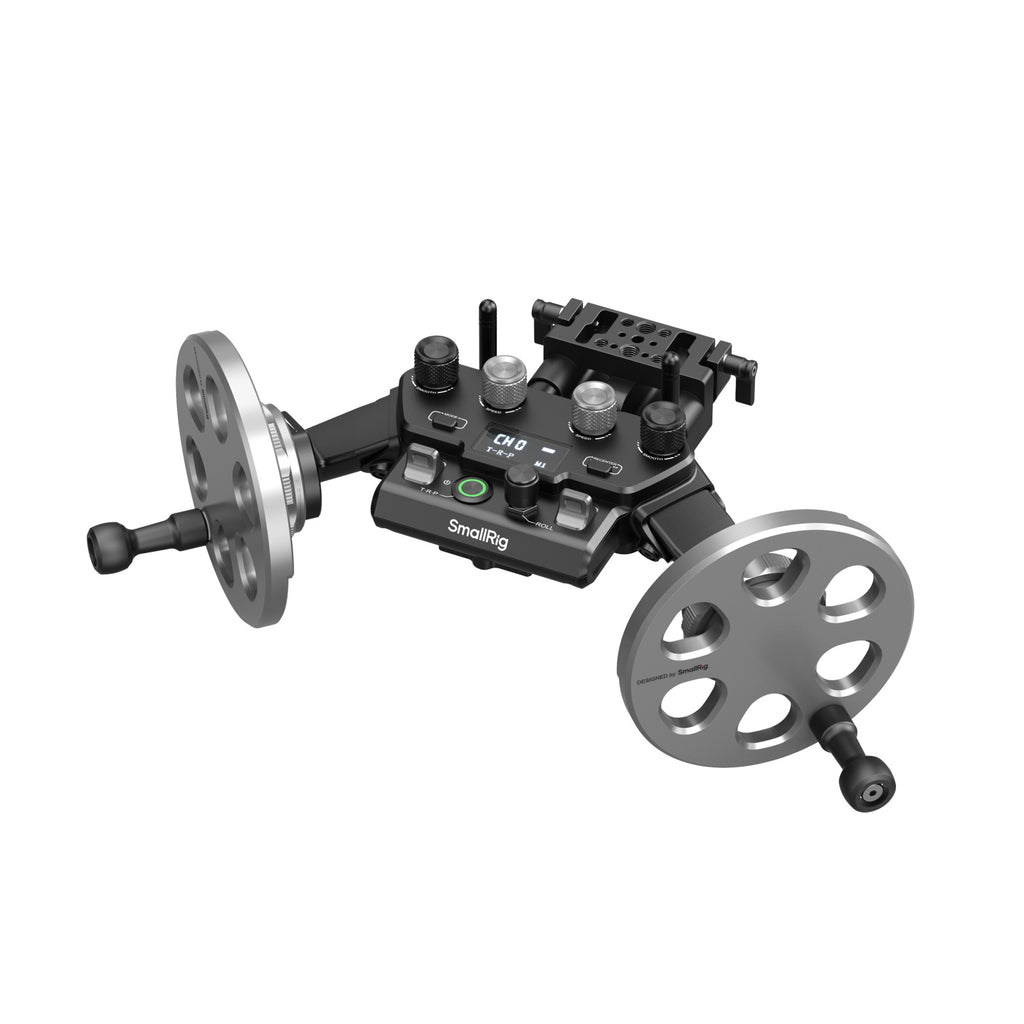

SmallRig Gimbal Control Wheels for DJI RS Series 4525 is engineered to enhance precision control for DJI RS2, RS3 Pro, RS4, and RS4 Pro stabilizers. Weighing only 2.76kg / 6.06lb, it’s portable and perfect for on-the-go shooting. The control wheel is equipped with a user-friendly panel featuring knobs for speed, smoothness, and damping adjustments, as well as direction control levers and a TRP axis adjustment. The damping knobs allow users to fine-tune the damping level of the control wheels to suit various shooting scenarios. The device supports dual power supply options: NP-F and USB-C. Additionally, multiple expansion interfaces on top enable the attachment of monitor mounts (ID 2903B) and magic arms (ID 4194), facilitating seamless integration with monitors and transmitters for real-time monitoring.
IMPORTANT
1. Ensure the product remains dry and avoid exposure to water or liquids.
2. It is recommended to use the product on tripods with a load capacity of over 8kg / 17.6lb to prevent tipping.
SPECIFICATIONS

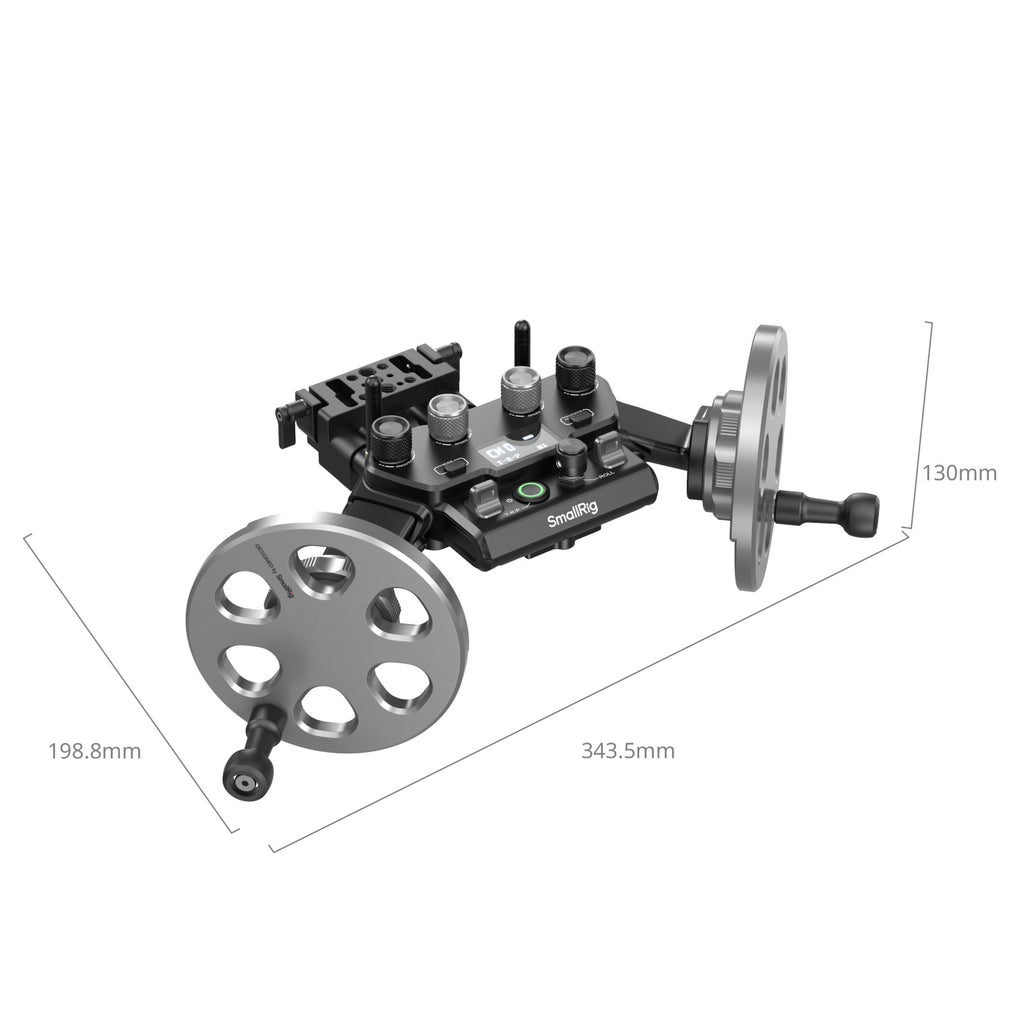

Product Dimensions: 343.0 x 198.0 x 130.0mm / 13.5 x 7.8 x 5.1in
Package Dimensions: 325.0 x 425.0 x 182.0mm / 12.8 x 16.7 x 7.2in
Product Weight: 2.76kg / 97.35oz
Package Weight: 6.34kg / 223.64oz
Material(s): Aluminum Alloy, Stainless Steel, Plastic
COMPATIBILITY
DJI RS2, RS 3 Pro, RS 4, RS 4 Pro

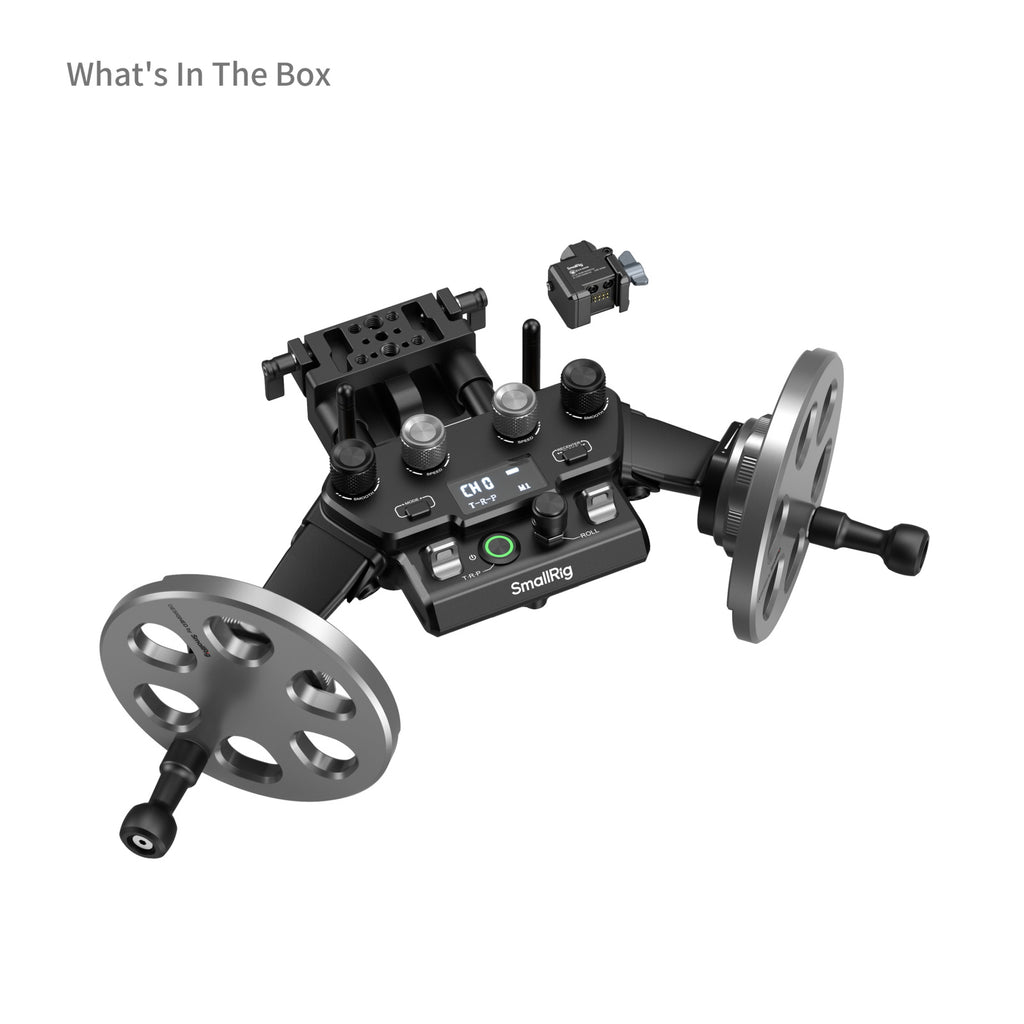

WHAT IS INCLUDED
1x Gimbal Control Wheel
1x Receiver
1x Operating Instruction
1x Guarantee Card
