Description
BOYA ULTRACOMPACT 2.4GHZ DUAL-CHANNEL WIRELESS MICROPHONE SYSTEM
- Ultra-compact design
- Global free frequency 2.4GHz ISM wireless technology
- Broadcast-quality sound
- Wide compatibility
- OLED screen on receiver
- Real time monitoring available
- Flexible gain setting
BY-XM6 Mini is an advanced and versatile 2.4GHz wireless microphone system that expands on the success of the classic BY-XM6 microphone series with a further improvement in portability. With the features of ultra-compact, stable signal transmission, it ensures that the crystal-clear sound can be captured and delivered. Furthermore, the transmitters can automatically pair with the receiver when turned on, and thanks to the ultra-compact design, they can be easily clipped to clothing without creating any sensation, providing users with a high-quality recording experience, especially during outdoor activities.
SPECIFICATIONS
BY-XM6 Mini is an advanced and versatile 2.4GHz wireless microphone system that expands on the success of the classic BY-XM6 microphone series with a further improvement in portability. With the features of ultra-compact, stable signal transmission, it ensures that the crystal-clear sound can be captured and delivered. Furthermore, the transmitters can automatically pair with the receiver when turned on, and thanks to the ultra-compact design, they can be easily clipped to clothing without creating any sensation, providing users with a high-quality recording experience, especially during outdoor activities.
SPECIFICATIONS
Transmitter
Transmission Type: 2.4GHz lSM Frequency
Modulation: GFSK
Operating Range: Up to 100m (without obstacle)
RF Output Power: <10mw
Polar Pattern: Omnidirectional
Frequency Response: 35Hz-18KHz
Maximum SPL: 120dB SPL
Sensitivity: -39dB
SNR: >77 dB
Power Requirements: Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life: Approx.4.5 hours
Antenna: PIFA Antenna
Audio lnputs: Built-in Microphone
Weight: Approx.14.5g (0.5oz)
Dimensions: 4.6cm x 2.392cm x 1.5cm
Operating Temperature: -10℃ to 50℃
Storage Temperature: -20℃ to +55℃
Receiver
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Operating Range: Up to 100m (without obstacle)
Audio Output Connector: 3.5mm Headphone Jack / 3.5mm TRS Output Jack
Audio Output Level: -60 dBV to -20dBV
Power Requirements: Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life: Approx.7 hours
Antenna: PIFA Antenna
Weight: Approx.32g (1.13oz)
Dimensions: 6.21cm x 3.16cm x 1.65cm
Operating Temperature: -10℃ to 50℃
Storage Temperature: -20℃ to +55℃

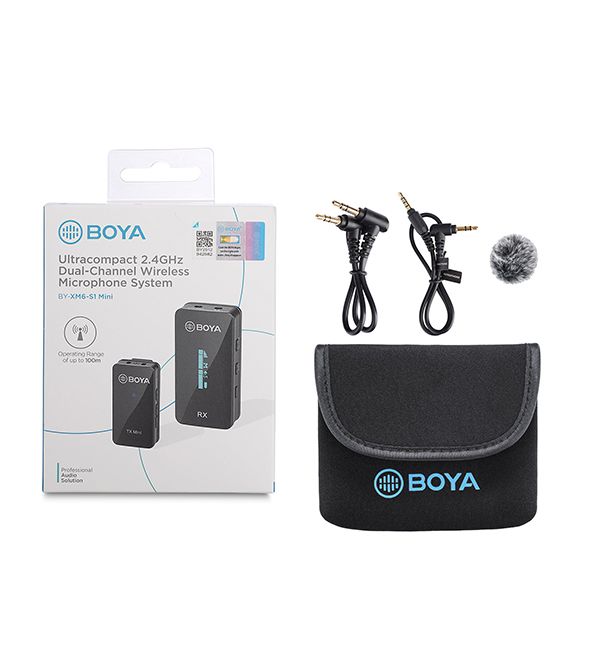

WHAT IS INCLUDED
WHAT IS INCLUDED
1x BY-XM6 TX Mini Transmitter
1x BY-XM6 RX Receiver
2x USB-C Charging Cable
1x Fur Windshield for Built-in Microphone
1x 3.5mm TRS to TRS Output Cable for Camera
1x 3.5mm TRS to TRRS Output Cable for Smartphones
