Description
SMALLRIG CAGE KIT FOR CANON EOS C80 5136
- Modular Design for Canon EOS C80: The top plate, baseplate, and right side plate can be used independently to meet various shooting needs.
- Modular Baseplate: Detachable mount plate allows direct mounting on DJI RS 2, RS 3 Pro, and RS 4 Pro gimbals.
- Optimized Right Plate: Contoured for enhanced grip and vertical shooting stability, it features an anti-twist quick release plate.
- Integrated NATO Rail: Features ridges that match the original handle for seamless horizontal and vertical shooting transitions.
- OEM Accessory Support: Compatible with Canon’s microphone mounts, focal plane marks, and off-camera shoe cords (OC-E4A).
- Versatile Mounting Options: Includes 1/4"-20 and 3/8"-16 threaded holes, 1/4"-20 locating holes, ARRI 3/8"-16 locating holes, M3 threaded holes, cold shoe mounts, H21 NATO rails, and QD sockets for extensive accessory expansion.
- Lens Adapter Support: Adjustable by 19mm / 0.7in to reduce strain on the lens mount.
- HDMI Cable Clamp: Ensures stable data transmission.
- Complimentary Top Handle: Ergonomically designed with built-in non-slip silicone for a comfortable grip.

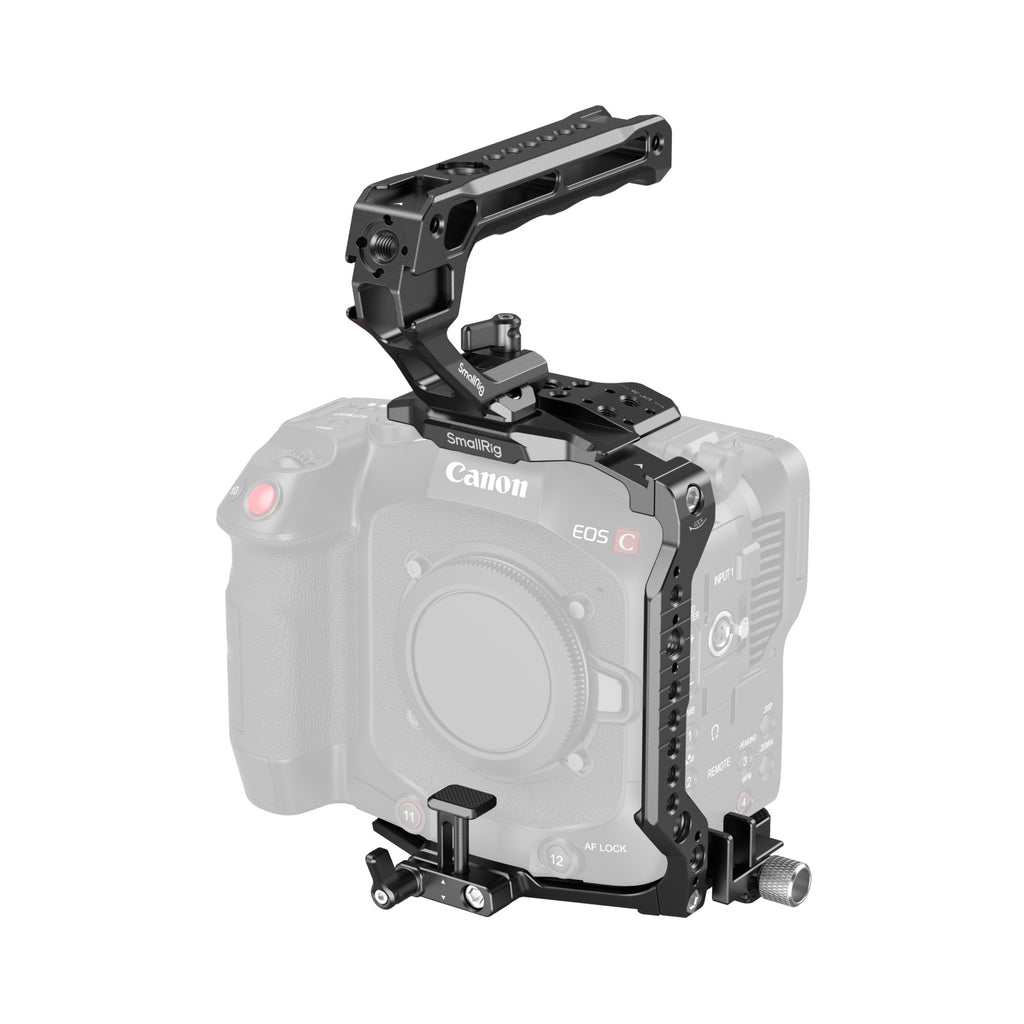

SmallRig Cage Kit for Canon EOS C80 5136 is designed to provide versatile shooting solutions for filmmakers. The kit includes a top plate, dual side plates, a bottom plate, a mounting plate, a top handle with NATO clamp, a cable clamp, a NATO Rail, and a lens adapter support.

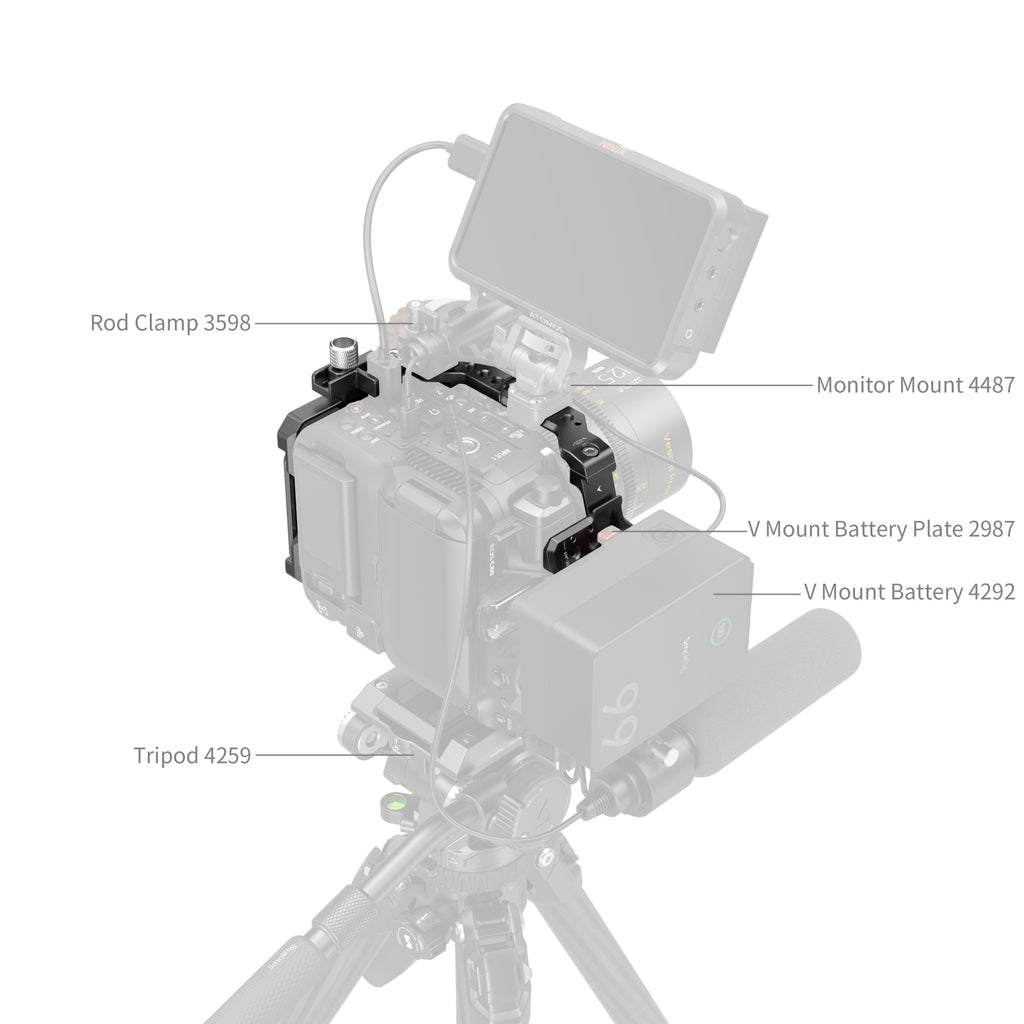

Its modular design supports customizable setups, while its various mounting interfaces—1/4"-20 and 3/8"-16 threaded holes, 1/4"-20 locating holes, ARRI 3/8" -16 locating holes, M3 threaded holes, cold shoe mounts, H21 NATO rails, and QD sockets—allowing for compatibility with side handles (ID 3260, 4015, 4016), magic arms (ID 5141, 4194, 3873, 3959), monitor mounts (ID 4487, 2906B, 2903B, 2905B), baseplates with dual rod clamps (ID 3357), and follow focus rod clamps (ID 3598).

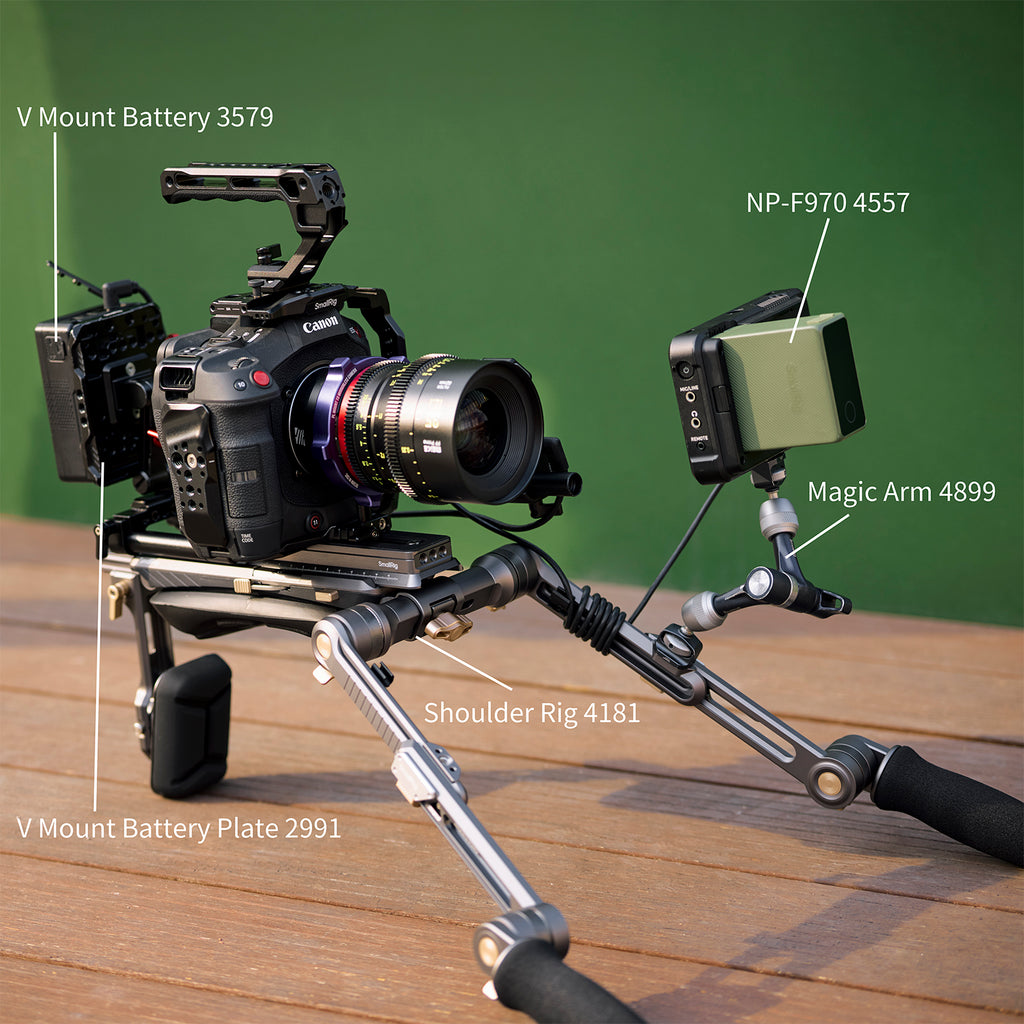

The modular baseplate design offers two configurations: when using the mounting plate, it can be mounted on tripods (ID 4463), ARRI BP8 baseplates (ID 3357), and shoulder rigs (ID 4181). Removing the mounting plate allows for direct mounting on DJI RS 2, RS 3 Pro, and RS 4 Pro gimbals.
The ergonomic right side plate enhances grip and features multiple threaded holes for attaching accessories like tripods (ID 4463) or L-shaped mount plates (ID MD4360). The modular NATO rail, designed with matching grooves to fit the original handle, can be mounted on the top and sides of the cage for seamless horizontal and vertical shooting.

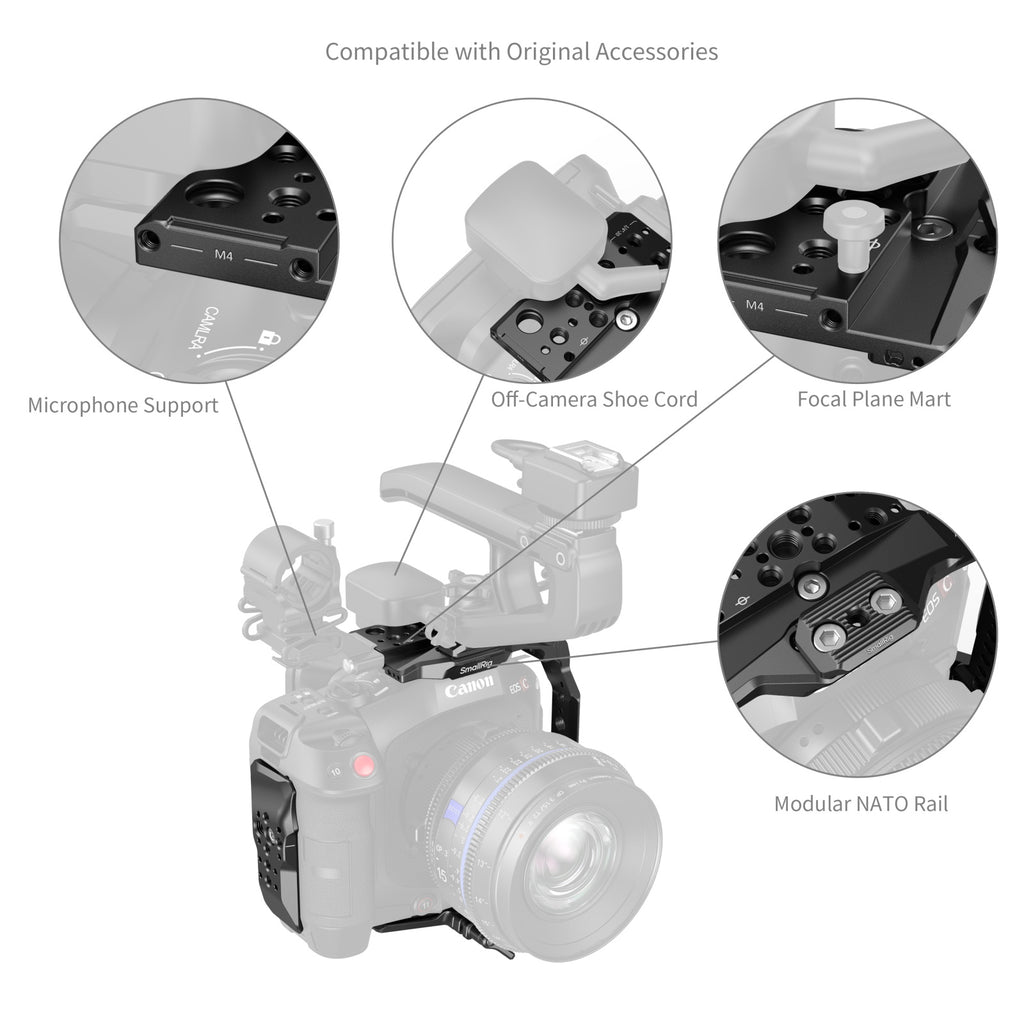

This cage kit is compatible with Canon’s OEM microphone mounts, focus plane marks, and off-camera shoe cords (OC-E4A). The lens adapter support is adjustable by 19mm (0.7 in) to accommodate different lens adapters, such as PL-RF, reducing strain on the camera mount to prevent deformation or damage.
Additionally, the kit includes an HDMI cable clamp for stable data transmission and an ergonomic top handle with built-in non-slip silicone for a comfortable grip. A magnetic Allen wrench is also included for easy assembly and disassembly.
SPECIFICATIONS

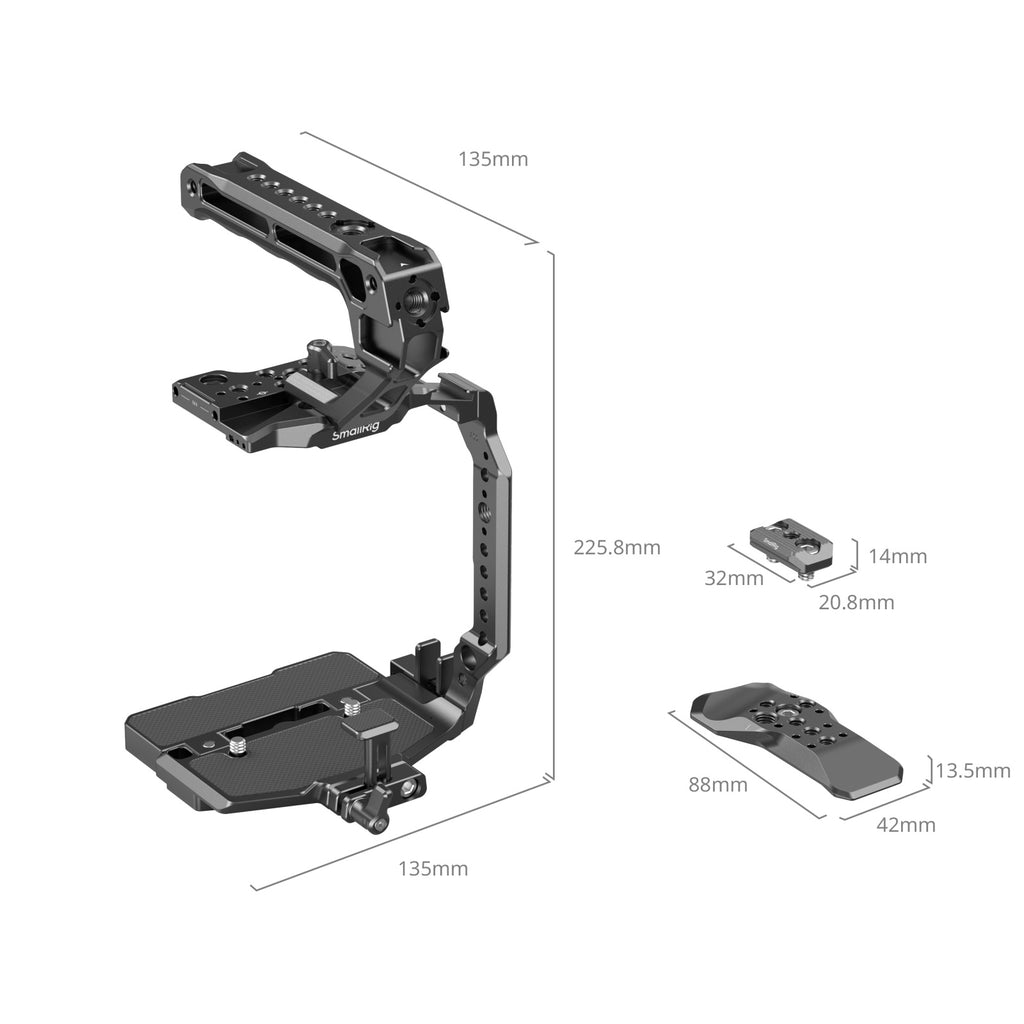

Product Dimensions: 189.9 x 132.0 x 167.7mm / 7.5 x 5.2 x 6.6in
Package Dimensions: 180.0 x 137.0 x 67.0mm / 7.1 x 5.4 x 2.6in
Net Weight: 457.0 ± 5.0g / 16.1 ± 0.2oz
Package Weight: 586.0 ± 5.0g / 20.7 ± 0.2oz
Material(s): Aluminum Alloy
COMPATIBILITY
Canon EOS C80

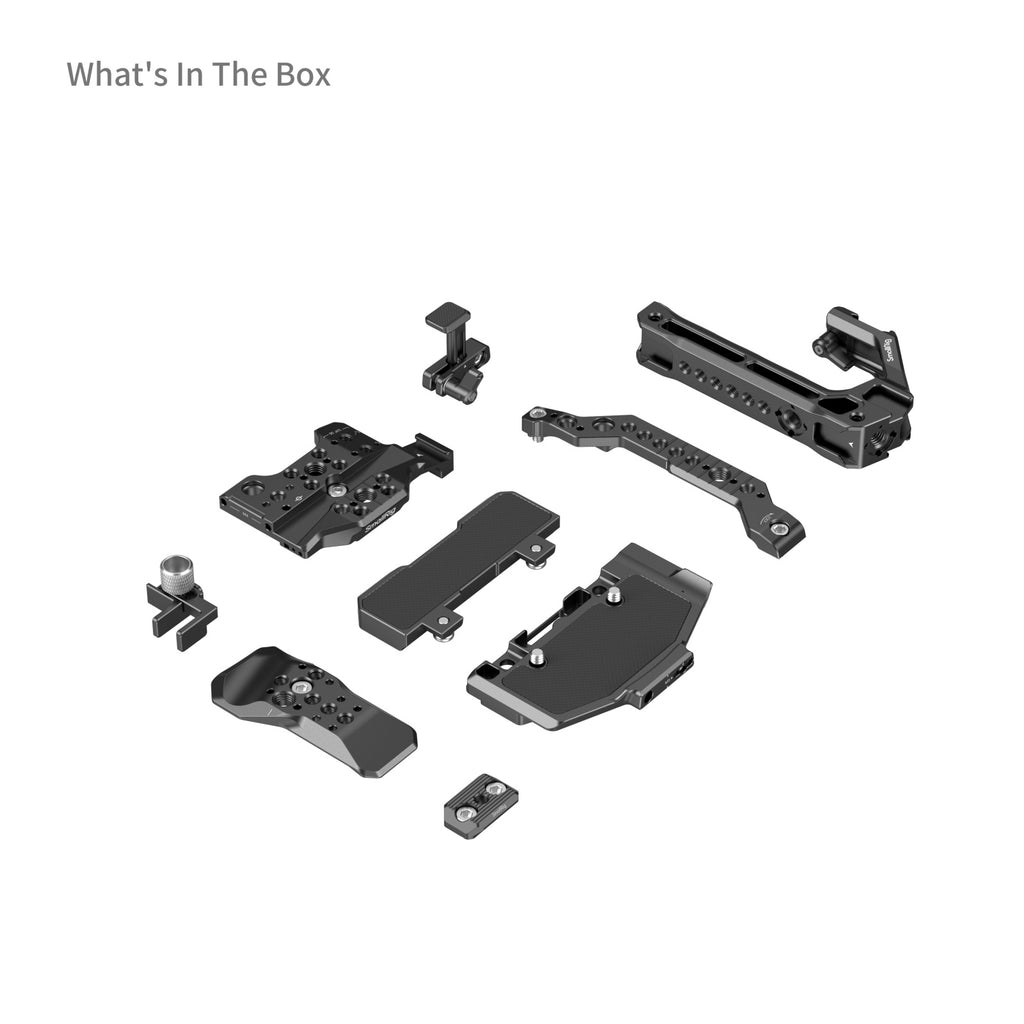

WHAT IS INCLUDED
1x Top Plate
1x Left Plate
1x Right Plate
1x Bottom Plate
1x Mount Plate
1x Top Handle with NATO Clamp
1x Cable Clamp
1x NATO Rail
1x Lens Adapter Support
1x User Manual
