Description

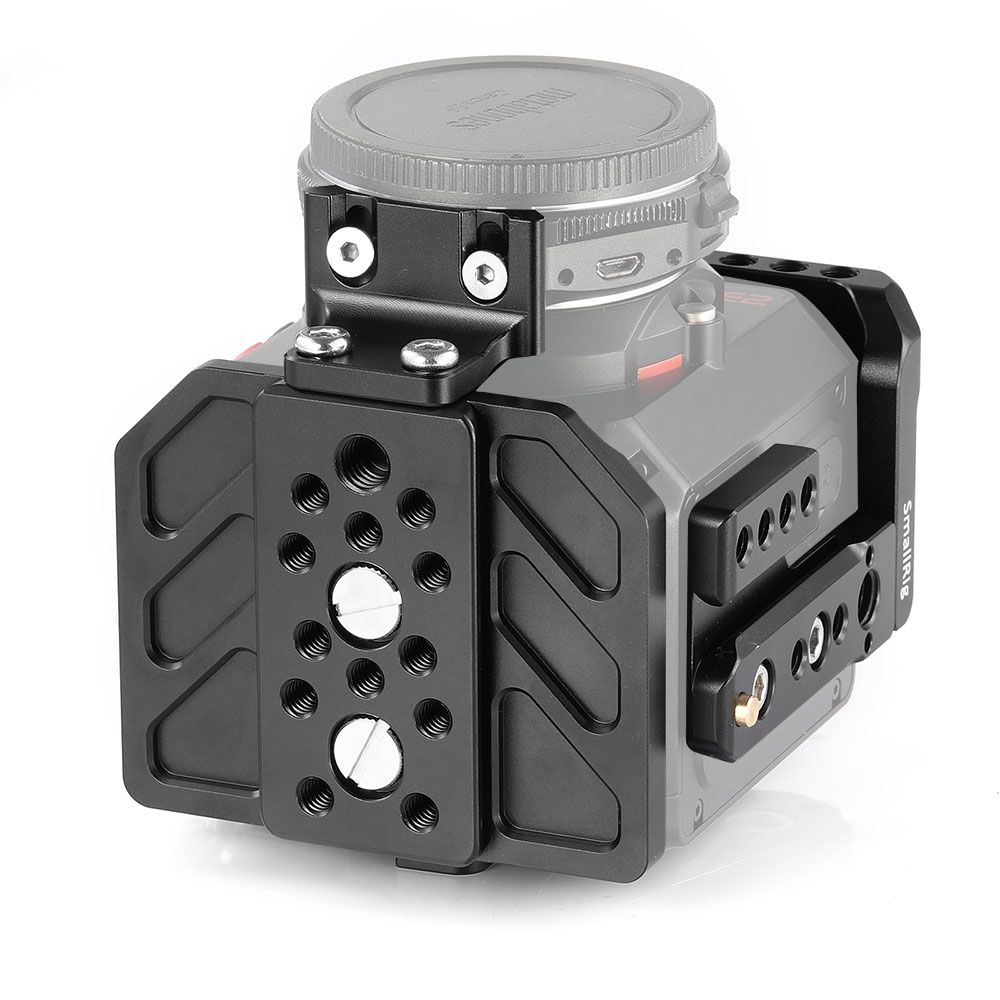

SMALLRIG CAGE FOR Z CAM E2 CAMERA CVZ2264
- Designed for Z CAM E2 Camera.
- Modular Designed to Make Your Setup Lightweight.
- Nato Rail on Each Side Plate.
- Integrated with Arca Swiss Plate on the Bottom.
- Features Multiple 1/4”-20, 3/8”-16 and Arri 3/8” Threaded Holes.
- Lens Adapter Support, HDMI and USB Cable Clamp are Included.
- Compatible with Smallrig Samsung T5 SSD Mount 2245
SmallRig Cage for Z cam E2 Camera CVZ2264 is designed to provide protection and mounting options for Z cam E- The modular designed cage mainly consists of a top plate, bottom plate, two side plates, HDMI and USB cable clamp as well as a M43 lens adapter support. The purpose of the cage is to make your setup lightweight so that you can use the side plate or bottom plate separately based on your needs. The cage provides multiple 1/4”-20, 3/8”-16 and arri 3/8” threaded holes for accessory attachment such as magic arm, cold shoe and handles. Each side plate comes with a nato rail allows for mounting Magic Arm 2071 for monitor and Nato Handle 2187 to make your setup quick releasable. The bottom plate features rubber cushions on the top to prevent the cage from scratching the camera and integrates with an Arca Swiss plate allows you to mount your Z cam E2 camera to the Arca tripod directly in seconds.
IMPORTANT
The USB cable clamp is compatible with the type-c cable under 10x6mm in size.
SPECIFICATIONS
Product Dimensions: 106 x 114.5 x 87mm
Package Dimensions: 95x65x28mm
Net Weight: 268g
Package Weight: 325g
Material(s): Aluminum Alloy
COMPATIBILITY
Z cam E2 Camera
Metabones Adapter Support Compatible with：
Canon EF Lens to Micro Four Thirds T Smart Adapter (MB_EF-m43-BT2)
Canon EF Lens to Micro Four Thirds T Speed Booster XL 0.64x (MB_SPEF-M43-BT3)
WHAT IS INCLUDED
1x Top Plate
1x Bottom Plate
2x Side Plate
1x Lens Support
1x HDMI Cable Clamp
1x USB Cable Clamp
7x 1/4 Screw
2x M4 Screw
6x M3 Screw
2x Hex Spanner
