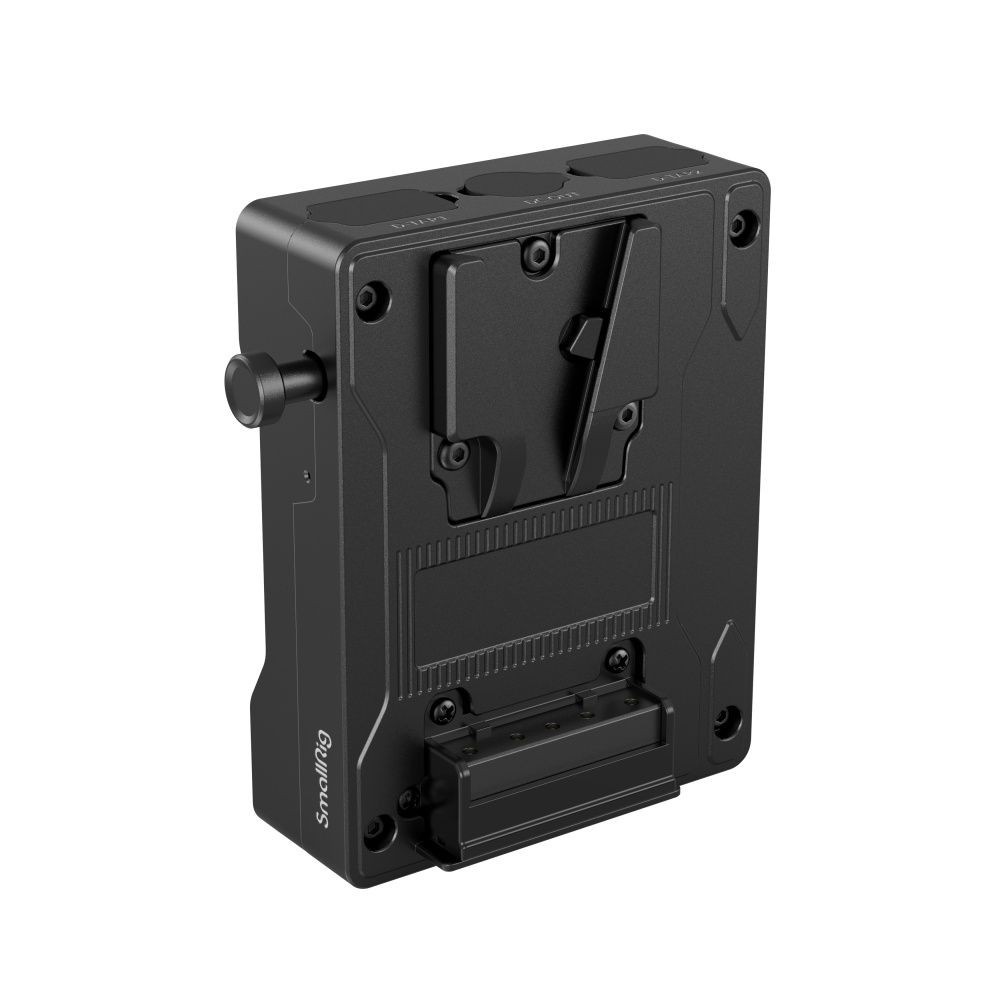

SMALLRIG V-MOUNT BATTERY PLATE ADAPTER FOR RED V-RAPTOR 3898
- Helps attach large V-Mount battery to RED V-RAPTOR.
- Snaps directly into the back of RED V-RAPTOR for quick installation.

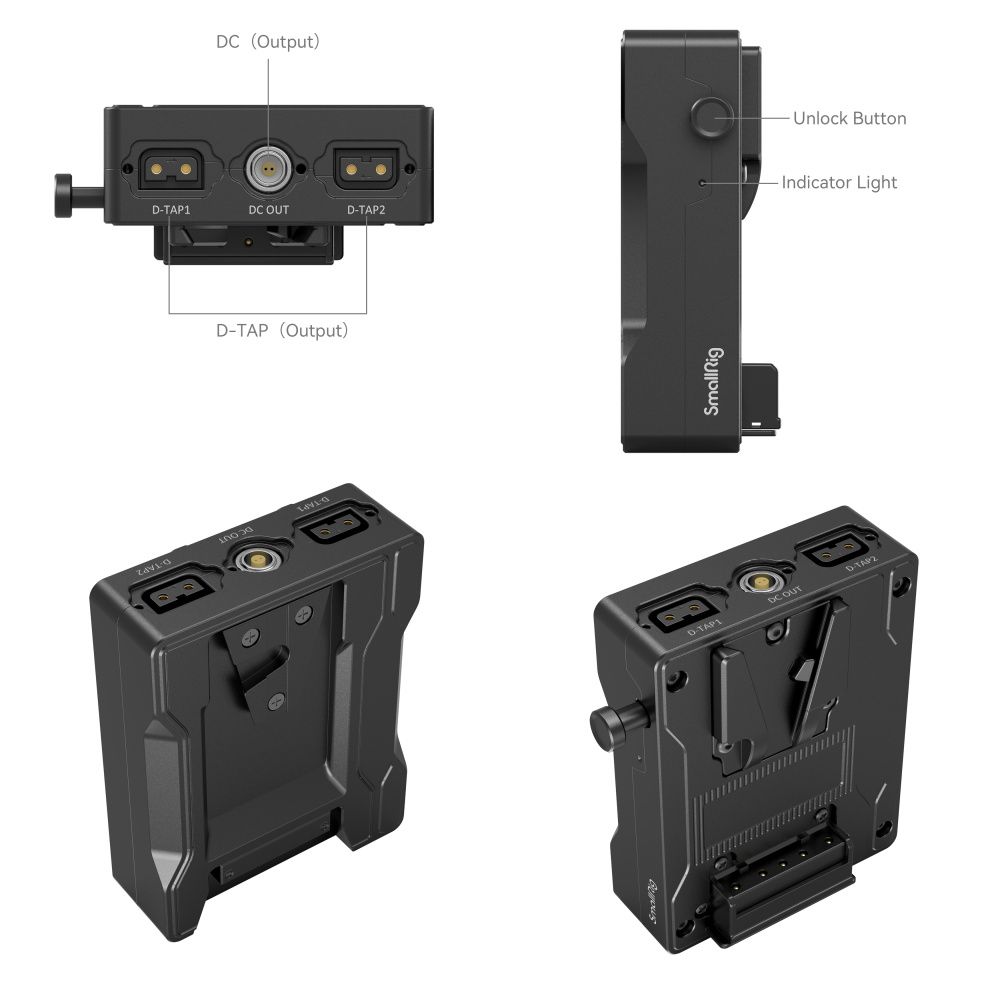

- Two D-Taps and one DC output port for powering monitors, image transmission system, etc.
SmallRig V-Mount Battery Plate Adapter for RED V-RAPTOR 3898 is designed to connect a large V-Mount battery to RED V-RAPTOR and power other devices if needed. Simply snaps it directly onto the back of the RED V-RAPTOR before attaching a V-Mount battery; it becomes operative when the indicator light is on. By pressing the unlock button on the left, you will quickly remove the battery. The plate also comes with two D-Taps and one DC output port for powering monitors, image transmission systems, etc.
SPECIFICATIONS
SmallRig V-Mount Battery Plate Adapter for RED V-RAPTOR 3898 is designed to connect a large V-Mount battery to RED V-RAPTOR and power other devices if needed. Simply snaps it directly onto the back of the RED V-RAPTOR before attaching a V-Mount battery; it becomes operative when the indicator light is on. By pressing the unlock button on the left, you will quickly remove the battery. The plate also comes with two D-Taps and one DC output port for powering monitors, image transmission systems, etc.
SPECIFICATIONS

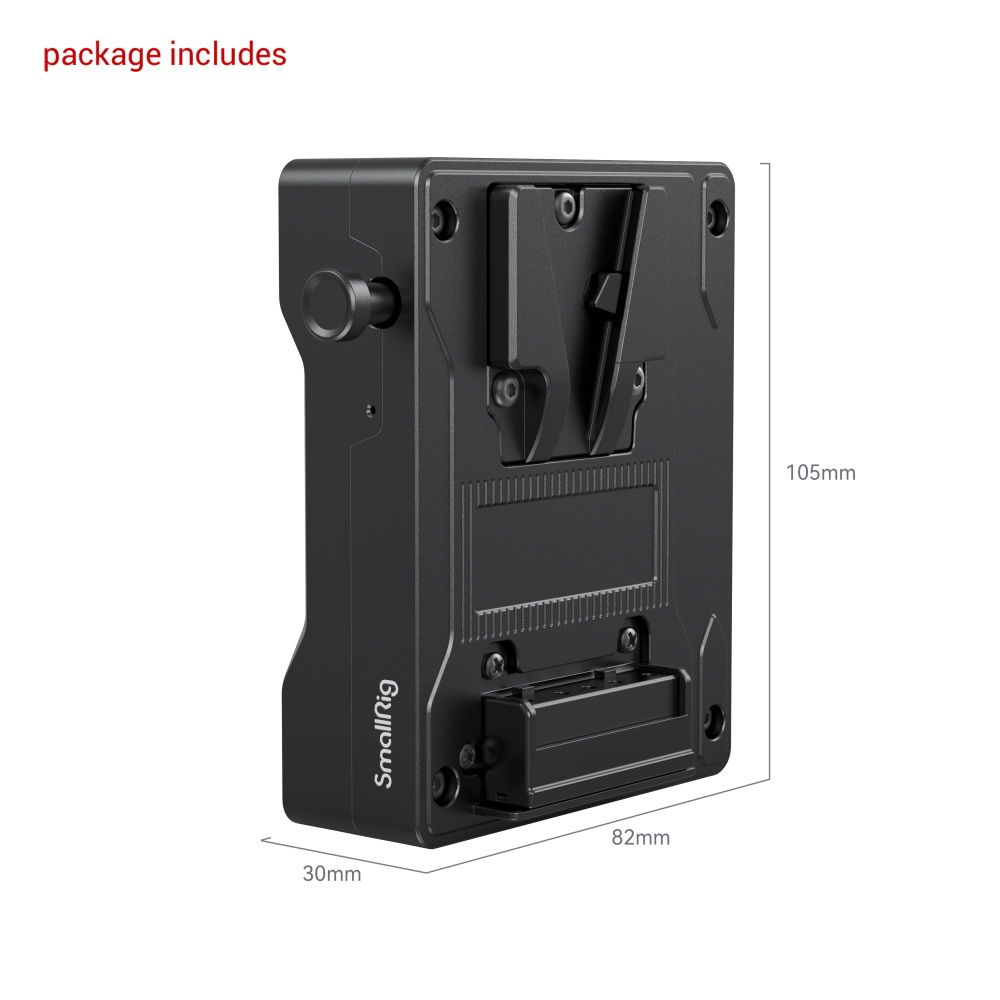

Product Dimensions: 94 × 40 × 105mm
Package Dimensions: 140 × 105 × 55mm
Product Weight: 242g±5g
Package Weight:277g±5g
Material(s): Aluminum Alloy
Input: V-Mount 11V ~ 16.8V / 21A Max
Output: V-Mount 11V ~ 16.8V / 21A Max
D-TAP1 11V ~ 16.8V / 60W Max
D-TAP2 11V ~ 16.8V / 60W Max
DC OUT 11V ~ 16.8V / 60W Max
COMPATIBILITY
COMPATIBILITY
RED V-RAPTOR
WHAT IS INCLUDED
WHAT IS INCLUDED
1x V-Mount Battery Plate Adapter
