Description
SMALLRIG V MOUNT BATTERY ADAPTER PLATE WITH ADJUSTABLE ARM 3204
- The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig.

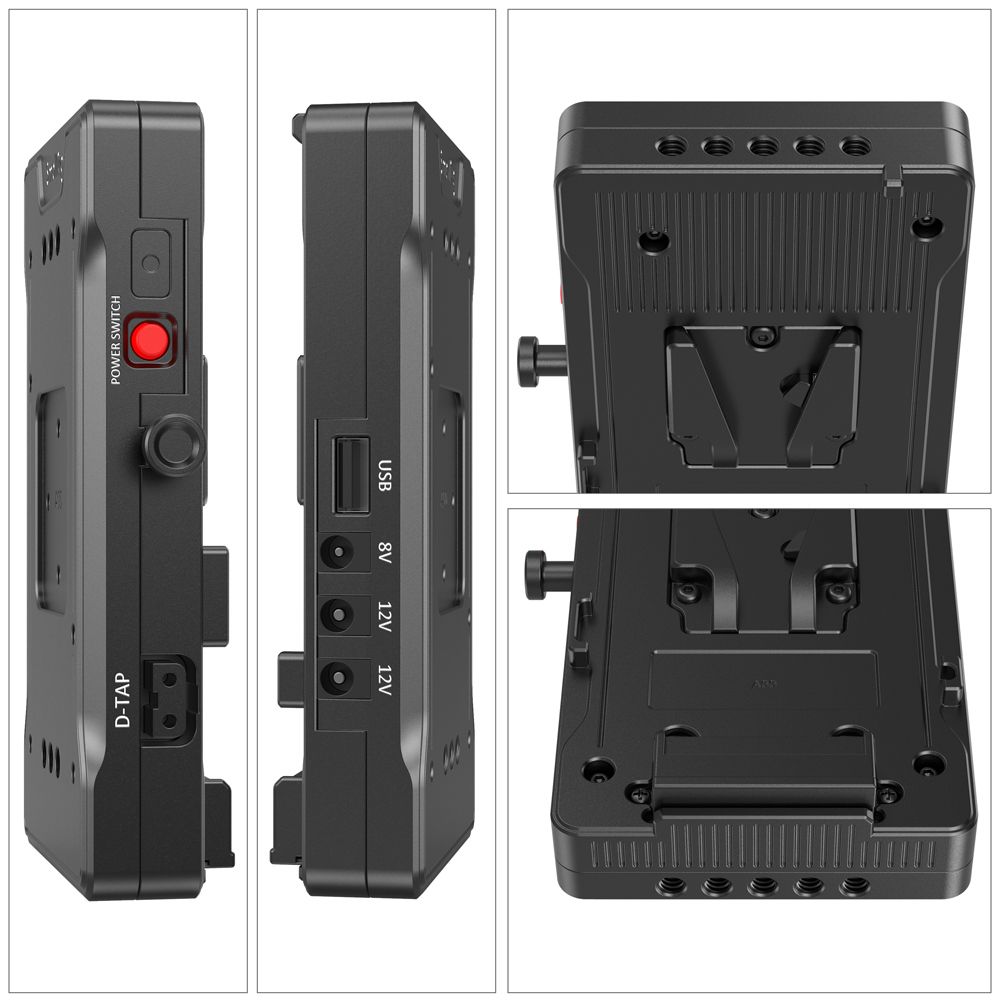

- The plate provides different output ports, including an 8V DC output port, two 12V DC output ports, and a 1- 8V D-Tap output port.
- The plate provides a 5V/2A USB output port to power a phone or a wireless video transmitter via a V mount battery.
- It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system.

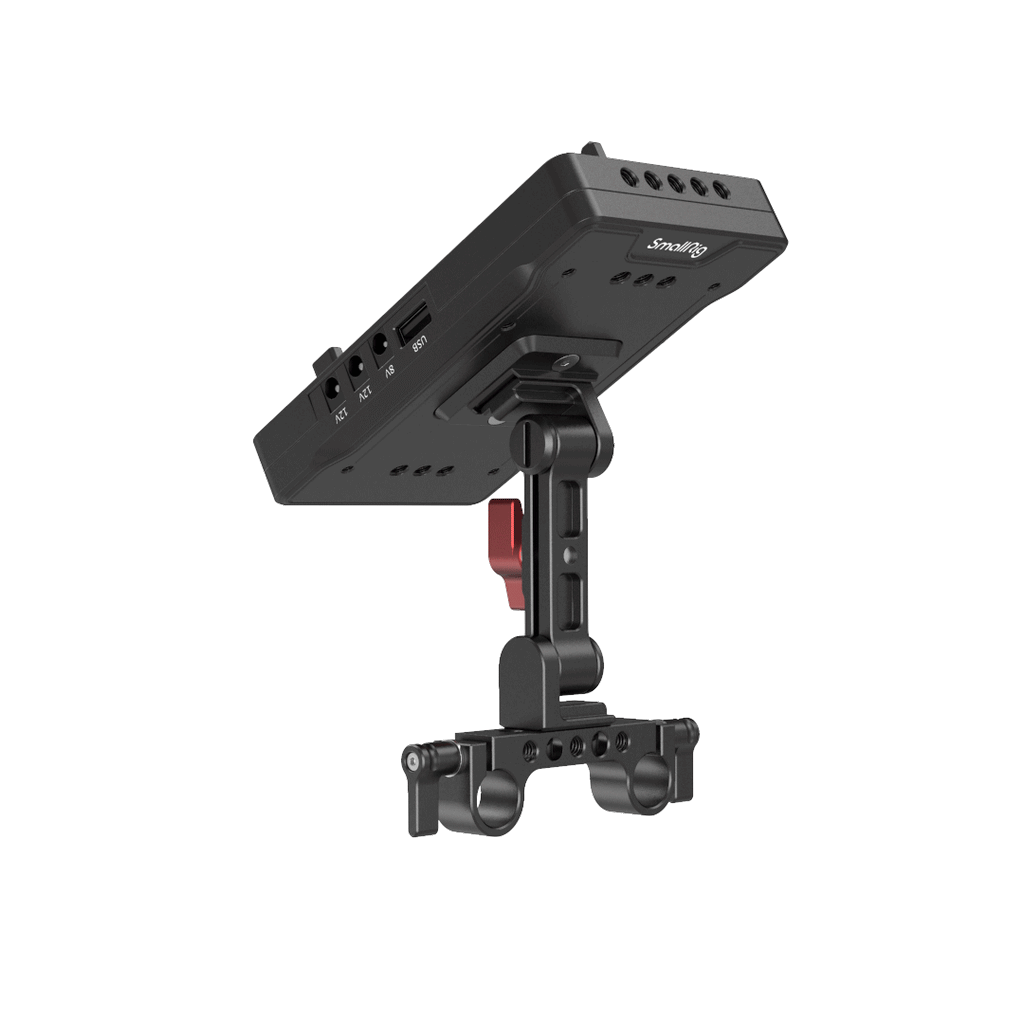

- It features an adjustable arm for quick adjustment of the V mount battery position.
SmallRig V Mount Battery Adapter Plate with Adjustable Arm 3204 is designed to provide greater battery life to your camera rig via a V mount battery. The plate utilizing a standard V mount fits most V mount batteries. It gives an 8V DC output port, two 12V DC output ports, a 1- 8V D-Tap output port, and a 5V/2A USB output port to power your camera and other external accessories like a monitor, a phone, etc. via a V mount battery. It features a power switch that controls all of the output ports to power-on or power-off your rig more quickly and conveniently. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system, and an adjustable arm for quick adjustment of the V mount battery position.
Designer: Peiwen He & Abby Huang
IMPORTANT
SmallRig V Mount Battery Adapter Plate with Adjustable Arm 3204 is designed to provide greater battery life to your camera rig via a V mount battery. The plate utilizing a standard V mount fits most V mount batteries. It gives an 8V DC output port, two 12V DC output ports, a 1- 8V D-Tap output port, and a 5V/2A USB output port to power your camera and other external accessories like a monitor, a phone, etc. via a V mount battery. It features a power switch that controls all of the output ports to power-on or power-off your rig more quickly and conveniently. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system, and an adjustable arm for quick adjustment of the V mount battery position.
Designer: Peiwen He & Abby Huang
IMPORTANT
- Do not use in damp environment to avoid short circuit;
SPECIFICATIONS
SPECIFICATIONS
Product Dimensions: 16- 7 x 108x 6- 3mm
Package Dimensions: 158x 166 x 9- 5mm
Net Weight: 404g±5g
Package Weight: 554g±5g
Material(s): Aluminum Alloy
COMPATIBILITY
COMPATIBILITY
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

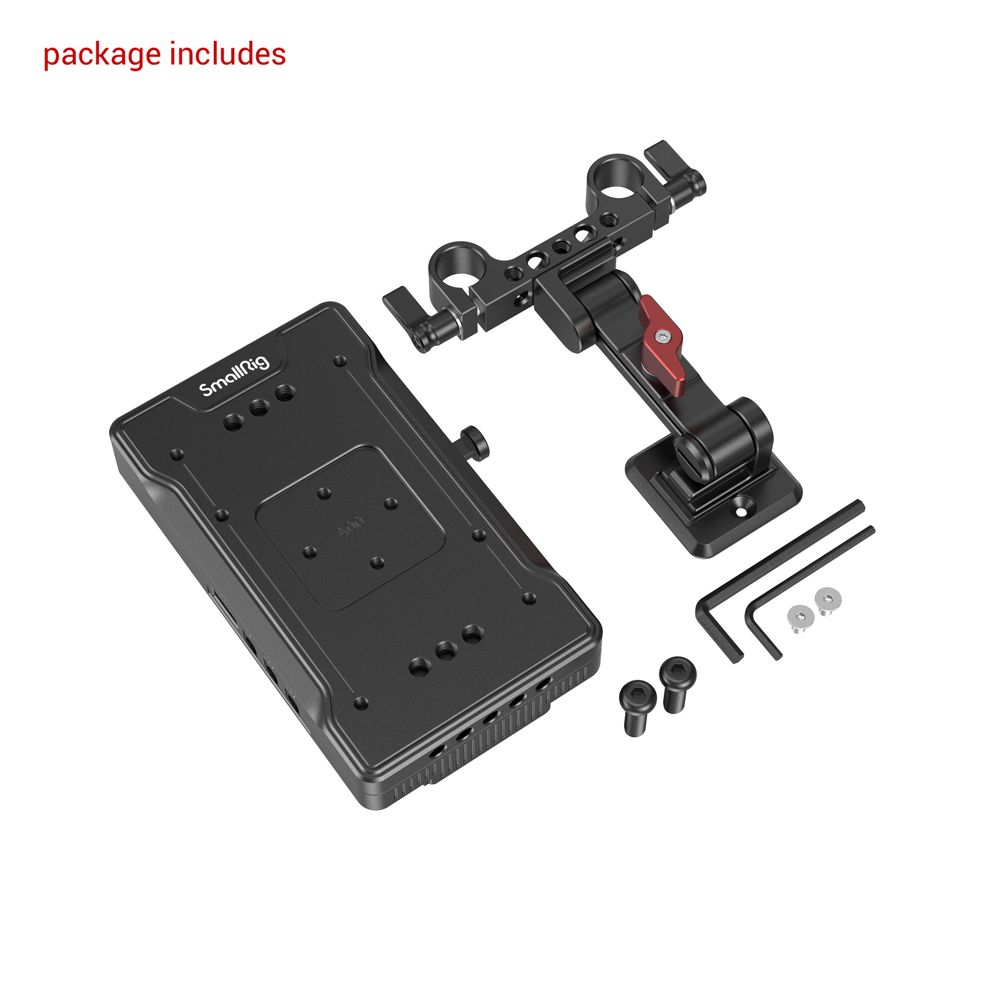

WHAT IS INCLUDED
WHAT IS INCLUDED
1x V Mount Battery Adapter Plate
1x Dual 15mm Rod Clamp with Adjustable Arm
2x Allen Wrench
2x Mounting Screw
