Description

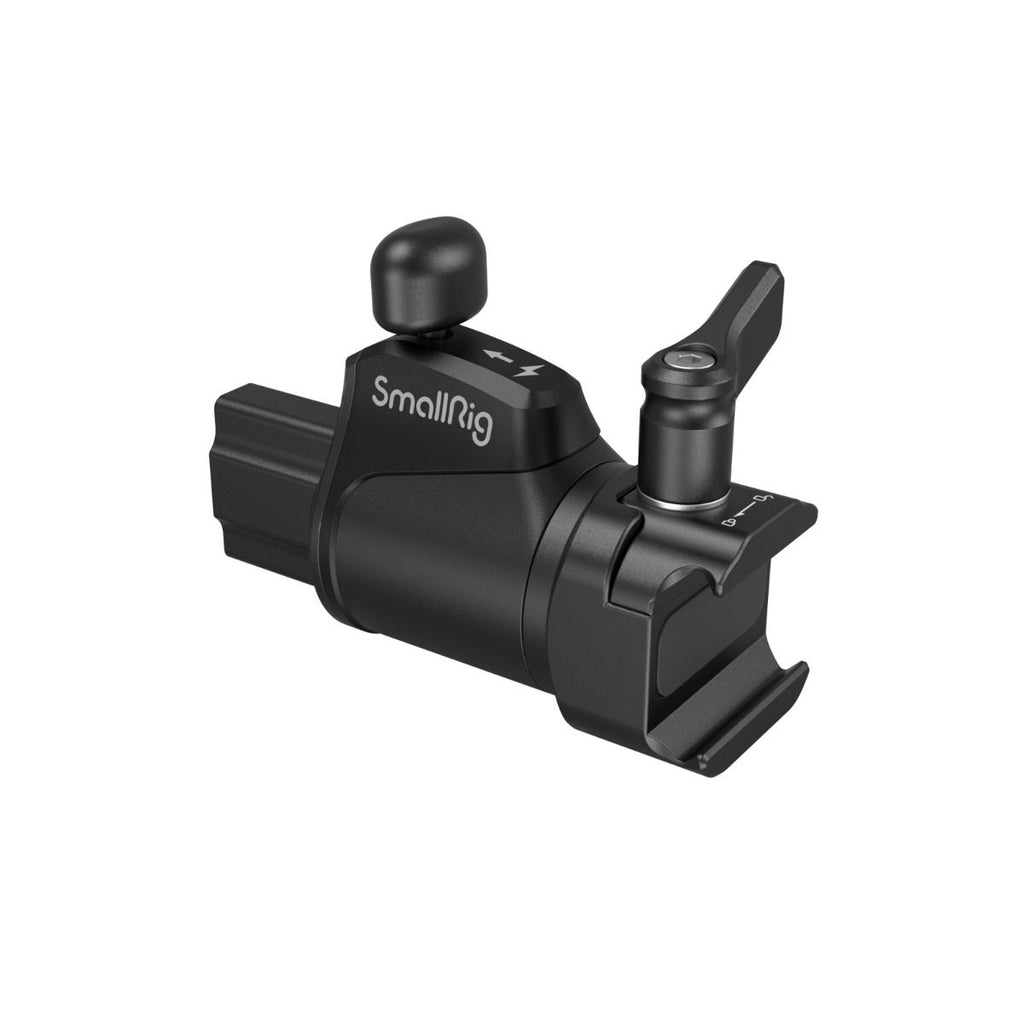

SMALLRIG UNIVERSAL ROTATING HANDLE ADAPTER 4112
- Stable and precise adjustable shooting angle.
- Two-way 360-degree step-less rotation for comfortable camera movement.
- 15kg / 33.1lb load-bearing capacity for stable and durable shooting.

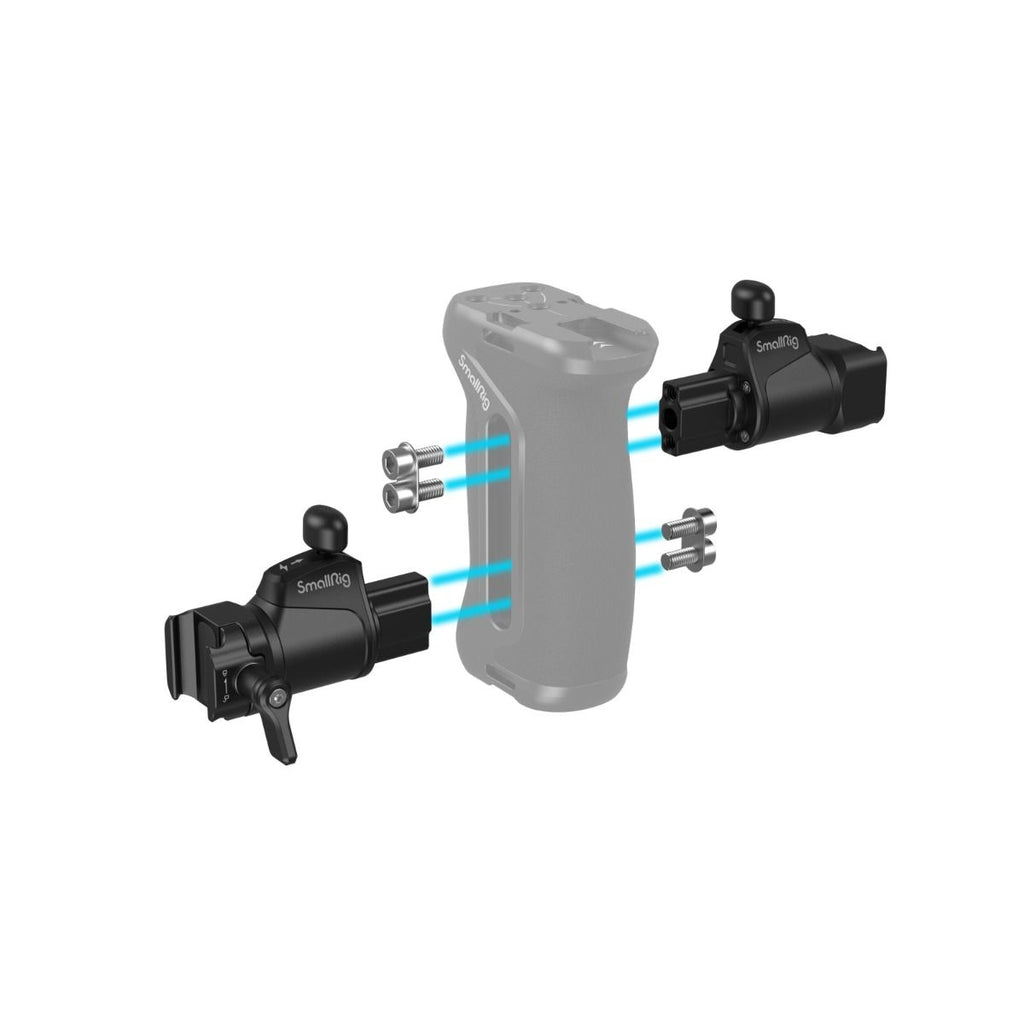

- Highly compatible: it can be used on handles with grooves via two 1/4"-20 screws.
SmallRig Universal Rotating Handle Adapter 4112 is designed to facilitate multi-angle shooting. Built-in 8 hardened stainless steel needle rollers lock the rotating shaft to achieve precise positioning and enable two-way 360-degree step-less rotation for comfortable camera movement. The axis of the adapter is made of hardened stainless steel, and the main body is made of aircraft-grade aluminum alloy, making the item sturdy and durable. The adapter’s load-bearing capacity is 15 kg / 33.1lb. The adapter can be used on handles with grooves via two 1/4"-20 screws.
IMPORTANT

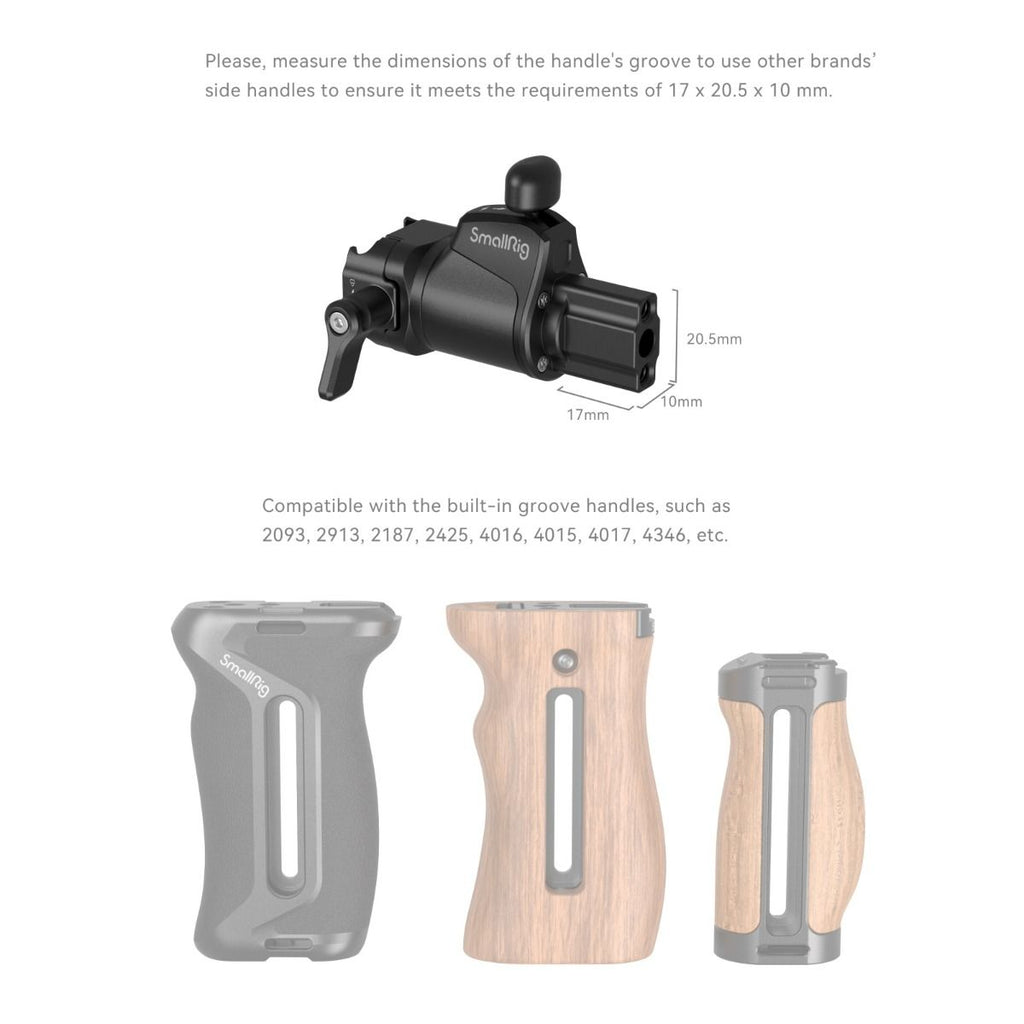

Please, measure the dimensions of the handle's groove to use other brands’ side handles to ensure it meets the requirements of 17 x 20.5x 10 mm.
SPECIFICATIONS

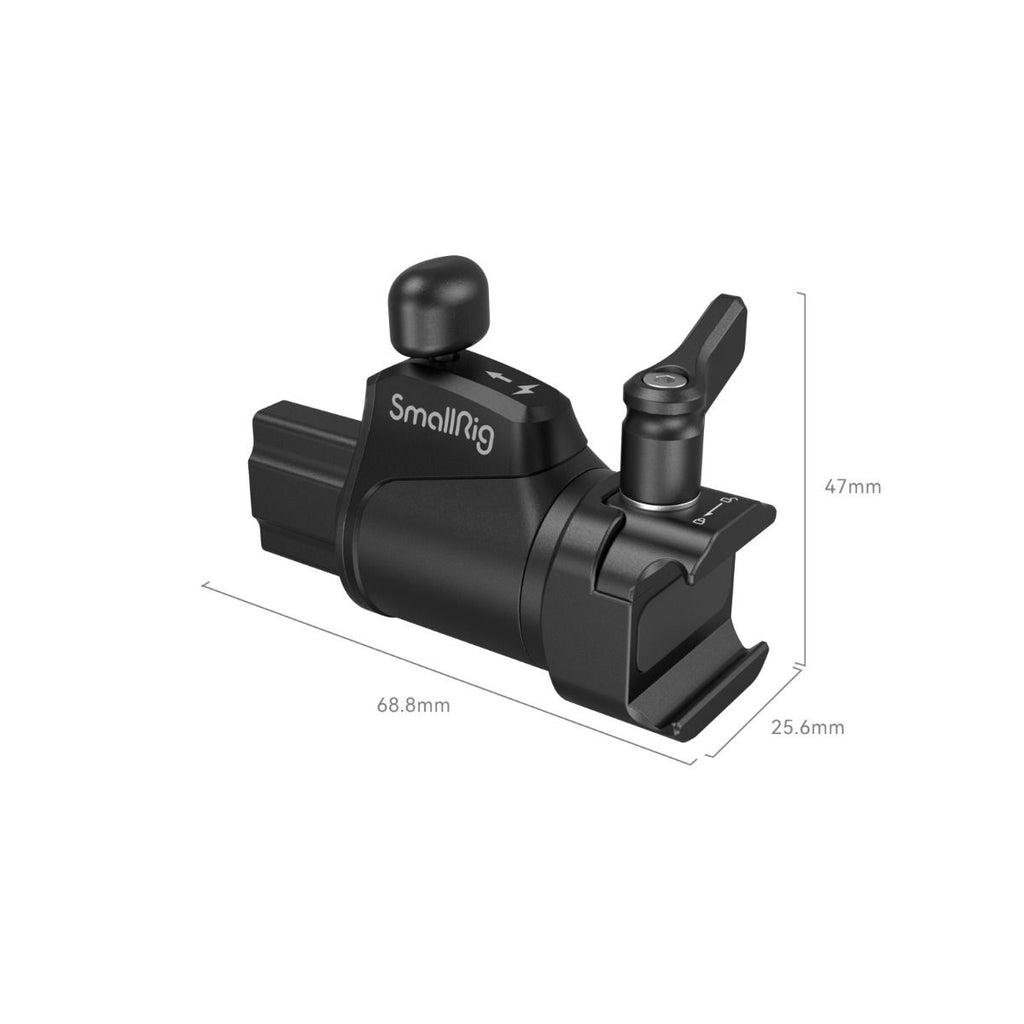

Product Dimensions: 68.8x 46.6 x 25.0 mm
Package Dimensions: 79.0 x 66.0 x 42.0 mm
Product Weight: 127.0 g±5g
Package Weight: 143.5 g±5g
Material(s): Aluminum Alloy, Stainless Steel
COMPATIBILITY

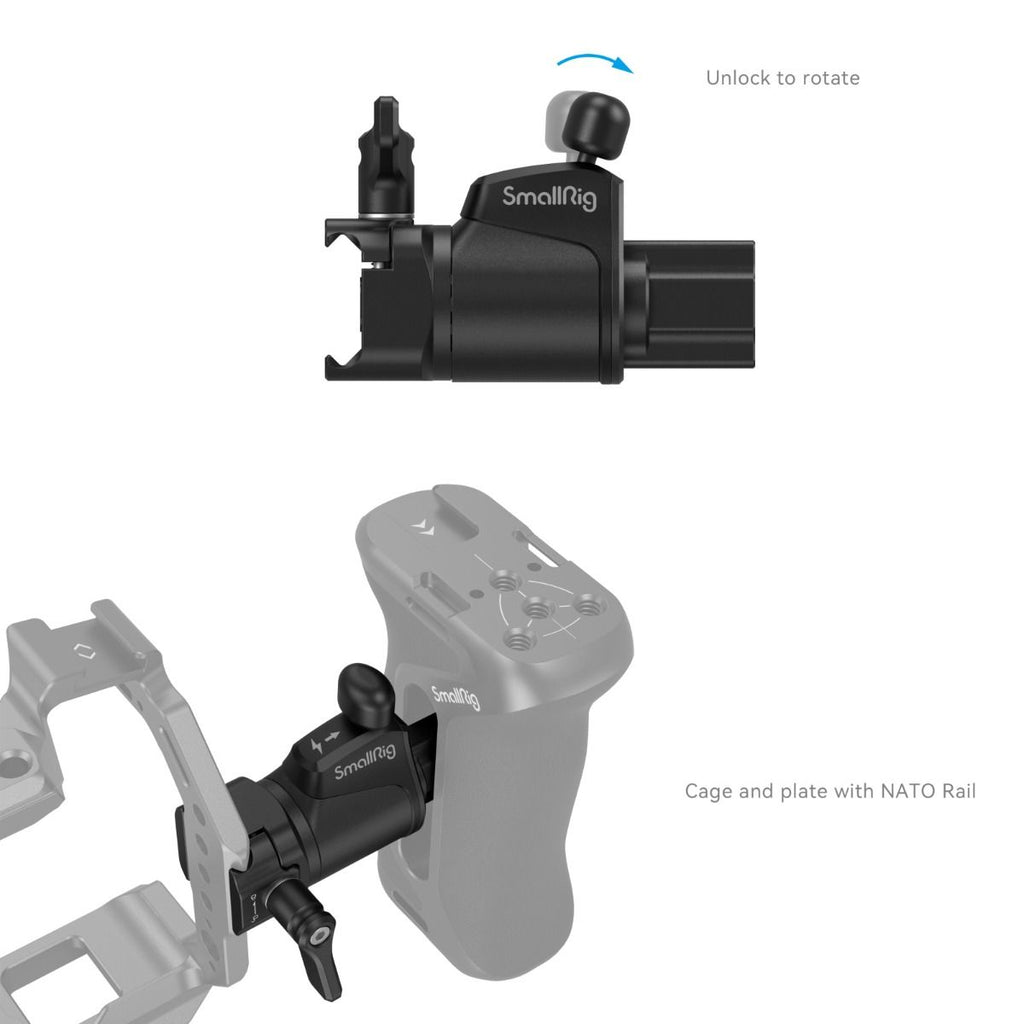

- Cages and plates with NATO Rail.
- This adapter is compatible with SmallRig's existing built-in groove handles, such as 2093, 2913, 2187, 2425, 4016, 4015, 4017, 4346, etc.

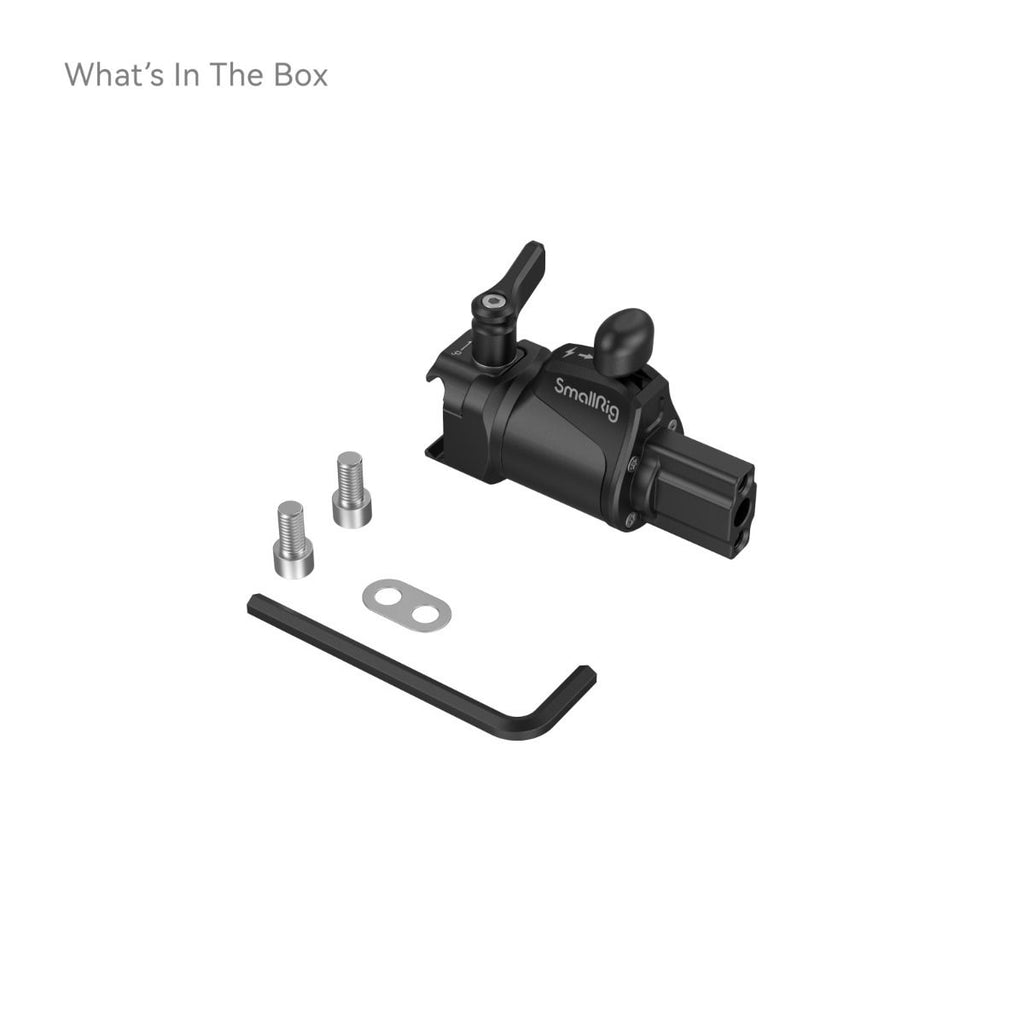

WHAT IS INCLUDED
1x Handle Adapter
1x Allen Wrench
2x 1/4”-20 Screw
1x Screw Gasket
