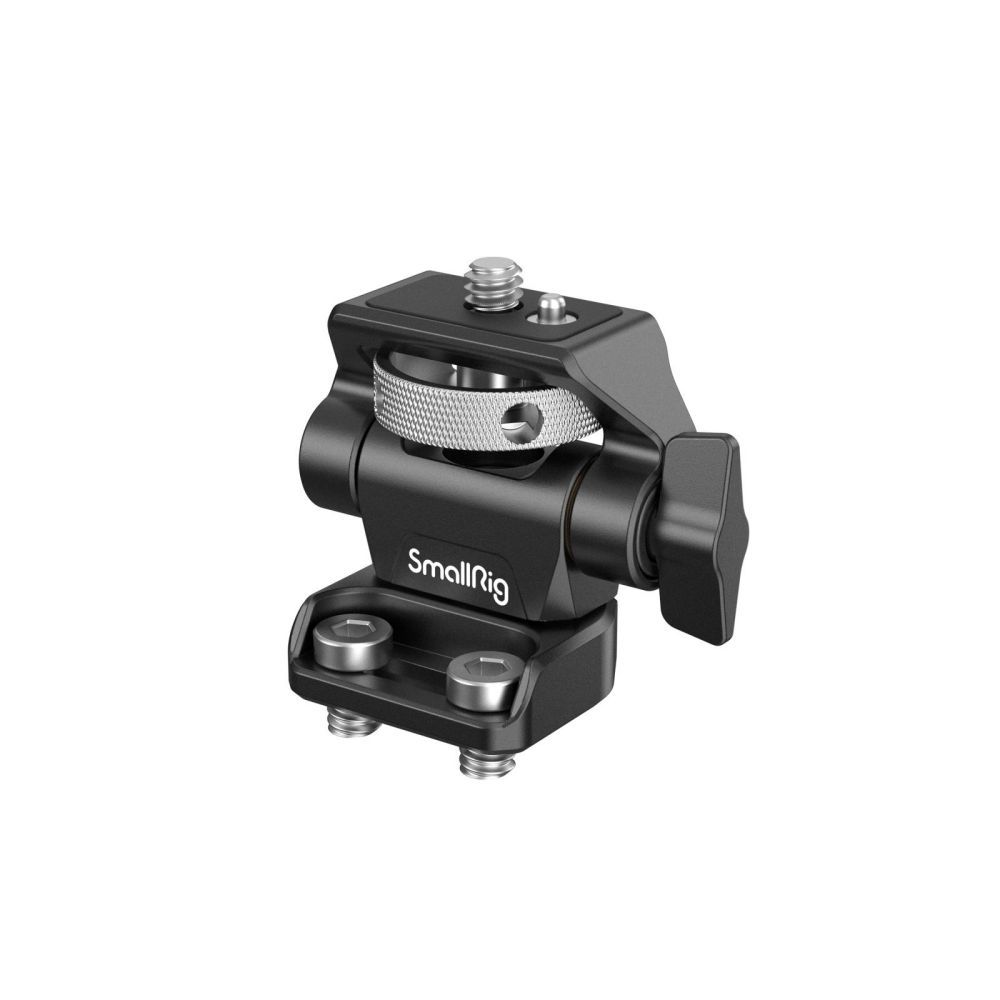

SMALLRIG SWIVEL AND TILT ADJUSTABLE MONITOR MOUNT WITH SCREWS MOUNT 2904B

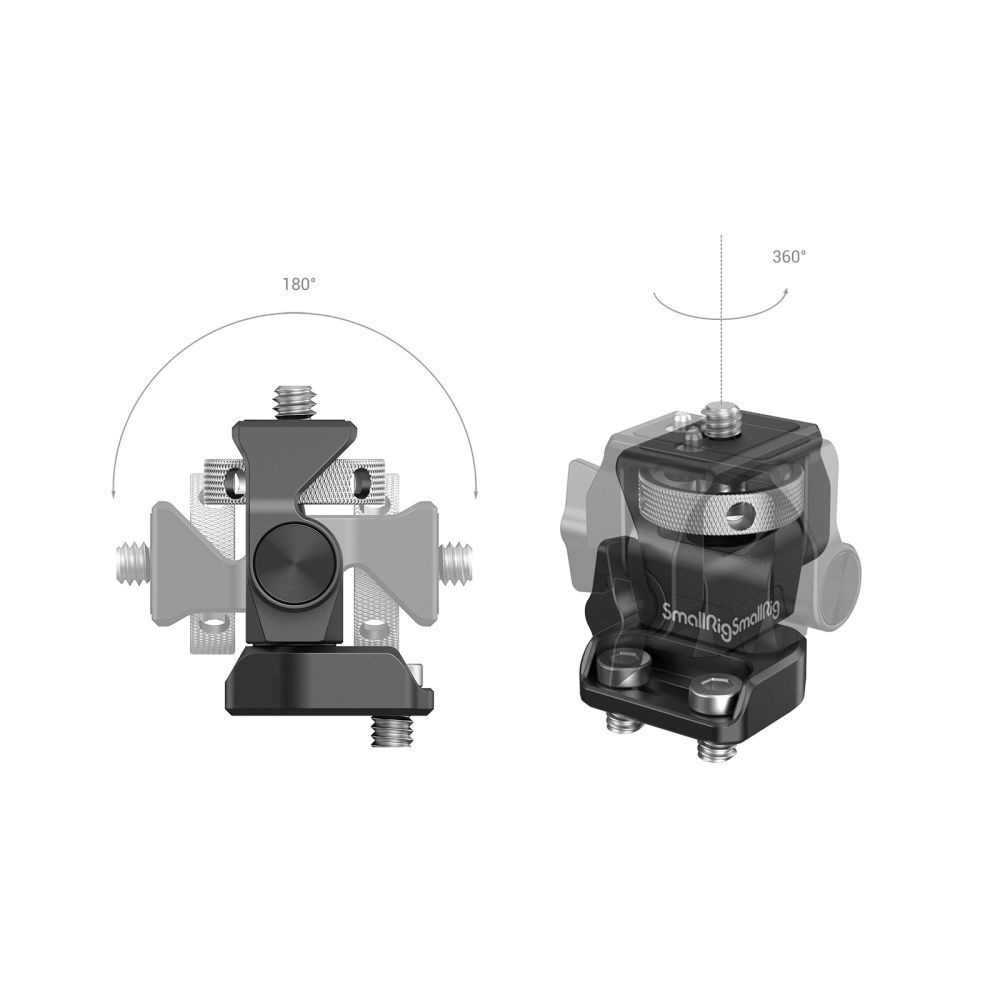

- Tightness adjustable on each axis swivels 360° and tilts 180°.
- Tested durability, with tilt load capacity, decreased by no more than 20% after 10,000 tilts.
- Bouncy locating pins and silicone pad prevent twisting.
- Holes in thumbscrews for quick release of the mount.

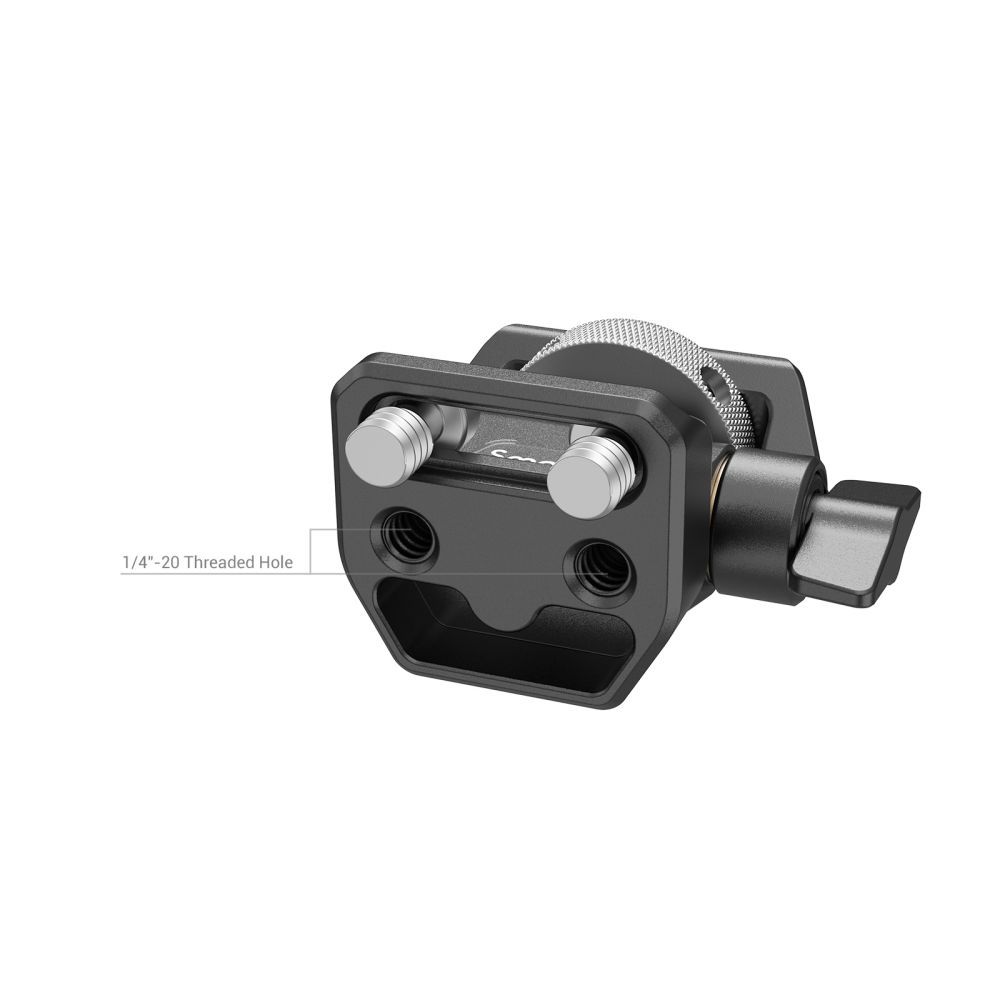

- 1/4"-20 threaded holes at the bottom for a magic arm.

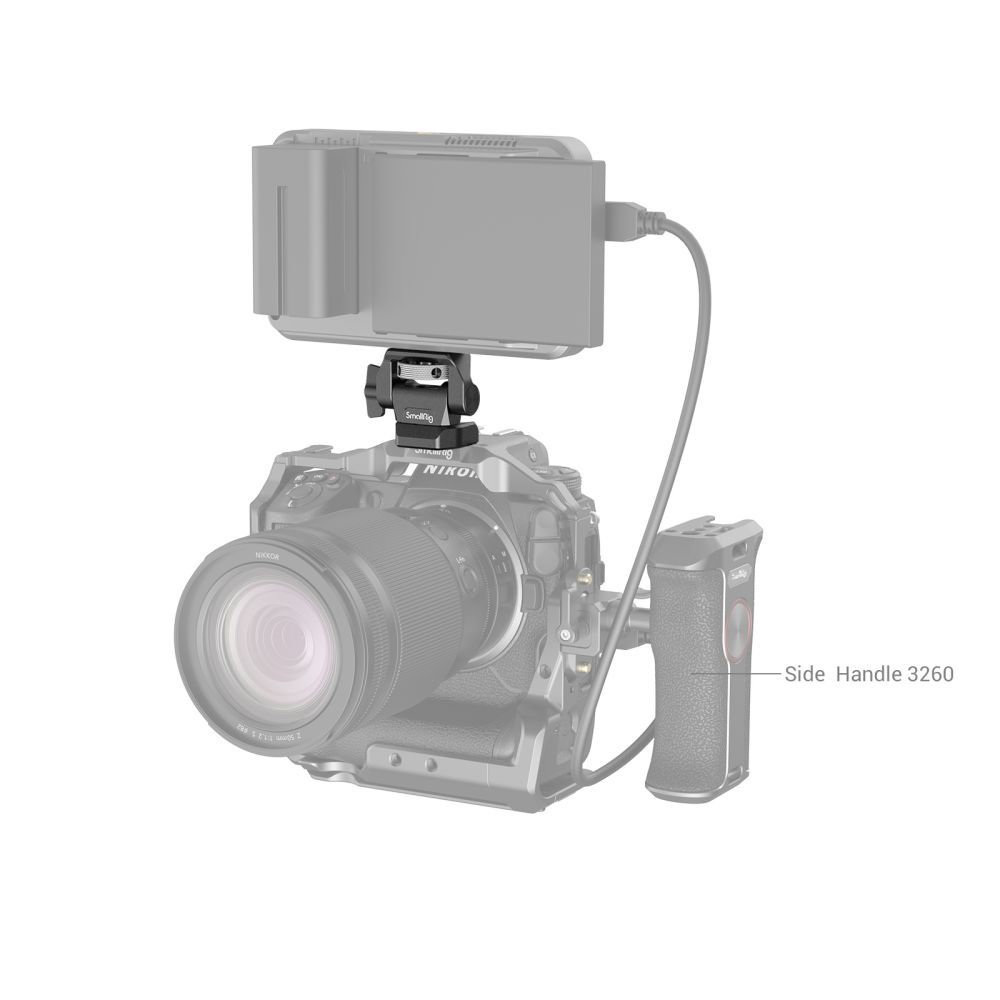

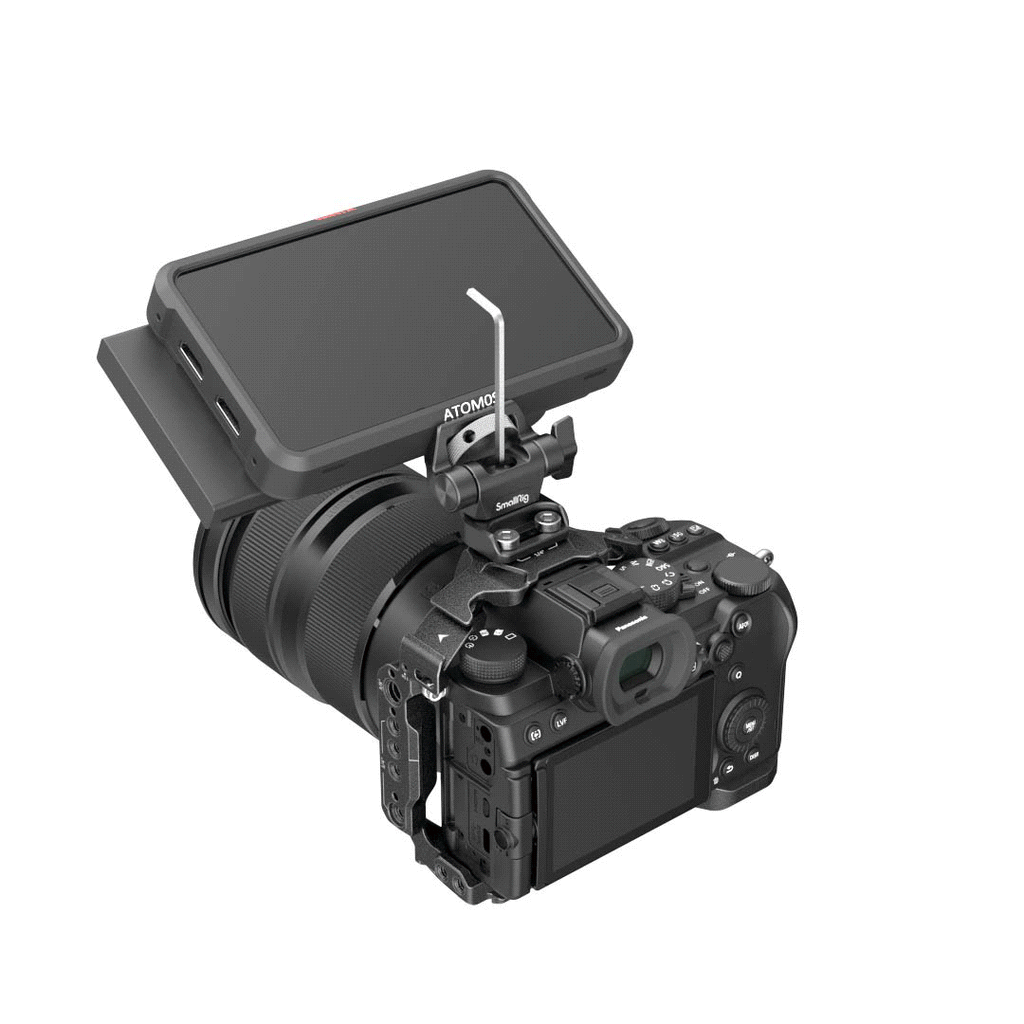

SmallRig Swivel and Tilt Adjustable Monitor Mount with 1/4"-20 Screws Mount 2904 is designed to hold your monitor for easy monitoring. It comes with bottom 1/4”-20 screws for accessories with 1/4"-20 threaded holes (hole center distance≤18mm) and a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and swivel 360°. Its tilt axis is quickly tightened via a knob to suit the different weights and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure Ninja V/ V+, and 1/4"-20 threaded holes at the bottom allow attaching Magic Arm 2070, etc. The thumbscrews have holes for Allen's wrench to facilitate assembly and disassembly.
IMPORTANT
SmallRig Swivel and Tilt Adjustable Monitor Mount with 1/4"-20 Screws Mount 2904 is designed to hold your monitor for easy monitoring. It comes with bottom 1/4”-20 screws for accessories with 1/4"-20 threaded holes (hole center distance≤18mm) and a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and swivel 360°. Its tilt axis is quickly tightened via a knob to suit the different weights and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure Ninja V/ V+, and 1/4"-20 threaded holes at the bottom allow attaching Magic Arm 2070, etc. The thumbscrews have holes for Allen's wrench to facilitate assembly and disassembly.
IMPORTANT

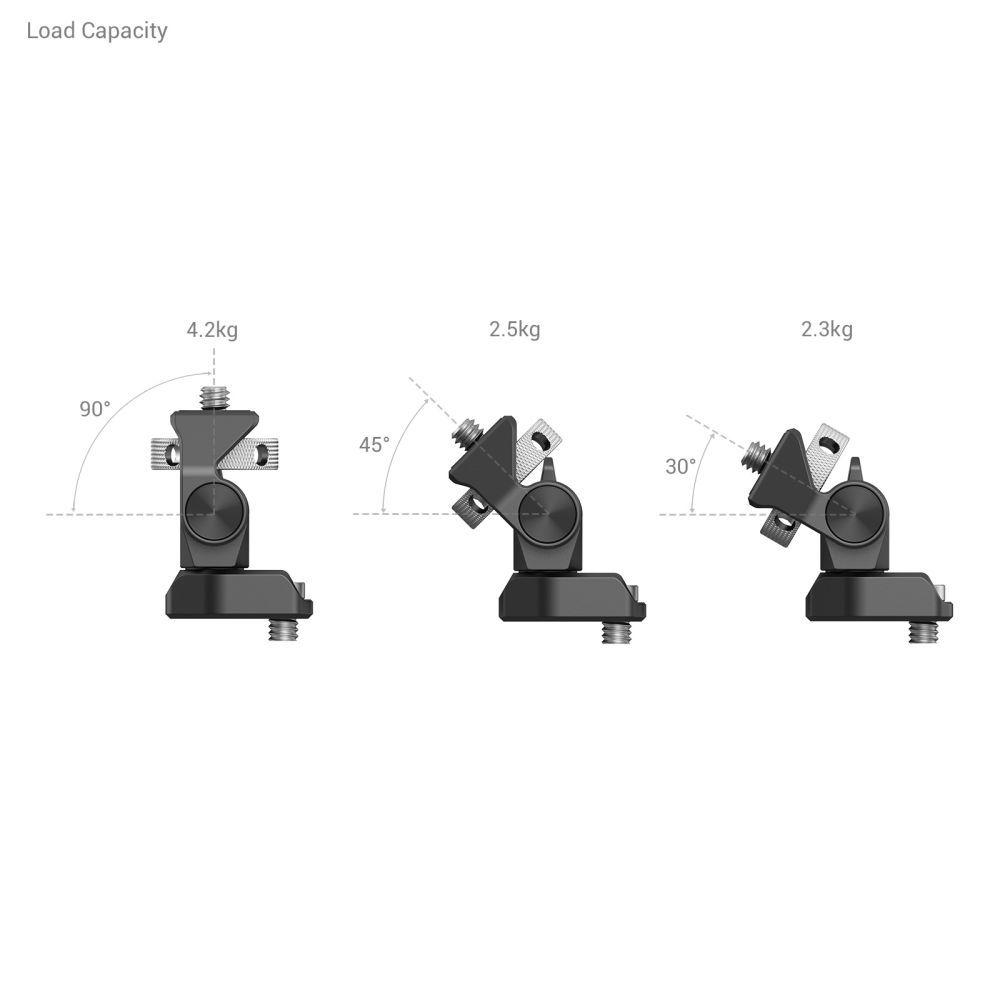

90° load capacity: <4.2kg
45° tilt load capacity: <2.5kg
30° tilt load capacity: <2.3kg
SPECIFICATIONS
SPECIFICATIONS

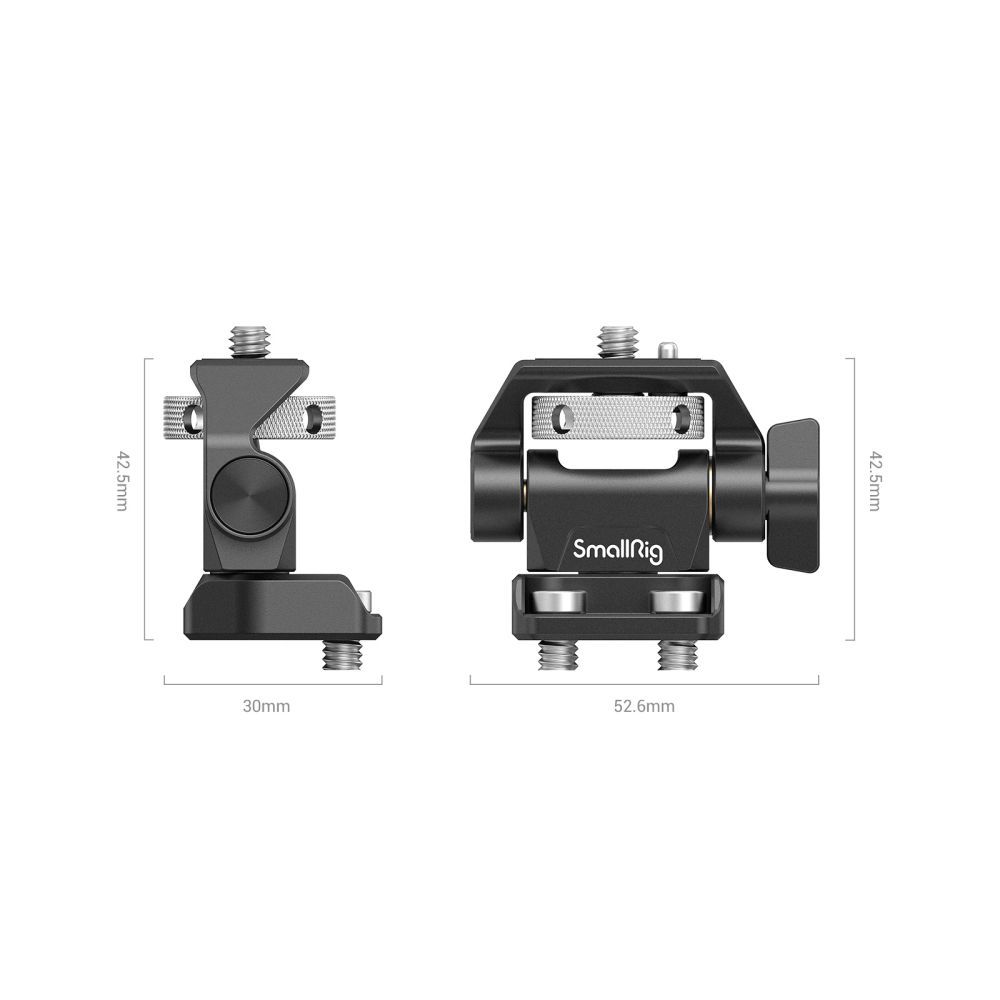

Product Dimensions: 42.5x 52.6 x 30mm
Package Dimensions: 78x 67 x 42mm
Net Weight: 81g±5g
Package Weight: 101g±5g
Material(s): Aluminum Alloy, Stainless Steel
COMPATIBILITY
COMPATIBILITY
- 5” and 7” monitor
- Accessories with 1/4"-20 threaded holes (hole center distance≤18mm) such as cage, top plate, handle, etc

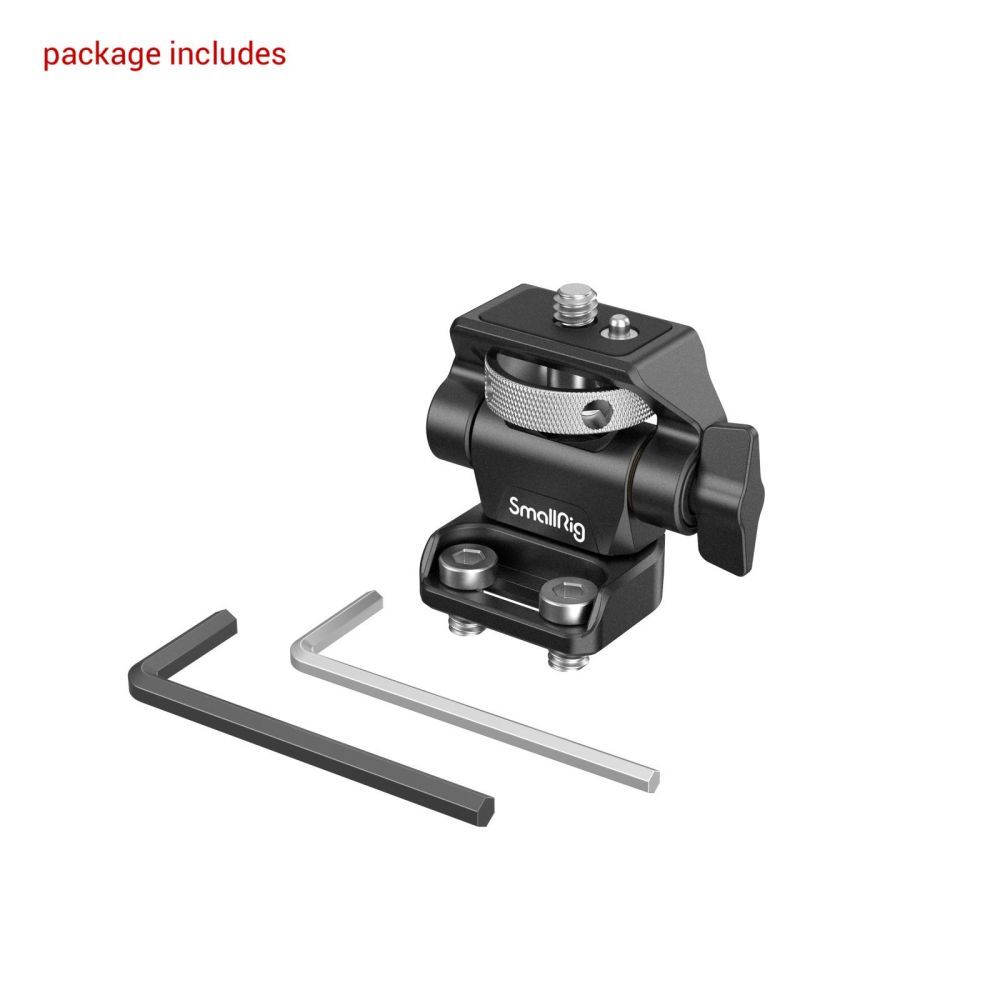

WHAT IS INCLUDED
WHAT IS INCLUDED
1x Monitor Mount
2x Allen Wrench
