Description
SMALLRIG SWIVEL AND TILT ADJUSTABLE MONITOR MOUNT WITH ARRI-STYLE SCREW MOUNT 2903B

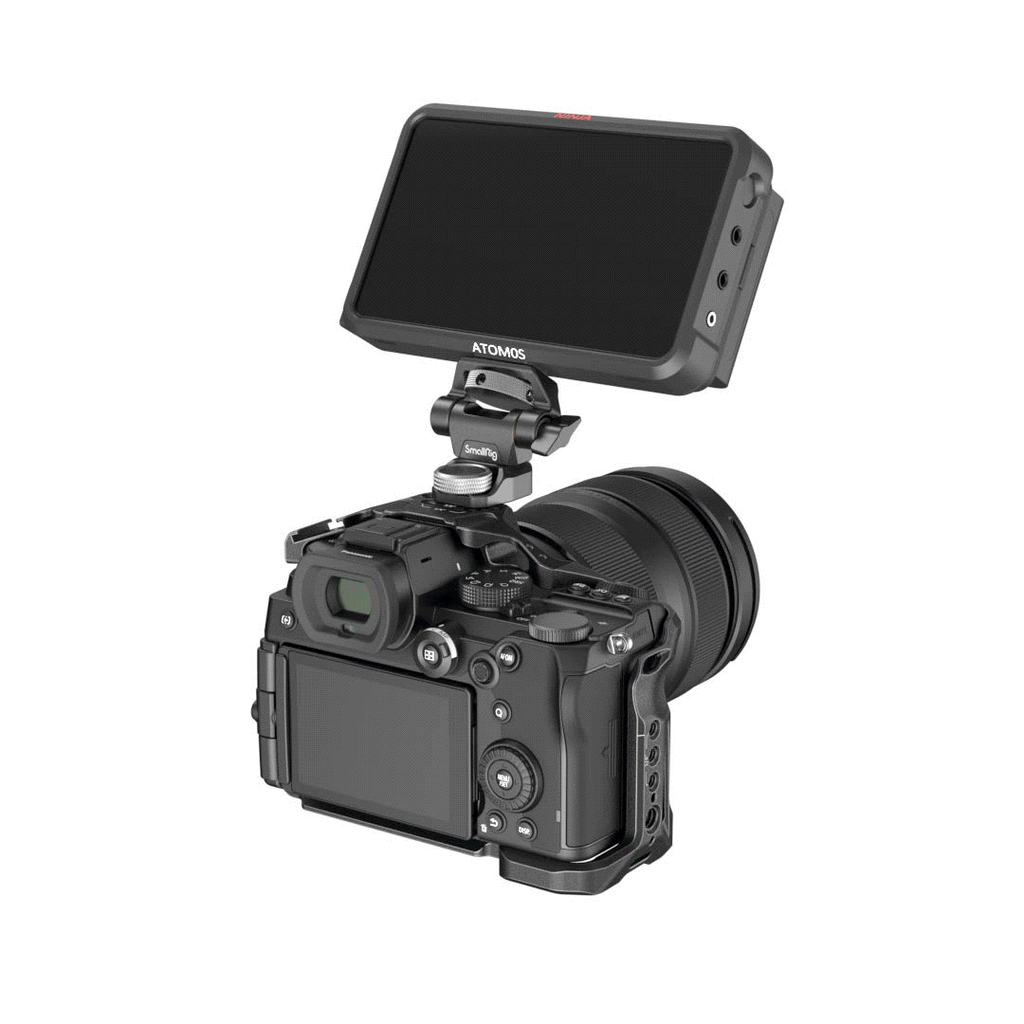

SmallRig Swivel and Tilt Adjustable Monitor Mount with ARRI-Style Screw Mount 2903B is designed to hold your monitor for easy monitoring. It comes with a bottom ARRI locating screw for accessories with ARRI 3/8" -16 locating holes and a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and and swivel 360°. Its tilt axis is quickly tightened via a knob to suit different weight and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure Ninja V/ V+; and 1/4"-20 threaded holes at the bottom allow attaching Magic Arm 2070, etc. The thumbscrews have holes for Allen wrench to facilitate assembly and disassembly.
- Tightness adjustable on each axis, swivels 360° and tilts 180°
- Tightness adjustable on each axis, swivels 360° and tilts 180°
- Tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts
- Bouncy locating pins and silicone pad prevent twisting
- Holes in thumbscrews for quick release of the mount

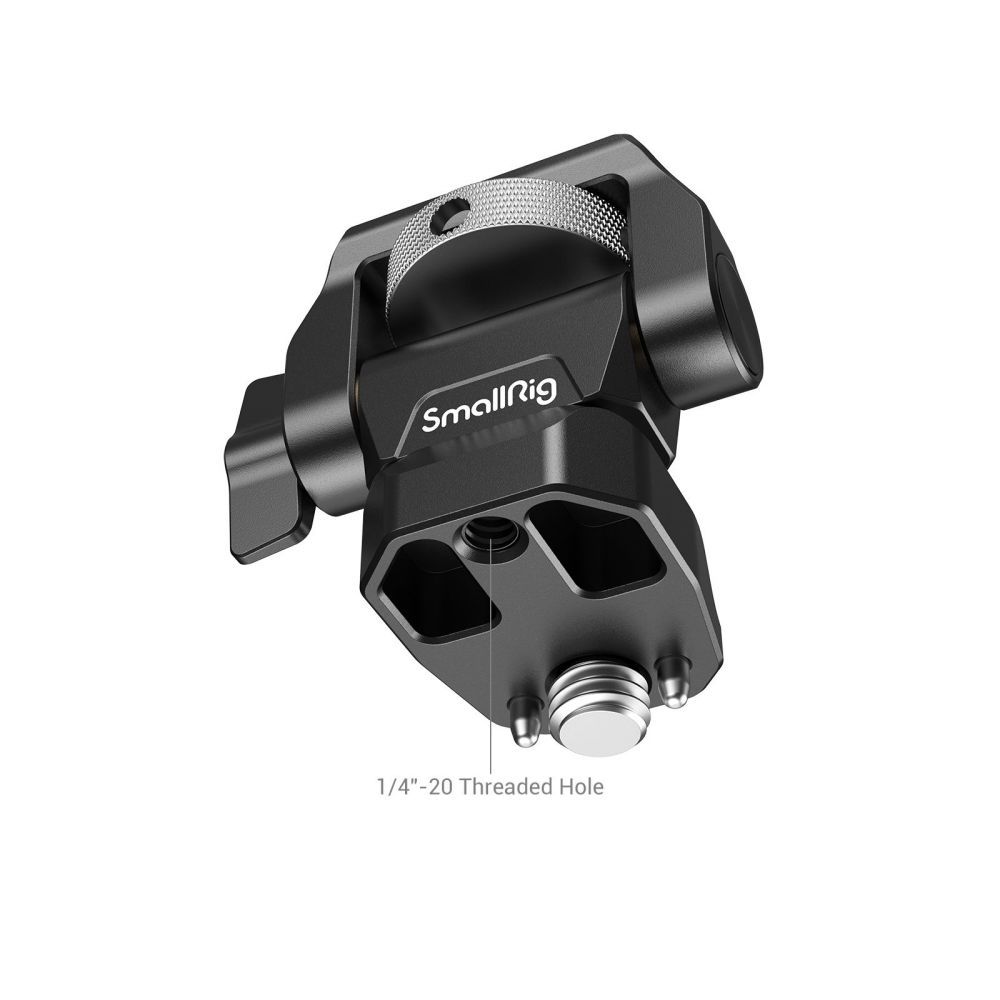

- 1/4"-20 threaded holes at the bottom for magic arm
Designer: Tracy Joy
IMPORTANT
Designer: Tracy Joy
IMPORTANT
90° load capacity: ＜4.2kg; 45° tilt load capacity: ＜2.5kg; 30° tilt load capacity: ＜2.3kg
SPECIFICATIONS
SPECIFICATIONS
Product Dimensions: 39 x 52.6 x 38mm
Package Dimensions: 78x 67 x 42mm
Net Weight: 92g±5g
Package Weight: 112g±5g
Material(s): Aluminum Alloy, Stainless Steel
COMPATIBILITY
COMPATIBILITY
5” and 7” monitor
Accessories with ARRI 3/8" -16 locating holes such as cage, top plate, handle, etc
WHAT IS INCLUDED
WHAT IS INCLUDED
1x Monitor Mount
2x Allen Wrench
