Description
SMALLRIG ROTATABLE HORIZONTAL-TO-VERTICAL MOUNT PLATE KIT FOR SONY ALPHA 7R V / ALPHA 7 IV / ALPHA 7S III / ALPHA 7R IV 4148
- Quick switch between horizontal and vertical modes.
- Gives full access to ports and LCD screen.
- Arca-type plate and Manfrotto RC2 plate.
- Quick-release plate supports handle in handheld mode.
- Baseplate can be used separately for a better grip experience.

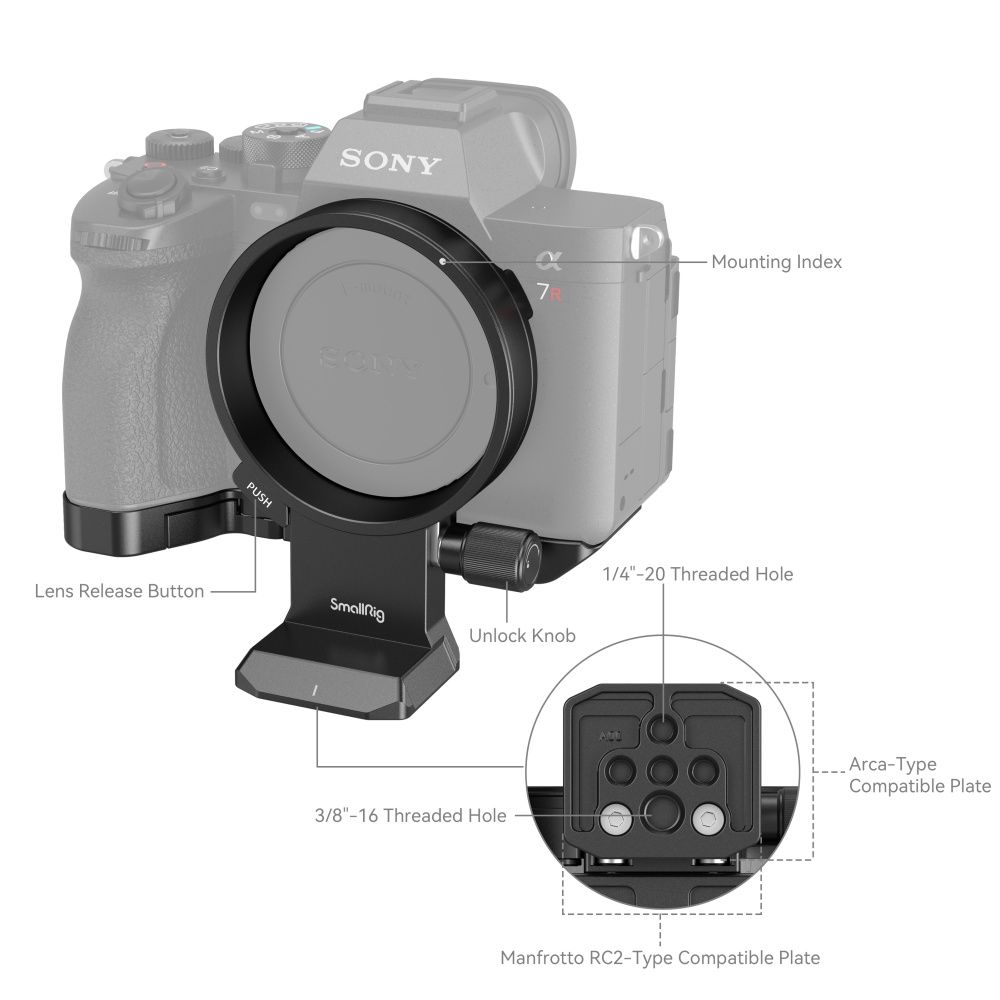

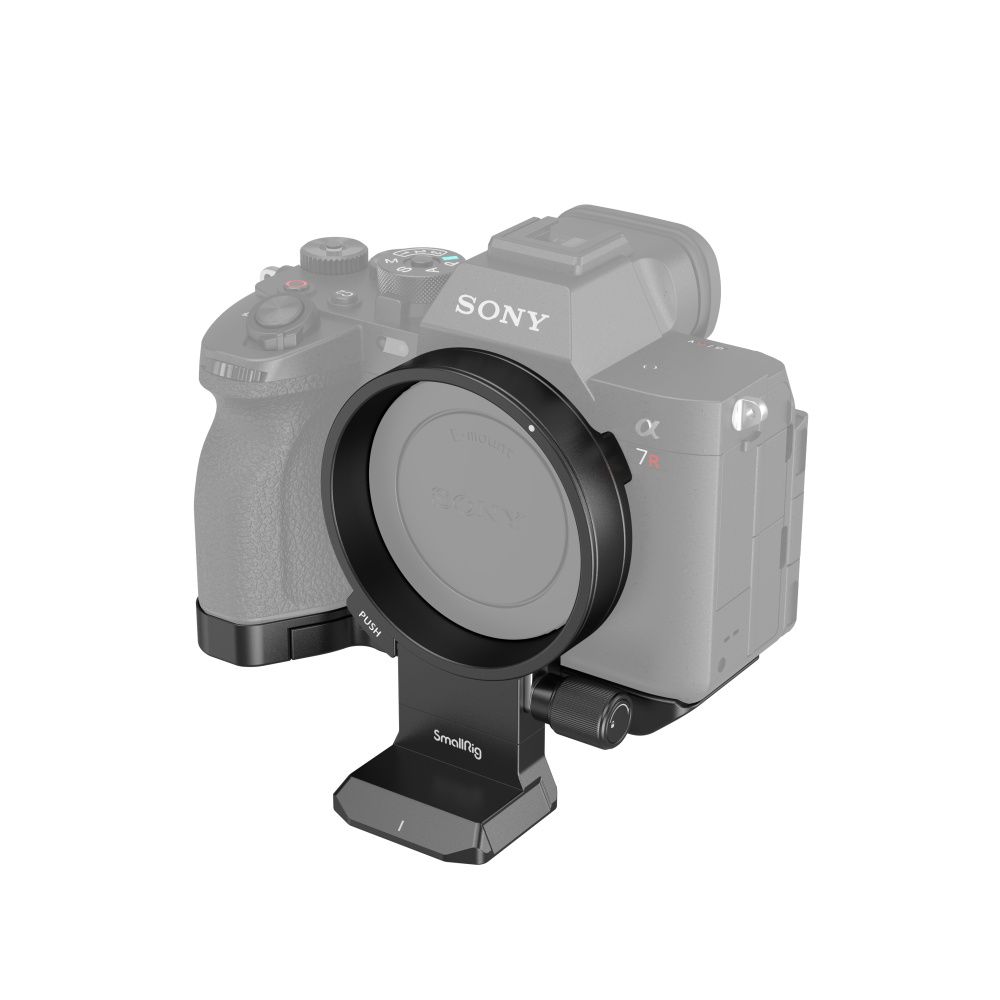

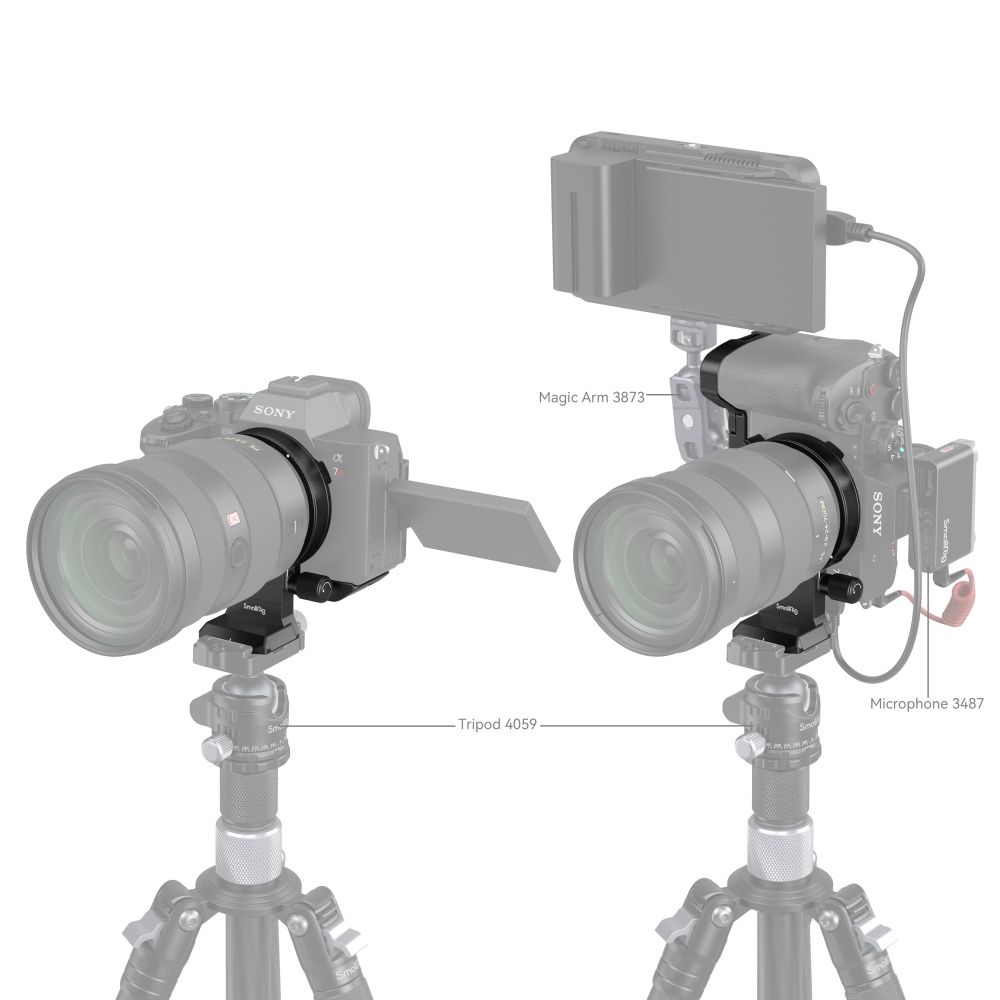

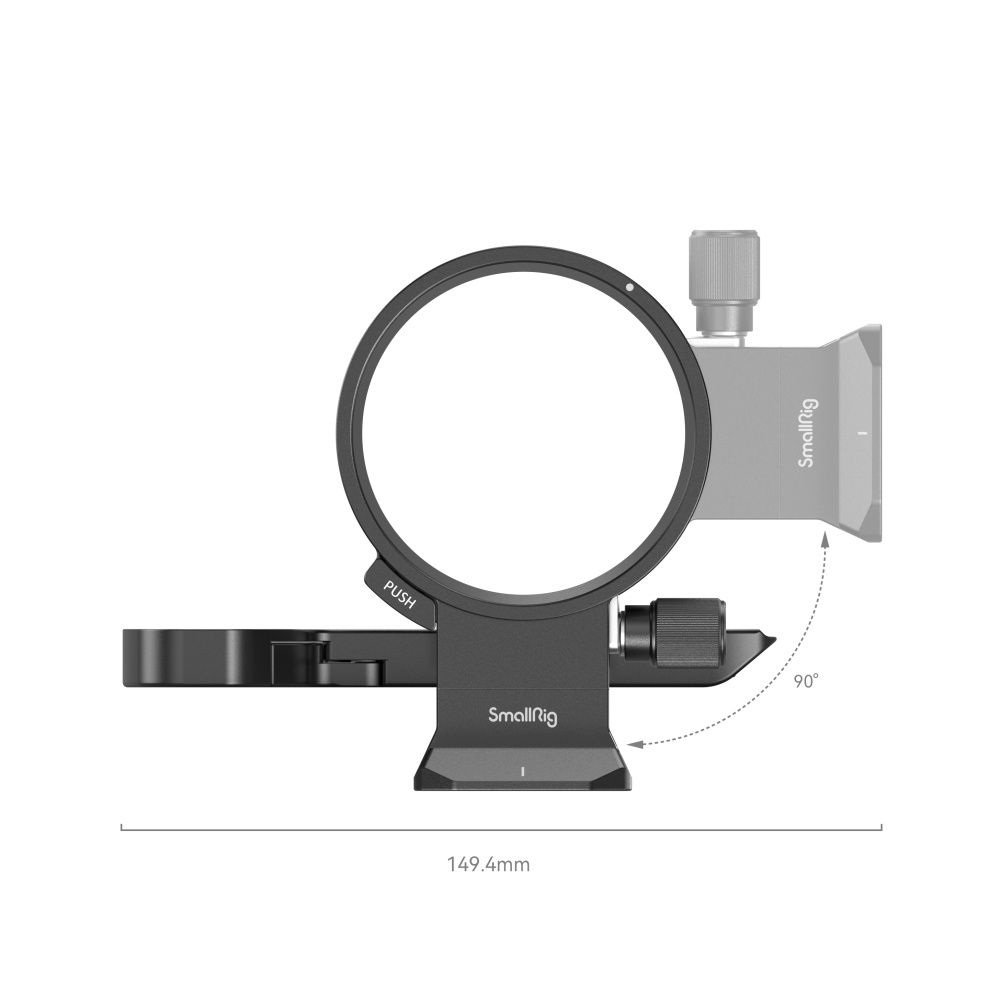

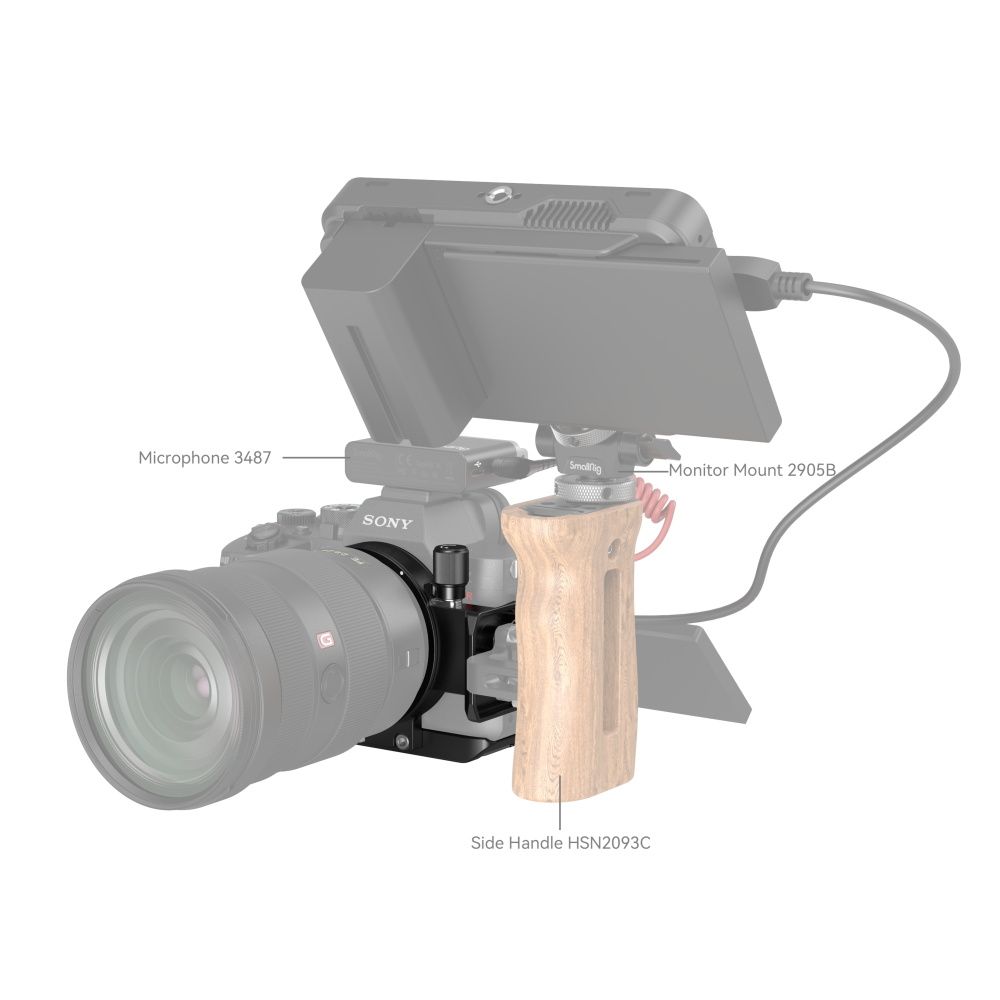

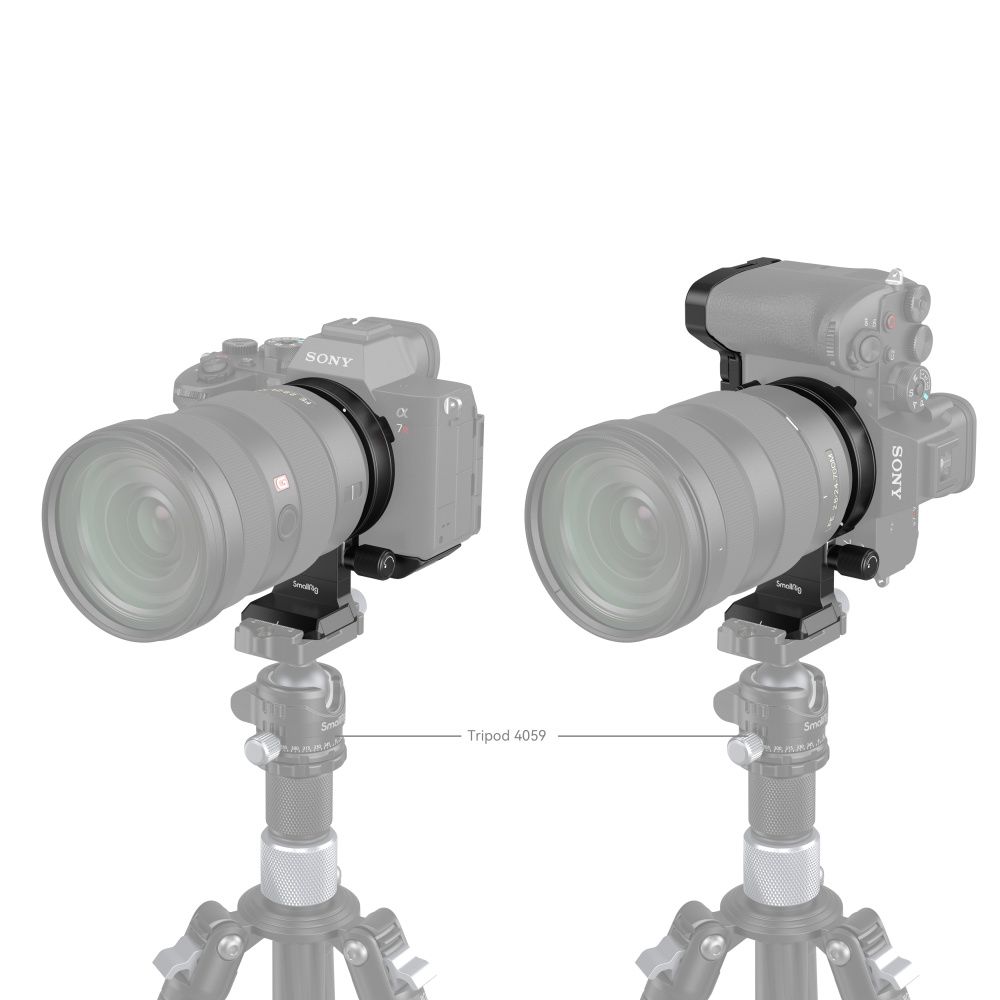

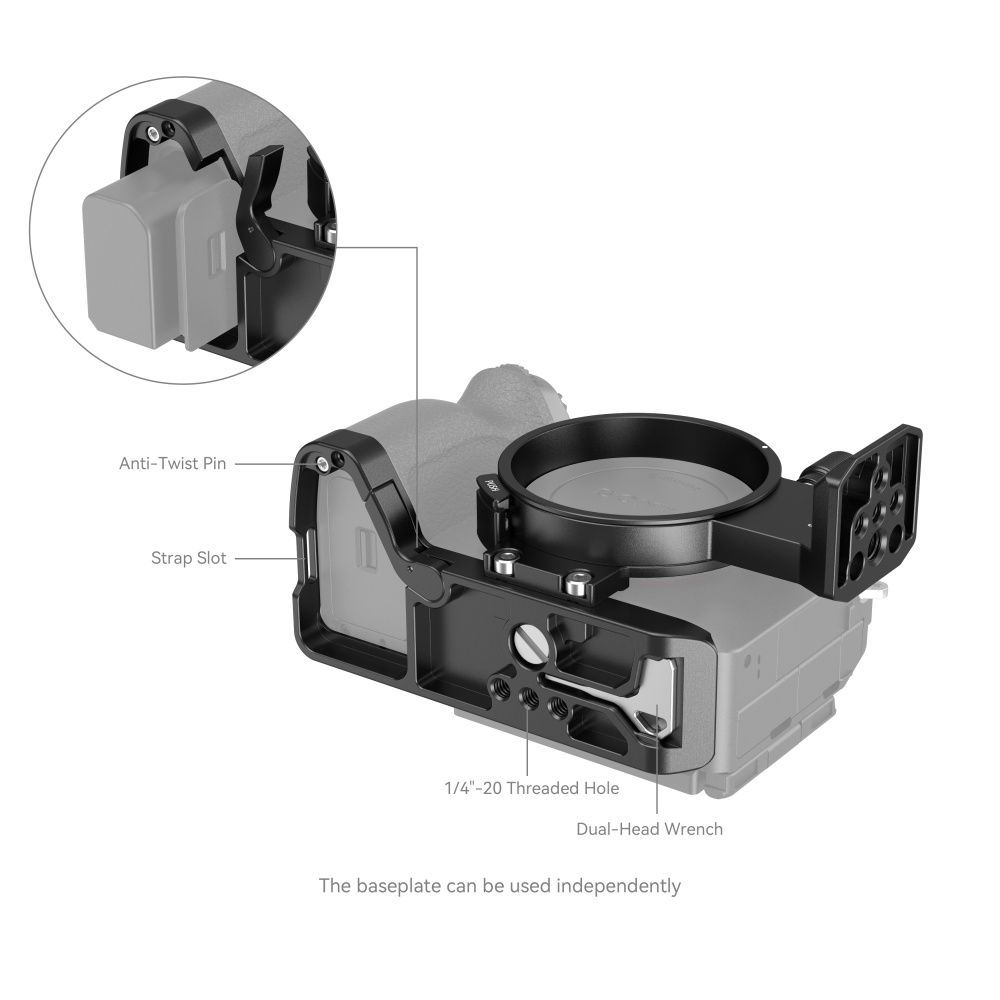

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7R IV 4148 is designed to quickly switch between horizontal and vertical modes without adjusting the lens optical axis. It locks the bottom of the camera via a 1/4"-20 screw and anti-twist pin and maintains full access to the LCD flip screen and ports and features built-in pads that prevent scratches and twisting. Compatible with Arca-type / Manfrotto RC2 tripod, the mounting plate can rotate by 90 degrees by unlocking a knob to switch between horizontal and vertical shooting. Its bottom 1/4"-20 and 3/8"-16 threaded holes also support Handle 2093C, etc. to enhance stability in handheld mode. The base plate can be used separately to meet your various needs, with a hinge arm at the battery door fitting the camera body perfectly for a better grip experience. It also comes with a strap slot, a 1/4"-20 threaded hole for the wrist strap, a quick-release plate, etc.; and a magnetic double-head wrench for easy installation and release.
IMPORTANT
SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7R IV 4148 is designed to quickly switch between horizontal and vertical modes without adjusting the lens optical axis. It locks the bottom of the camera via a 1/4"-20 screw and anti-twist pin and maintains full access to the LCD flip screen and ports and features built-in pads that prevent scratches and twisting. Compatible with Arca-type / Manfrotto RC2 tripod, the mounting plate can rotate by 90 degrees by unlocking a knob to switch between horizontal and vertical shooting. Its bottom 1/4"-20 and 3/8"-16 threaded holes also support Handle 2093C, etc. to enhance stability in handheld mode. The base plate can be used separately to meet your various needs, with a hinge arm at the battery door fitting the camera body perfectly for a better grip experience. It also comes with a strap slot, a 1/4"-20 threaded hole for the wrist strap, a quick-release plate, etc.; and a magnetic double-head wrench for easy installation and release.
IMPORTANT
- Only supports lens adapter ring of less than 63mm in outer diameter. Please first remove the lens adapter ring support (if any).
- This product is not compatible with Tamron 28-75mm f/2.8 Di III VXD G2 Lens (Sony E).
SPECIFICATIONS
SPECIFICATIONS

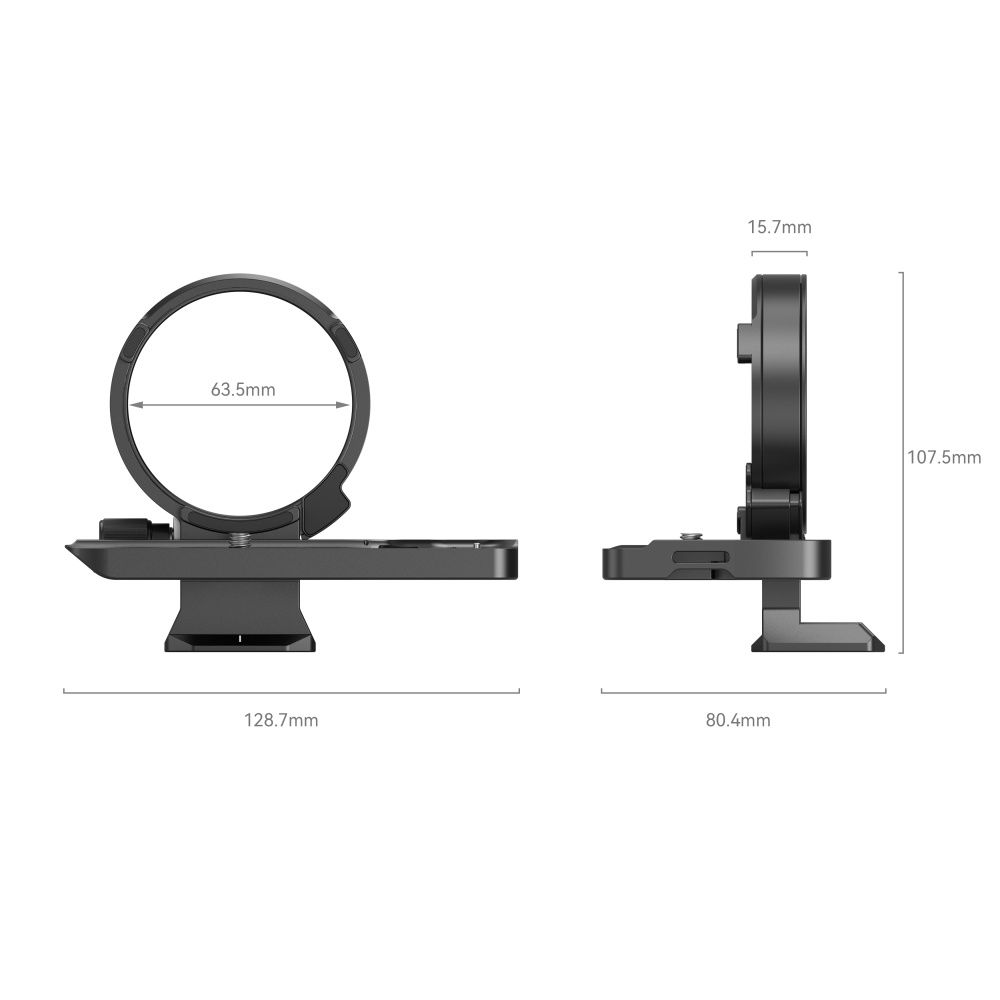

Product Dimensions: 107.5x 80.4x 28.7mm
Package Dimensions: 162.0 x 121.0 x 71.0mm
Product Weight: 185.0 ± 5.0g
Package Weight: 281.5 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel
COMPATIBILITY
COMPATIBILITY
Sony Alpha 7R V
Sony Alpha 7R IV
Sony Alpha 7 IV
Sony Alpha 7S III

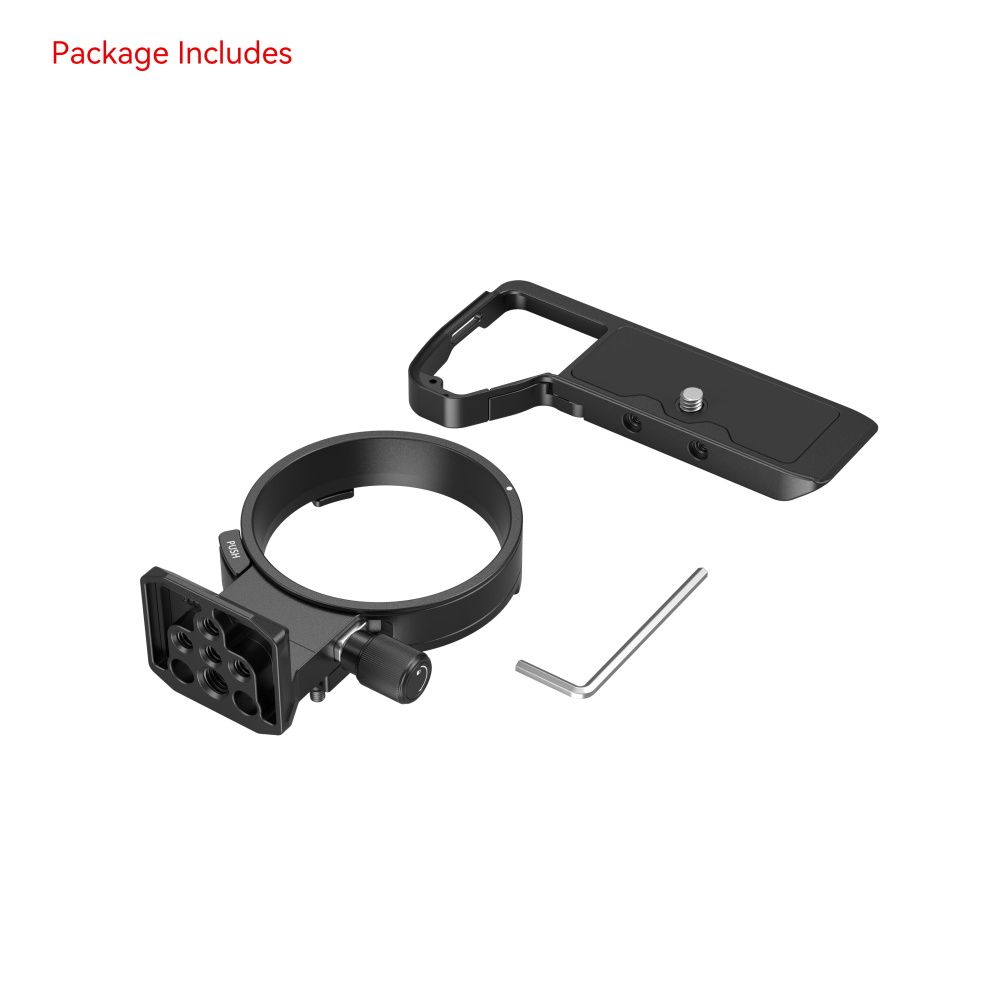

WHAT IS INCLUDED
WHAT IS INCLUDED
1x Baseplate
1x Lens Ring Mounting Plate for Vertical and Horizontal
1x Allen Wrench
