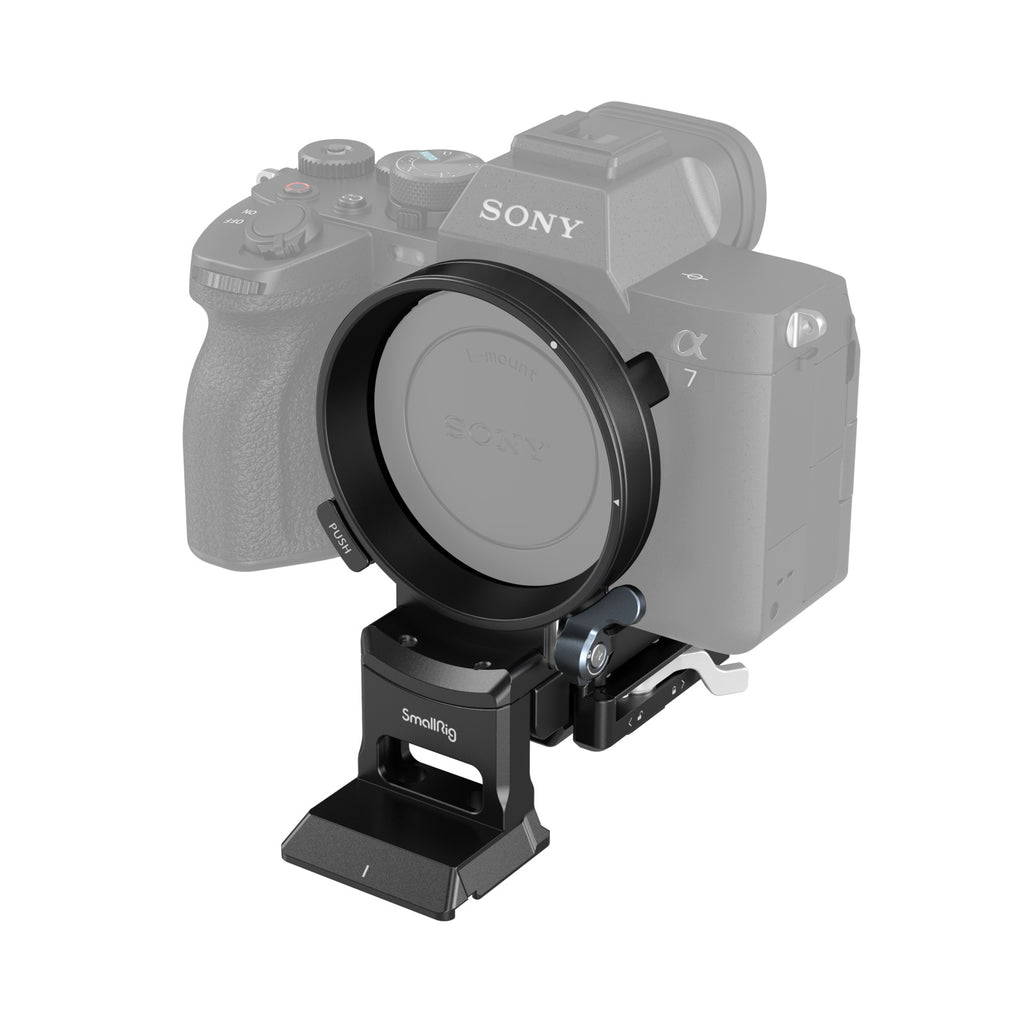

SMALLRIG ROTATABLE HORIZONTAL-TO-VERTICAL MOUNT PLATE KIT FOR SONY ALPHA 1 / ALPHA 7 / ALPHA 9 / FX SERIES 4244
- Quickly switches between horizontal and vertical modes without adjusting the lens's optical axis.
- Modular design, quick-release lens collar support for convenient storage and portability.
- Gives full access to buttons and ports (LCD flip screen, battery door, card slot).
- Supports camera with or without a cage.
- Supports Arca-Swiss / Manfrotto RC2 tripod.

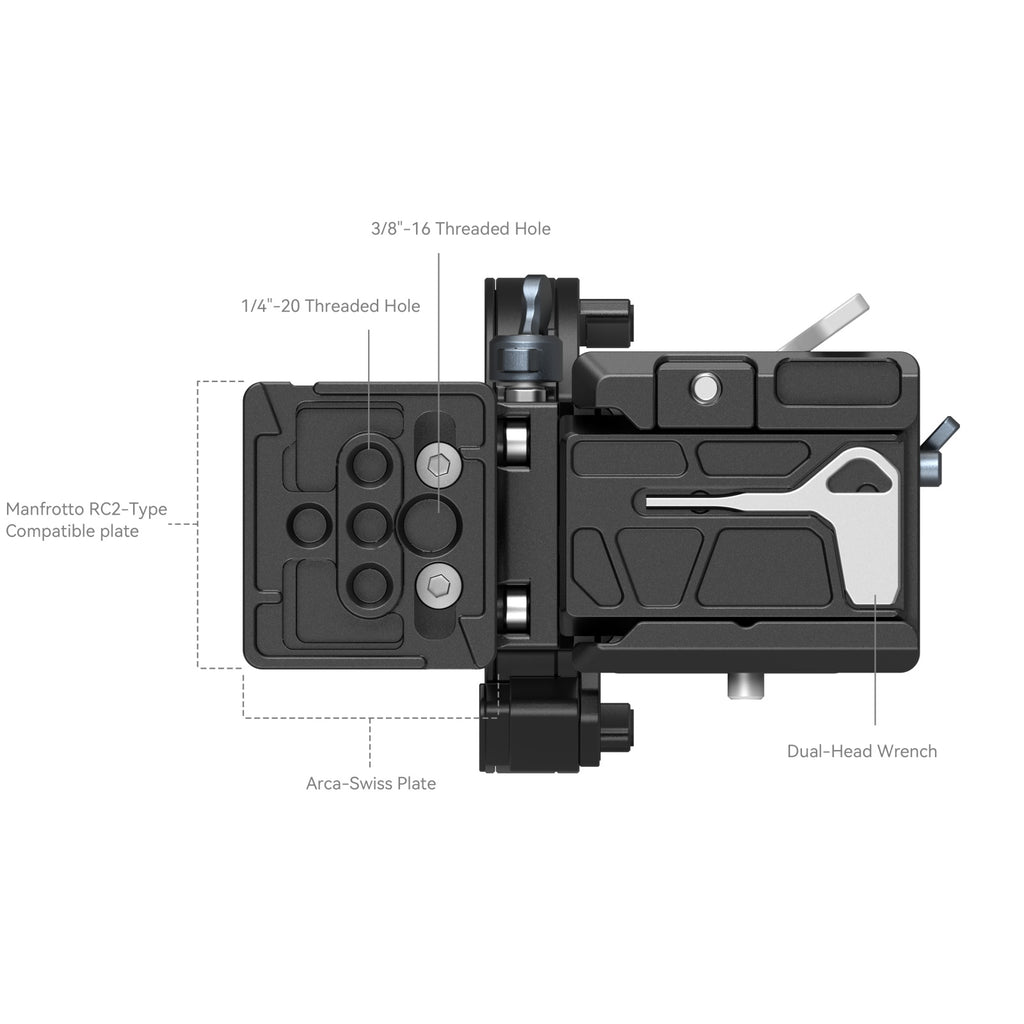

- 1/4"-20 threaded holes, 3/8"-16 threaded holes for the handle, magic arm, plate, etc.

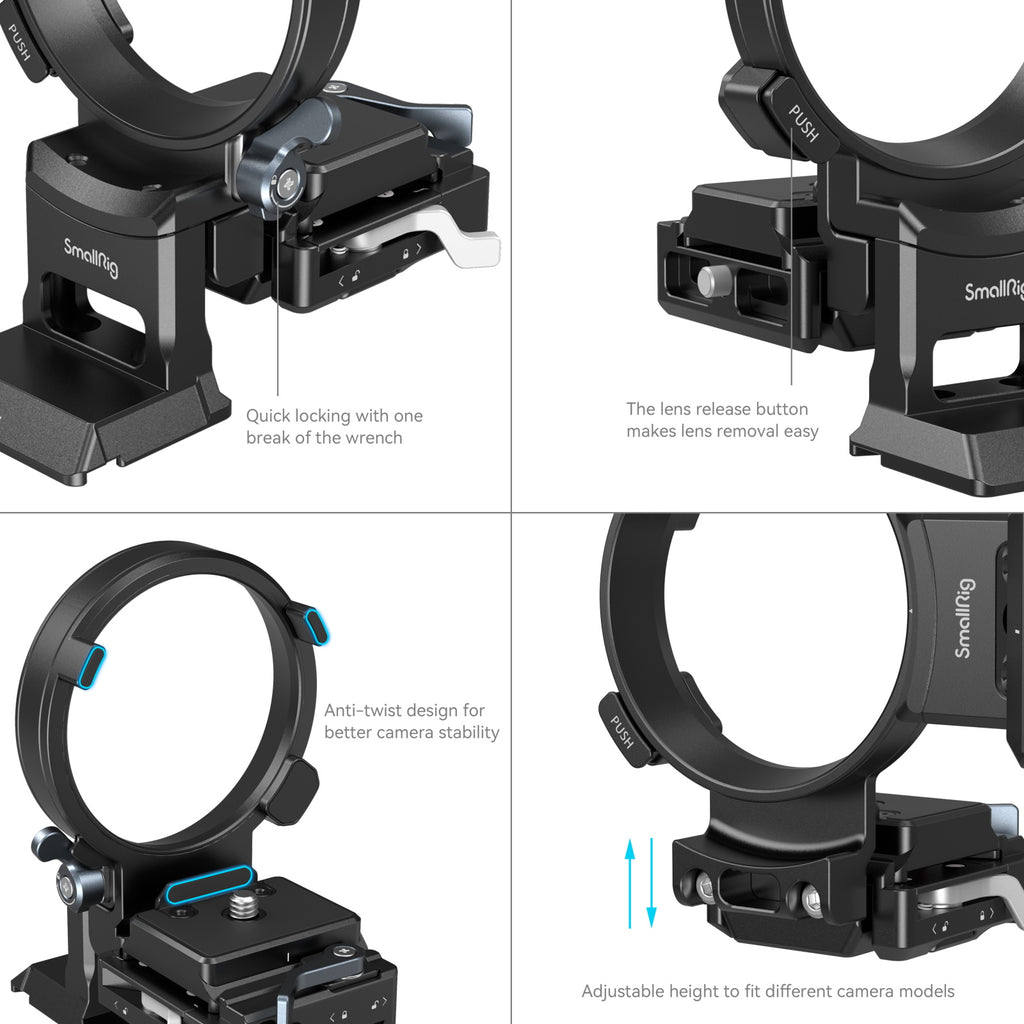

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Sony Alpha 1 / Alpha 7 / Alpha 9 / FX Series 4244 is designed to quickly switch between horizontal and vertical shooting without adjusting the lens's optical axis. It maintains full access to LCD flip screens and ports and features built-in pads that prevent scratches and twists. The Arca-Swiss quick-release plate locks or releases the camera or cage within seconds and fits DJI RS-series gimbals. Compatible with Arca-type / Manfrotto RC2 tripod and DJI RS-series gimbals, the lens collar mount plate can rotate by 90 degrees by merely unlocking a knob to switch between horizontal and vertical shooting; its bottom 1/4"-20 and 3/8"-16 threaded holes also support other quick-release plates. Besides, there is a magnetic dual-head wrench in the baseplate for easy installation and release.
IMPORTANT

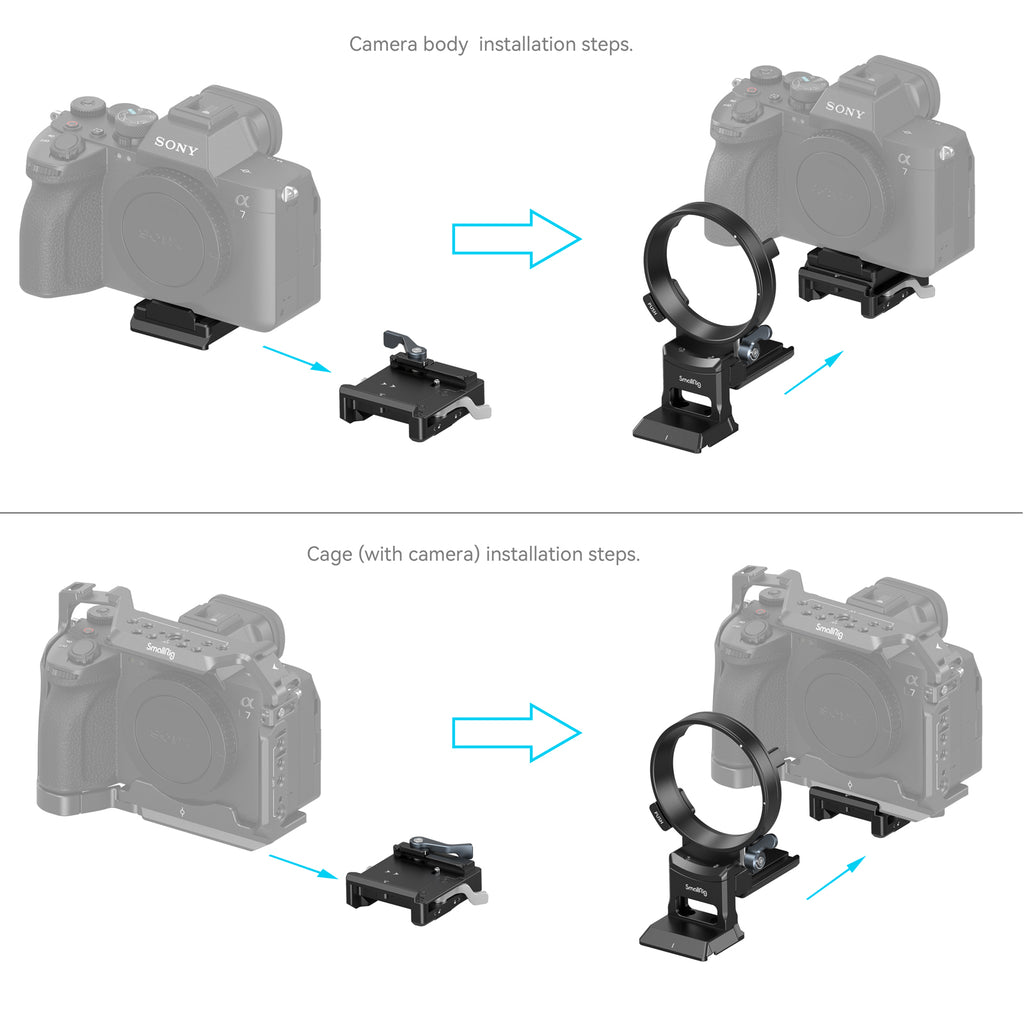

- Please remove the camera lens before installation.
- Compatible with cage in Kit 4198 / 3668 / 3668B / 3669 / 3669B / 3708 / 3710 / 4139 / 4184; incompatible with HDMI cable clamp or side handle in vertical shooting.
SPECIFICATIONS

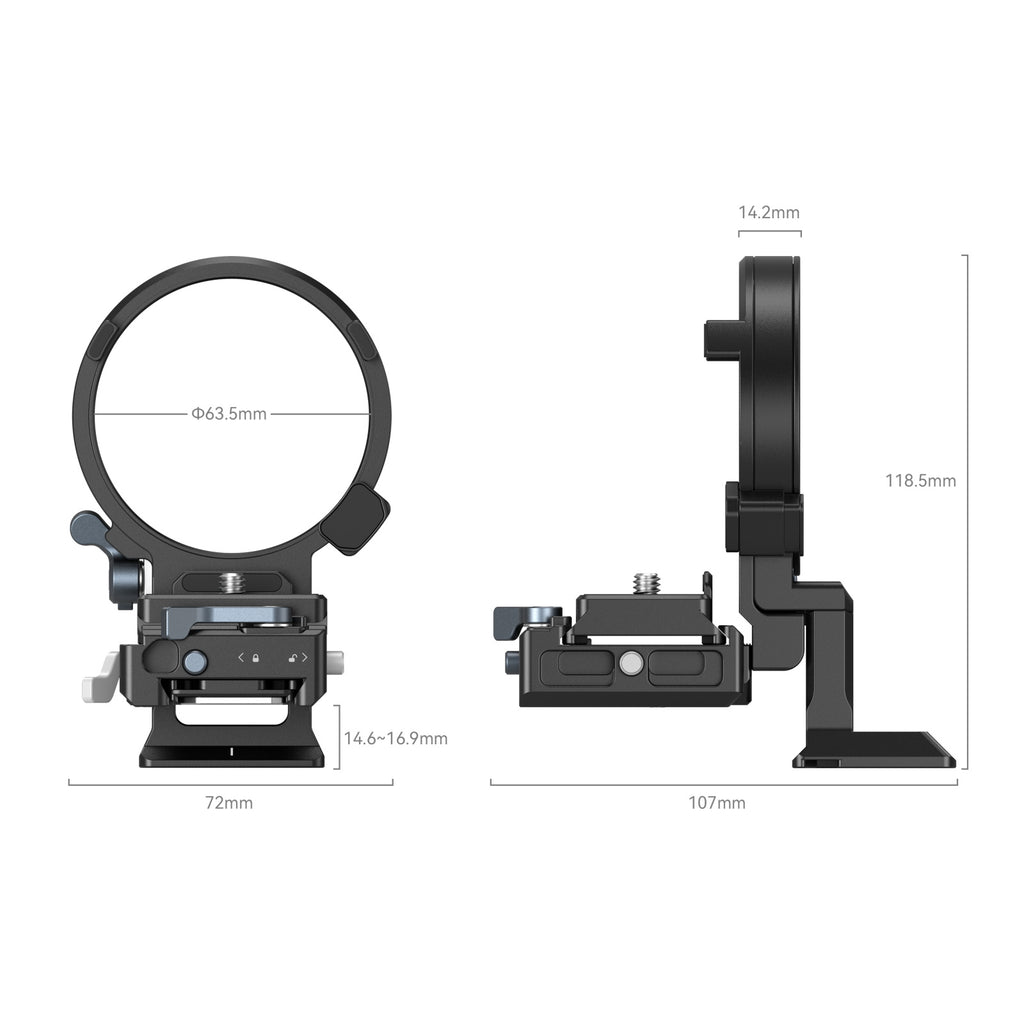

Product Dimensions: 118.5x 107 x 72mm
Package Dimensions: 145x 104x 57mm
Product Weight: 220±5g
Package Weight: 280±5g
Material(s): Aluminum Alloy, Stainless Steel
COMPATIBILITY

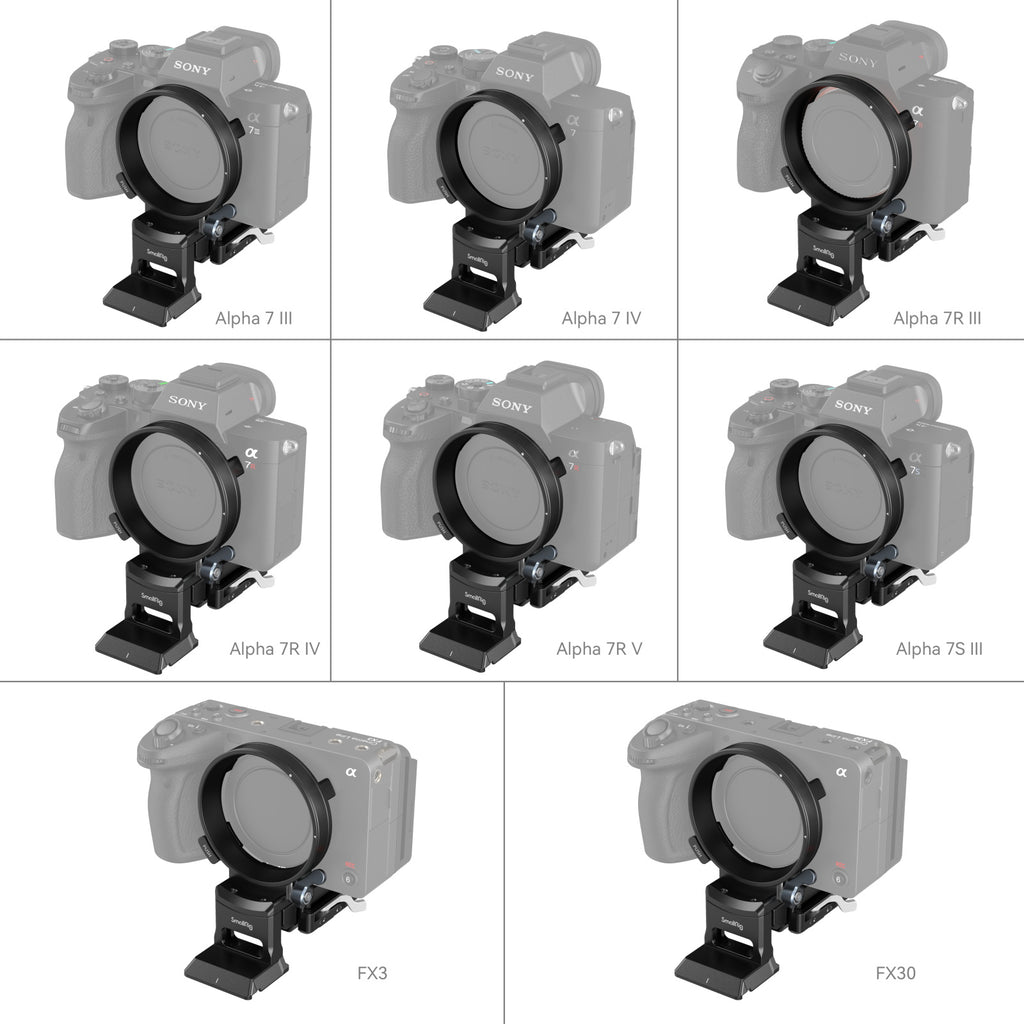

Camera: Sony Alpha 7 III / Alpha 7 IV / Alpha 7R III / Alpha 7R IV / Alpha 7R V / Alpha 7S III / Alpha 1 / Alpha 9 II / FX3 / FX30

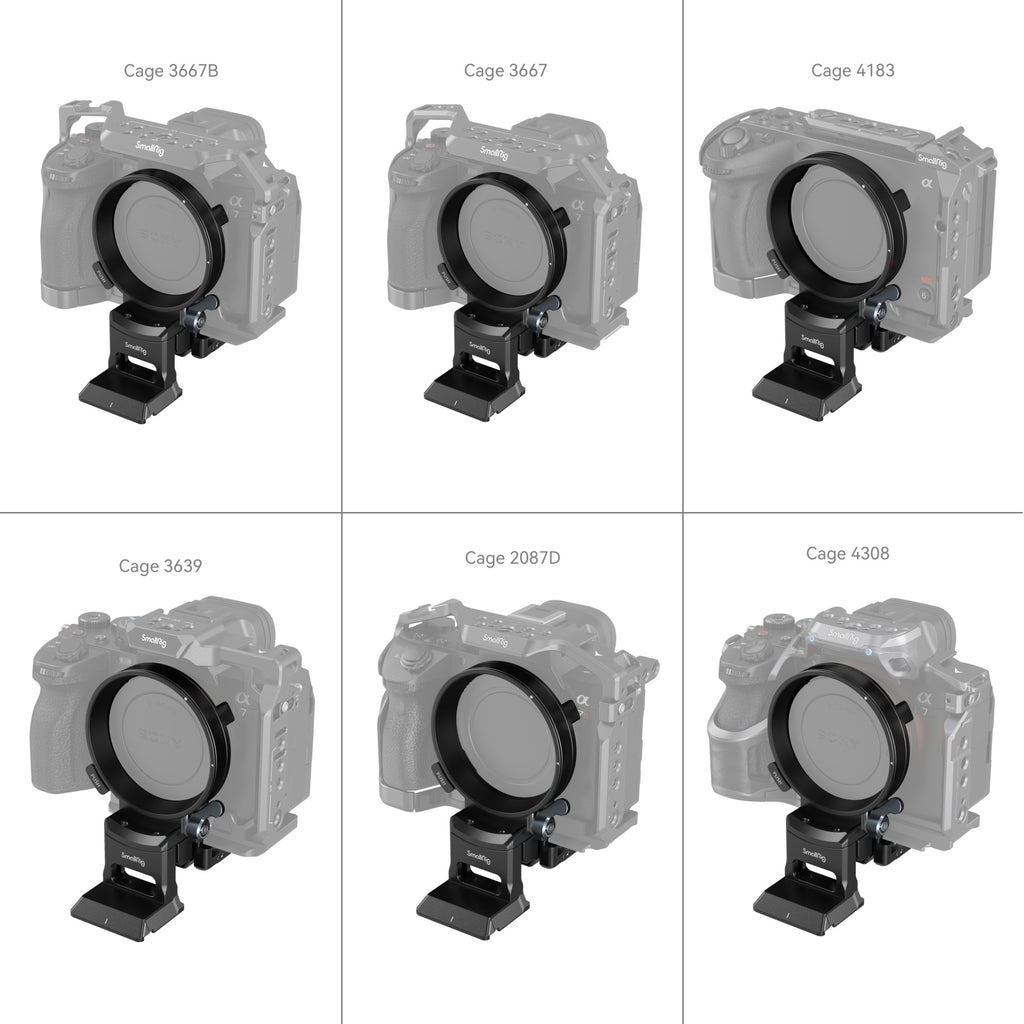

Cage: 2087D / 3667 / 3667B / 3639 / 4308 / 4138 / 4183

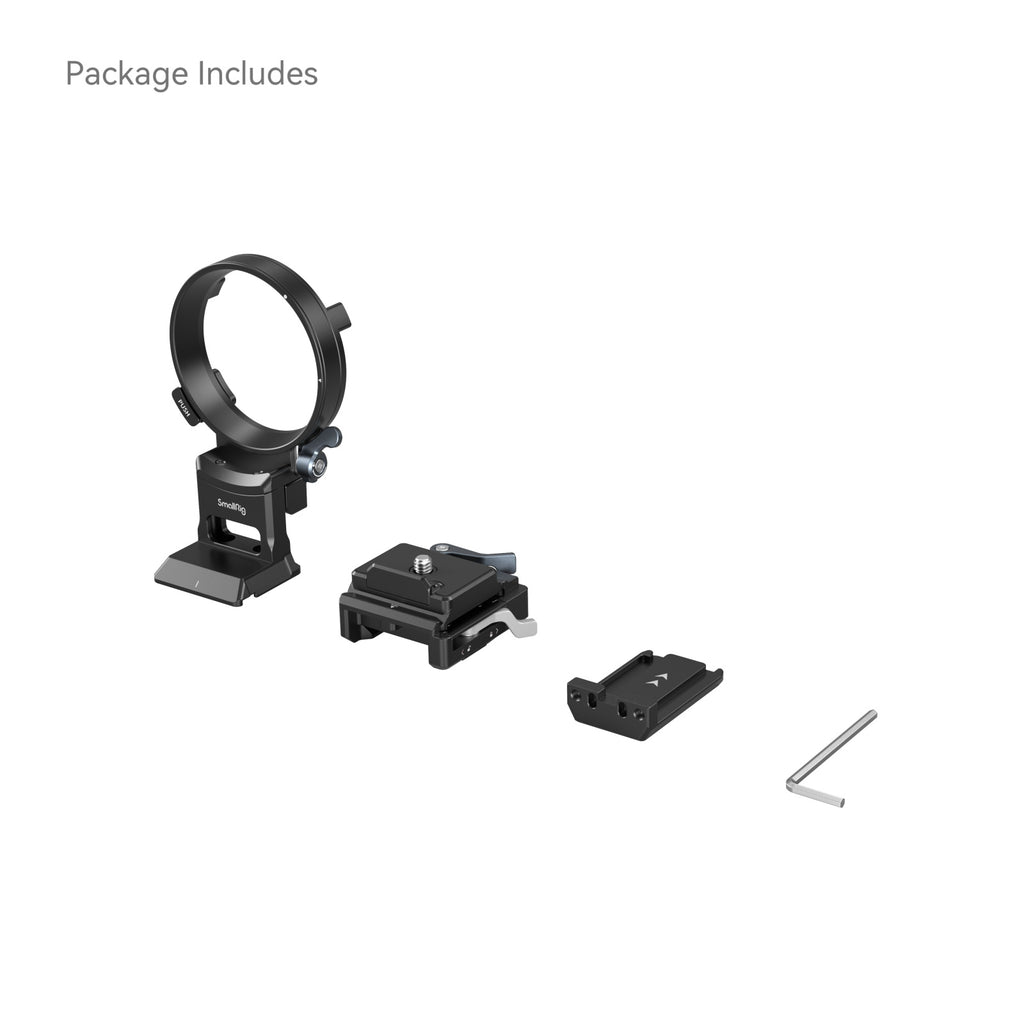

WHAT IS INCLUDED
1x Rotatable Horizontal-to-Vertical Mounting Plate
1x Arca-Swiss Quick Release Plate&Arca-Type Baseplate
1x Connecting Plate
1x Allen Wrench
