Description

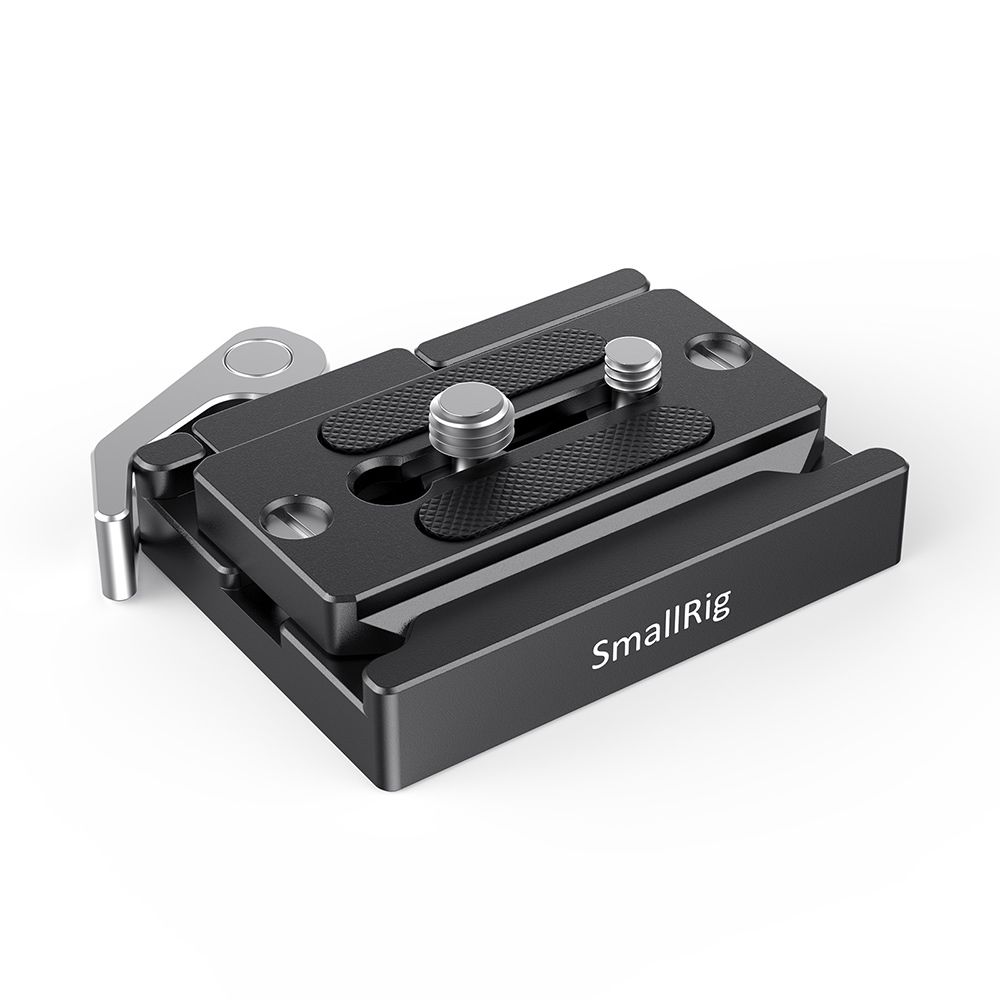

SMALLRIG QUICK RELEASE CLAMP AND PLATE ( ARCA-TYPE COMPATIBLE) 2144B
- Arca-type compatible.

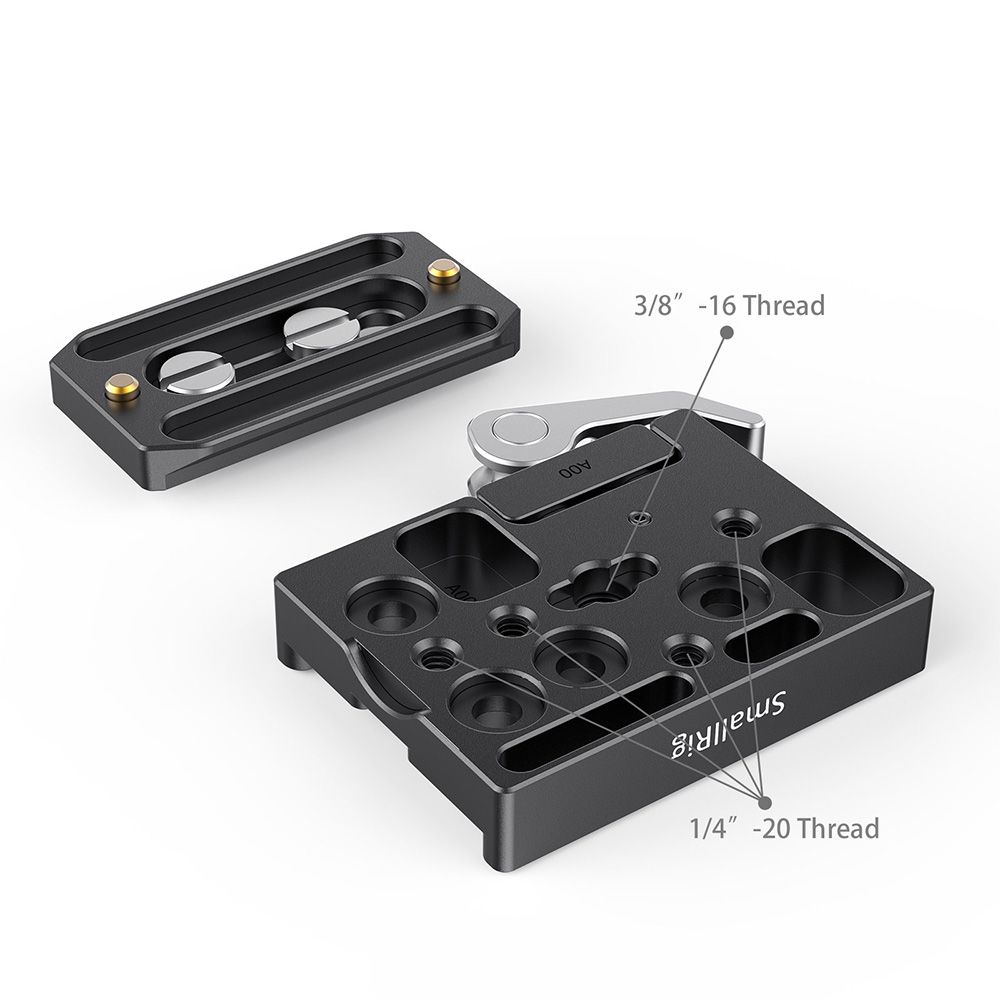

- Multiple 1/4’’-20, 3/8’’-16 threaded holes and thorough mounting holes.
- Lever-type base for quick release.

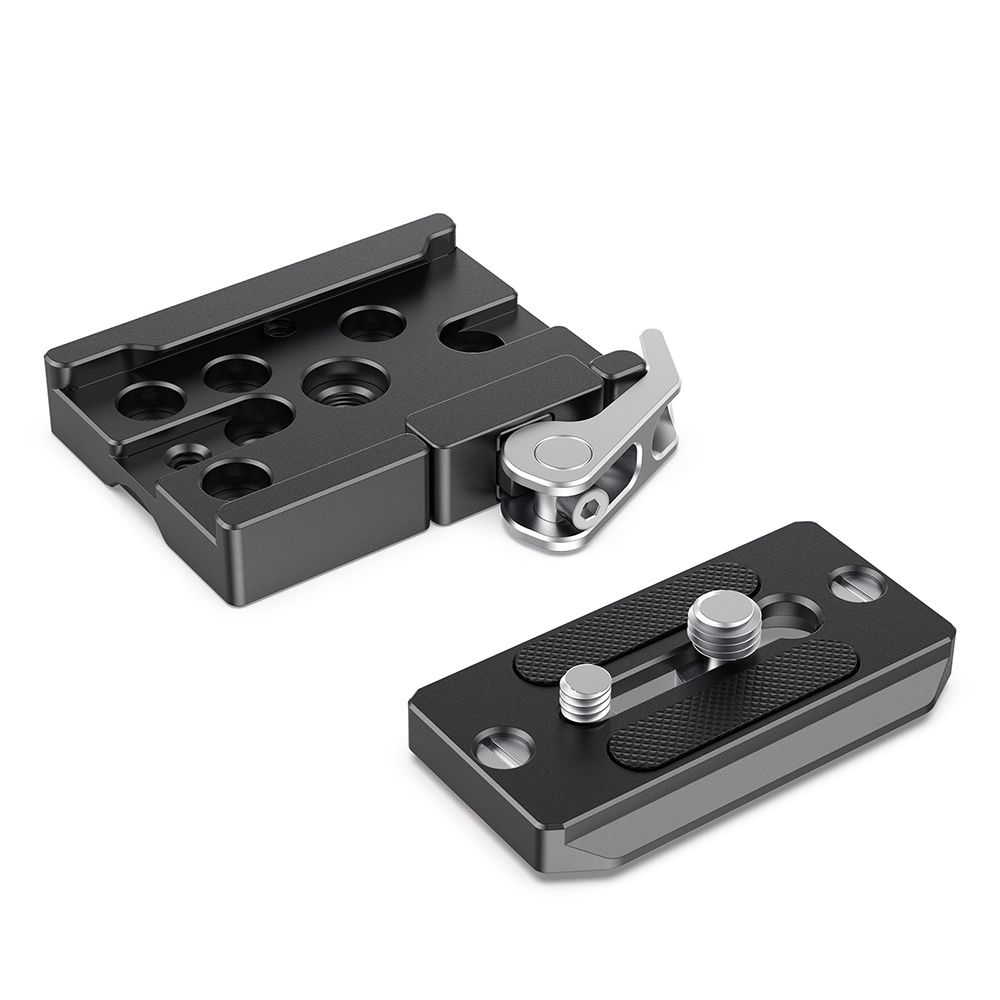

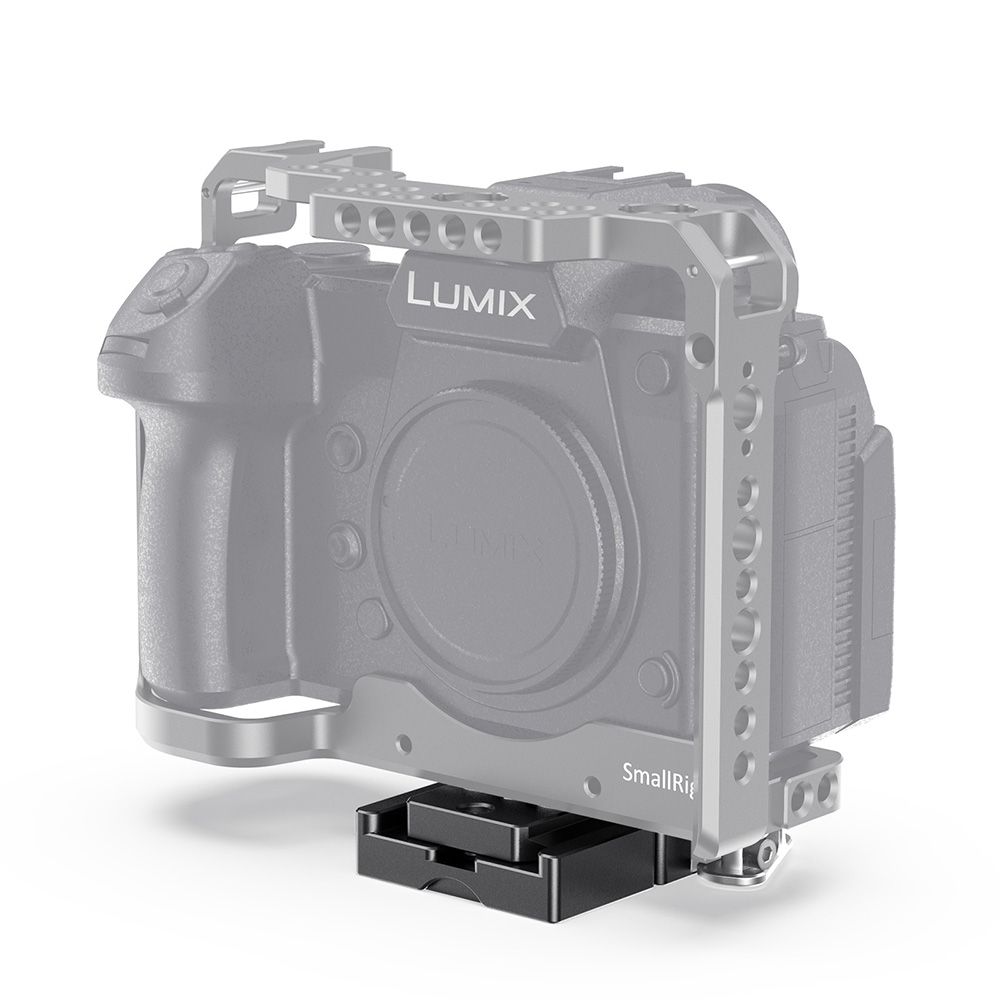

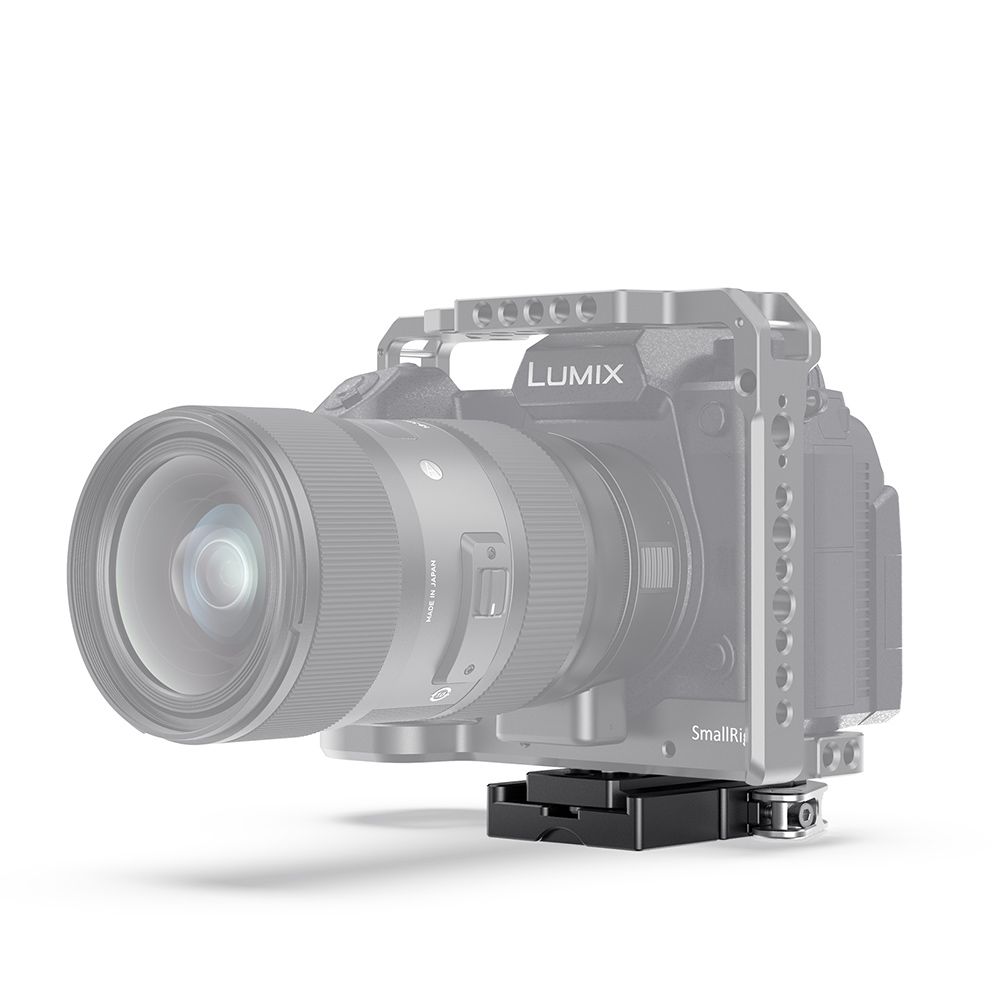

SmallRig Quick Release Clamp and Plate (Arca-type Compatible) 2144 includes an Arca-type clamp and a plate. Tightness of the clamp can be adjusted by stirring the tiny screw on the lever, so it is also cross-compatible with most Arca type plates. The plate is attached to the bottom of cameras or cages by screw(s). The clamp features multiple 1/4’’-20, 3/8’’-16 threaded holes and thorough mounting holes on the bottom, so you can mount it on tripods, jibs and other devices.
Designer: Tracy Joy
SPECIFICATIONS
SmallRig Quick Release Clamp and Plate (Arca-type Compatible) 2144 includes an Arca-type clamp and a plate. Tightness of the clamp can be adjusted by stirring the tiny screw on the lever, so it is also cross-compatible with most Arca type plates. The plate is attached to the bottom of cameras or cages by screw(s). The clamp features multiple 1/4’’-20, 3/8’’-16 threaded holes and thorough mounting holes on the bottom, so you can mount it on tripods, jibs and other devices.
Designer: Tracy Joy
SPECIFICATIONS

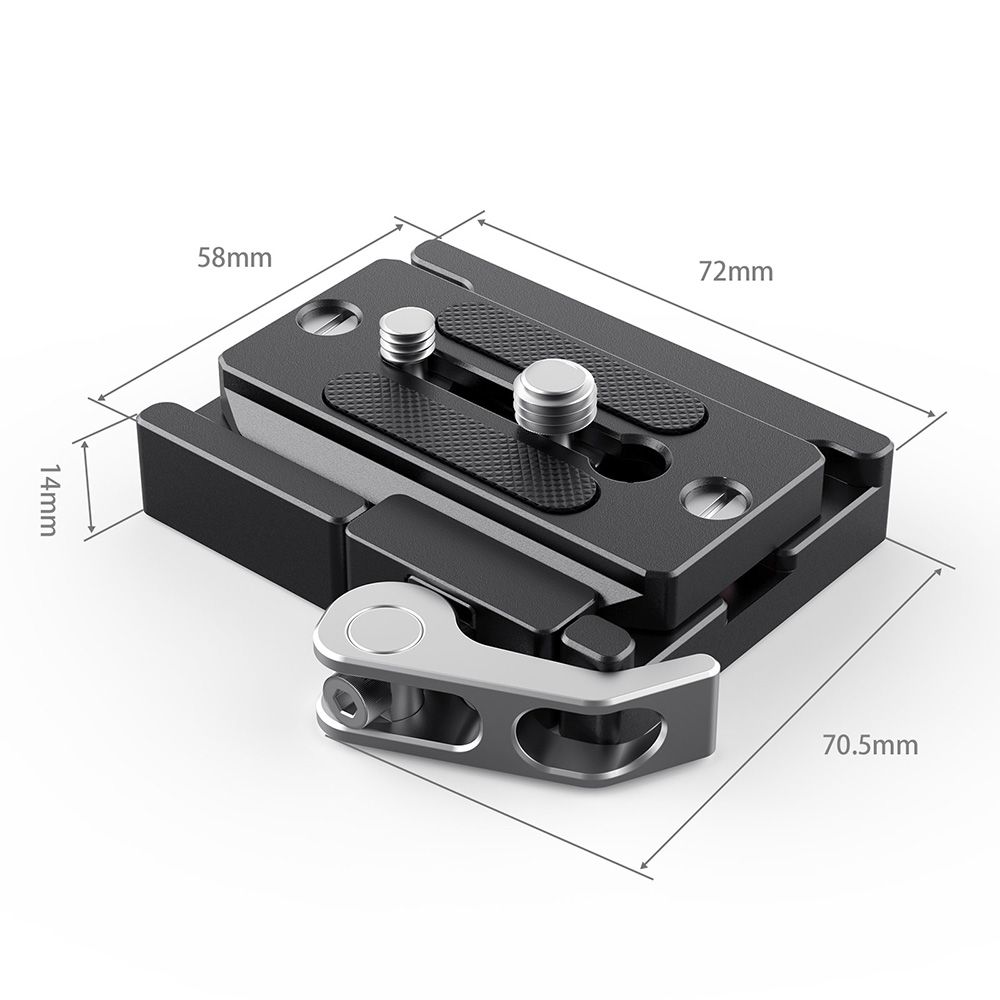

Product Dimensions: 72 x 70 x 14mm
Net Weight: 177g
Package Weight: 203g
Materials：Aluminum Alloy
COMPATIBILITY
COMPATIBILITY
Arca-type Compatible

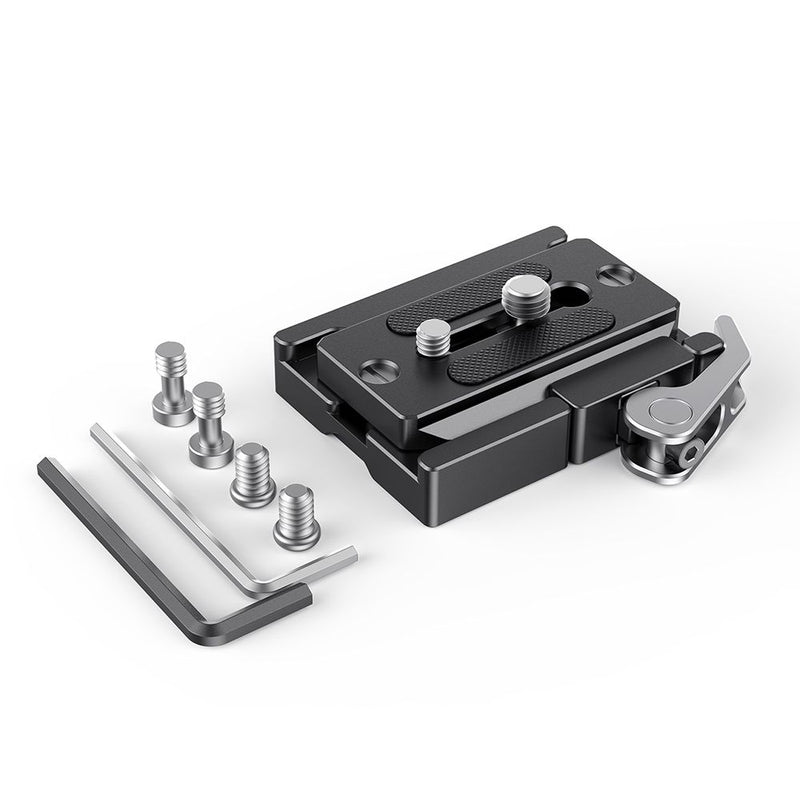

WHAT IS INCLUDED
WHAT IS INCLUDED
1x 2144
4x 1/4’’-20 Screw
1x 3/8’’-16 Screw
2x Hex Spanner
