Description
SMALLRIG NP-F970 4-CHANNEL CAMERA BATTERY CHARGER & 4-BATTERY KIT 4834
- Four-channel camera battery charger supports PD 100W fast charging, significantly enhancing charging efficiency and keeping your devices fully charged at all times.
- Compatible with various battery models, including NP-F550, NP-F570, NP-F750, and NP-F970, each supporting fast charging to meet your diverse battery needs.
- Comprehensive safety protection with short-circuit and overcurrent protection on each output port, ensuring safety during the charging process.
- Portable design, compact and lightweight for easy carrying, perfect for travel and daily use, making the charger your on-the-go charging expert.
- Smart display with built-in OLED screen, providing real-time updates on battery charging status and USB-C input power, allowing you to monitor the charging progress.
- Strong endurance with four 7800mAh NP-F970 batteries, offering long-lasting power support for extended shooting sessions or outdoor use, ensuring easy adaptation to various scenarios.
SmallRig NP-F970 4-Channel Camera Battery Charger & 4-Battery Kit 4834 is a high-efficiency, high-power NP-F battery charger that supports a maximum input of 100W. With four NP-F ports, this charger can simultaneously charge four batteries, enabling fast and efficient charging. The charger is compatible with NP-F550, NP-F570, NP-F750, and NP-F970 batteries, each supporting fast charging to meet your diverse battery needs.
The charger ensures comprehensive safety protection with short-circuit and overcurrent protection on each output port, guaranteeing safety during the charging process. The portable design is compact and lightweight, making it convenient for travel and daily use, serving as your on-the-go charging expert.
Featuring a built-in OLED screen, the charger provides real-time updates on battery charging status and USB-C input power, allowing you to monitor the charging progress. Additionally, it comes equipped with four 7800mAh NP-F970 batteries, offering long-lasting power support for extended shooting sessions or outdoor use, ensuring seamless adaptation to various scenarios.
Certification: FCC / CE / RCM

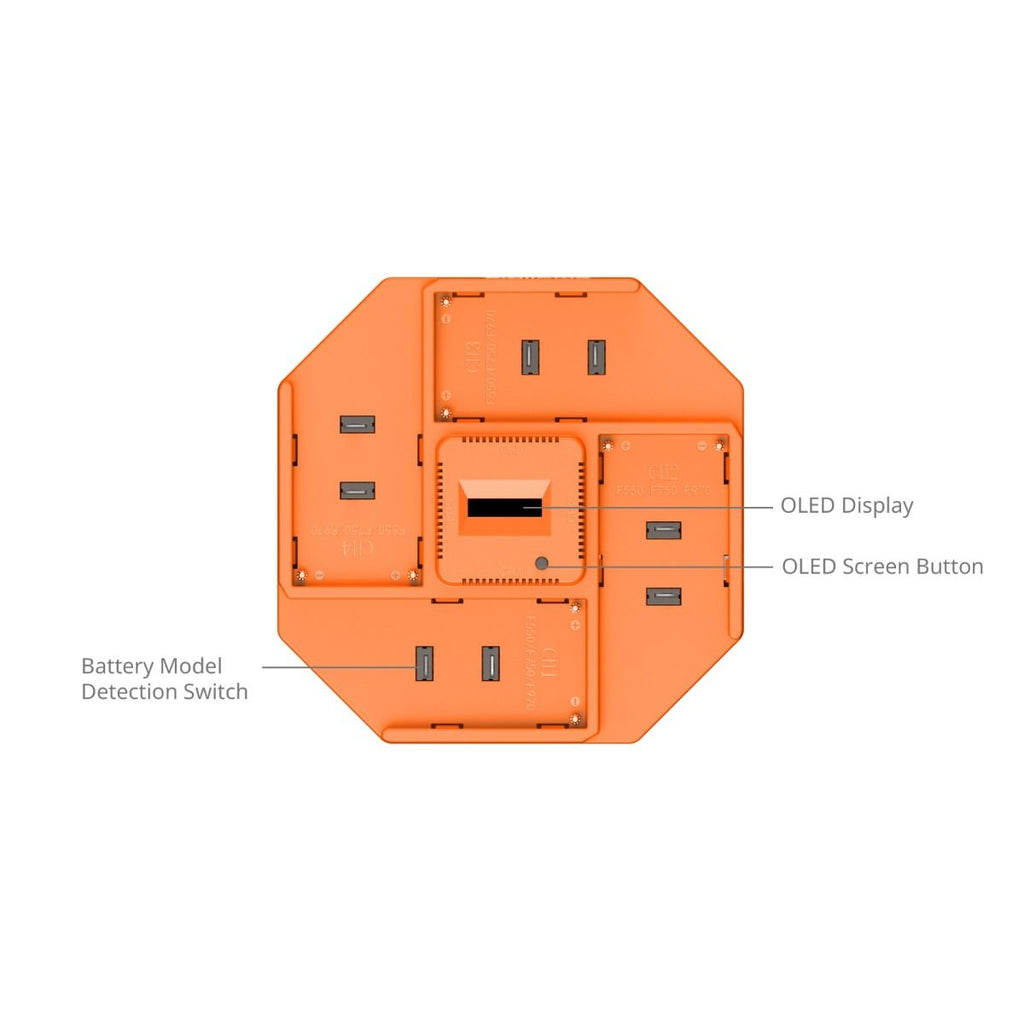

Button / Indicator Function Display:
Battery Model Detection Switch: The charger automatically adjusts the charging current based on the battery model detection switches pressed.
OLED Screen Button:
Short Press: Toggle display between individual channel battery levels/voltages, USB-C current/voltage/power, and temperature.
Long Press: Display model information, data, and version details.
OLED Screen: Provides information on voltage, current, power, and temperature, along with the charging status of each channel.
SPECIFICATIONS
Product Dimensions: 155.0 x 135.0 x 35.1mm / 6.1 x 5.3 x 1.4in
Package Dimensions: 165 x 184.5 x 103.5mm / 6.5 x 7.26 x 4.1in
Product Weight: 1571.5 ± 20g / 55.4 ± 0.7oz
Package Weight: 1.97kg / 69.49oz
Material(s): ABS + PC
Battery Type: Lithium-ion Battery
Battery Parameters: 7800mAh 7.2V 56.16Wh

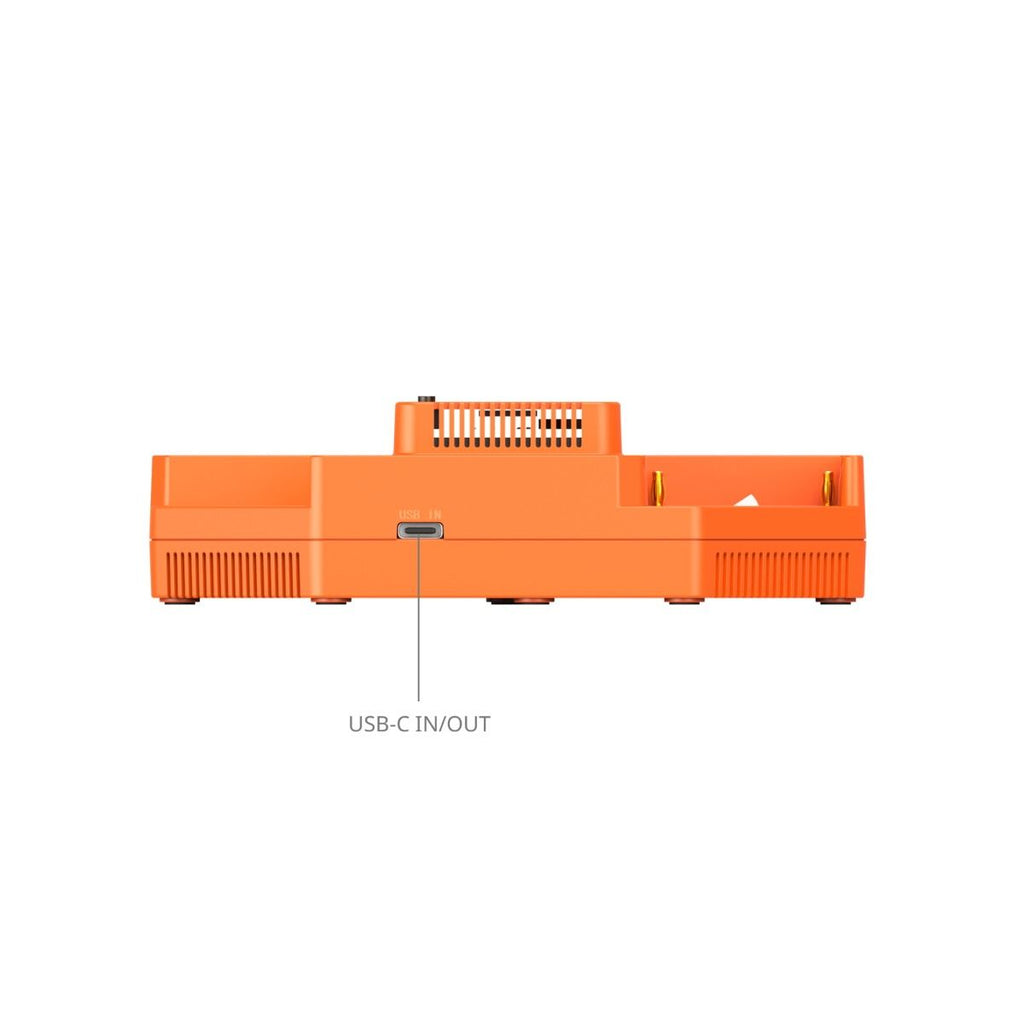

USB-C Input: 12V⎓3A, 15V⎓3A, 20V⎓5A; 100W (Max)
Output (Per Channel): 8.4V⎓0.9A, 8.4V⎓1.8A, 8.4V⎓2.5A
USB-C Protocol: PD
Charging Voltage Limit: 8.45V
Charging Environment Temperature: 5℃ to 45℃ / 41°F to 113°F
COMPATIBILITY
Panel light, image transmitter, monitor, camera, camcorder

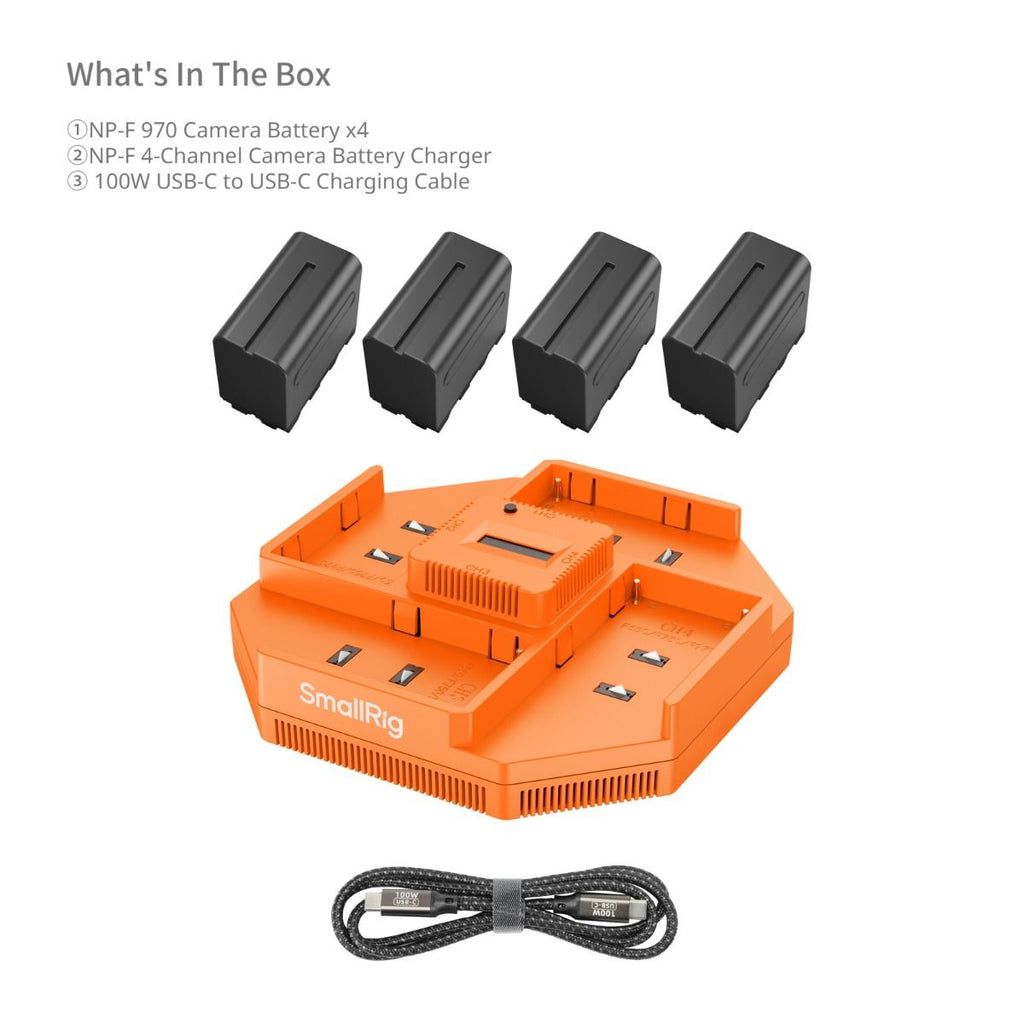

WHAT IS INCLUDED
1x NP-F 4-Channel Camera Battery Charger
4x NP-F970 Camera Battery

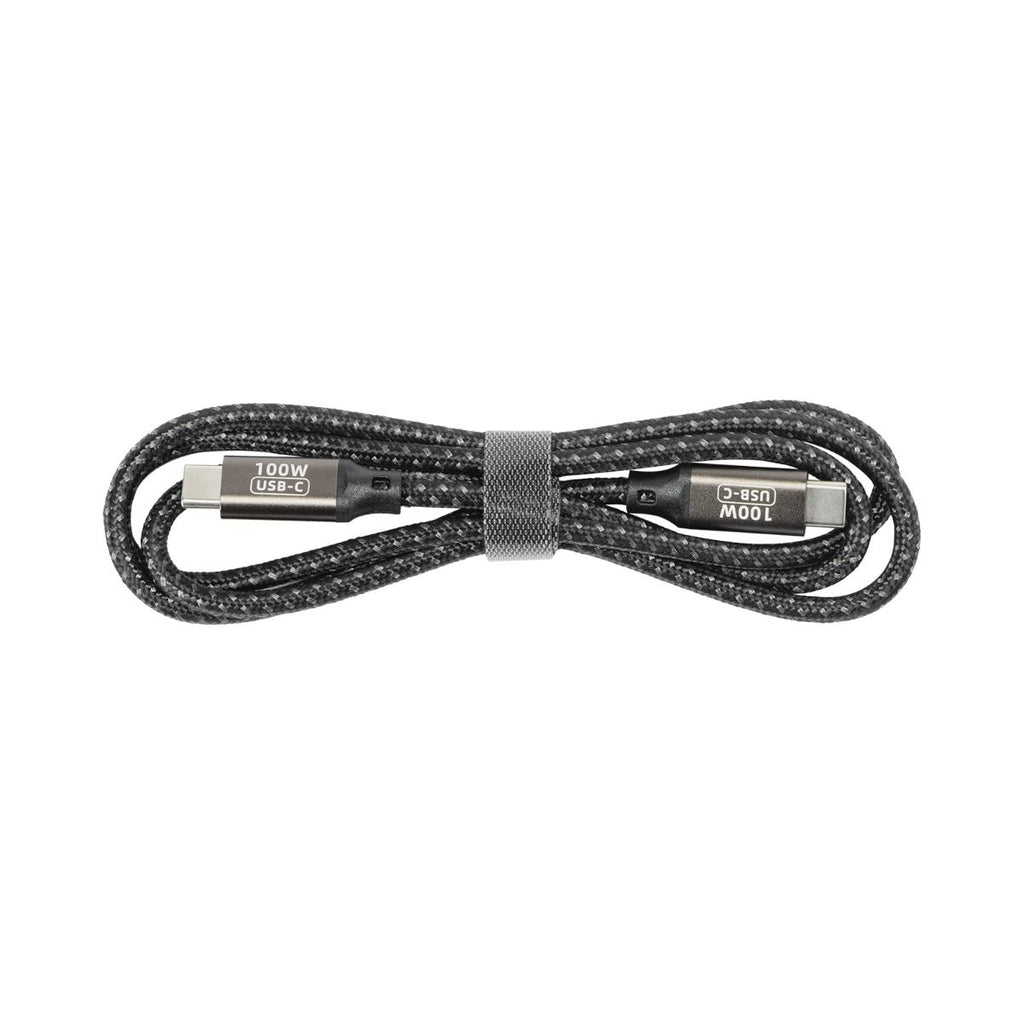

1x 100W C to C Charging Cable
1x User Manual
1x Guarantee Card
