Description
SMALLRIG NP-F BATTERY ADAPTER MOUNT PLATE (ADVANCED EDITION) 3168B
- Fully compatible with NP-F batteries on the market.
- Aluminum alloy and gold-plated electrical contacts make it more durable and conductive.
- Allows to access two devices with DC 7.4V and 12V dual outputMaximum DC and USB-C output: 36W.

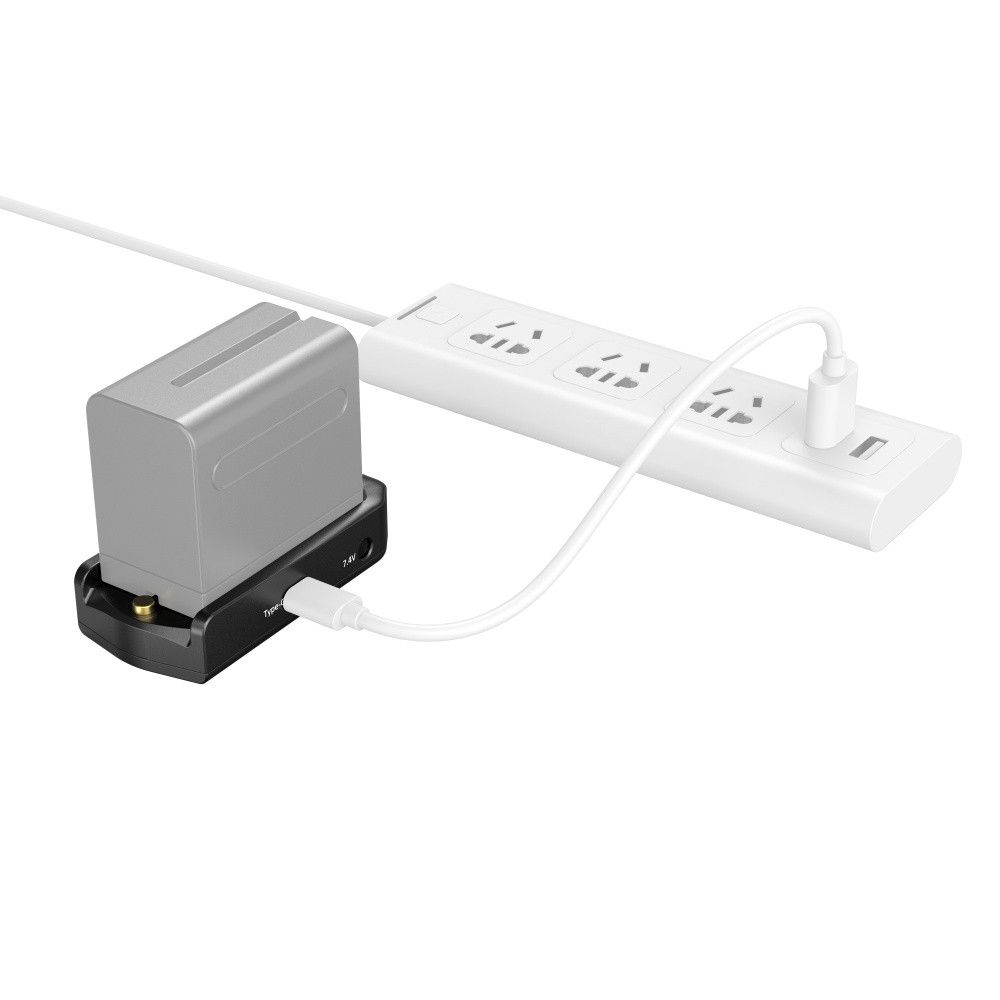

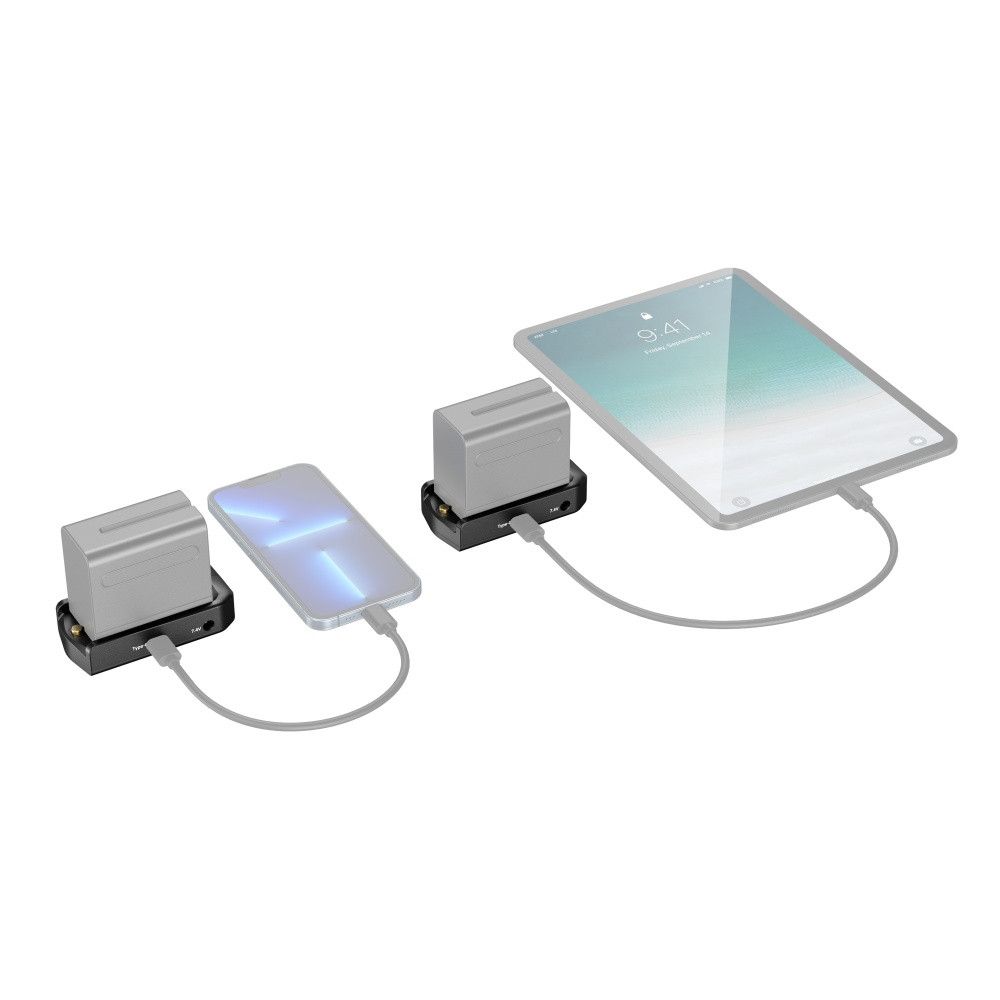

- The USB-C interface supports bi-directional input and output with 36W power.
- Features automatic wake-up and sleep modes to avoid damage to the camera.
- Comes with USB-C mode and power indicators for easy viewing of charging and state of charge.
- Each output port features a short circuit and high current protection to ensure safety during use.

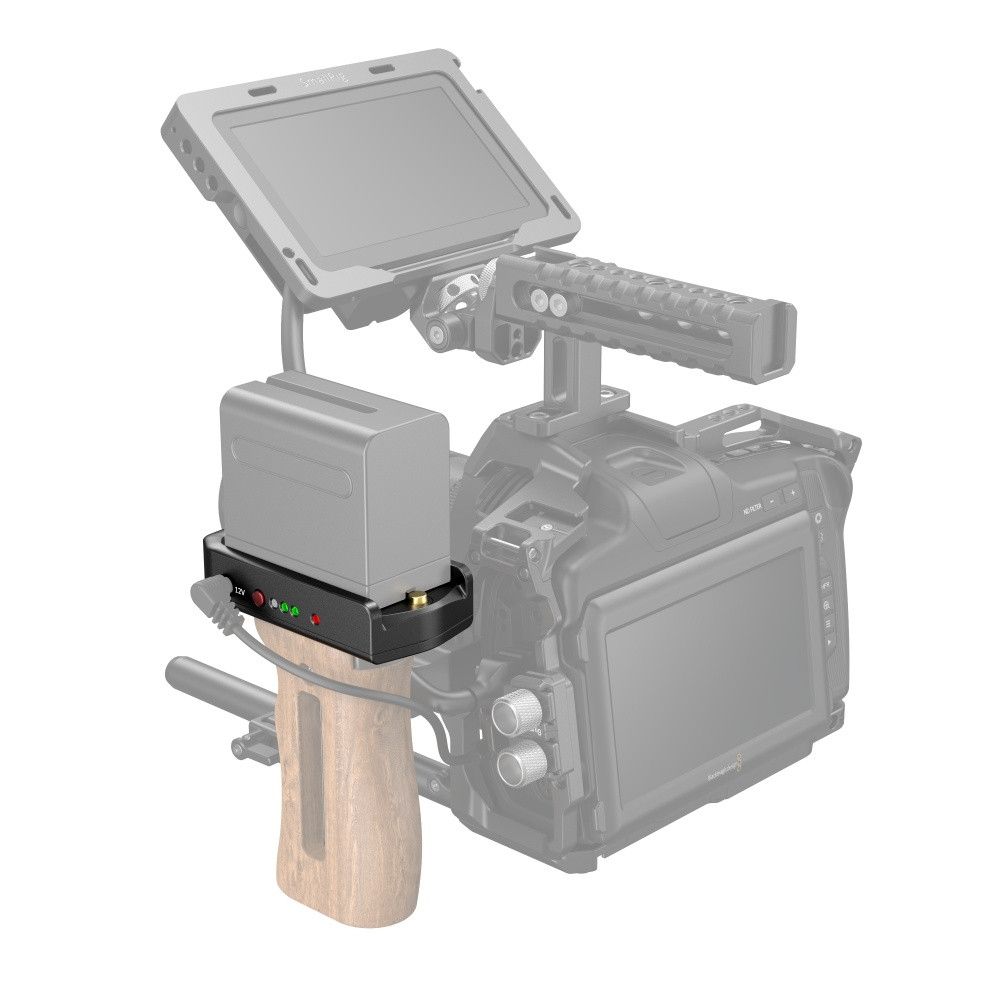

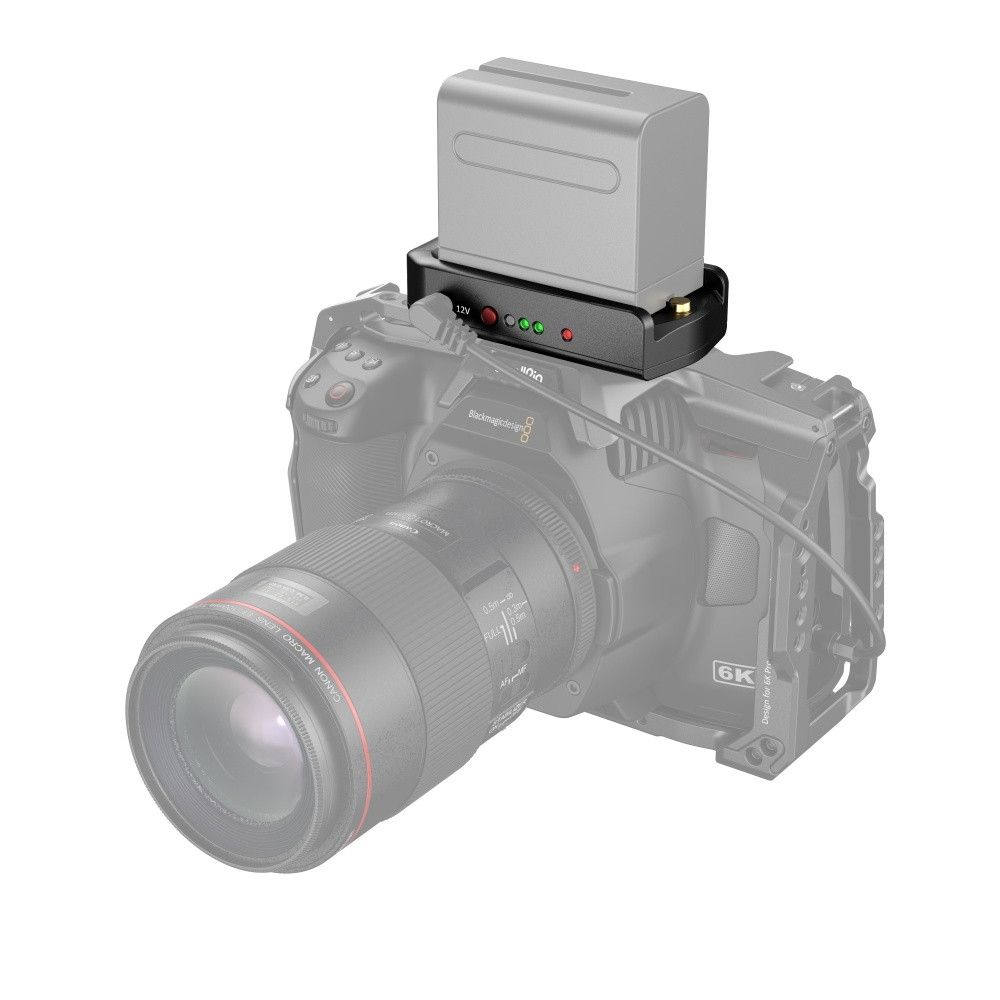

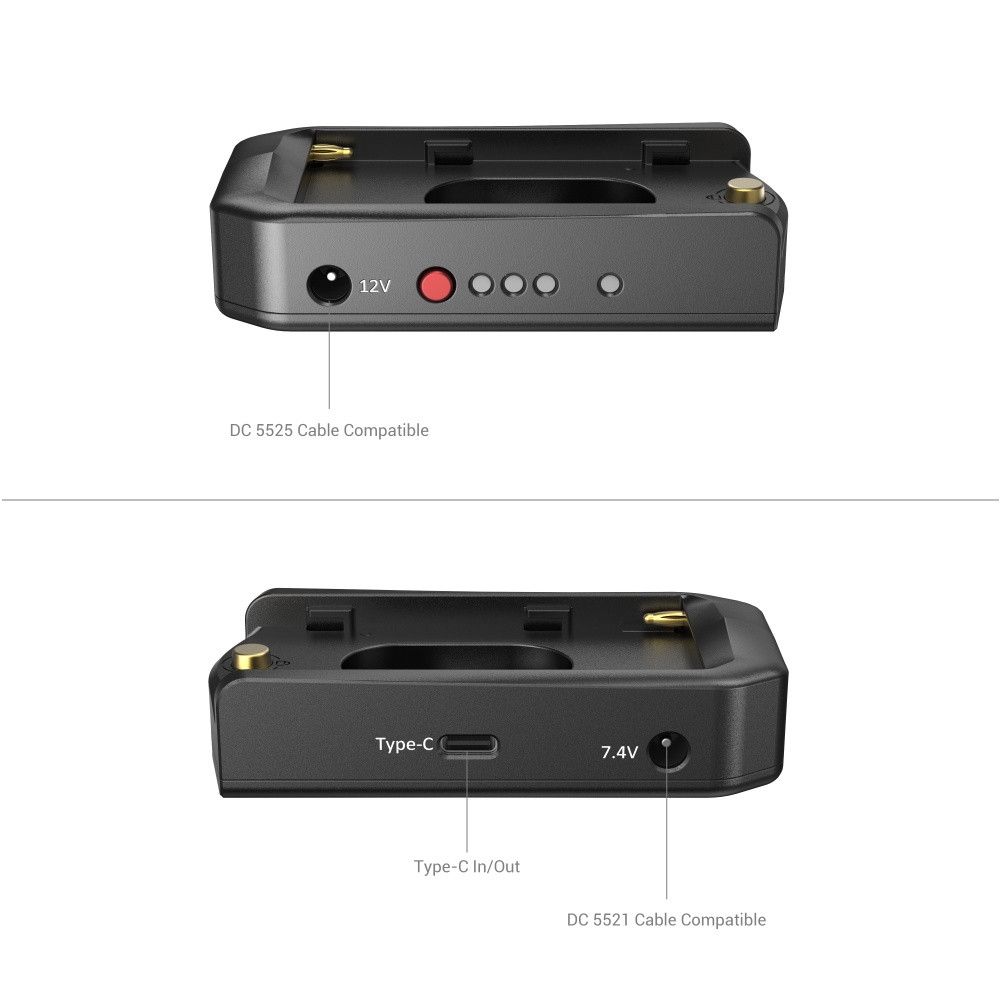

SmallRig NP-F Battery Adapter Mount Plate (Advanced Edition) 3168B is designed to enable NP-F batteries on the market (including original Sony and third-party batteries) to power BMPCC 4K/6K/6K Pro, Canon R5 C, and various mirrorless cameras and made of aluminum alloy with gold-plated electrical contacts to be more durable and conductive. The plate has a self-locking button for quick and secure battery installation and a 1/4''-20 threaded hole for easy attachment to the cage. There are 36W 7.4V / 12V DC output on its sides and a 36W USB-C port, which can output current or charge an NP-F battery. All ports have short circuit protection and automatic wake-up and sleep functions. In addition, this item features LED lights indicating USB charging and discharging state, battery connection, and battery life.
SPECIFICATIONS
Product Dimensions: 94x 47 x 23mm
Package Dimensions: 102x 78x 30mm
Product Weight: 113.5 ± 5g
Package Weight: 145.5 ± 5g
Material(s): CNC

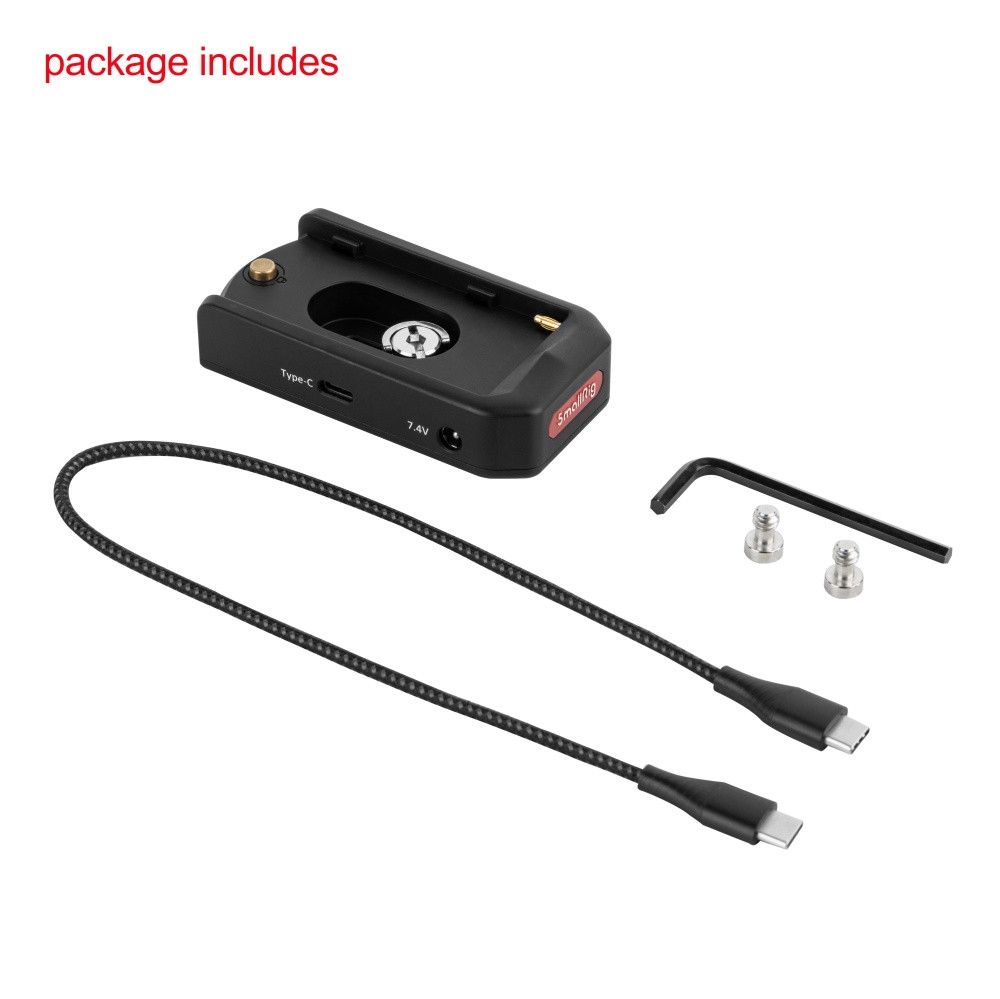

WHAT IS INCLUDED
1x NP-F Battery Adapter Mount Plate (Advanced Edition)
1x 1/4"-20 Screw
1x 5/32" L-Shaped Allen Wrench
1x User Manual
