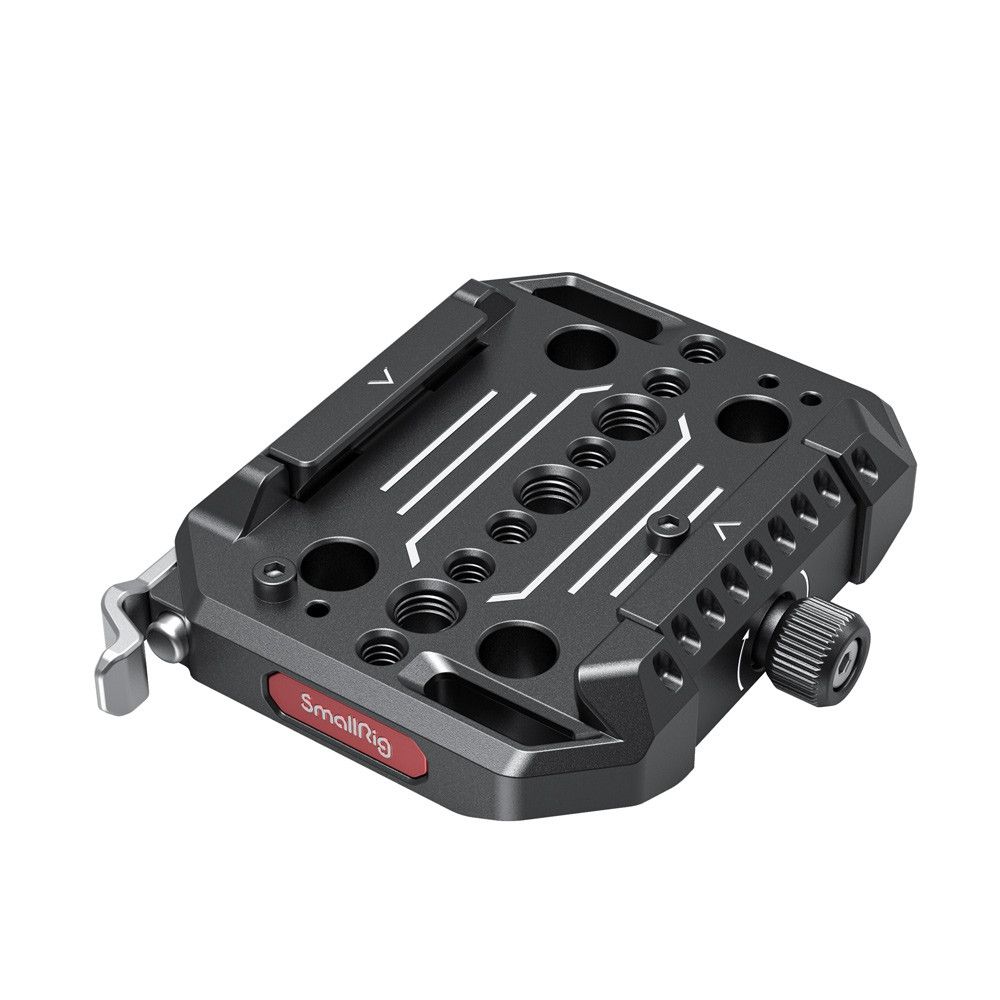

SMALLRIG MANFROTTO DROP-IN BASEPLATE 2887B
- Allows quick attachment.
- Optional anti-falling threaded holes are reserved on the bottom to prevent the quick release plate from accidentally slipping out of the baseplate when adjusting.

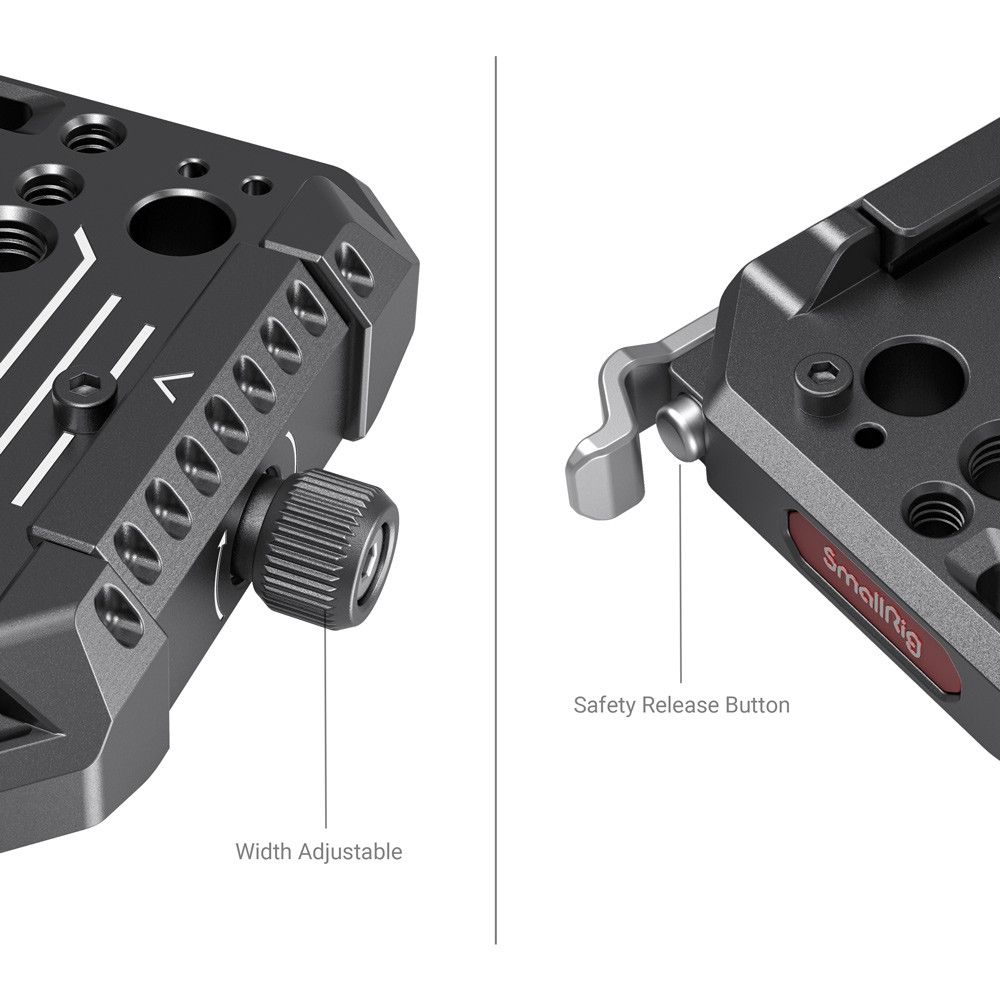

- Finely adjustable locking width for compatibility with quick release plates of various specifications.

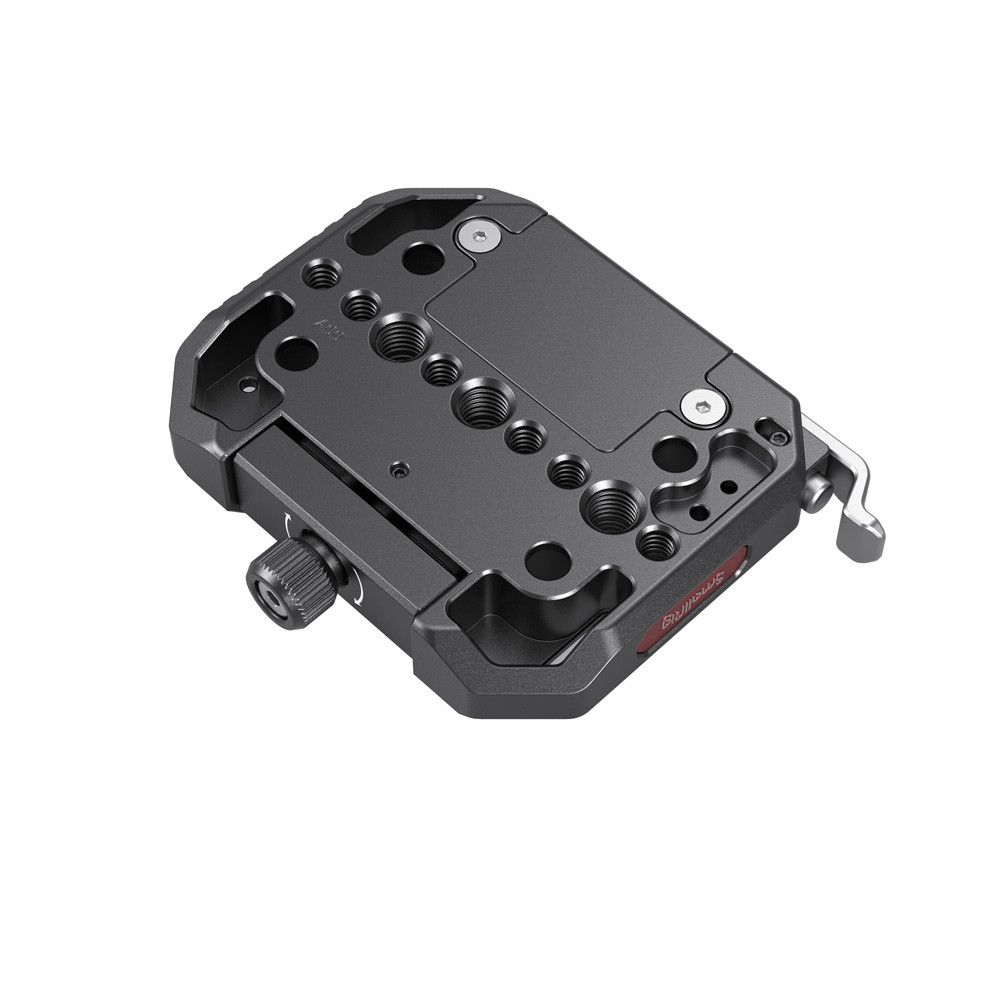

- Multiple 1/4''-20 & 3/8''-16 threaded holes and through holes.

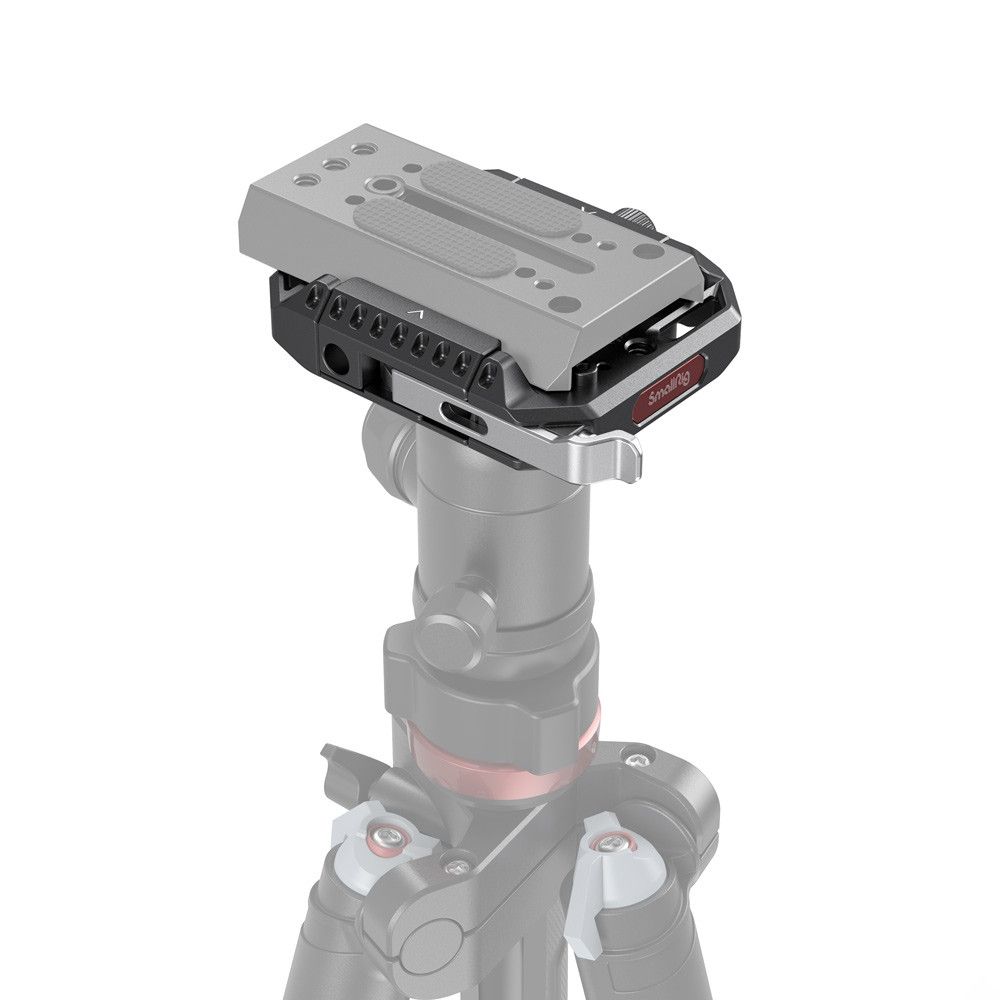

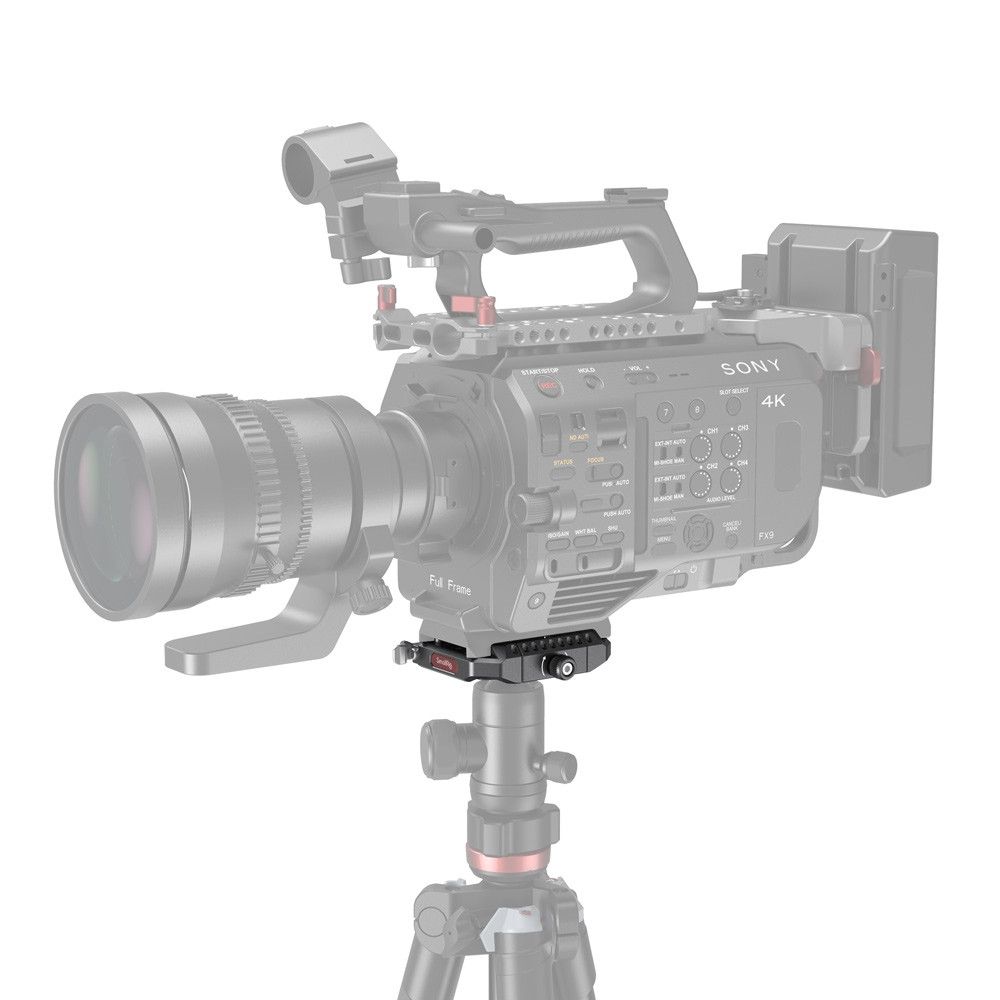

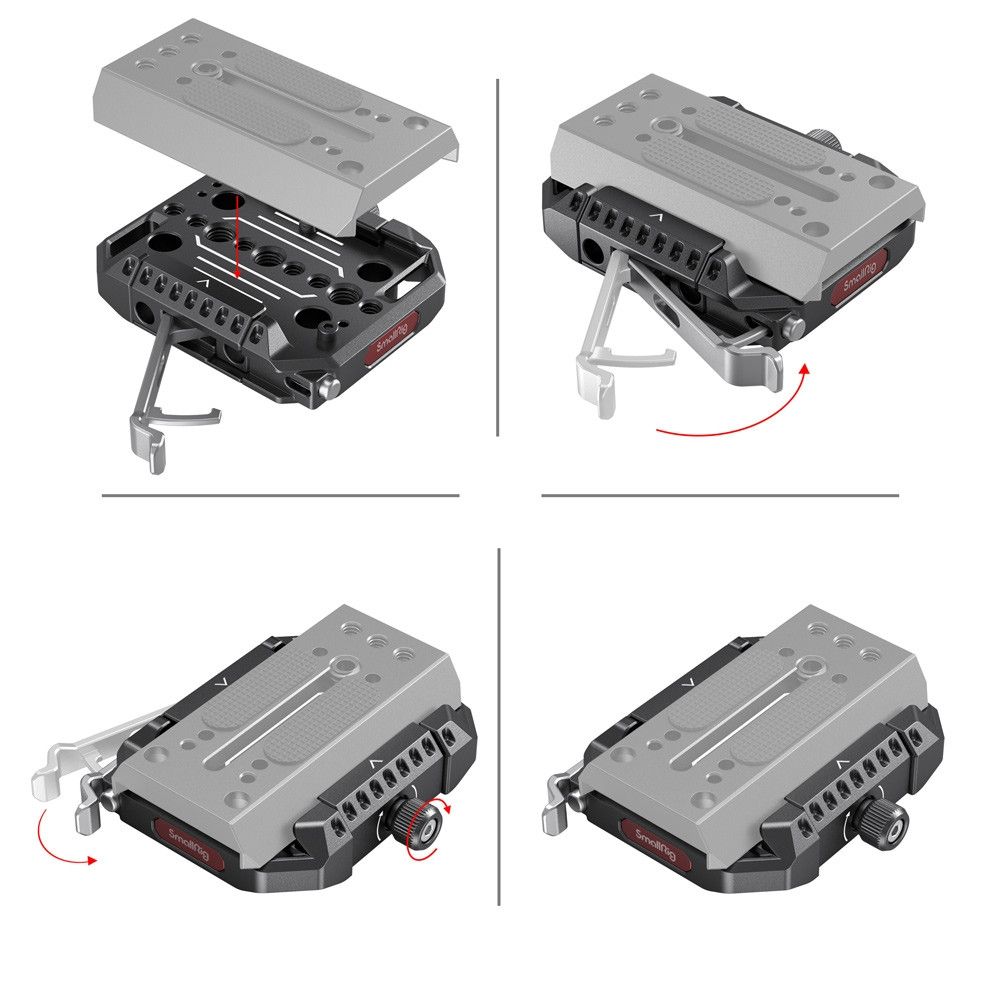

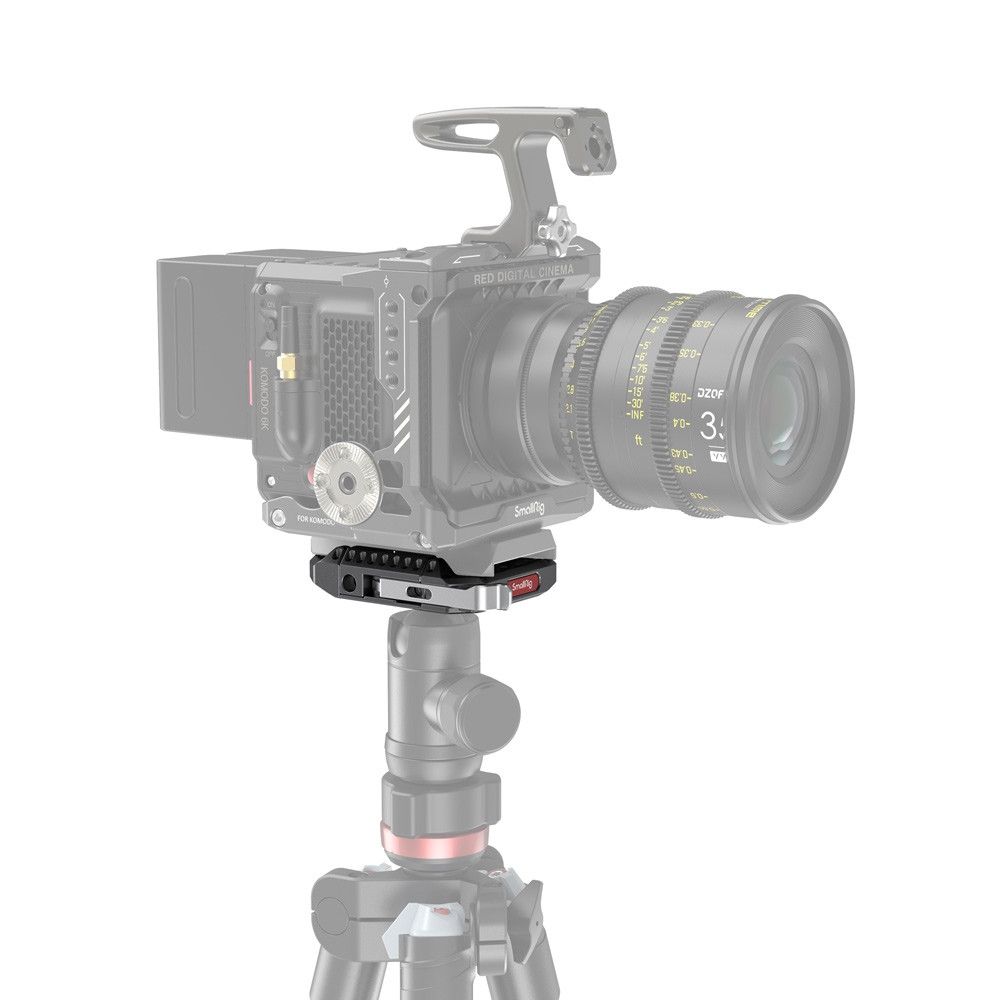

SmallRig Manfrotto Drop-in Baseplate 2887B is designed for quick installation of Manfrotto quick release plate. The quick-release plate can be quickly locked after being inserted and finely adjusted according to the width of the quick-release plate. There is an intermediate position when unlocked. The locking position can be adjusted back and forth to prevent the quick-release plate from sliding out of the baseplate. The quick-release plate is preset with two anti-drop screws to prevent the quick-release plate from falling off when adjusting the distance. Five anti-drop threaded holes are reserved, and the anti-drop screws can be installed according to actual user needs. Comes with multiple 1/4''-20 & 3/8''-16 threaded holes at the bottom to mount on a tripod or ahead.
SPECIFICATIONS
SmallRig Manfrotto Drop-in Baseplate 2887B is designed for quick installation of Manfrotto quick release plate. The quick-release plate can be quickly locked after being inserted and finely adjusted according to the width of the quick-release plate. There is an intermediate position when unlocked. The locking position can be adjusted back and forth to prevent the quick-release plate from sliding out of the baseplate. The quick-release plate is preset with two anti-drop screws to prevent the quick-release plate from falling off when adjusting the distance. Five anti-drop threaded holes are reserved, and the anti-drop screws can be installed according to actual user needs. Comes with multiple 1/4''-20 & 3/8''-16 threaded holes at the bottom to mount on a tripod or ahead.
SPECIFICATIONS

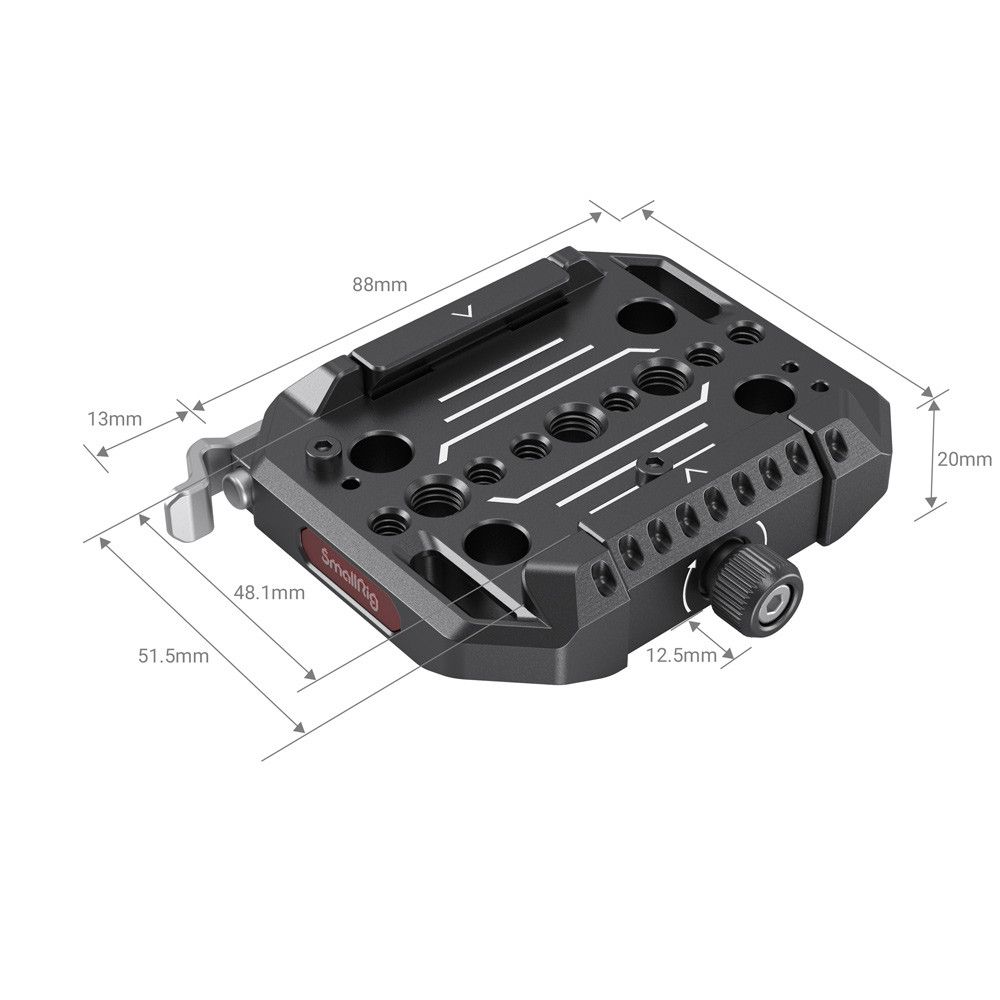

Product Dimensions: 88x 70 x 20mm
Package Dimensions: 120 x 100 x 40mm
Net Weight: 192g±5g
Package Weight: 262g±5g
Material: Aluminum Alloy, Stainless Steel
COMPATIBILITY
COMPATIBILITY
501PL-type quick release plate

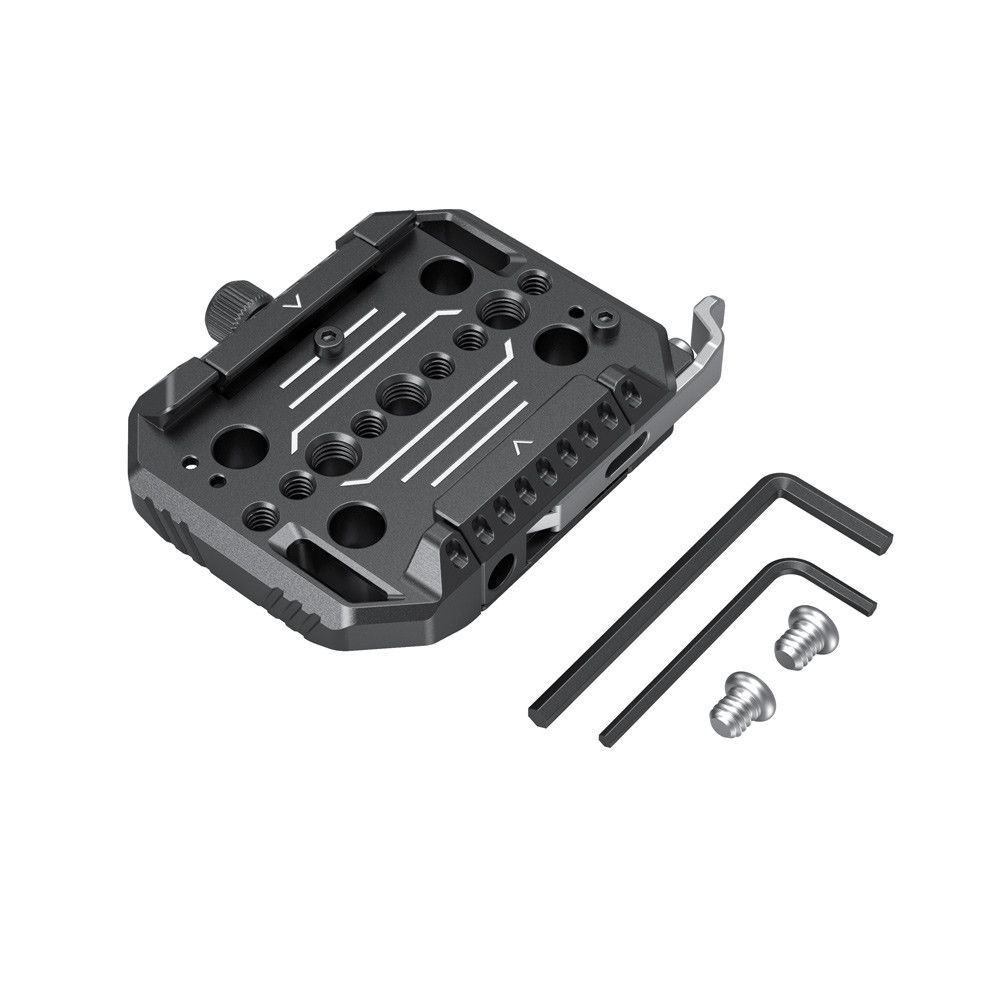

WHAT IS INCLUDED
WHAT IS INCLUDED
1x Manfrotto Quick Release Baseplate
2x 1/4''-20 Screw
2x Spanner
