Description
SMALLRIG LIGHTWEIGHT VIDEO CARBON FIBER TRIPOD KIT AD-50 PRO 4420

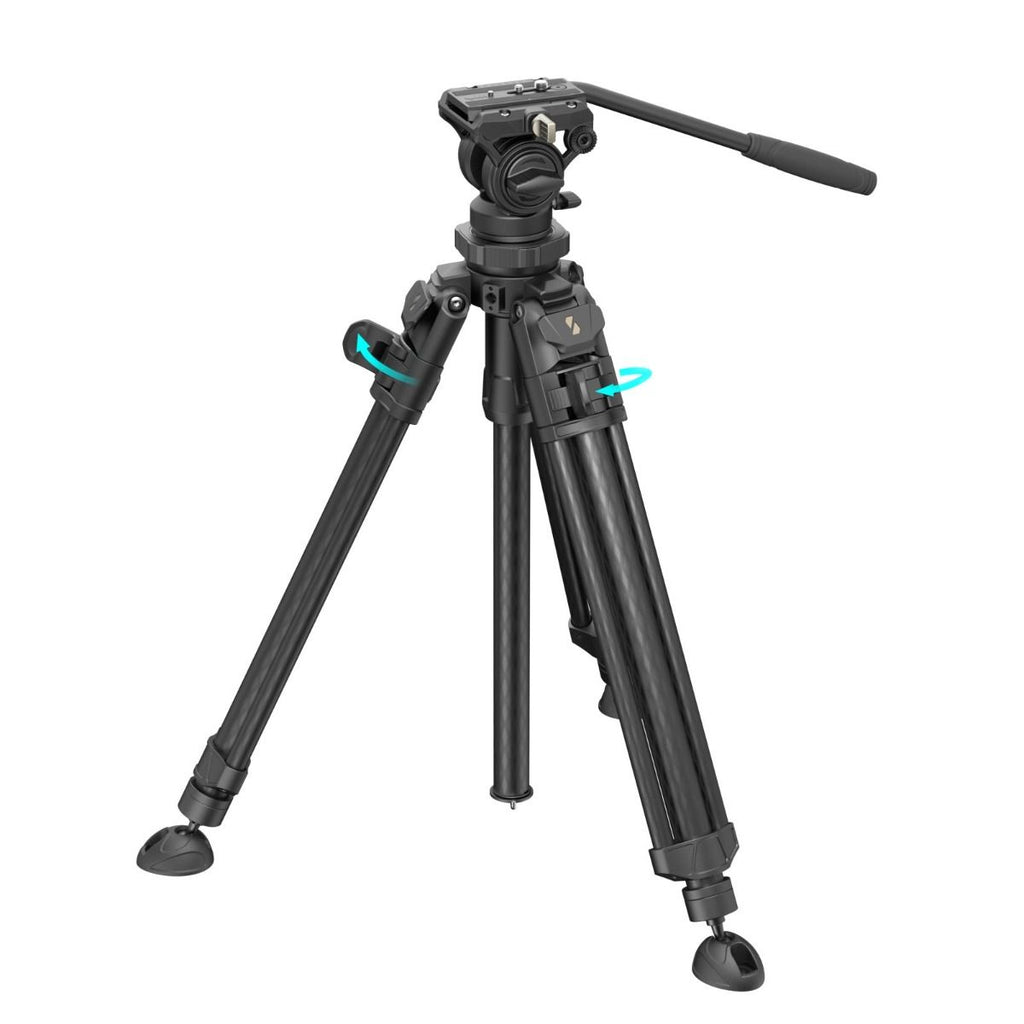

- FreeSpeed One-Step Locking and Quick Adjustment.
- Providing low-angle shooting scenes.
- Lightweight and compact, easy to carry and stable.

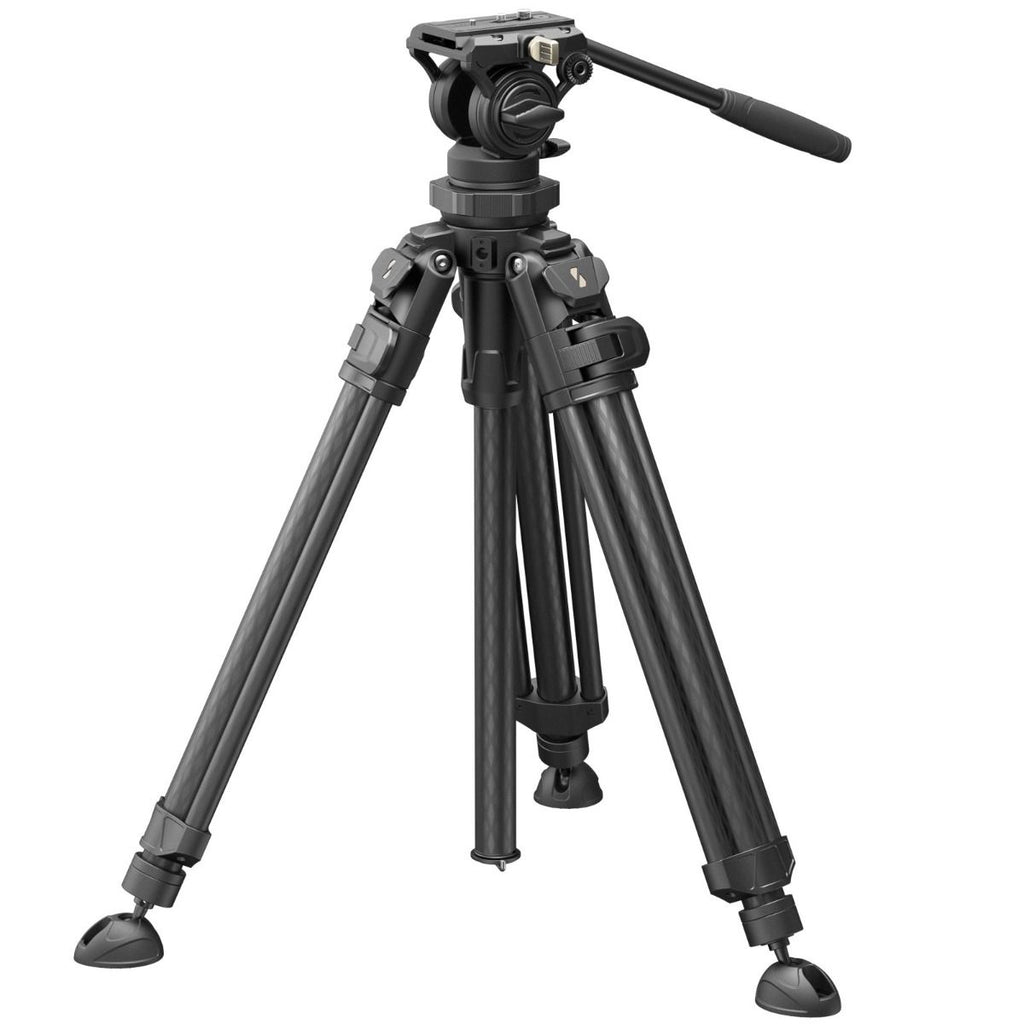

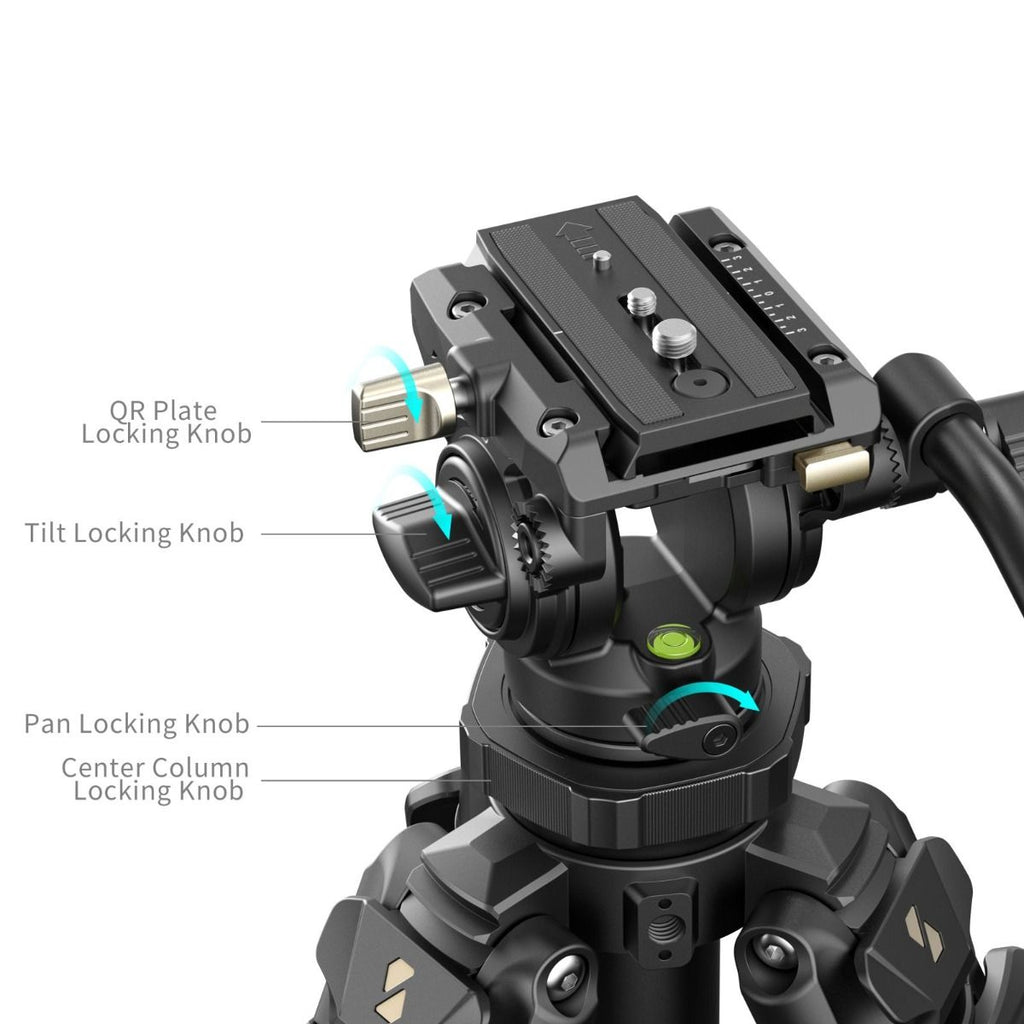

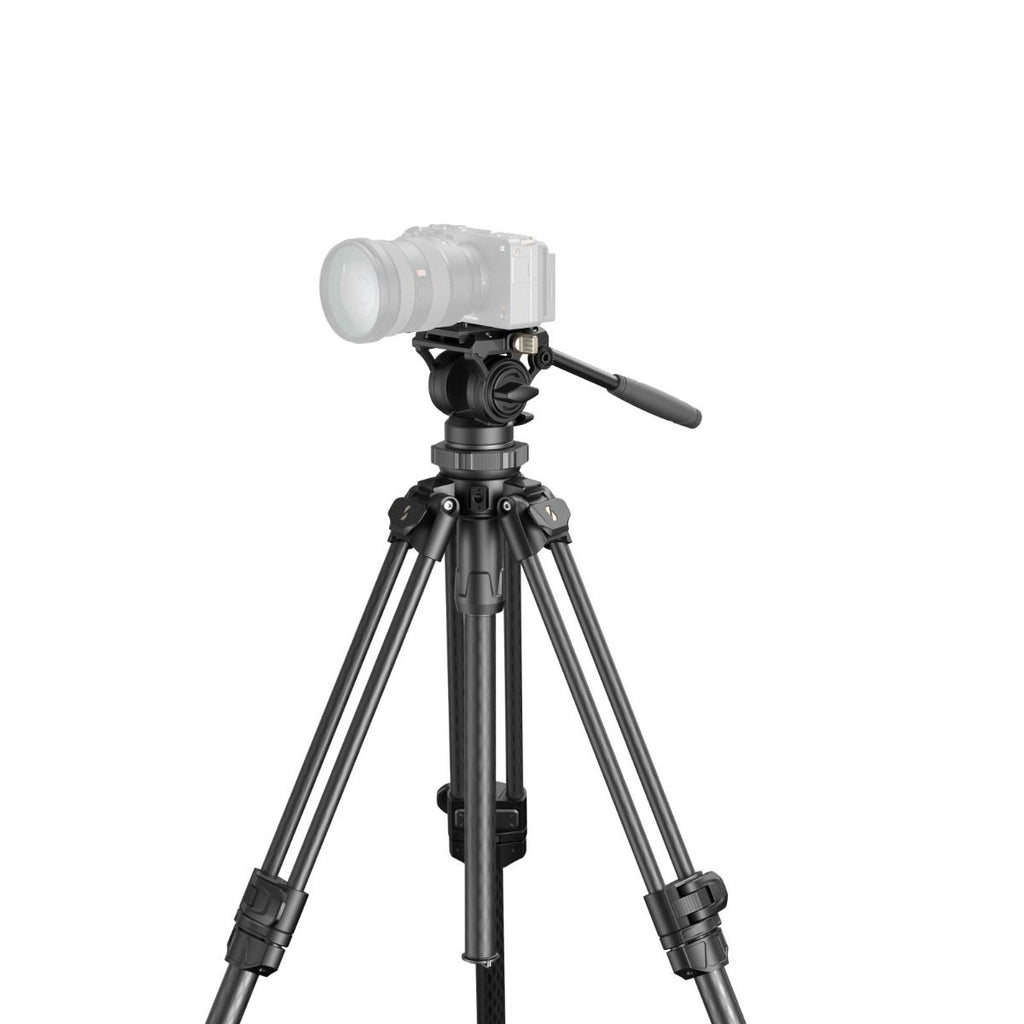

SmallRig Lightweight Video Carbon Fiber Tripod Kit AD-50 Pro 4420 is designed for professional outdoor videography. Featuring FreeSpeed technology, adopt a one-step locking system - operating a single toggle can lock two sections of legs quickly. Constructed with carbon fiber, both the legs and center column ensure lightweight design while delivering exceptional stability and high load-bearing capacity. Operating Altitude ranges from 31cm (12.2in) to 151cm (59.4in), and a compact storage length of 68cm (26.8in). The center column features an integrated bowl base that enables adjustment for quick leveling, with a detachable Allen wrench built into the video head for convenient camera equipment assembly/disassembly, and the option for low-angle shooting at a minimum height of 31cm (12.2in). The compact design of the tripod allows it to fit in any standard luggage.
IMPORTANT
1. Before shooting, make sure the head and tripod locking status are in normal condition.
2. Avoid use in sandy or dusty environments to prevent the risk of damage.

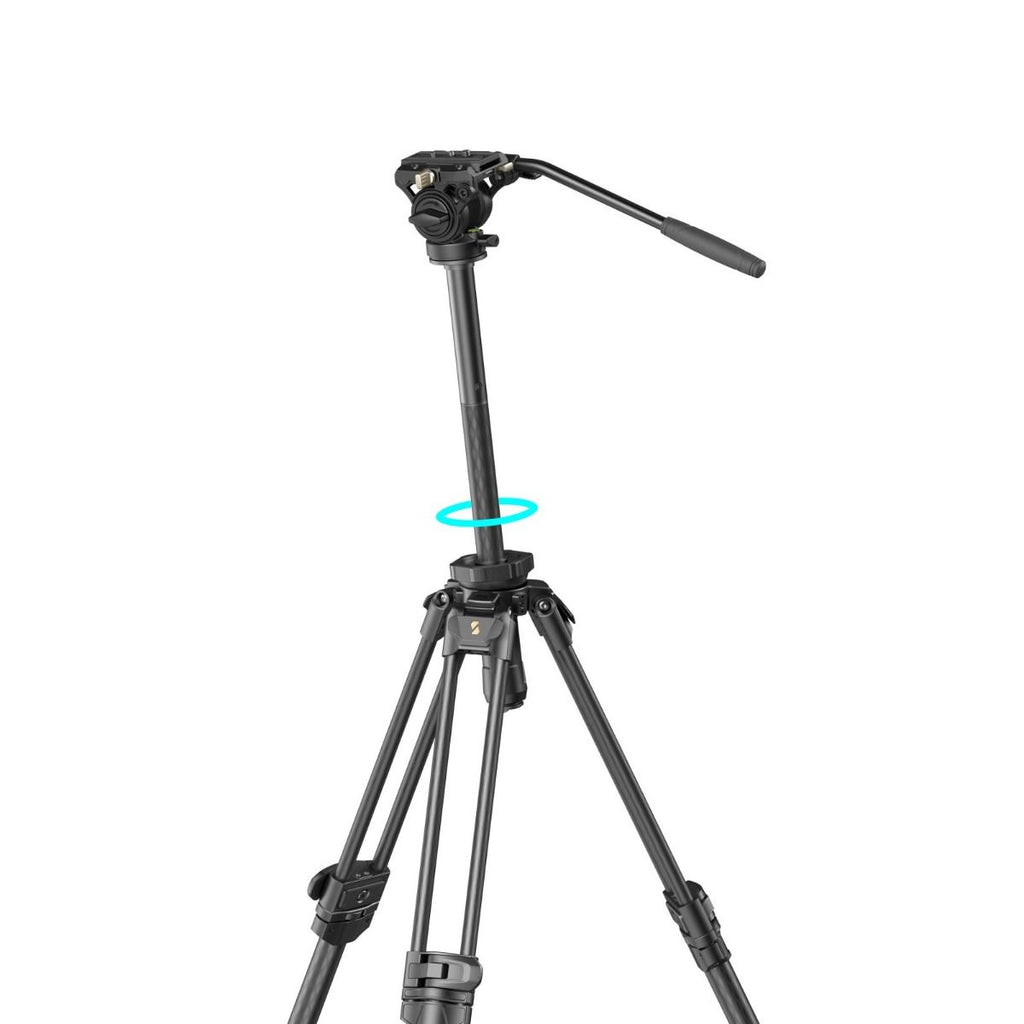

3. After using the short center column, mounted on the center column, need to ensure the locking status.
4. Max payload of head: 6kg / 13.2lb (center column raised, leg angle at 23°, height at 151cm / 59.4in).
5. The weight capacity of the tripod head is not the absolute limit; it varies depending on the type of equipment, lenses used, accessories attached, and changes in the center of gravity.
6. Max payload of tripod: 15kg / 33lbs (center column not raised, tripod head detached, leg angle at 23°, height at 119cm / 46.8in).
SPECIFICATIONS
Product Dimensions: 680.0 x 150.0 x 150.0mm / 26.8 x 5.9 x 5.9in
Package Dimensions: 730.0 x 170.0 x 170.0mm / 28.7 x 6.7 x 6.7in
Product Weight: 3.2 ± 0.1kg / 7.0 ± 0.2lbs
Package Weight: 4.3 ± 0.1kg / 9.5 ± 0.2lbs

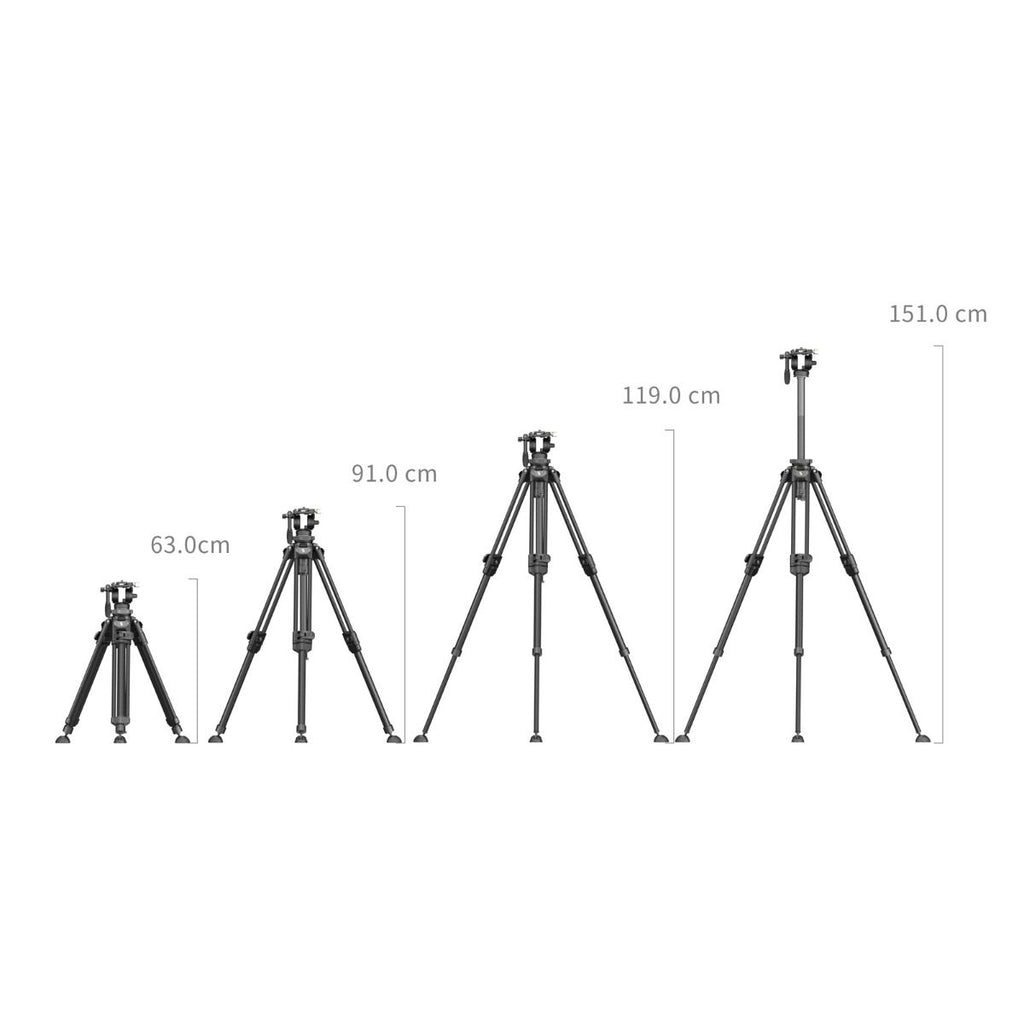

Operating Altitude: 31.0 - 151.0cm / 12.2 - 59.4in

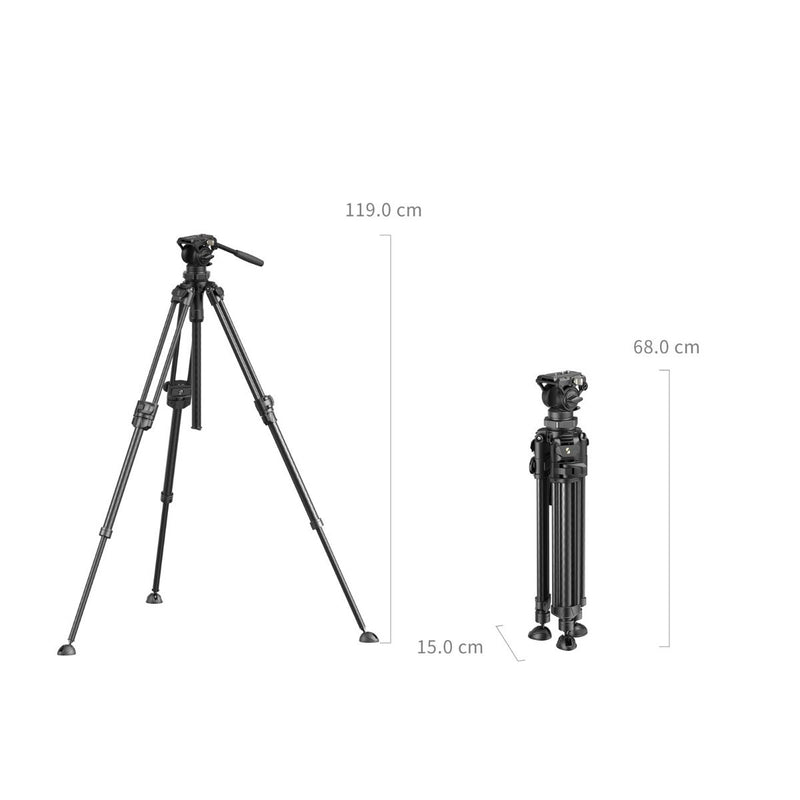

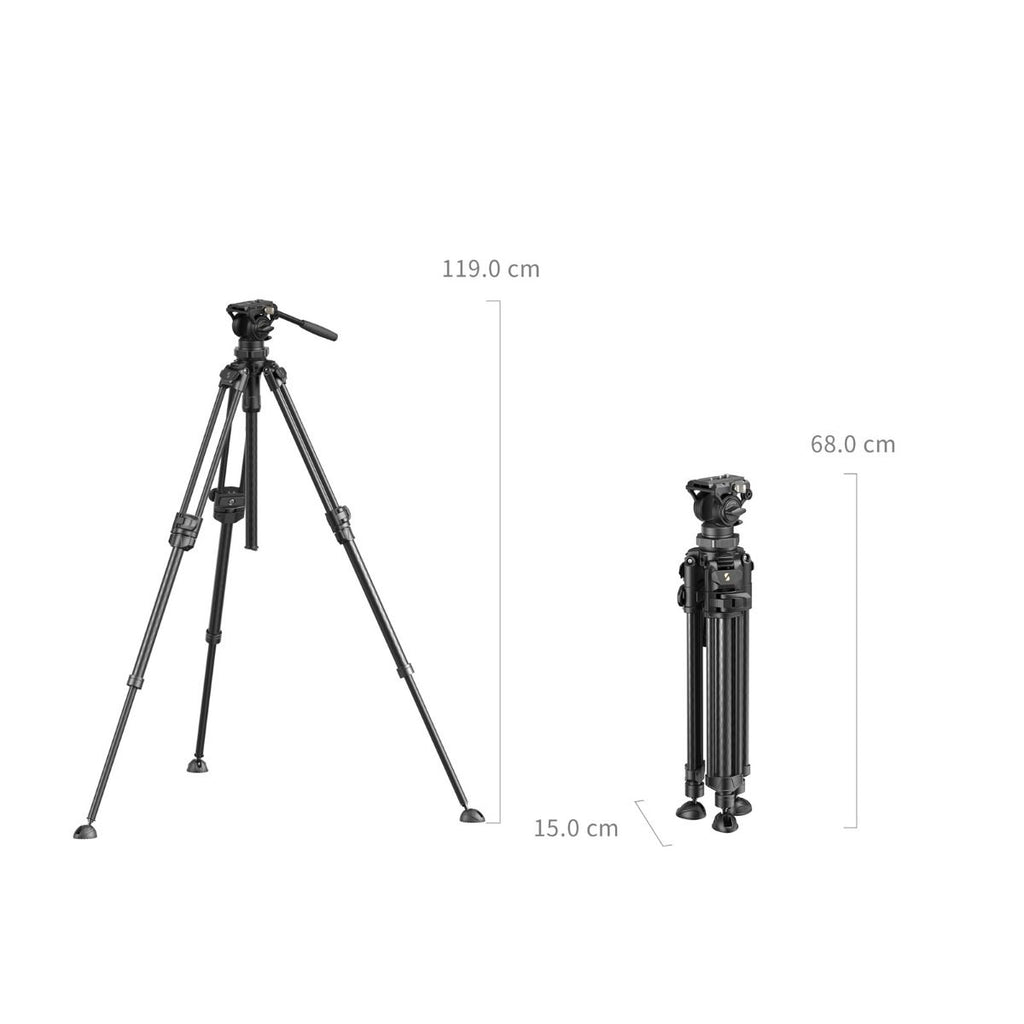

Storage Length: 68.0cm / 26.8in
Legs Diameter: 28mm - 18.5mm - 16mm / 1.10in - 0.73in - 0.63in
Fluid Head Base Diameter: 65.0mm / 2.56in
Tilt Range: +90°/-65°
Counterbalance Payload: Fixe 4.0kg / 8.8lb
Tilt Control: Fixed
Pan Control: Fixed
Head Payload: 6kg / 13.2lb
Material(s): Carbon Fiber, Aluminum Alloy, POM, Stainless Steel, Silicone
COMPATIBILITY
501PL Quick Release PlateDJI RS Series Quick Release Plate
WHAT IS INCLUDED
1x Tripod Kit
1x Allen Wrench
1x Storage Bag
1x Smartphone Holder
1x Guarantee Card
