Description
SMALLRIG L-SHAPE MOUNT PLATE FOR CANON EOS R5 MARK II 4983

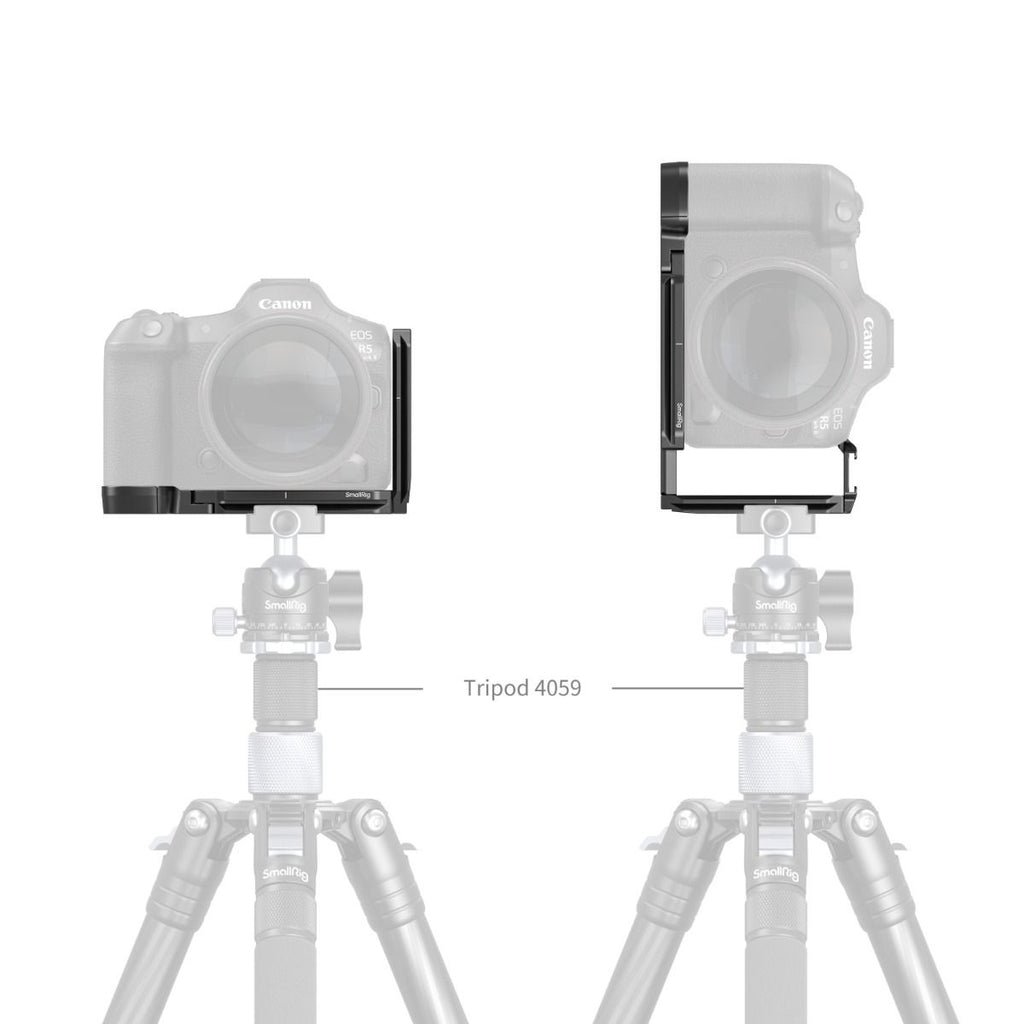

- Built-in Arca-Swiss quick-release plates on the base and side panels, allowing for quick transitions between landscape and portrait shooting orientations.
- Incorporates a three-point locking system for stability and precision, utilizing a 1/4"-20 screw at the base and two locating blocks.
- Equipped with a cold shoe locating block to maintain stability and prevent deformation of the side panel when shooting vertically, ensuring a steady centered frame.

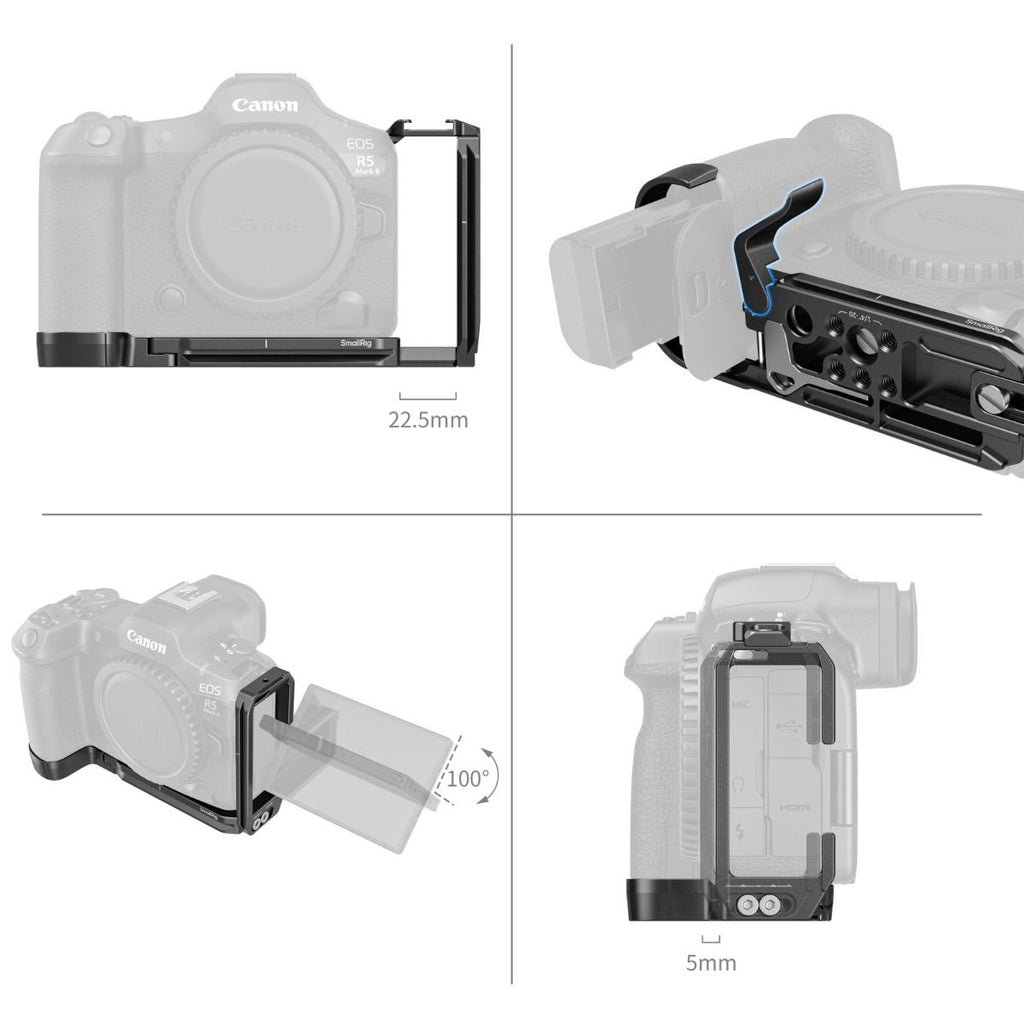

- The side panel can extend by 22.5mm / 0.9in and adjust front and back by 7.8mm / 0.3in, without obstructing camera interfaces and facilitating vertical shooting cable connections.

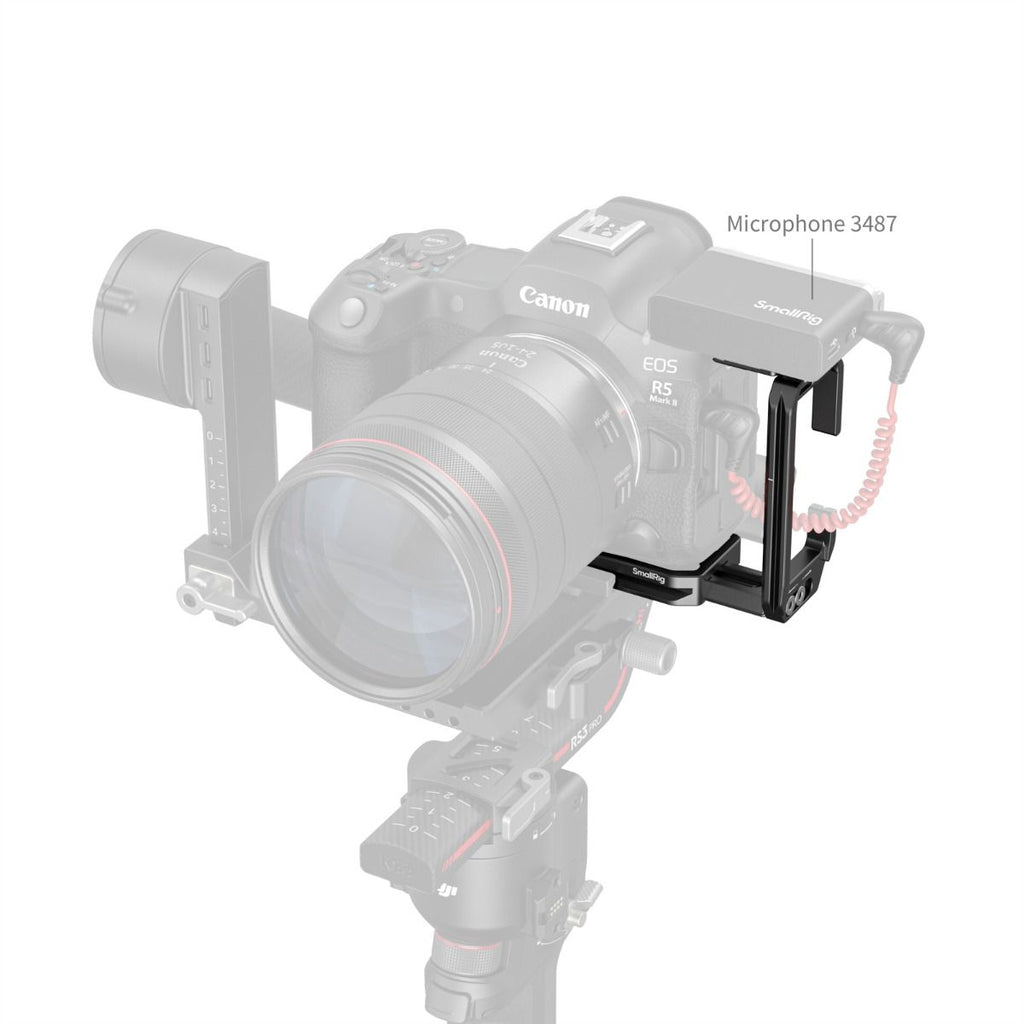

- The incorporated Arca-Swiss quick-release baseplate is compatible with Arca-type tripods and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro stabilizers.

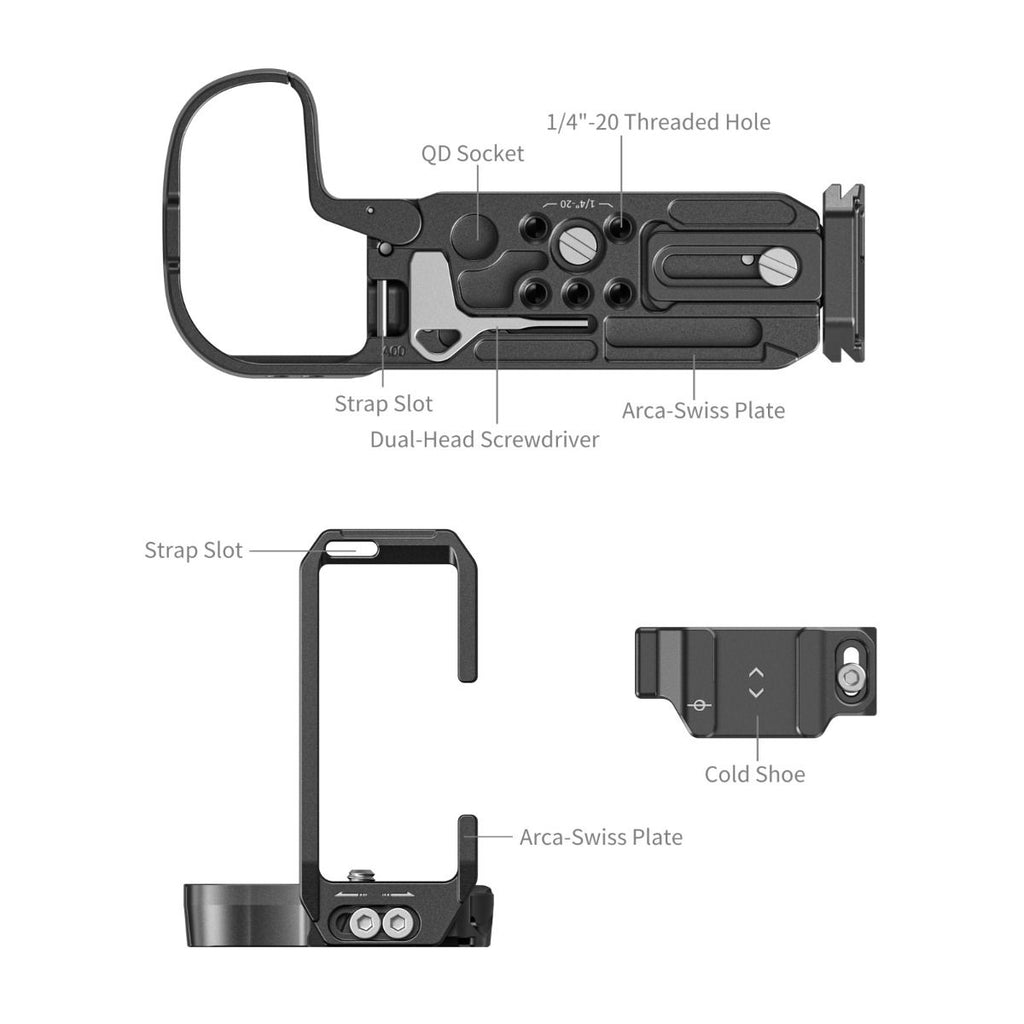

- Enhanced versatility with multiple interfaces: features various expansion interfaces including 1/4"-20 threaded holes, QD interface, cold shoe mount, and strap slots, catering to diverse shooting scenarios.
- Includes durable scratch-resistant 9H hardness tempered glass screen protector, featuring IK03 impact resistance test rating.
Notice: This item is not sold in the U.S.A.

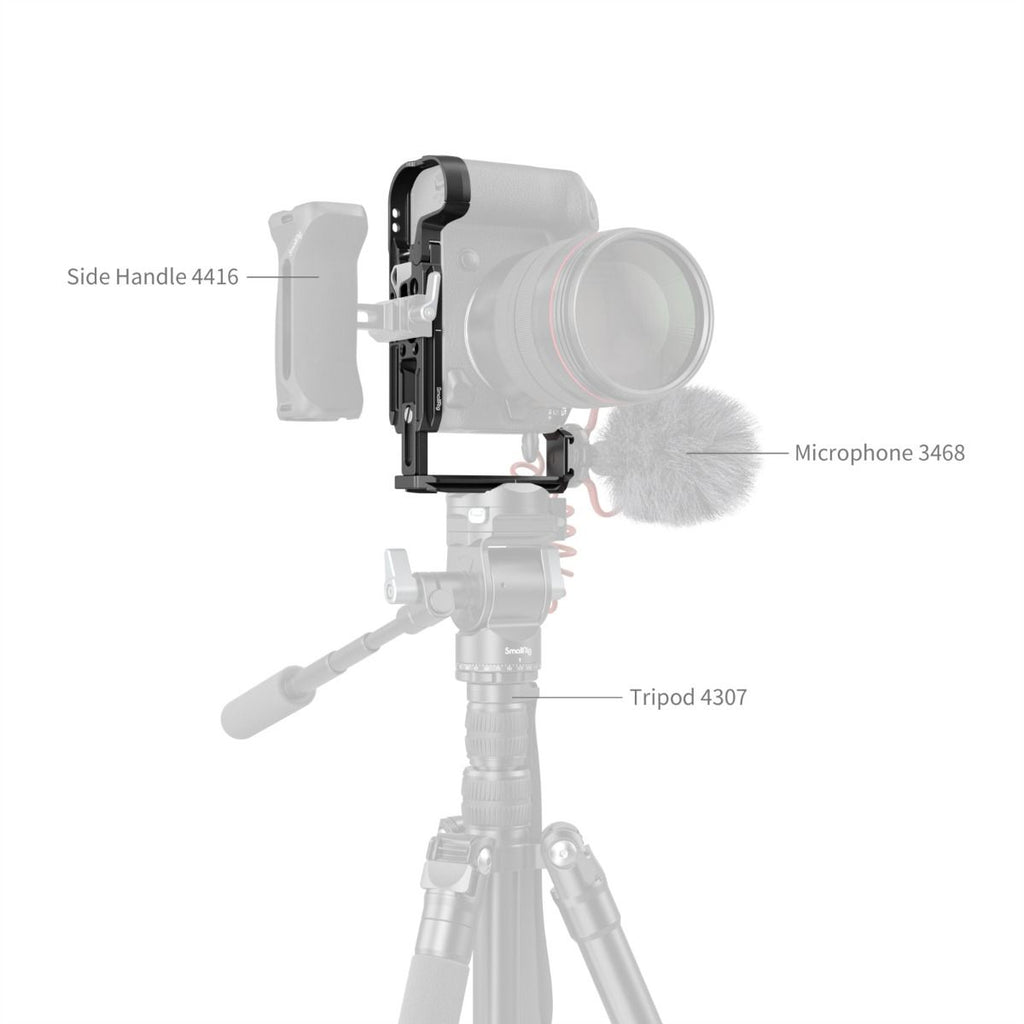

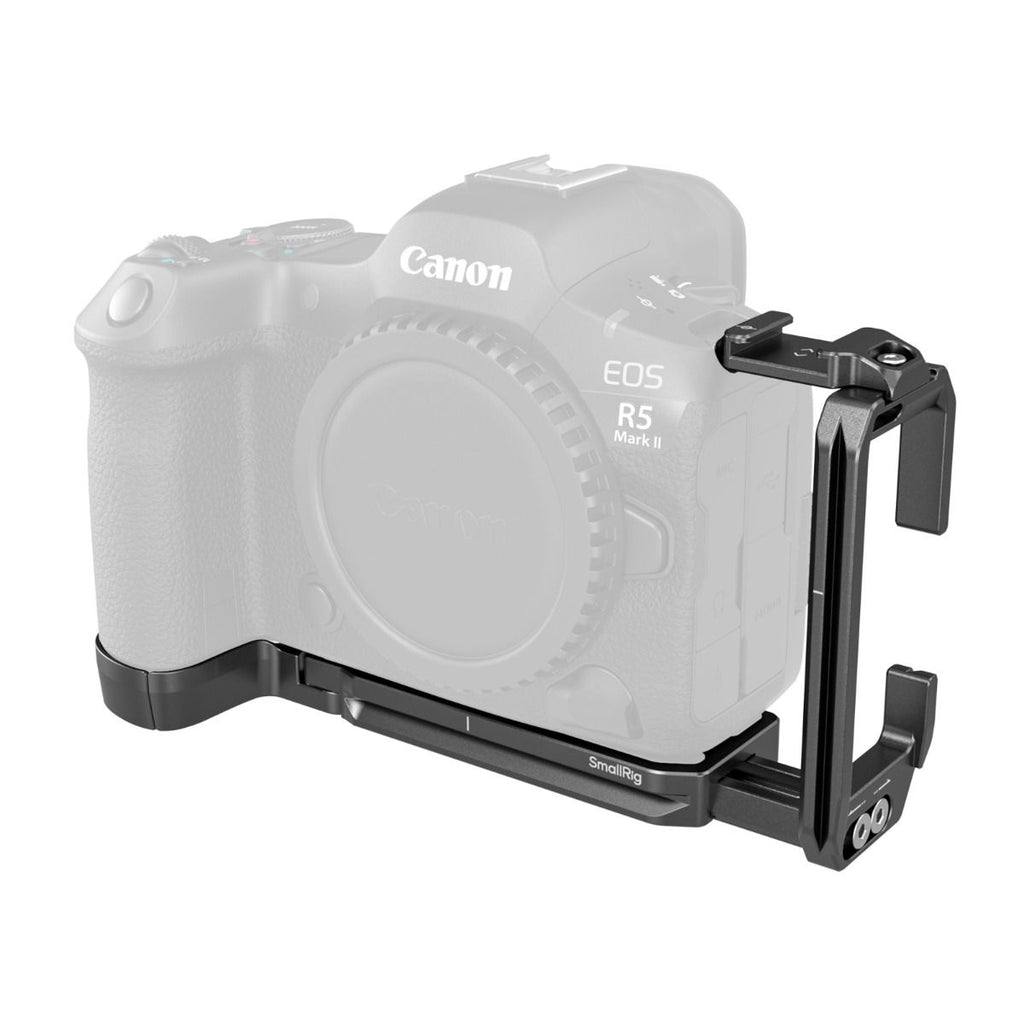

SmallRig L-Shape Mount Plate for Canon EOS R5 Mark II 4983 is designed to assist in quickly switching between landscape and portrait orientations while enhancing the grip of the camera body. The L-shape mount plate firmly secures to the camera with a 1/4"-20 screw at the base and two locating blocks on the sides to prevent deviation and features built-in silicone pads to protect the camera from scratches.
IMPORTANT
The tempered glass screen protector is intentionally designed to be slightly smaller than the screen edges to prevent dust from entering through larger gaps, constituting a normal design feature.
SPECIFICATIONS
Product Dimensions: 149.1 x 66.1 x 89.0mm / 5.9 x 2.6 x 3.5in
Package Dimensions: 180.0 x 129.5 x 75.0mm / 7.1 x 5.4 x 2.6in
Product Weight: 151.7 ± 5.0g / 5.3 ± 0.2oz
Package Weight: 252.7 ± 5.0g / 8.9 ± 0.2oz
Material(s): Aluminum Alloy
COMPATIBILITY
Canon EOS R5 Mark II

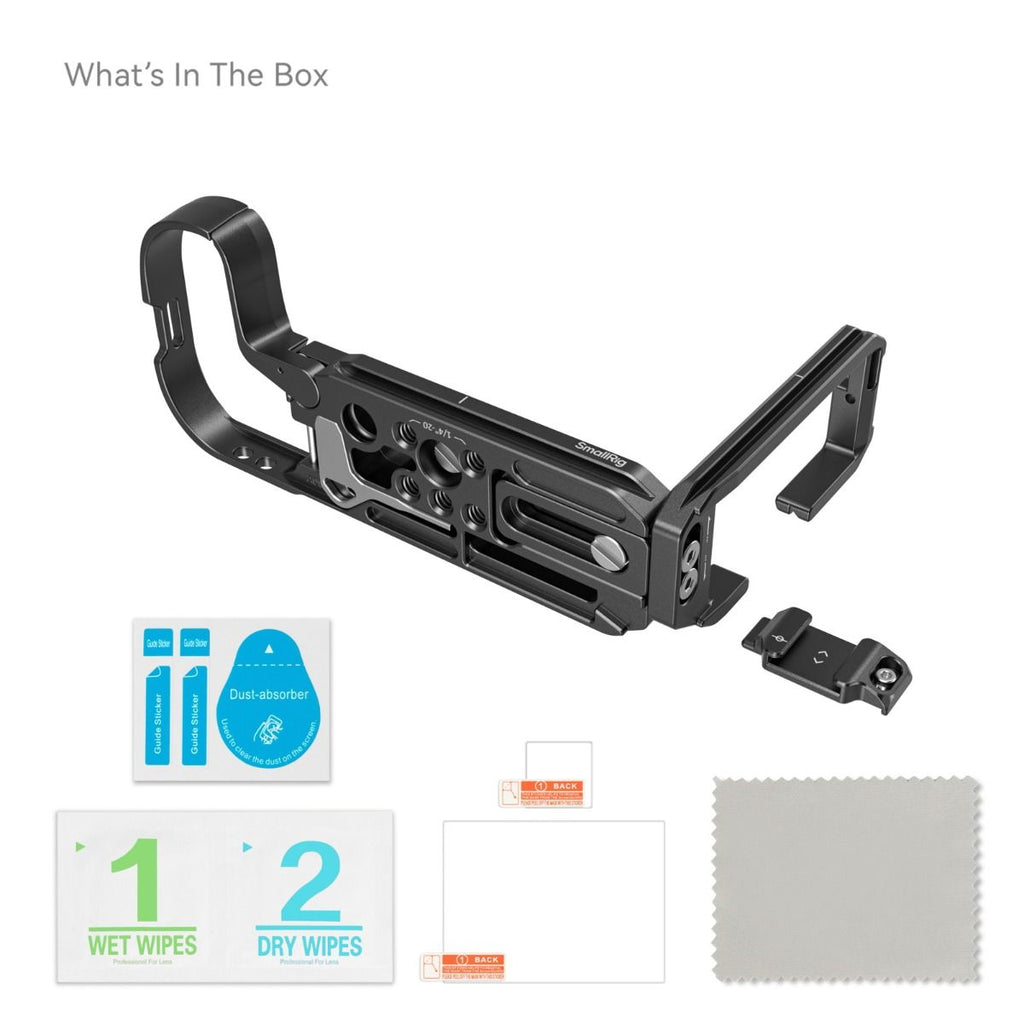

WHAT IS INCLUDED
1x L-shaped Mount Plate
1x Locating Block with Could Shoe Mount
1x Allen Wrench
