Description
SMALLRIG DROP-IN HAWKLOCK UNIVERSAL MINI QUICK RELEASE PLATE AND CLAMP 3513C

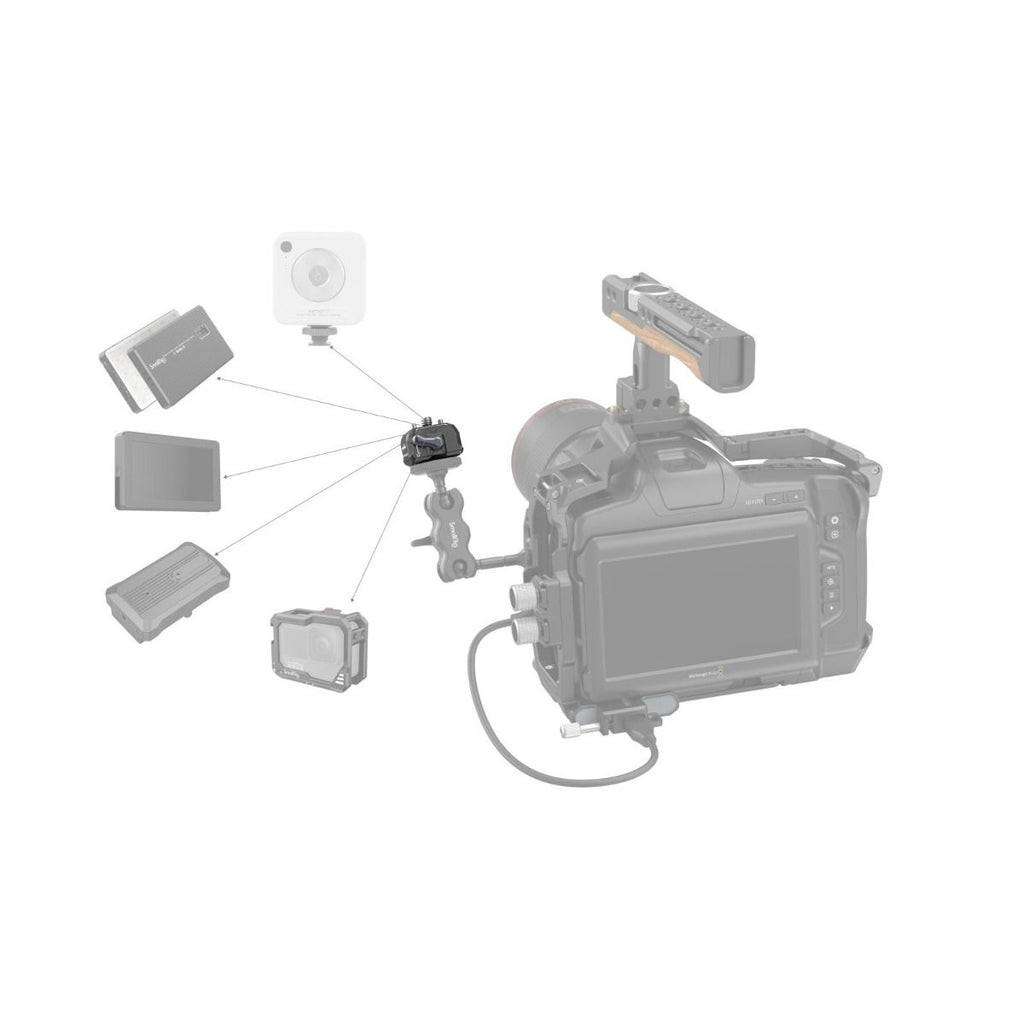

- Highly compatible with tripods, cages, heads, etc. via 1/4"-20 holes, and features optional dowel pins.
- Exclusive patent adapts with dual locking structure, providing high load capacity and no shaking.
- Quickly locked and unlocked through a click without jamming.
- Compact and portable.

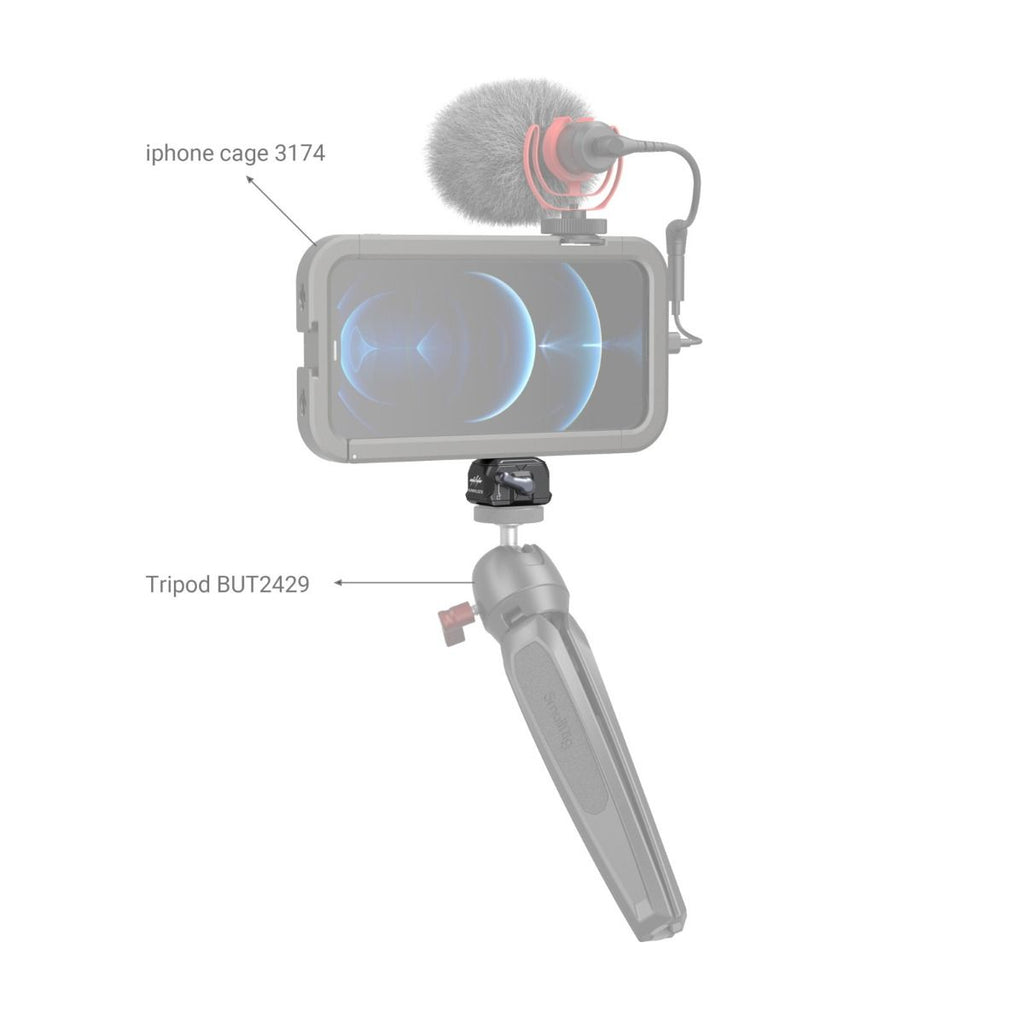

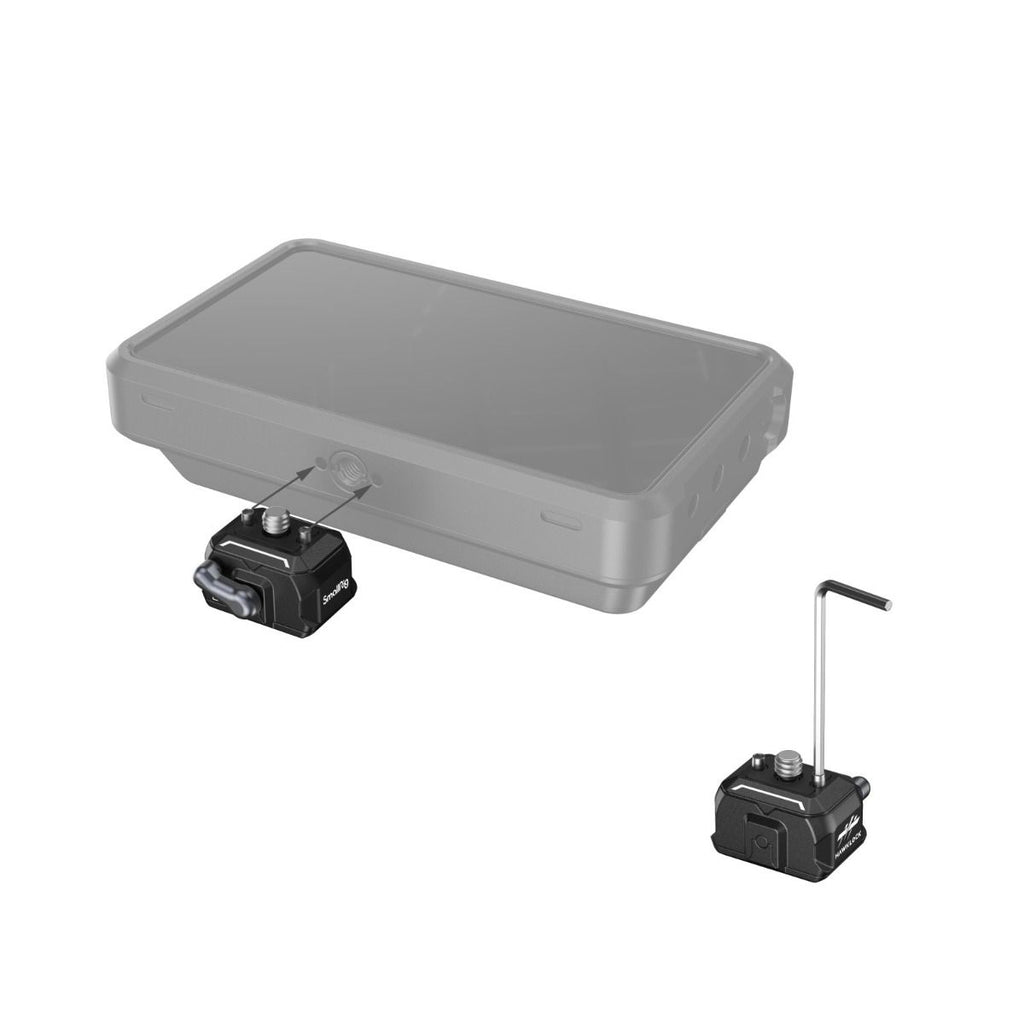

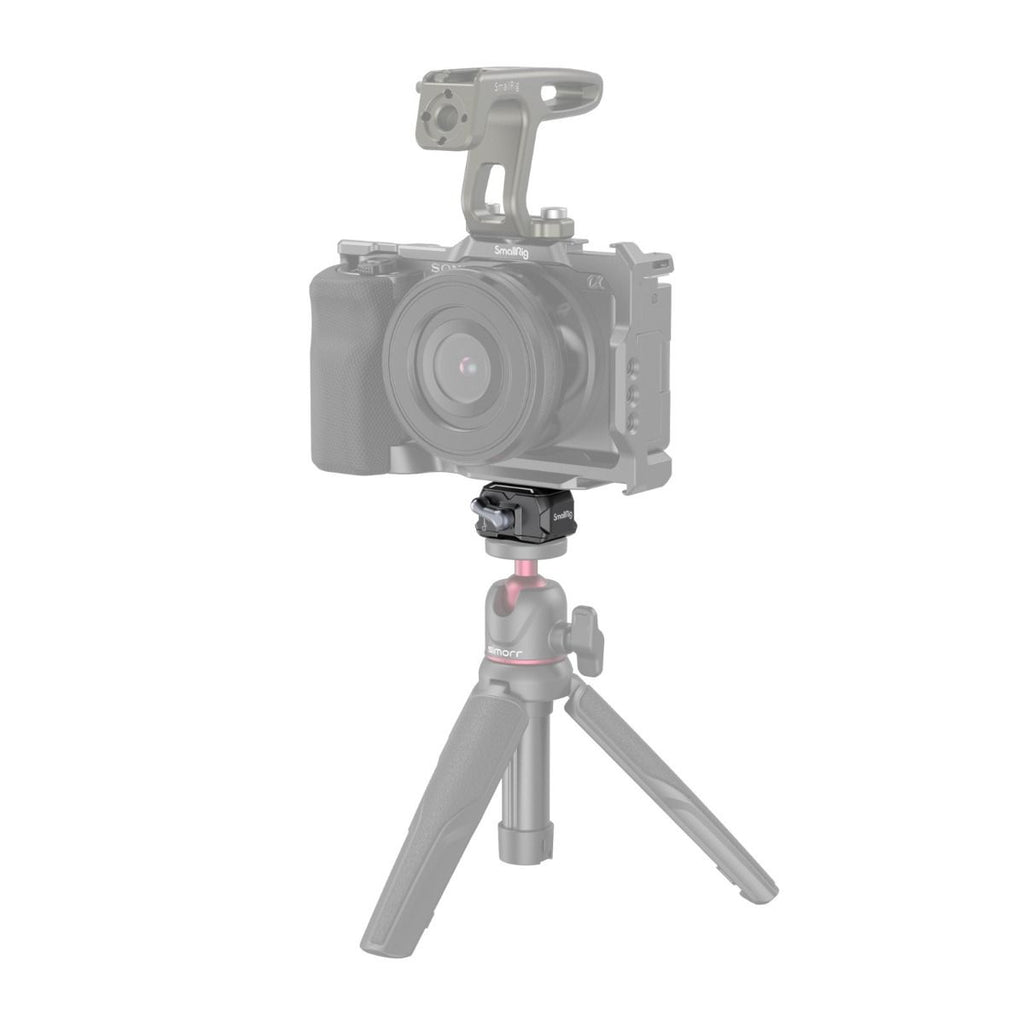

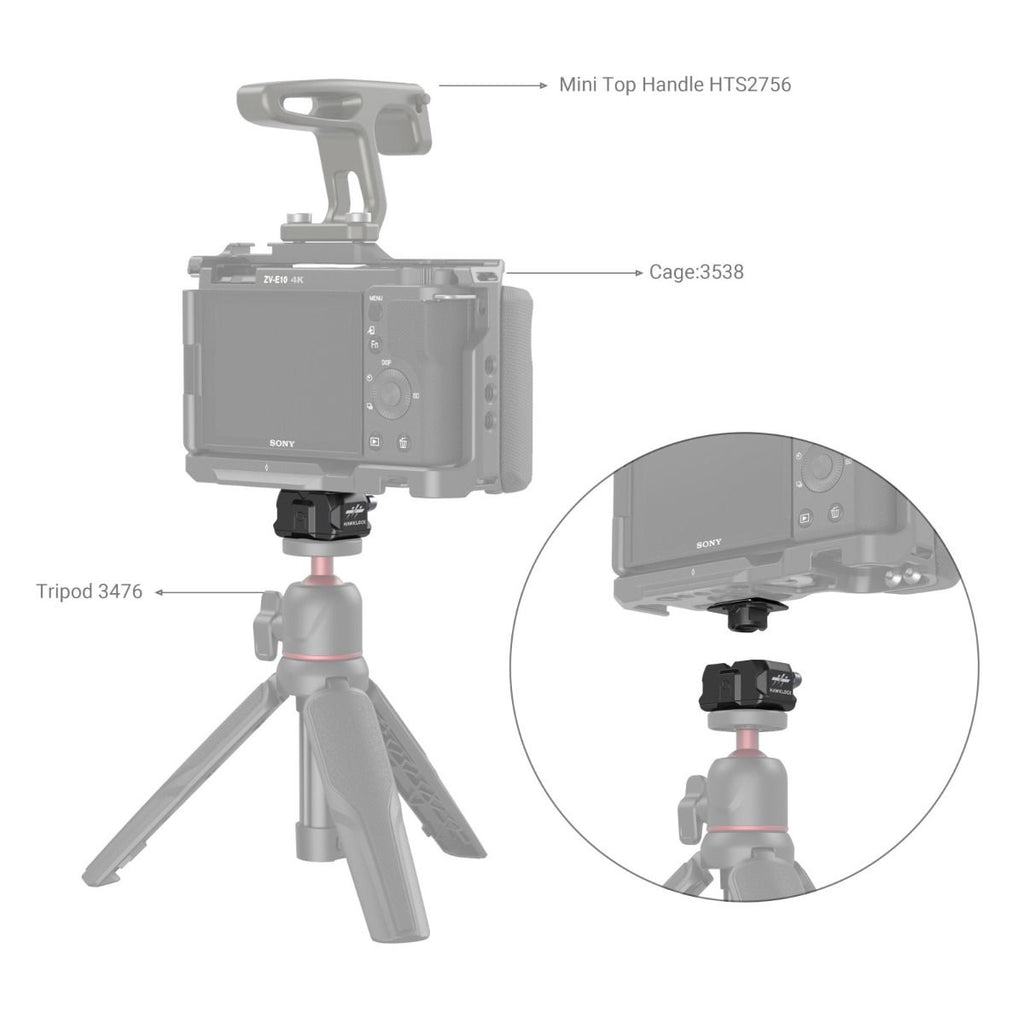

SmallRig Drop-in HawkLock Universal mini Quick Release Plate and Clamp 3513C comprises a quick-release plate and a baseplate. The quick-release plate supports devices with 1/4"-20 threads, such as cameras, monitors, cages, mounting plates, etc.; the quick-release plate is reserved for 2 optional dowel pins, which can be removed and installed as needed to effectively prevent the devices from deflection. Its 1/4"-20 threaded holes on the bottom allow attaching devices with 1/4"-20 screws, like tabletop tripods, ball heads, etc. It can buckle vertically and stably into the baseplate, causing no deflection. The whole kit, featuring a maximum dynamic load capacity of 5kg, is easy to lock and unlock for multiple shooting scenes. With built-in silicone pads on the top to prevent deflection and scratches.
IMPORTANT
- In order to prevent accidental contact from causing unlocking, the structure of HawkLock Quick Release is designed to prevent accidental contact, and the wrench also has a certain free movement in the locked state. The situation mentioned above is not a quality problem without affecting normal use.
- The dowel pins are only compatible with Atomos Ninja V, Ninja V +, and Atomos Shinobi 7; The dowel pins need to be removed when using other brands of monitors.
SPECIFICATIONS

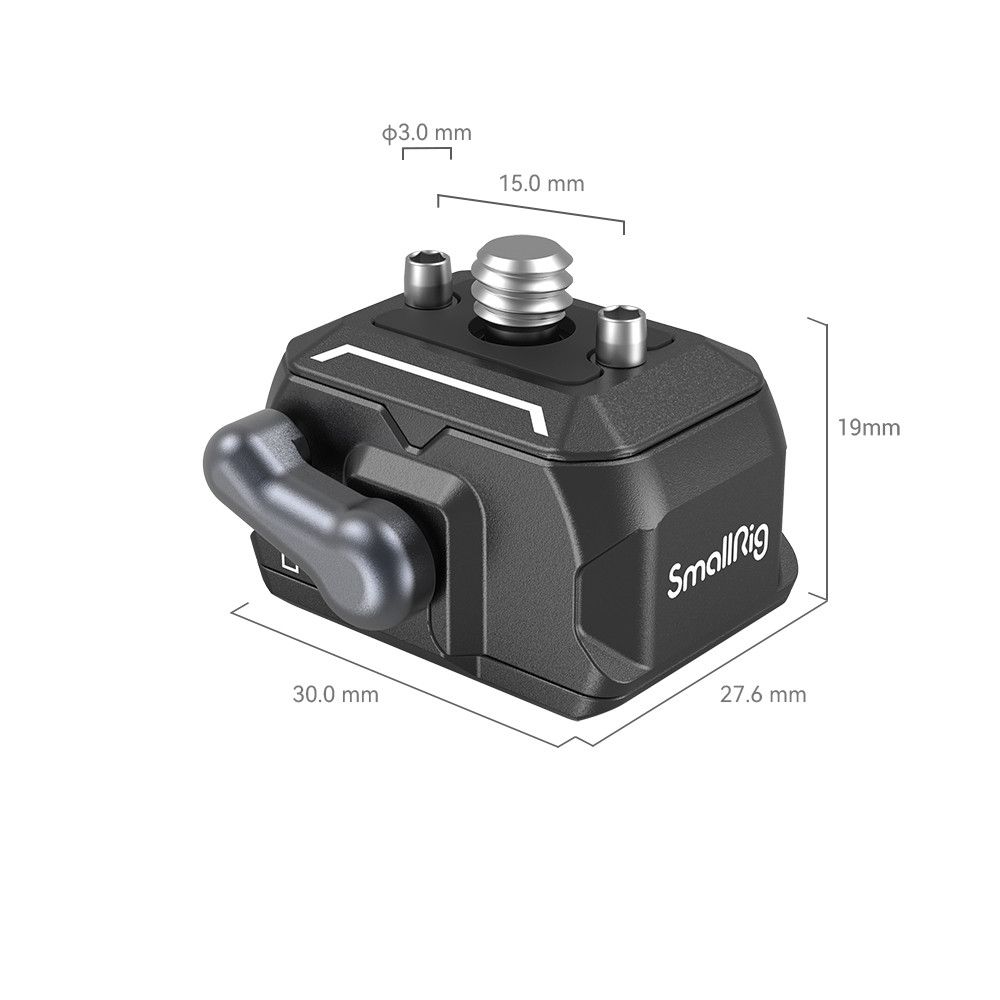

Product Dimensions: 30 x 27.6 x 25.3 mm
Package Dimensions: 65x 54x 42 mm
Net Weight: 38g±5g
Package Weight: 64g±5g
Material: Aluminum Alloy, Stainless Steel
COMPATIBILITY
Universal

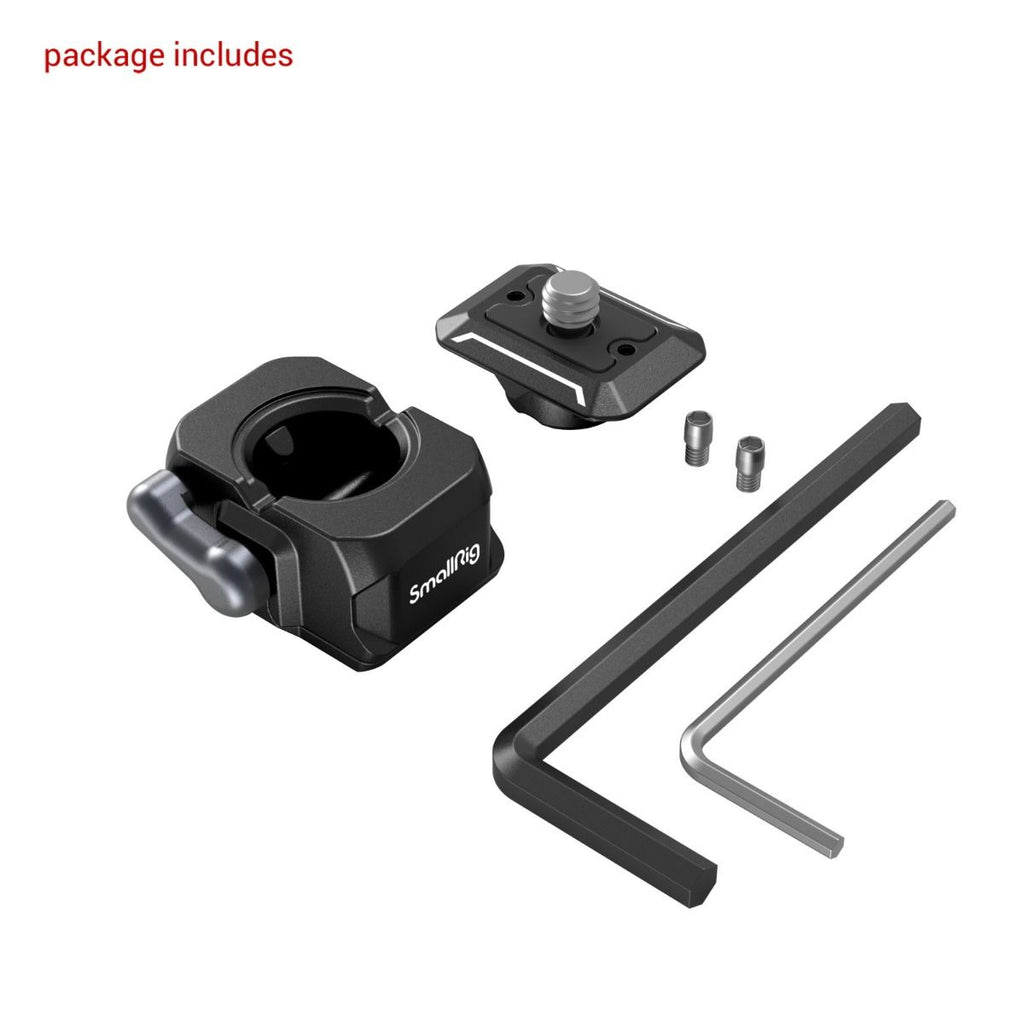

WHAT IS INCLUDED
1x Quick Release Clamp and Plate
2x Allen Wrench
