Description

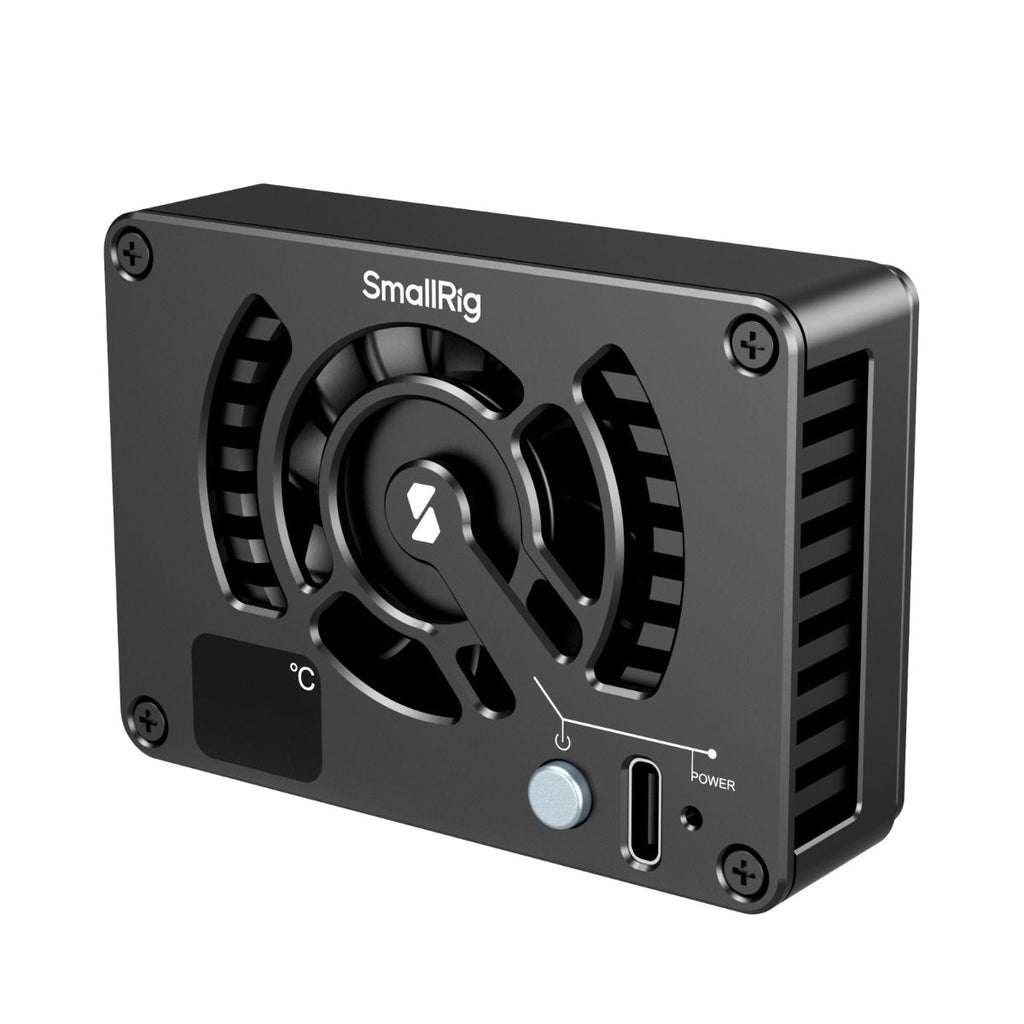

SMALLRIG COOLING SYSTEM FOR SONY / CANON / FUJIFILM CAMERAS 4815

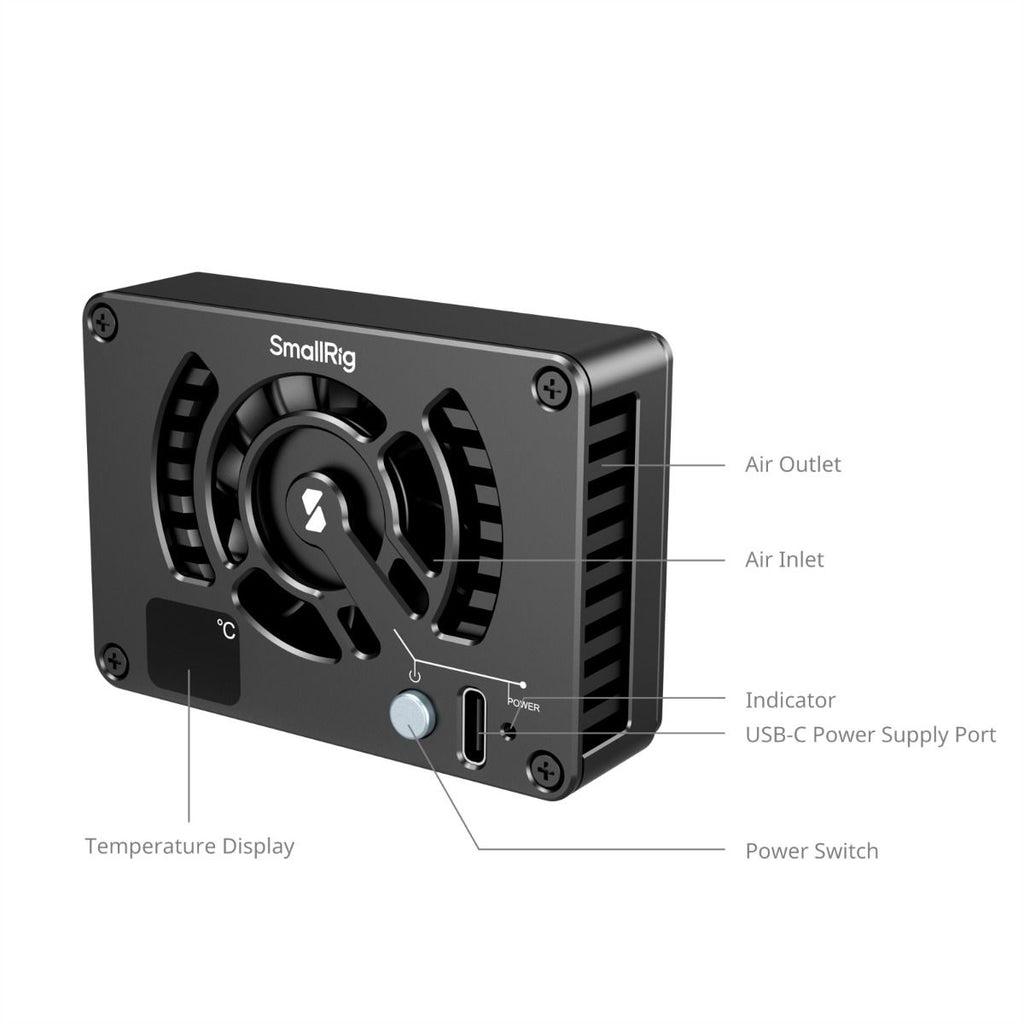

- High-efficiency fan with TEC cooling module to quickly cool down the camera.
- Automatic intelligent temperature control design.

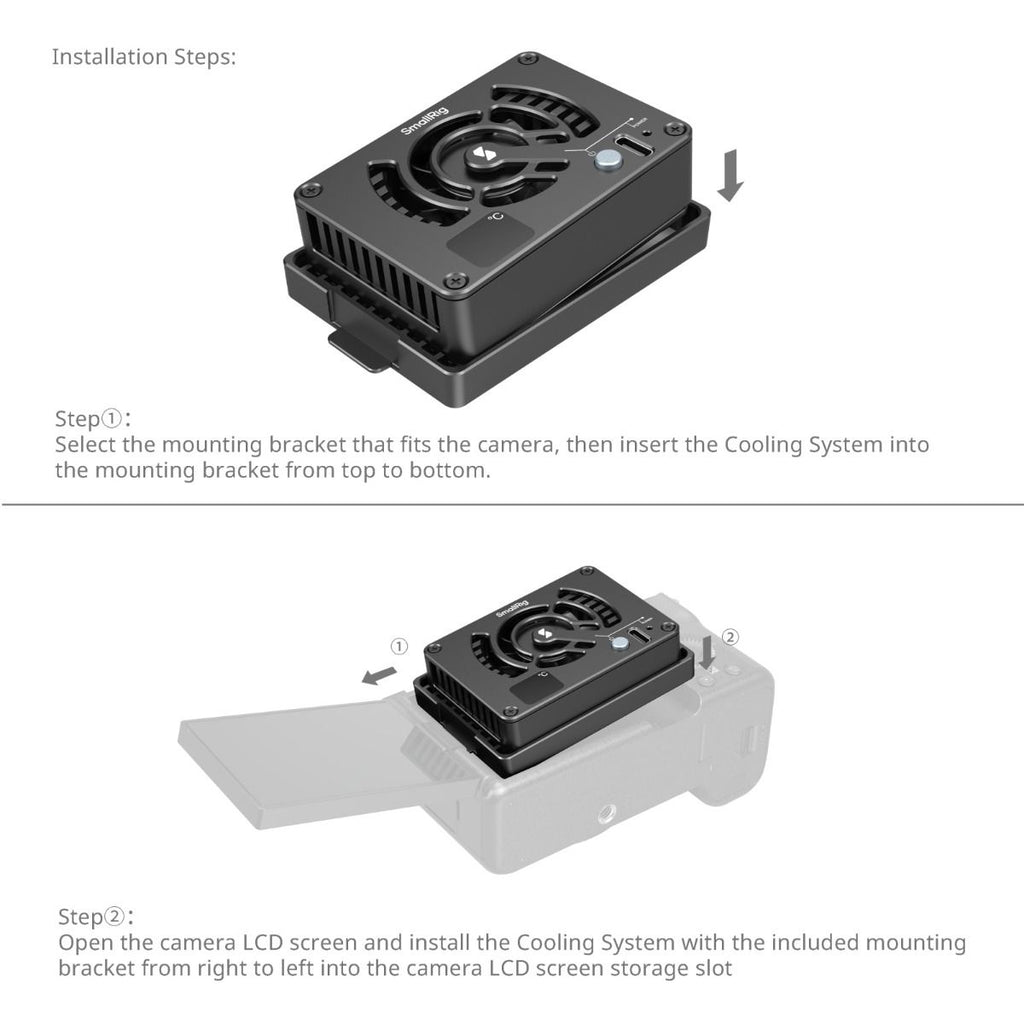

- Snap-on installation, easy to install and remove, compatible with more cameras.

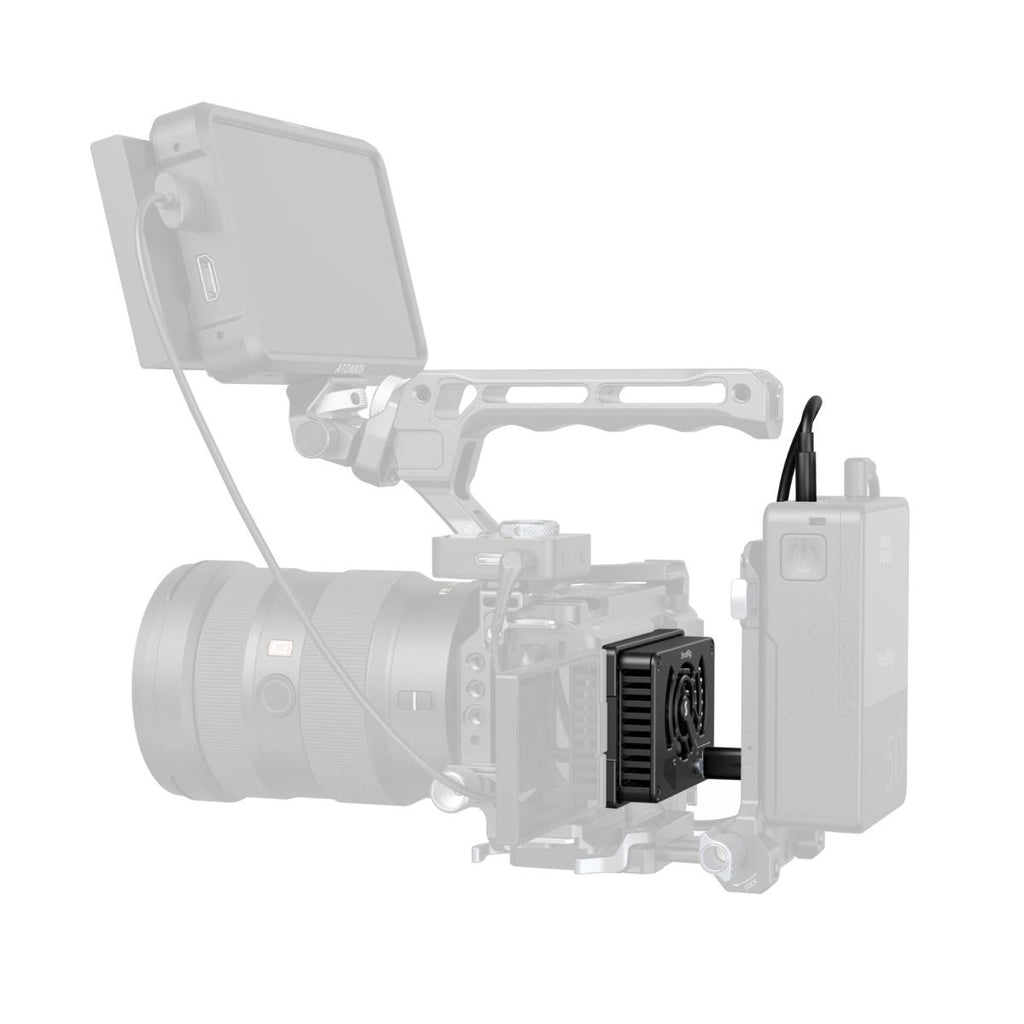

- Can be used with or without a camera cage, lighter and freer to use.
- Compatible with V-Mount Battery Mount Plate Kit 4064B / 4063B, with V-Mount batteries and other uses, convenient power supply.
SmallRig Cooling System for Sony / Canon / FUJIFILM Cameras 4815 is designed to cool down Sony mirrorless cameras and enhance the recording duration of high-specification videos. The cooling system utilizes a high-efficiency fan with a TEC cooling module to quickly cool the camera and effectively alleviate overheating problems. Built-in intelligent temperature control design, the cooling system automatically adjusts the cooling system power according to the temperature of the contact surface between the cooling system and the camera, easy to use. Snap-on mounting design, easy to remove and install, compatible with more models. Can be used with or without a camera cage, and it is lighter and freer to use. The cooling system is compatible with V-Mount Battery Mount Plate Kit 4064B / 4063B, with V-Mount battery 3579 / 3580 / 4292 use, heat dissipation, and power supply without worry.
IMPORTANT
1. After installing this product, the camera's LCD screen will not be able to be stowed. If you need to store the LCD screen, please remove the cooling system first.
2. This product does not have a built-in battery and needs to be powered by connecting to an external power source for proper operation.
3. This product is not waterproof, please do not store or use it in a humid environment.
4. Do not block the air inlet or outlet when the Cooling System is in operation.
5. Do not use the Cooling System to continue cooling the camera when the camera is not operating to prevent condensation inside the camera.
6. When not in use, press and hold the power switch for about 2 seconds to enter standby mode or disconnect the power cord to turn off the device.
SPECIFICATIONS
Operating Voltage: 5V
Operating Current: 1-3A
Operating Power: 12W（MAX）
Cooling Principle: TEC Cooling
TEC Temperature Ranges: 20℃-28℃（Automatic）
Noise Level: 38dB（MAX）
Fan Speed: 4700RPM

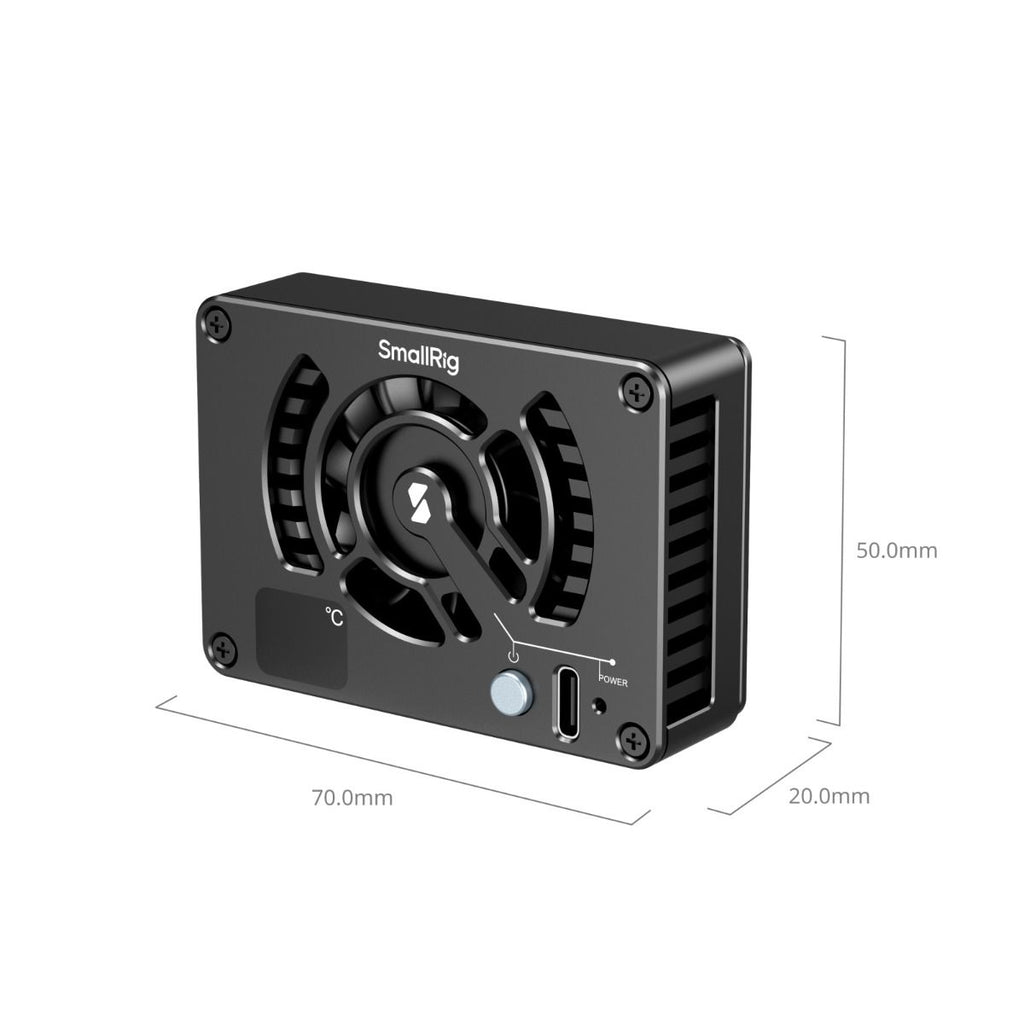

Product Dimensions: 70.0 × 50.0 × 20.0mm
Package Dimensions: 181.0 × 102.5 × 41.0mm
Product Weight: 162.0±5.0g
Package Weight: 213.8±5.0g
Materials: Aluminum Alloy+ABS-PC
COMPATIBILITY
Sony: ZV-E10 / ZV-1 / ZV-E1 / Alpha 7 IV / Alpha 7S III / Alpha 7C II / Alpha 7C / FX3 / FX30 / Alpha 6700Canon: EOS 70D / R5 / R6 / R7 / R8 / R10 / RP / R50FUJIFILM: X-T4 / X-S10Mounting Bracket CodesCompatible CamerasZVE1/A7M4-DSony Alpha 7 IV / ZV-E1 / Alpha 6700 / Alpha 7C II、Canon EOS 70DZVE10/DSony ZV-E10 / ZV-1 / Alpha 7C / FX3X-T4/DFUJIFILM X-T4 / X-S10R6/DCanon EOS R6 / R7R5Canon EOS R5FX30Sony FX30 / Alpha 7S IIIR8/R10/RPCanon EOS R8 / R10 / RPR50Canon EOS R50

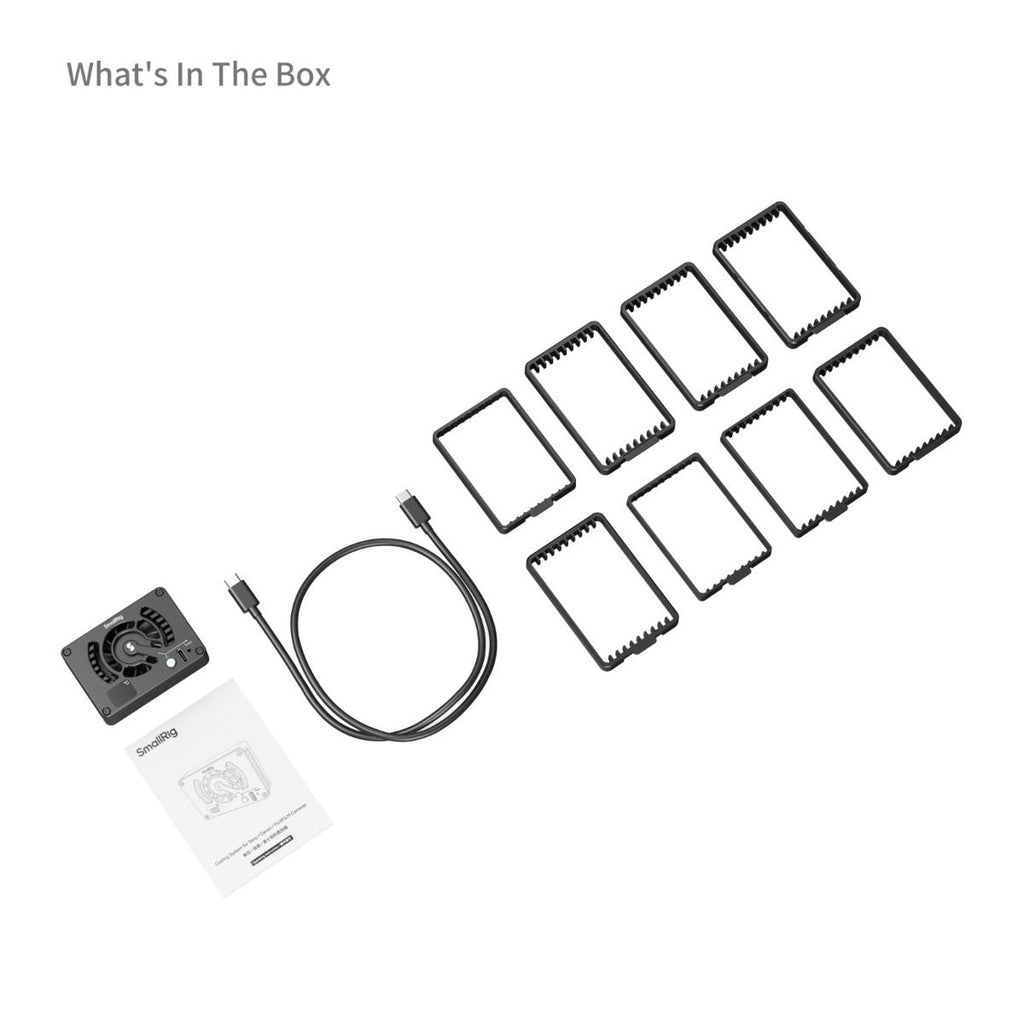

WHAT IS INCLUDED
1x Cooling System
1x USB-C Cable
8x Mounting Bracket
1x Operating Introduction
1x Guarantee Card
