Description

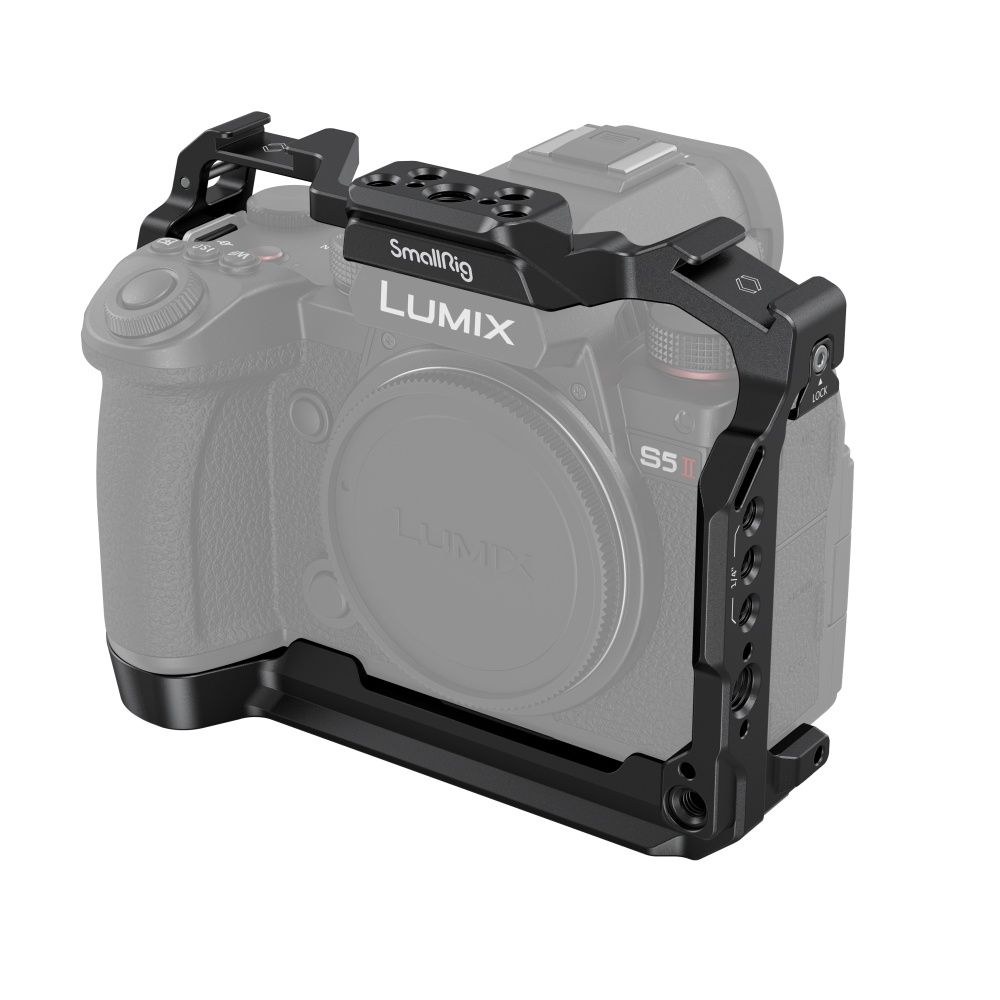

SMALLRIG CAGE FOR PANASONIC LUMIX S5 II 4022
- All-in-one full cage protects the camera and improves grip experience.
- NATO rails at the top and on the left side.
- Two cold shoe mounts at the top for the microphone, LED video light, etc.
- Anti-twist three-point locking design.

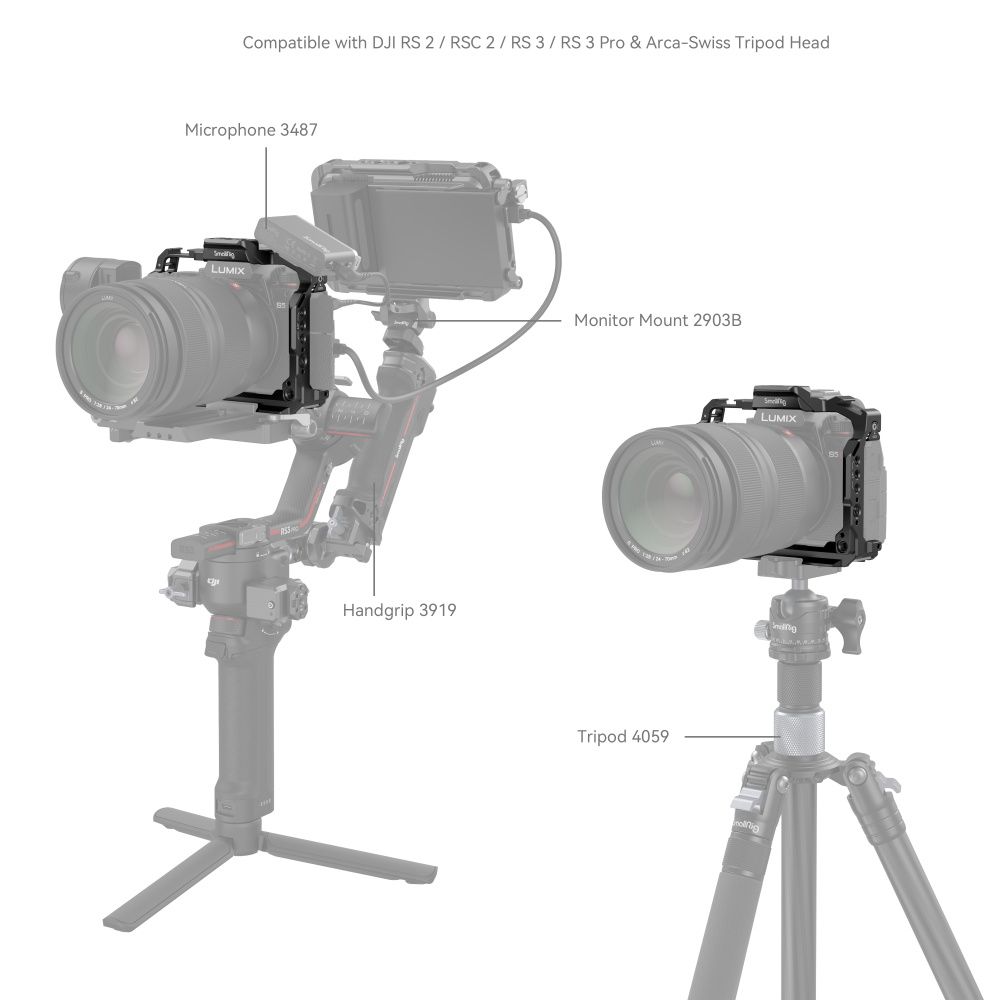

- The Arca-Swiss bottom plate supports the Arca-Swiss tripod and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals.

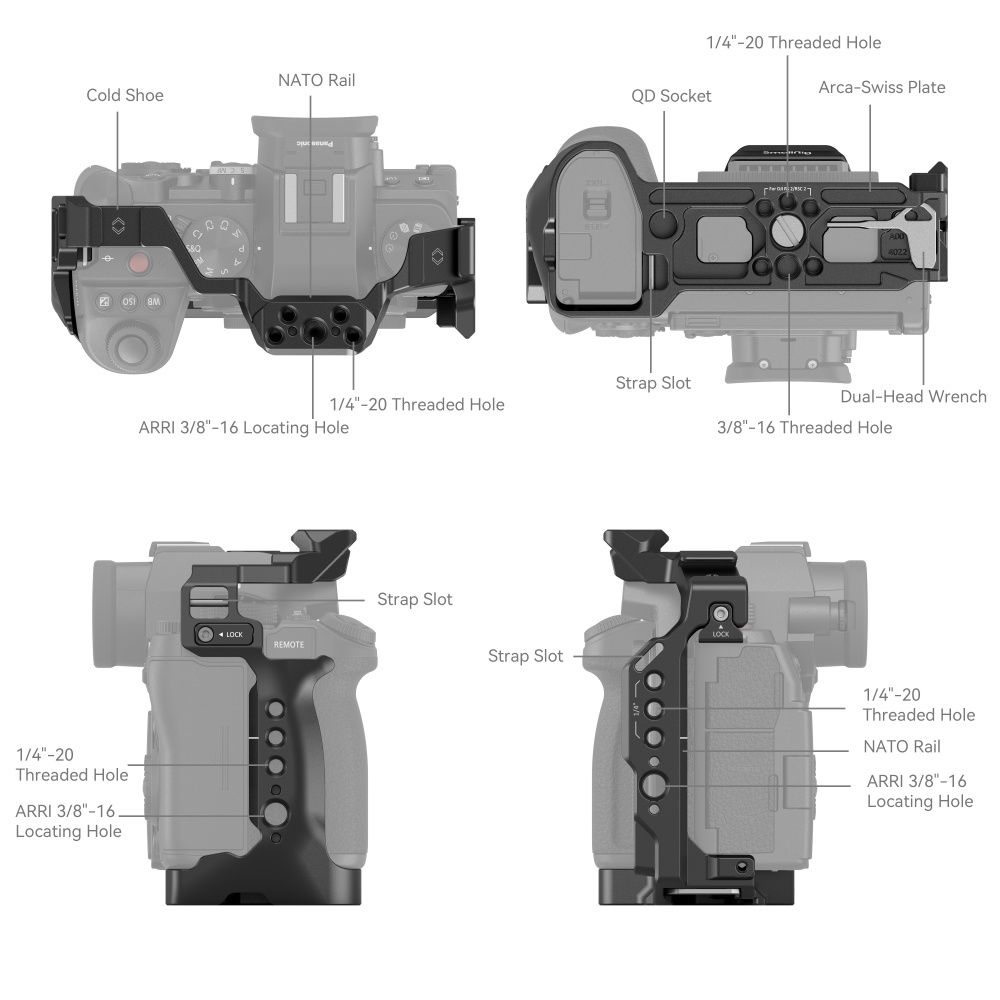

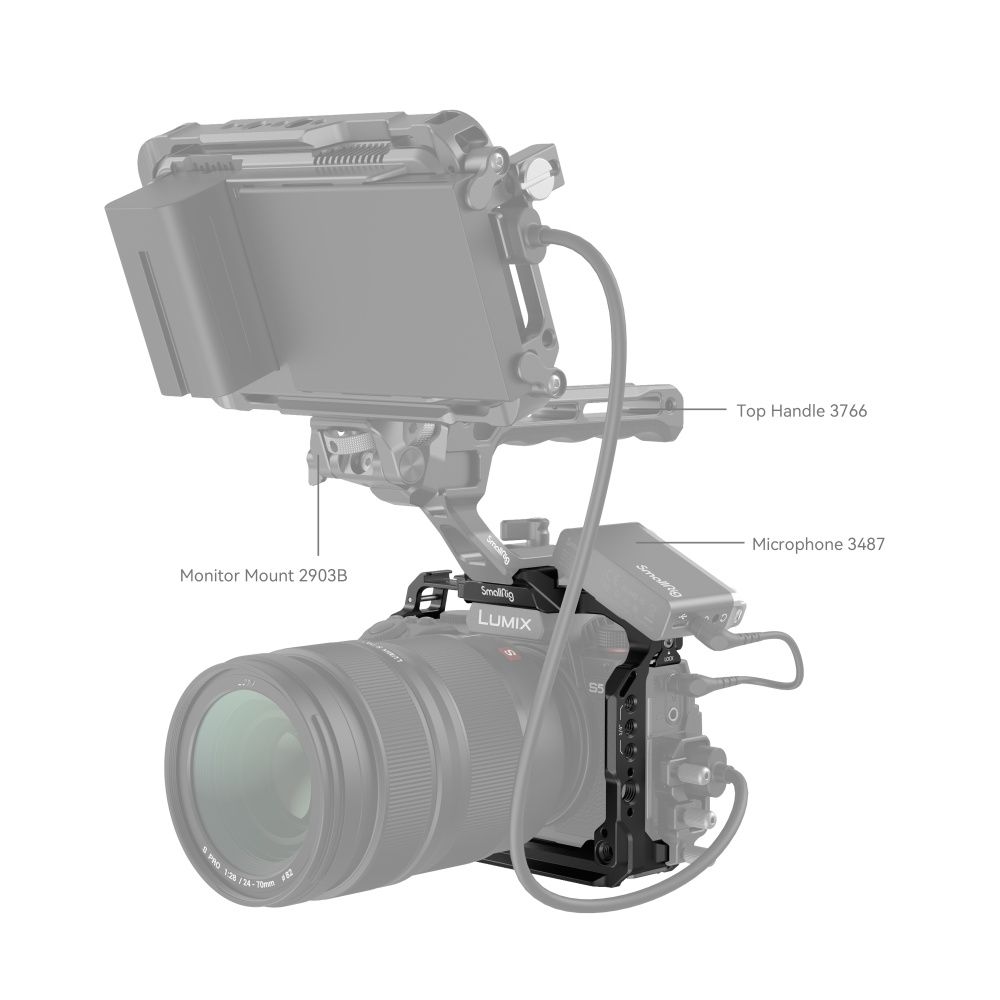

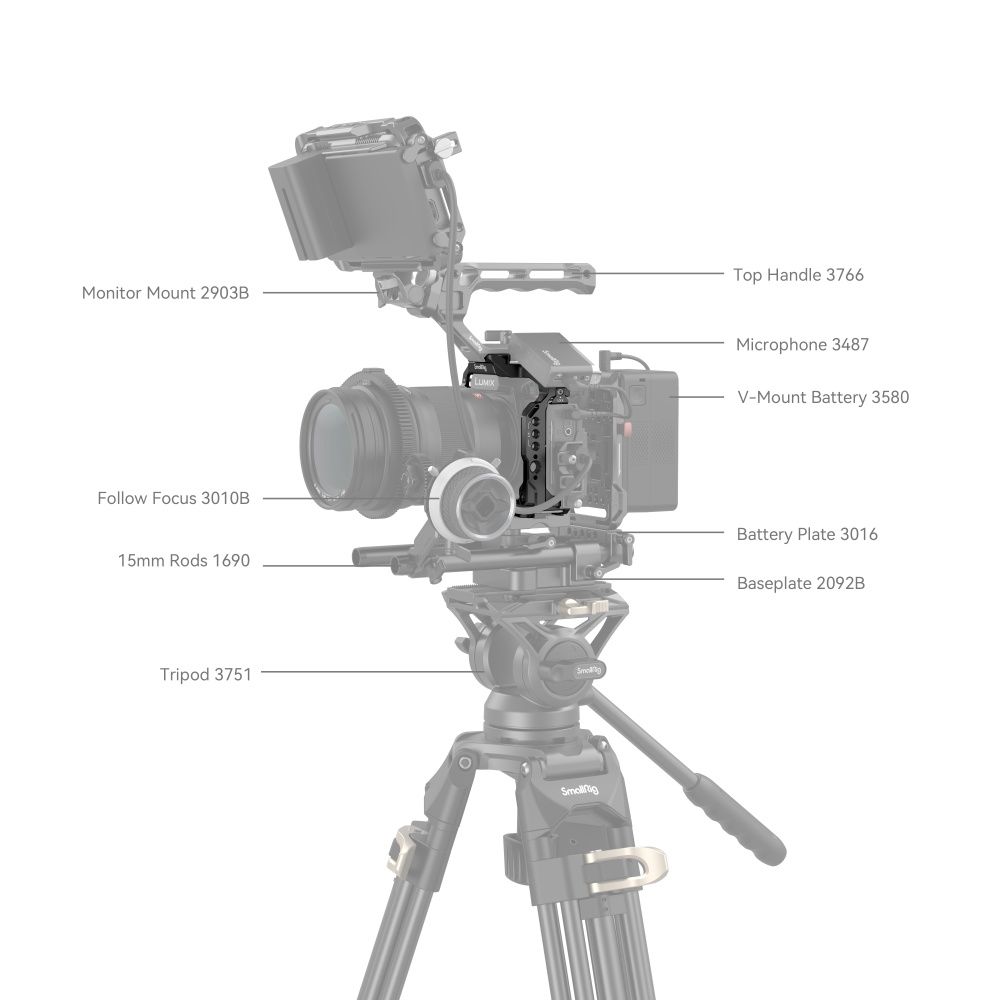

SmallRig Cage for Panasonic LUMIX S5 II / S5 IIX 4022 is designed to attach accessories and protect the camera. It locks the camera via one bottom 1/4"-20 screw and two side lock adapters, with rubber pads preventing scratches. Among its accessory mounting points, 1/4"-20 holes and ARRI 3/8"-16 locating holes support Top Handle 2165C, Side Handle 2093, etc. for easy camera movement and more stability; the front 1/4"-20 locating hole suits Rod Clamp 3276 for follow focus system; and the top ARRI 3/8"-16 locating hole fits Monitor Mount 2903B. It also comes with two cold shoe mounts to attach a microphone, and LED video light; a top NATO rail for Top Handle 3322; a left NATO rail for Side Handle 3847; and a bottom QD socket to install the QD shoulder strap. At the bottom, there is an Arca-Swiss quick-release plate, suitable for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals and Arca-Swiss tripods, as well as a threaded hole for DJI RS 2 / RSC 2 gimbal quick-release plate (height increase pad) and Arca-Swiss Quick Release Plate 315- The item also features strap holes on both sides and the bottom, which are compatible with Hand Strap PAC2456, Shoulder Strap PSC2428, etc. Besides, a magnetic wrench is included for easy disassembly and assembly.
IMPORTANT
SmallRig Cage for Panasonic LUMIX S5 II / S5 IIX 4022 is designed to attach accessories and protect the camera. It locks the camera via one bottom 1/4"-20 screw and two side lock adapters, with rubber pads preventing scratches. Among its accessory mounting points, 1/4"-20 holes and ARRI 3/8"-16 locating holes support Top Handle 2165C, Side Handle 2093, etc. for easy camera movement and more stability; the front 1/4"-20 locating hole suits Rod Clamp 3276 for follow focus system; and the top ARRI 3/8"-16 locating hole fits Monitor Mount 2903B. It also comes with two cold shoe mounts to attach a microphone, and LED video light; a top NATO rail for Top Handle 3322; a left NATO rail for Side Handle 3847; and a bottom QD socket to install the QD shoulder strap. At the bottom, there is an Arca-Swiss quick-release plate, suitable for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals and Arca-Swiss tripods, as well as a threaded hole for DJI RS 2 / RSC 2 gimbal quick-release plate (height increase pad) and Arca-Swiss Quick Release Plate 315- The item also features strap holes on both sides and the bottom, which are compatible with Hand Strap PAC2456, Shoulder Strap PSC2428, etc. Besides, a magnetic wrench is included for easy disassembly and assembly.
IMPORTANT

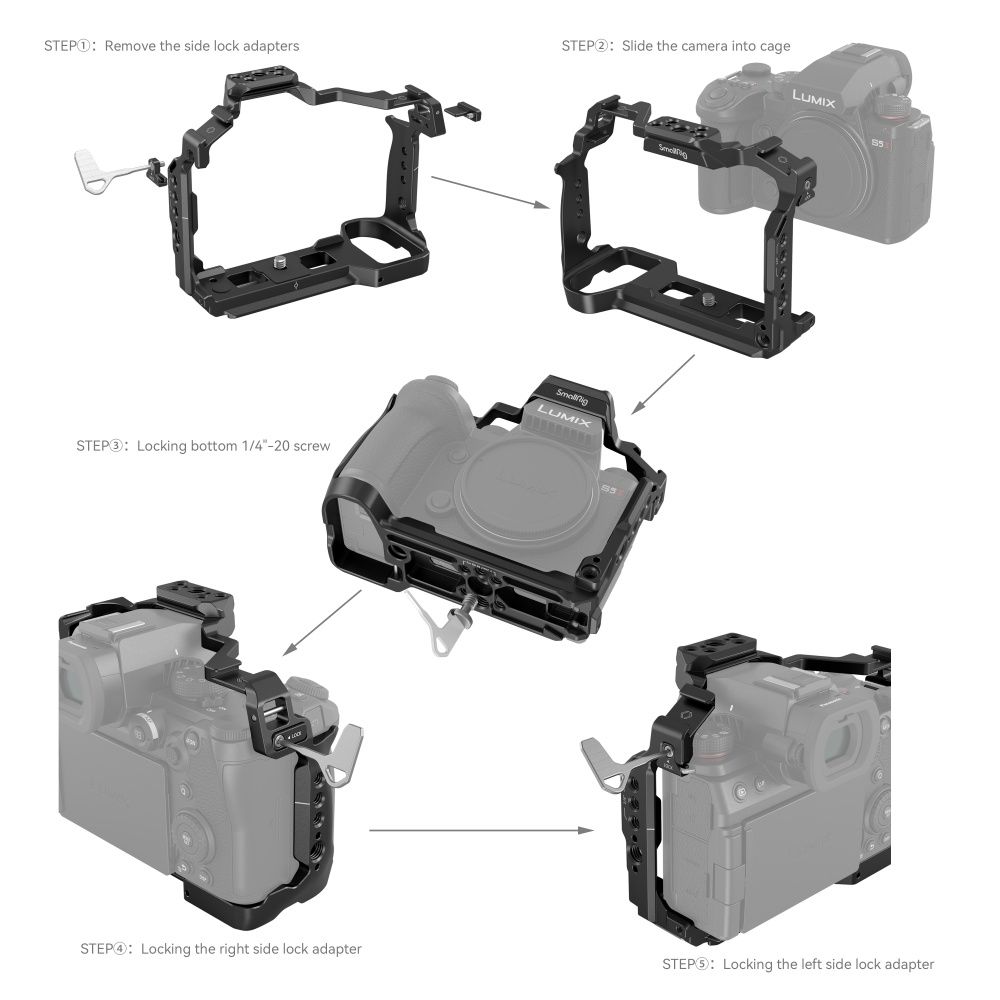

- Please remove the side lock adapters before installing this cage.
- For using HDMI & USB-C cable clamp, SmallRig Camera Cage Kit for Panasonic LUMIX S5 II / S5 IIX 4143 is recommended.
SPECIFICATIONS
SPECIFICATIONS

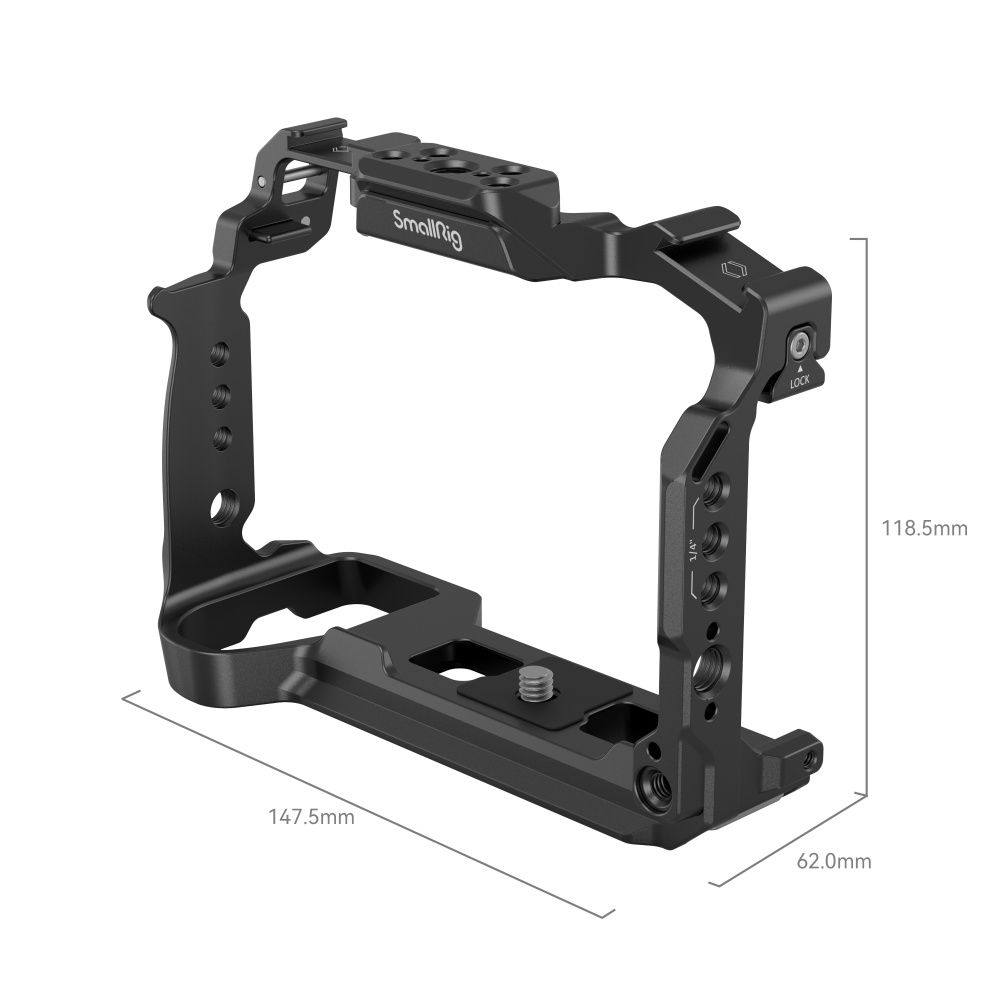

Product Dimensions: 147.5x 62x 118.5mm
Package Dimensions: 180 x 129.5x 75mm
Product Weight: 161g±5g
Package Weight: 242g±5g
Material(s): Aluminum Alloy, Stainless Steel
COMPATIBILITY
COMPATIBILITY
Panasonic LUMIX S5 II
Panasonic LUMIX S5 IIX
WHAT IS INCLUDED
WHAT IS INCLUDED

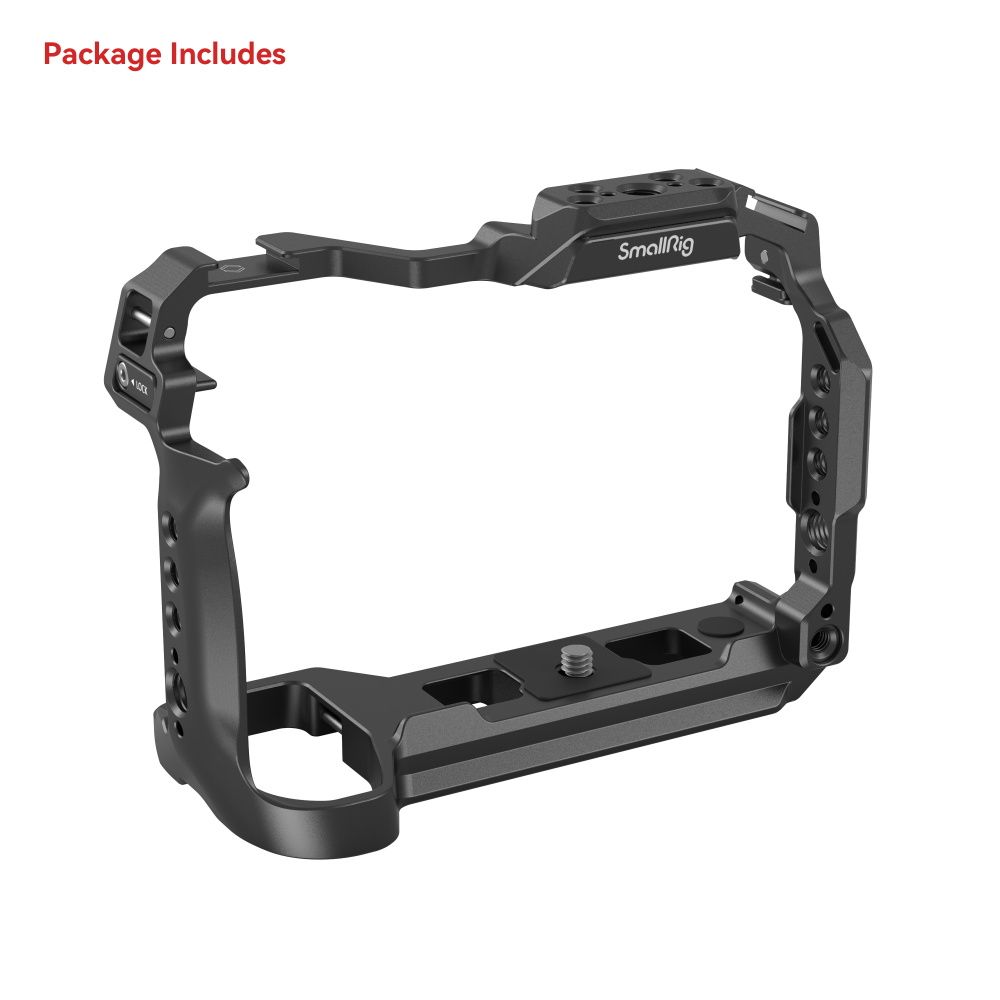

1x Cage
