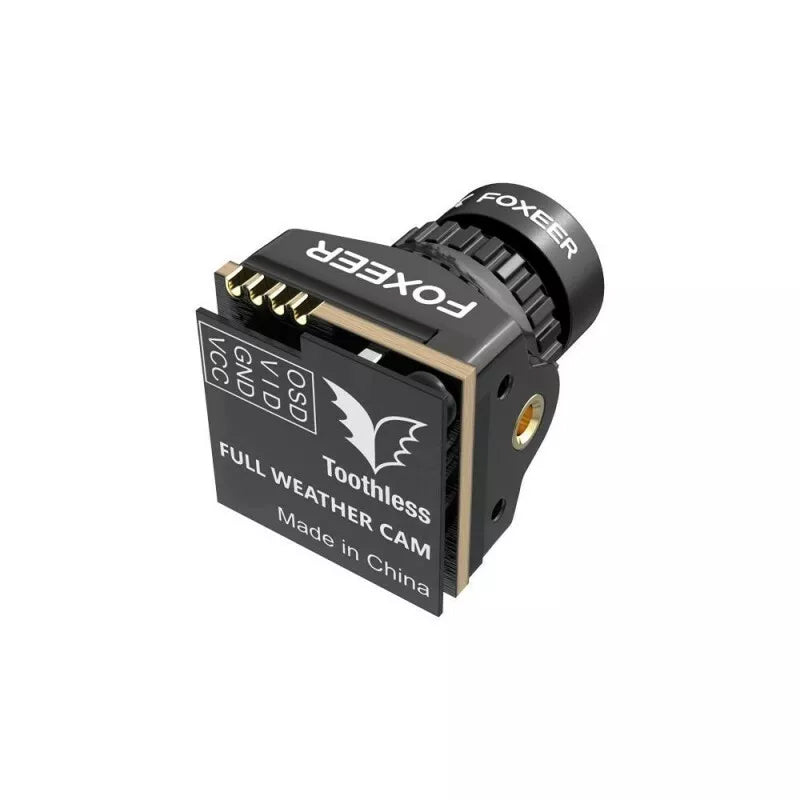

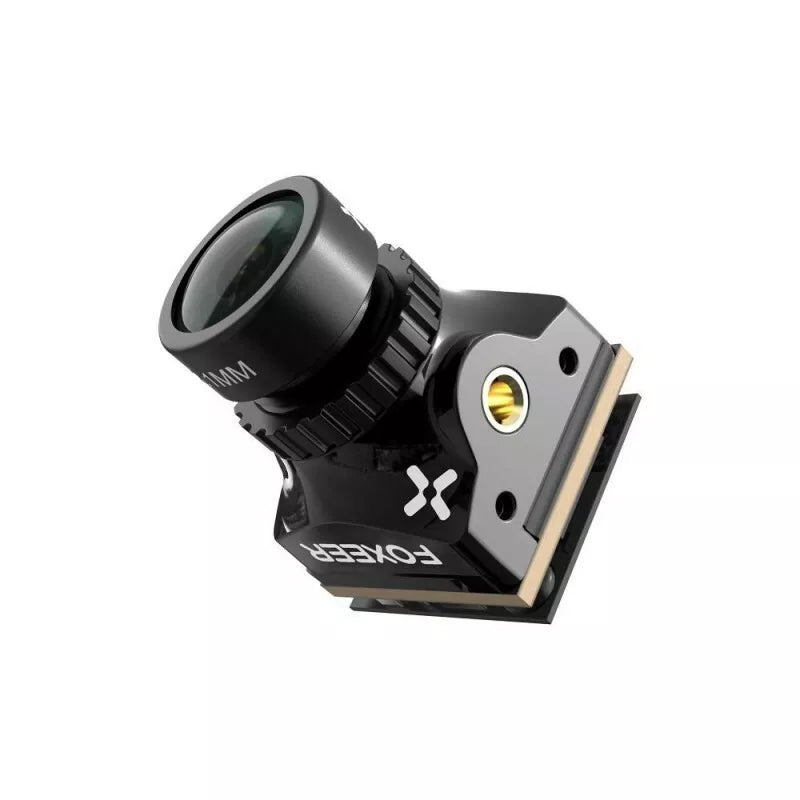

FOXEER TOOTHLESS 2 NANO (STANDARD VERSION) HDR FPV CAMERA 1.8MM LENS (BLACK)
SPECIFICATIONS
Product Code: HS1243
Colour: Black
Sensor Type: Sony 1/2" CMOS Sensor
Scale: 4:3/16:9 Switchable
Tv System: PAL/NTSC Switchable
Resolution: 1200TVL
FOV: Standard 4:3 FOV-H: 130° FOV-D:160°; Standard 16:9 FOV-H: 130° FOV-D:145°
Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output: CVBS Analog Signal
Minimum Illumination: 0.0001Lux
White Balance: Auto
DNR: 3DNR
WDR: 100dB
DAY/NIGHT: EXT/Auto/Color/B&W
Flight OSD: Voltage/Cam Title/Time
Input Voltage: 5V~16V
Language: ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
Working Temperature: -10°~50°C RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20°~70°C
Consumption: 80mA±15% @ DC12V 170mA±15% @ DC5V
Dimension: Original：14*14mm， 19*19mm adding bracket
Weight: 3.1g(Exclude cable)
WHAT IS INCLUDED
1x Foxeer Toothless 2 Nano (Standard Version) HDR FPV Camera 1.8mm Lens (Black)
1x OSD Board
1x 2pin OSD Cable
1x Bracket
2x Gasket Ring
2x M2*4 Screw
2x M2*6 Screw
1x User Manual
