Description

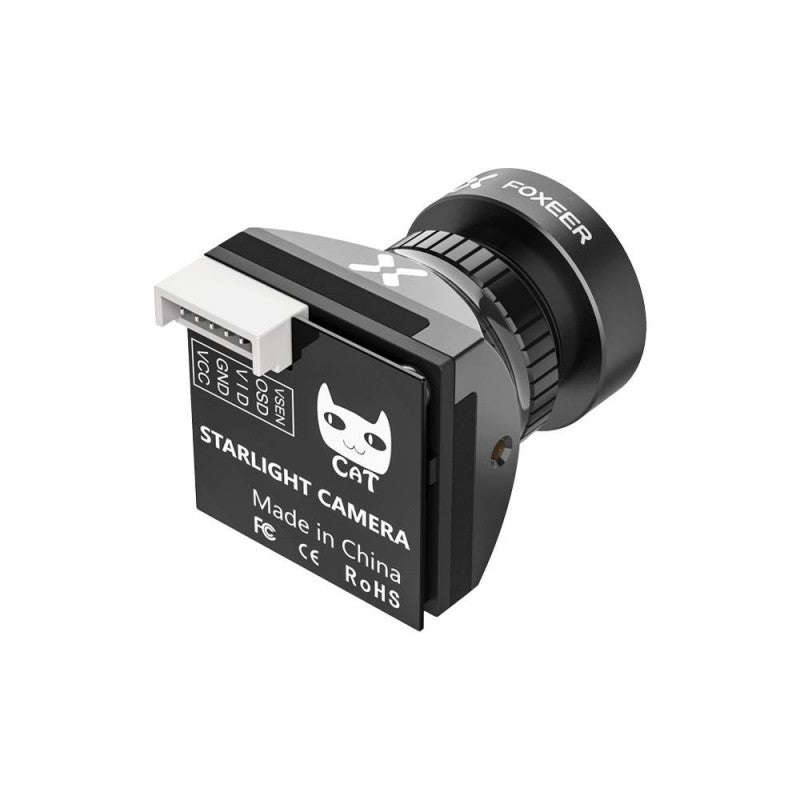

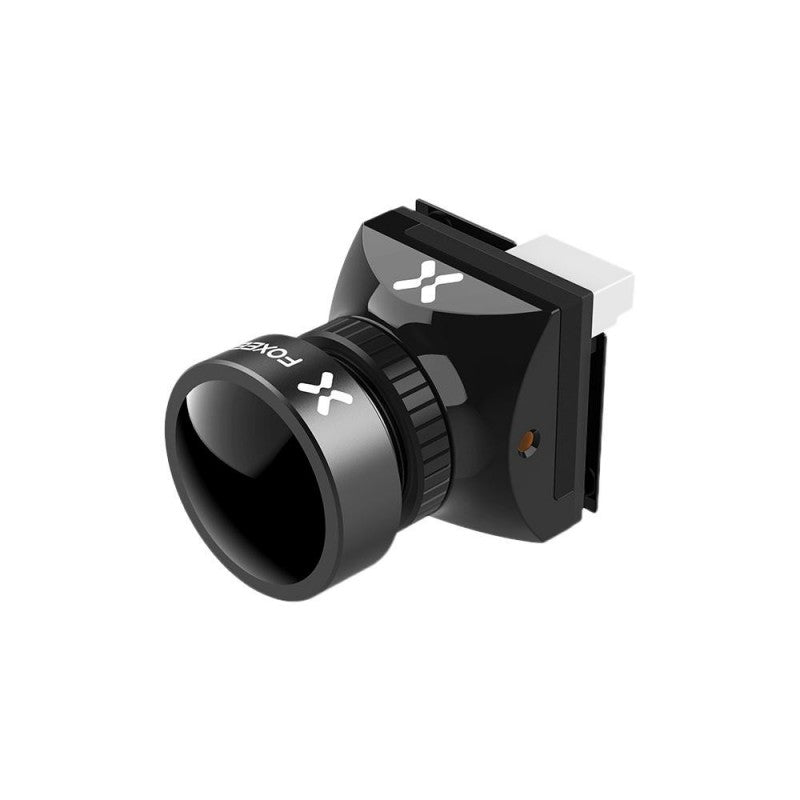

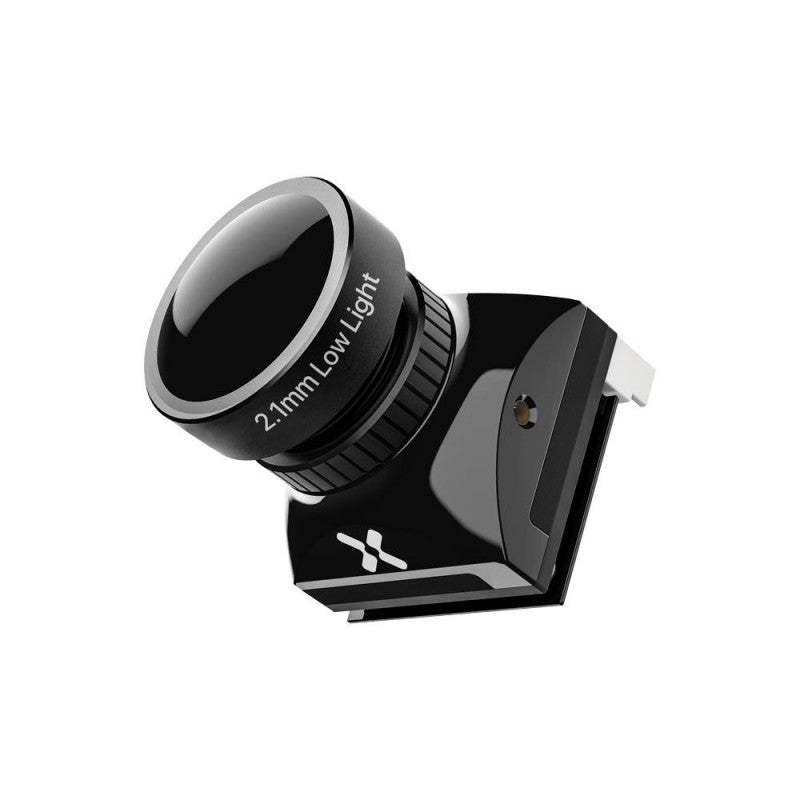

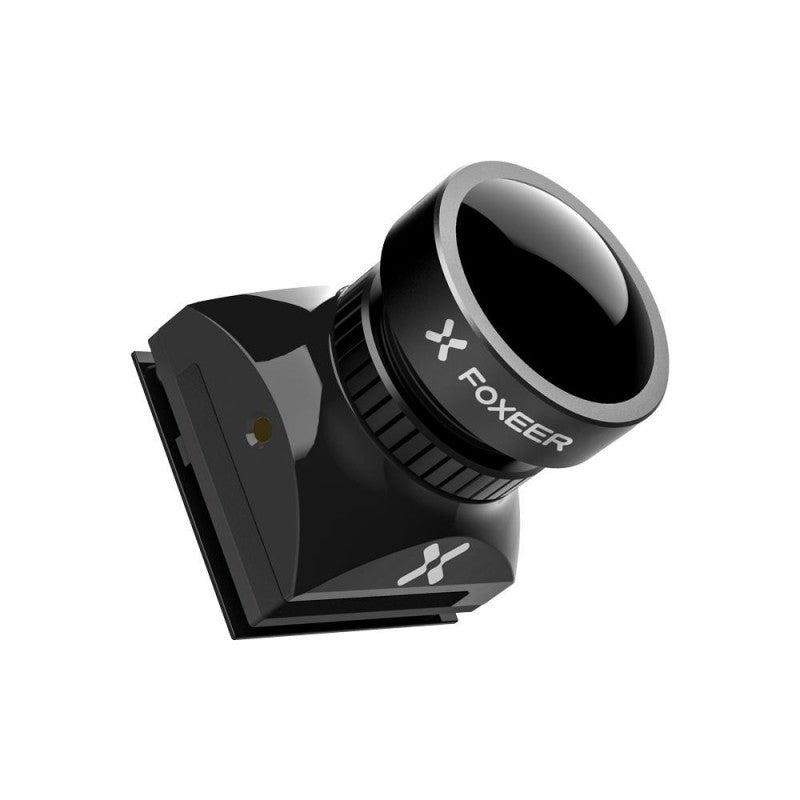

FOXEER CAT 2 MICRO 1200TVL STARLIGHT NIGHT FPV CAMERA 2.1MM LENS (BLACK)
SPECIFICATIONS
Product Code: HS1245
Colour: Black
Sensor: 1/3″ CMOS
Scale: 4:3/16:9 Switchable
TV System: PAL/NTSC Switchable
Resolution: 1200TVL
FOV: 4:3: FOV-H 85°, FOV-D 105°; 16:9: FOV-H 115°, FOV-D 145°
Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
B&W Min. Illumination: 0.0001ux Starlight
Color Min. Illumination: 0.0005lux
Latency: Ultra-Low Latency
White Balance: Auto
DNR: 3DNR
WDR: Yes
Day/NIght Shift: EXT/Auto/Color/B&W
Flight OSD: Voltage/Cam Title/Time
Power Requirement: DC 4.6~24V
Power Consumption: DC 4.6-24V,230mA±15%@DC5V,100mA±15%@DC12V
Language: English/Chinese
Working Temperature: -10℃ ~ +50℃ RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%

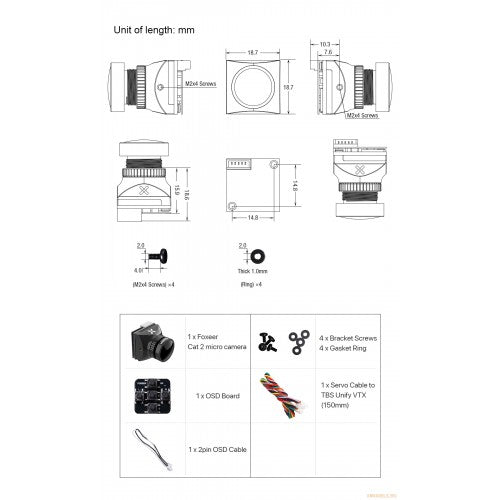

Dimension: 18.7×18.7mm (without bracket)
Weight: 10.5g
WHAT IS INCLUDED
1x Foxeer Cat 2 Micro Camera
1x OSD Board
1x 2pin OSD Cable
4x Bracket Screw
4x Gasket Ring
1x Servo Cable to TBS Unify VTX (150mm)
