Description

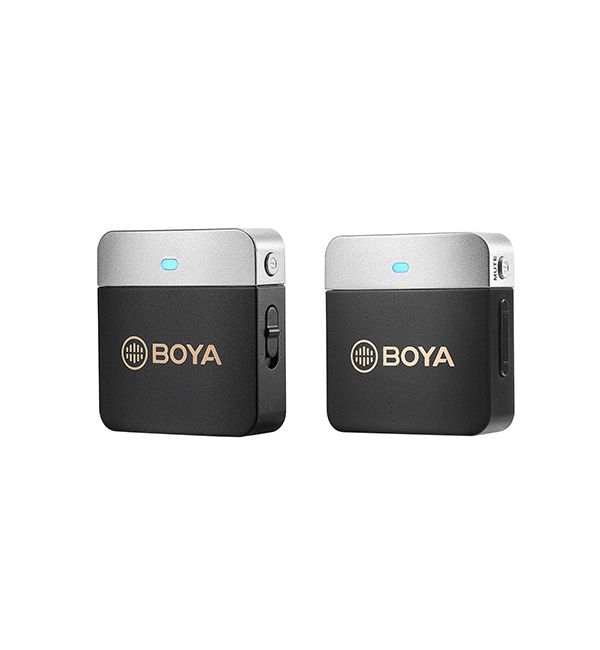

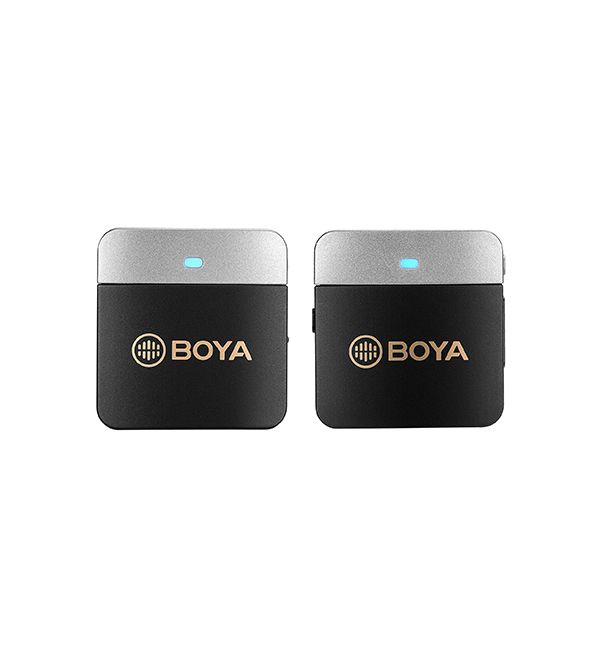

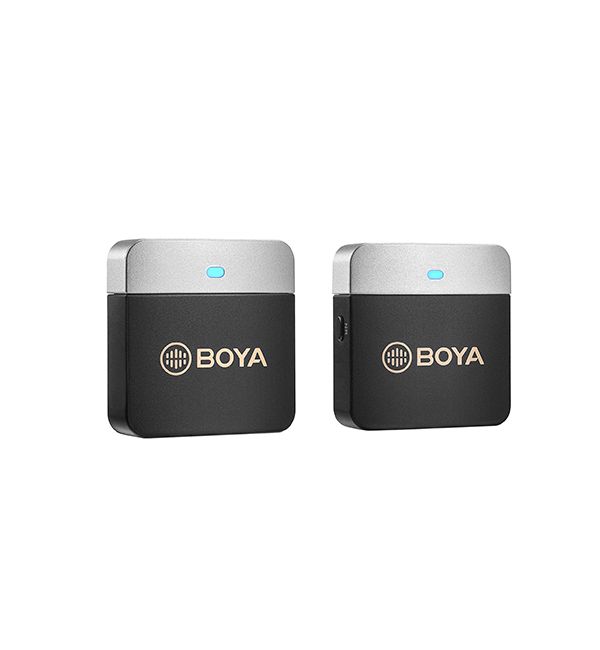

BOYA M1V1 MINI 2.4GHZ DUAL-CHANNEL WIRELESS MICROPHONE SYSTEM
- Ultracompact & portable
- Up to 60m wireless operation range

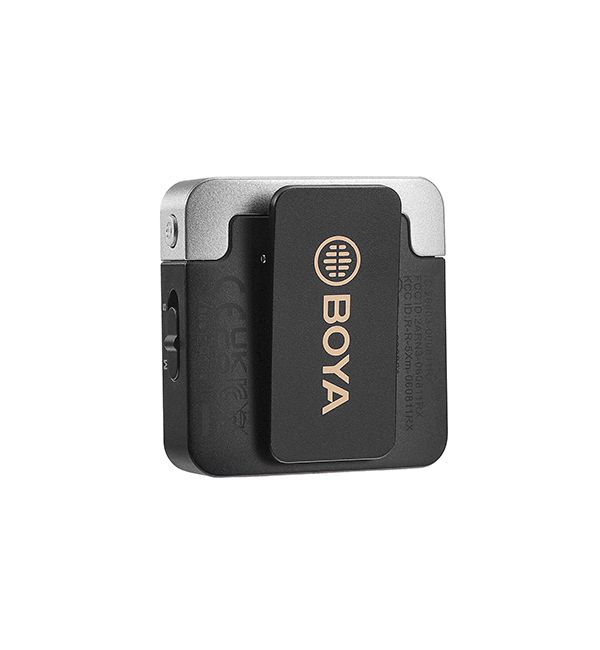

- Easy-to-use clip-on TX transmitter/ RX receiver
- Compatible with smartphones, tablets, cameras, camcorders, etc
- Built-in mic for high-quality sound
- ldeal for interviews, podcasts & live streaming
- Selectable mono/stereo output
The BY-M1V series is a lightweight also user-friendly wireless microphone system that delivers exceptional sound quality to a range of devices including smartphones, tablets, DSLR cameras, or camcorders. It's perfect for live streaming, content creation, or mobile journalism. The BY-M1V1 is designed for camera or devices with 3.5mm jack pot. Small in Size, Big in Impact The BY-M1V series, which weighs less than 36g, is compact also lightweight, allowing for easy portability. Its convenience is further emphasized by its user-friendly design, which only requires the receiver to be plugged in to start recording. Exceptional Compatibility The BY-M1V series' great compatibility is demonstrated by its offering of a choice of RX, RXD, or RXU kits, all of which provide exceptional sound quality when used with a range of devices including smartphones, tablets, DSLR cameras, or camcorders.
SPECIFICATIONS
BY-M1V-TX
Transmission Type: 2.4GHz ISM
Modulation: GFSK
Operating Range: >60m (without obstacles)
RF Output Power: <10mW
Audio Input: 3.5mm Jack or Built-in Omnidirectional Mic
Frequency Response: 50Hz-20kHz
Signal-to-Noise Ratio: >75dB
Maximum SPL: Built-in Microphone: 120dB SPL
Sensitivity: Built-in Microphone:-39dB±2dB(0dB=1V/Pa@1kHz)
Noise Cancellation: Yes
Power Requirement: Built-in Li-ion Battery or USB-C DC 5V
Antenna: PIFA Antenna

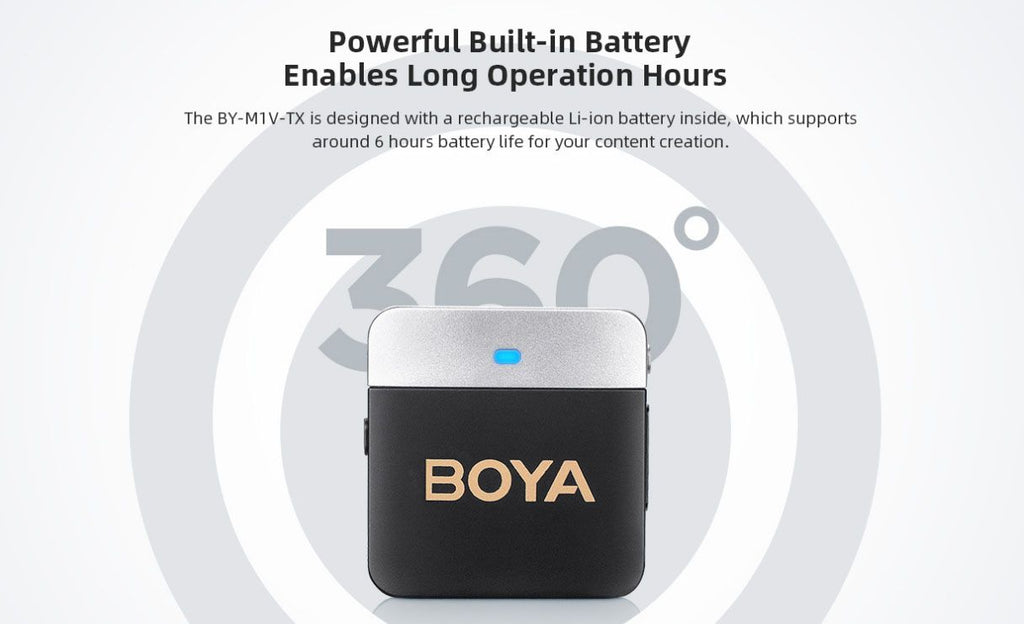

Battery Life: Approx.6 hours
Weight: 18g

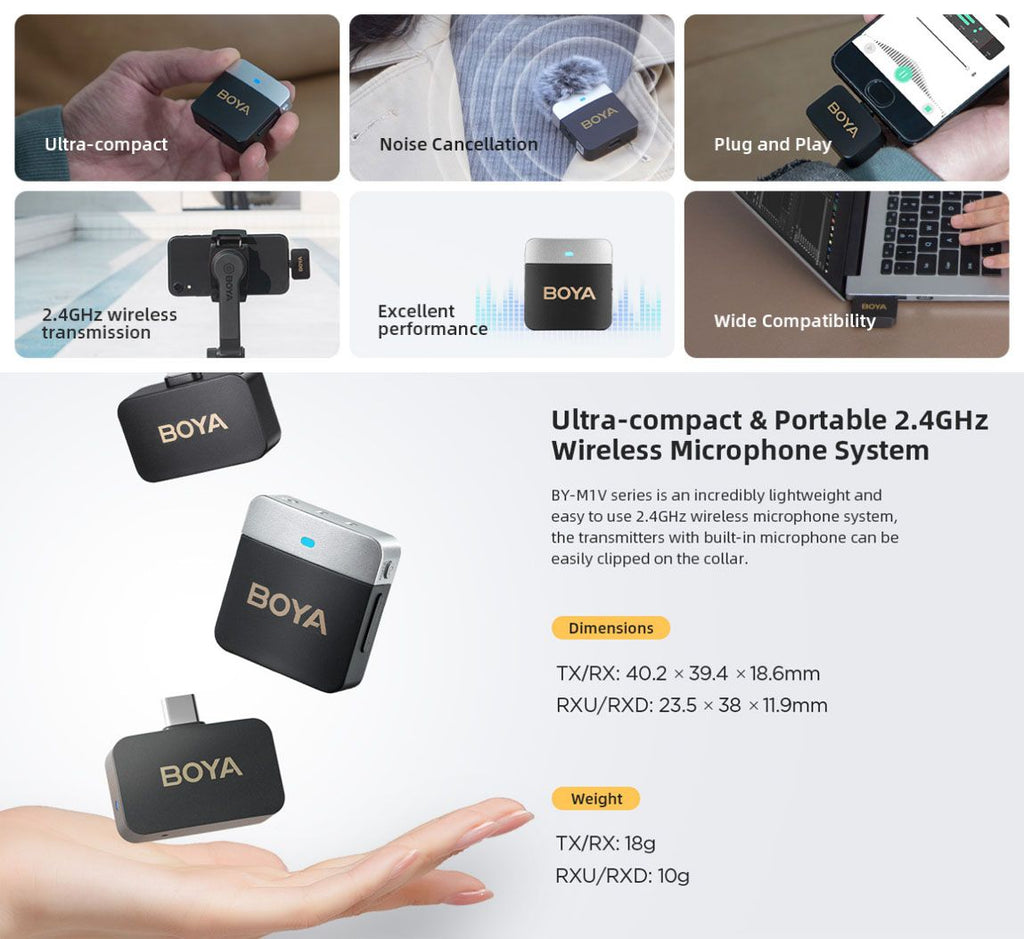

Dimensions: 40.2mm x 39.4mm x 18.6mm
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 55°C
BY-M1V-RX
Transmission Type: 2.4GHz ISM
Modulation: GFSK
Operating Range: >60m (without obstacles)
RF Output Power: <10mw
Audio Output: 3.5 mm Headphone Output Jack / 3.5 mm TRS Line Output Jack
Power Requirement: Built-in Li-ion Battery or USB-C DC 5V
Antenna: PIFA Antenna
Built-in Battery Life: Approx. 6 hours
Weight: 18g
Dimensions: 40.2mm x 39.8mm x18.6mm
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 55°C

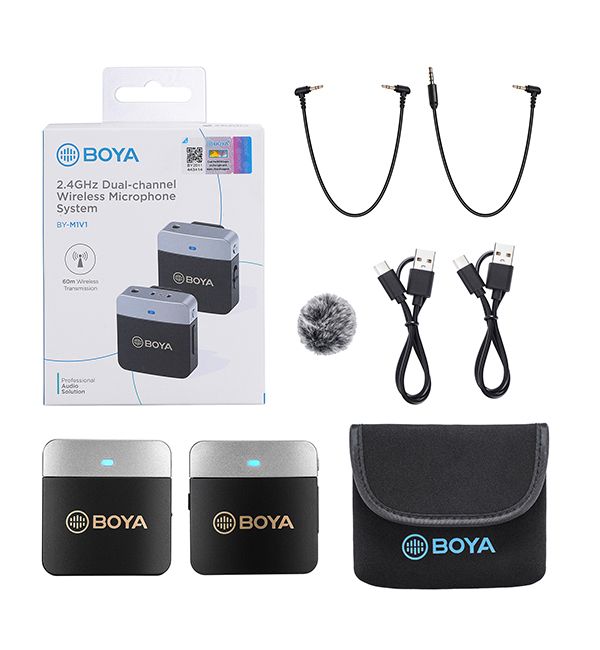

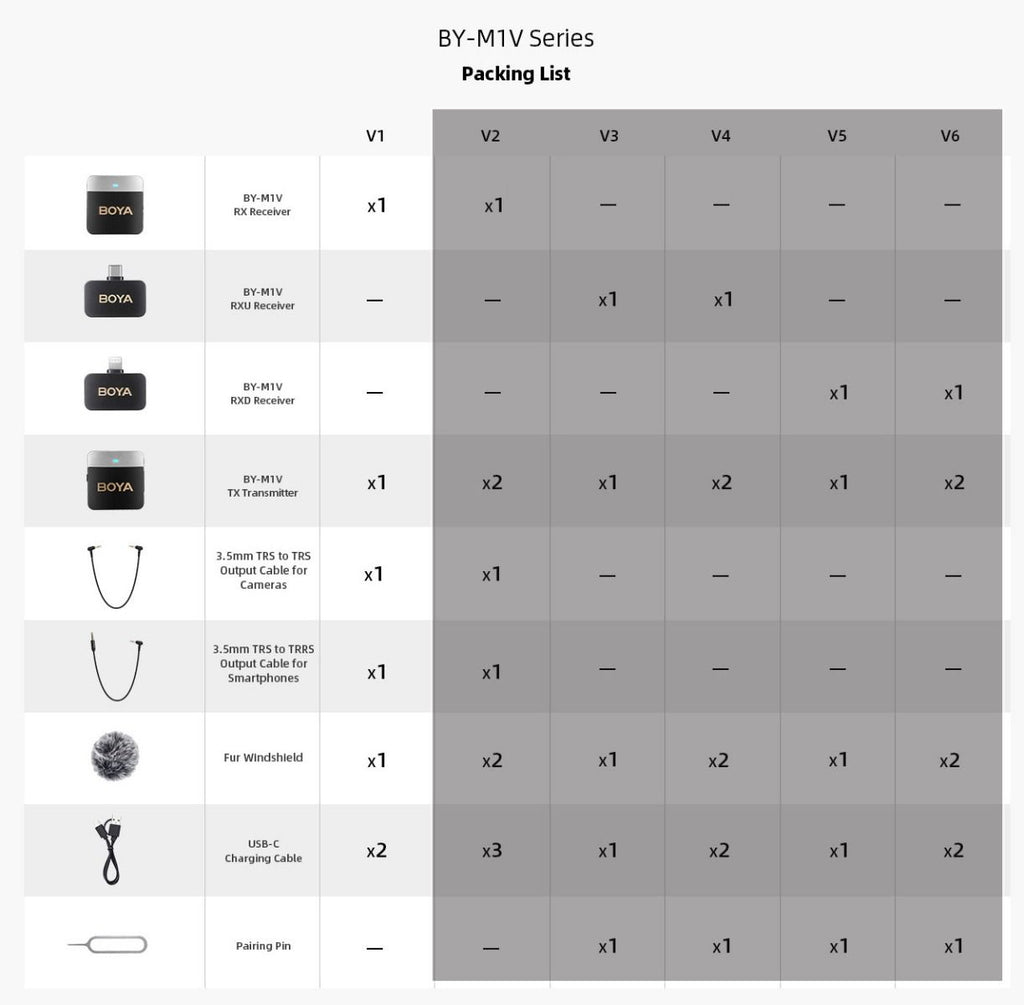

WHAT IS INCLUDED
1x BY-M1V-TX Transmitter
1x BY-M1V-RX Receiver
1x 3.5mm TRS to TRS Output Cable for Cameras
1x 3.5mm TRS to TRRS Output Cable for Smartphones
2x USB-C Charging Cable
1x Fur Windshield
